The purpose of the aluminum filter is to remove the low energy, long wavelength, and least penetrating x-rays from the x-ray beam. These x-rays are harmful to the patient and are not useful in producing a diagnostic-quality radiograph. X-ray machines operating at 70 kVp or above must have aluminum filtration of 2.5 mm.
Full Answer
What is the primary purpose of X-ray beam filtration?
What is the primary purpose of x-ray beam filtration? To remove low-energy x-rays, which only increase patient dose without contributing to the image. Th kVp is reduced from 78 to 68 kVp.
What type of filtration is used in X-ray tubes?
There are two types of filtration 2: Total filtration is the combined effect of inherent and added filtration, with US guidelines stating a minimum total filtration of 2.5 mm of aluminium is required for x-ray tubes operating above 70 kVp 3.
How do materials filter out X-rays?
The result is that every material preferentially filters out x-rays corresponding to and slightly above their electron energy levels, while generally allowing X-rays with energies slightly less than these levels to transmit through relatively unscathed.
Why is beryllium used in X-rays?
Beryllium is commonly used in mammography (which use low-energy photons) as it provides very little filtration. Other types of x-ray generally use aluminum, copper or tin.
How does the aluminum filter in the x-ray machine help to protect the patient from excess radiation?
6. Aluminum Filter – an aluminum disk placed in the path of the x-ray beam to absorb low energy x- rays that do not have the penetrating power to pass through anatomic structures and reach the film.
Why is aluminum used for Xray beam filtration quizlet?
Why is aluminum used for x-ray beam filtration? Because it is efficient at removing low-energy x-rays, and because it is readily available, inexpensive, and easily shaped into filters.
Why is Aluminium filter used in x-ray?
Filters are metal sheets placed in the x-ray beam between the window and the patient that are used to attenuate the low-energy (soft) x-ray photons from the spectrum.
What usually is the material primarily used for filtration of beam exiting the tube?
aluminiumThe X-ray beam is filtered (usually with aluminium) to remove low-energy photons that contribute to patient dose but not to the image.
Why is collimation important in radiology?
Proper collimation is one of the aspects of optimising the radiographic imaging technique. It prevents unnecessary exposure of anatomy outside the area of interest, and it also improves image quality by producing less scatter radiation from these areas.
What is the purpose of the aluminum filter?
The purpose of the aluminum filter is to remove the low energy, long wavelength, and least penetrating X-rays from the X-ray beam. These X-rays are harmful to the patient and are not useful in producing a diagnostic quality radiograph.
Which of the following materials is are used for x-ray beam filtration?
Filters for medical radiography are usually made of aluminum (Al). The amount of both the inherent and the added filtration are stated in mm of Al or mm of Al equivalent. The amount of filtration of the x-ray beam is specified by and based on the voltage potential (keV) used to produce the beam.
What are X-ray filters made of?
CLEAR-Pb® Compensation Filters are made of a lead-plastic material that is 30% lead by weight. Since lead is an efficient absorber of x-rays, the filters will attenuate the x-ray beam.

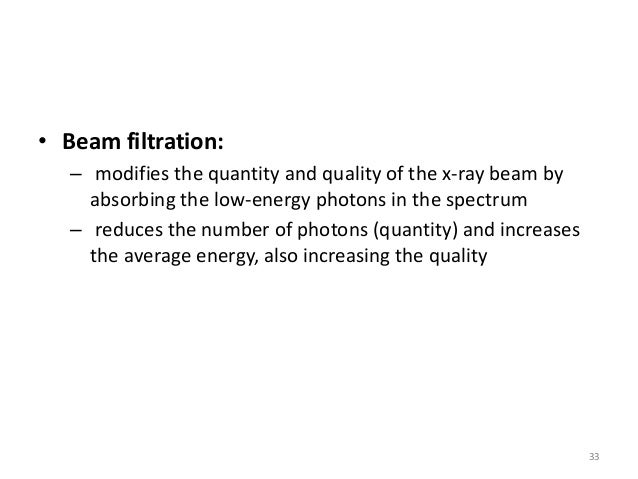

What is the purpose of filtration in xray?
Filtration reduces x-ray intensity, but not the maximum energy of the x-ray beam spectrum. The change in the shape of the beam spectrum with filtration is referred to as beam hardening. This is due to the loss of lower energy photons from a polychromatic beam.
What is the purpose of the filter or filtration quizlet?
Filtration removes a potion of the useful beam. The primary purpose of the collimator is filtration. Filtration that occurs outside the tube and housing is considered to be added filtration.
How will adding filtration affect the primary beam quizlet?
how does filtration affect patient dose and beam intensity? filtration reduces the patient exposure dose by eliminating low-energy photons from the primary x-ray beam. to compensate for loss of exposure; when filtration is increased, technical factors must be increased to maintain the same image receptor exposure.
Which of the following materials restricts the size and shape of the primary beam?
The collimator is used to restrict the size and shape of the x-ray beam in order to reduce patient exposure. A collimator may have either a round or rectangular opening.
How is a megavoltage x-ray beam hardened?
Although a megavoltage x-ray beam has a spectrum of energies, the beam is hardened by the inherent filtration of the transmission target as well as by transmission through the flattening filter. Thus, no additional filtration is required to improve the beam quality.
Why are x-rays heterogeneous?
Because all x-ray beams produced by radiation generators are heterogeneous in energy (i.e., possess continuous energy spectra that depend on the peak voltage, target material, and beam filtration), they are usually described by the HVL, a single parameter specifying the overall penetrating ability of the beam.
What is the meaning of X-rays in Chapter 5?
In Chapter 5, we described an x-ray beam in terms of photon fluence and energy fluence. Such a description requires the knowledge of the number and energy of the photons in the beam. In this chapter, we will characterize an x-ray beam in terms of its ability to penetrate materials of known composition. The penetrating ability of the radiation is often described as the quality of the radiation.
What is the purpose of a flattening filter?
The primary purpose of the flattening filter is to make the beam intensity uniform in cross section rather than to improve the beam quality. It may also be mentioned that the flatness of the beam is irrelevant if patients are treated with some form of intensity-modulated radiation therapy (IMRT).
Does tungsten absorb photons?
Because the K absorption edge of tin is at about 29.2 keV ( Table 3.2 ), it strongly absorbs photons above 29.2 keV by the photoelectric process. However, lower-energy photons cannot eject the K electrons.
Is spectral distribution necessary for radiotherapy?
However, spectral distributions are difficult to measure and, furthermore, such a complete specification of the beam quality is not necessary in most clinical situations. Since the biologic effects of x-rays are not very sensitive to the quality of the beam, in radiotherapy one is interested primarily in the penetration ...
Does HVL increase with filter thickness?
In general, the HVL increases with increasing filter thickness as the beam becomes increasingly “harder,” that is, contains a greater proportion of higher-energy photons. Beyond a certain thickness, however, additional filtration may result in “softening” of the beam by Compton scattering.
How do filters help x-rays?
The use of filters produce a cleaner image by absorbing the lower energy x-ray photons that tend to scatter more. The total filtration of the beam includes the inherent filtration (composed of part of the x-ray tube and tube housing) and the added filtration (thin sheets of a metal.
What are filters in radiography?
Filters in Radiography. At x-ray energies, filters consist of material placed in the useful beam to absorb, preferentially, radiation. Radiation - Energy traveling in the form of electromagnetic waves, photons, alpha particles (helium nuclei), or beta particles (electrons) based on energy level or to modify the spatial distribution of the beam.
What is a medical radiograph filter made of?
Filters for medical radiography. are usually made of aluminum (Al). The amount of both the inherent and the added filtration are stated in mm of Al or mm of Al equivalent. The amount of filtration of the x-ray beam is specified by and based on the voltage.
Why do you put a B on a film cassette?
Industry codes and standards often require that a lead letter "B" be placed on the back of the film cassette to verify the control of backscatter. If the letter "B" shows as a "ghost" image on the film, a significant amount of backscatter radiation is reaching the film.
Where are X-ray filters placed?
inserted in the x-ray beam). Filters are typically placed at or near the x-ray port in the direct path of the x-ray beam.
Is filtration a useful technique?
Radiation - Energy traveling in the form of electromagnetic waves, photons, alpha particles (helium nuclei), or beta particles (electrons) , therefore filtration is not a useful technique and is seldom used.
How is a megavoltage x-ray beam hardened?
Although a megavoltage x-ray beam has a spectrum of energies, the beam is hardened by the inherent filtration of the transmission target as well as by transmission through the flattening filter. Thus, no additional filtration is required to improve the beam quality.
Why is it so difficult to determine the potential of an x-ray tube?
The determination of x-ray tube potential is difficult because the high-tension circuits of most x-ray equipment are sealed and hence are not easily accessible for direct voltage measurement. Indirect methods, therefore, are often used to measure the kVp without approach to the high-tension circuits.
What is the meaning of X-rays in Chapter 5?
In Chapter 5, we described x-ray beam in terms of photon fluence and energy fluence. Such a description requires the knowledge of the number and energy of the photons in the beam. In this chapter, we will characterize an x-ray beam in terms of its ability to penetrate materials of known composition. The penetrating ability of the radiation is often described as the quality of the radiation.
What is the HVL of a ray?
As defined earlier ( Chapter 5 ), the term half-value layer (HVL) is the thickness of an absorber of specified composition required to attenuate the intensity of the beam to half its original value. Although all beams can be described in terms of their HVL, the quality of a γ-ray beam is usually stated in terms of the energy of the γ rays or its nuclide of origin, which has a known emission spectrum. For example, the quality of a γ-ray beam emitted from a 60 Co source can be stated in terms of 1.17 and 1.33 MeV (average 1.25 MeV) or simply cobalt-60 beam. Because all x-ray beams produced by radiation generators are heterogeneous in energy (i.e., possess continuous energy spectra that depend on the peak voltage, target material, and beam filtration), they are usually described by the HVL, a single parameter specifying the overall penetrating ability of the beam.
Why are x-rays heterogeneous?
Because all x-ray beams produced by radiation generators are heterogeneous in energy (i.e., possess continuous energy spectra that depend on the peak voltage, target material, and beam filtration), they are usually described by the HVL, a single parameter specifying the overall penetrating ability of the beam.
Does tungsten absorb photons?
Because the K absorption edge of tin is at about 29.2 keV ( Table 3.2 ), it strongly absorbs photons above 29.2 keV by the photoelectric process. However, lower-energy photons cannot eject the K electrons.
Do you need a filter for cobalt teletherapy?
For cesium and cobalt teletherapy machines, on the other hand, filters are not needed because the beams are almost monoenergetic.
Why do we need an X-ray filter?
An X-ray filter is a material placed in front of an X-ray source in order to reduce the intensity of particular wavelengths from its spectrum and selectively alter the distribution of X-ray wavelengths within a given beam. When X-rays hit matter, part of the incoming beam is transmitted through the material and part ...
What wavelengths are used for X-rays?
For example, a copper X-ray source may preferentially produce a beam of x-rays with wavelengths 154 and 139 picometres. Nickel has an absorption edge at 149 pm, between the two copper lines. Thus, using nickel as a filter for copper would result in the absorption of the slightly higher energy 139 pm x-rays, while letting ...
What is erbium used for?
Erbium - Used in radiography with tungsten anodes. Notes: - Bremsstrahlung pinching is due to the atomic mass. The denser the atom, the higher the X-Ray Absorption. Only the higher energy X-Rays pass through the filter, appearing as if the Bremsstrahlung continuum had been pinched.
What is a filter on a collimator?
Filter on Collimator. A simple or complex system of placing a discretionary metal filter (usually aluminum, usually wedge-shaped) in front of the collimator in order to attenuate (reduce) a portion of the primary beam so as to compensate for varying body part thicknesses in the same field of view.
Where is the filter placed on a collimator?
The filter is placed in front of the collimator (via a special adjustable filter holder, magnets, or even velcro) after collimating appropriately, because in most cases the filter is opaque and obliterates the light beam from the collimator.
