What is a Circuit Breaker?
A circuit breaker is an electrical device that provides protection against fault current. It breaks the circuit in case of overloading & short circuit. The fault currents generated due to these fault conditions can damage the electrical devices as well as cause fire in a building that can also pose danger to human life.

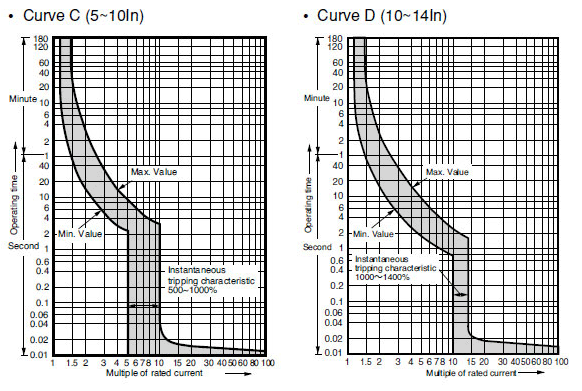

What is a Trip Curve?
A trip curve also known as a current time graph is a graphical representation of the response of a circuit breaker. It shows the current relationship with the tripping time of a protection device.
Why We Need Different Tripping Curves?
Circuit breakers are used for tripping the power supply as quickly as possible in case of overcurrent. But it should not trip so fast & unnecessary that it becomes a problem.
Types of Circuit Breaker Based on Tripping Curves
The circuit breakers are classified into the following five types based on their tripping curves.
What is the MCB trip curve?
The MCB trip curves, also known as I-t tripping characteristic consist of two sections viz, overload section and short circuit section. Overload section describes the trip time required for various levels of overload currents and the short circuit section describes the instantaneous trip current level of MCB.
Why is it important to choose an appropriate MCB rating and trip curve?
It is important to choose an appropriate MCB rating and trip curve in order to safeguard the circuit from damages during faults. Hence it is necessary to calculate the short circuit current and inrush current before choosing an appropriate MCB rating. If the chosen MCB rating is much higher than required, then it may not trip on the event of a fault. Similarly, if the MCB is underrated, then it may cause nuisance trips, for example even the starting currents or inrush currents may trip the MCB.
What is class B trip?
The MCB with class B trip characteristics trips instantaneously when the current flowing through it reaches between 3 to 5 times rated current. These MCBs are suitable for cable protection.
What is a mini circuit breaker?
MCB (Miniature circuit breaker) is a re-settable device designed to protect a circuit from short circuits and overcurrents. The trip curve of an MCB’s ( B, C, D, K and Z curves) tell us about the trip current rating of Miniature Circuit breakers. Trip current rating is the minimum current at which the MCB will trip instantaneously. It is required that the trip current must persist for 0.1s.
Do all circuit breakers have trip characteristics?
All circuit breakers, such as MCCB, ACB, VCB etc have their own trip characteristics. The only thing is that may not follow the categorization as that of MCB. Also, the circuit breaker curves types are not the same for all types of circuit breakers. It varies from one circuit breaker type to the other and depends on many design factors.
What are the different types of MCB curves?
There are several types of MCB curves that manufacturers provide for applying circuit protection in different applications. The most common curves are B, C, and D. One MCB manufacturer also produces a K and Z curve.
What is a mini circuit breaker?
A Miniature Circuit Breaker (MCB) is a resettable protective device that prevents electrical circuits from catching fire and causing damage to personnel and property. It is a device designed to isolate a circuit during an overcurrent event without using a fusible element.
How long does it take for a breaker to trip?
Follow the ampacity line up to the "time" tripping region of the curve. The breaker will trip under a thermal overload between 10 and 100 seconds. The breaker is guaranteed to not trip before 10 seconds and will not take longer than 100 seconds to trip. The breaker may trip at any time between 10 and 100 seconds.
What is short circuit?
Short Circuit: A short circuit is an intense overcurrent situation that causes the ampacity of the circuit to increase. This type of event is characterized by a dramatic increase in the load (ampacity) on the circuit and is interrupted by the magnetic trip unit of the breaker.
Why is the tripping region sloped?
The tripping region is sloped due to the gradual overload, heating, and bending nature of the thermal element overtime. Magnetic Region: Region of the trip curve representing the tripping characteristics of the magnetic trip unit. The tripping region is not sloped due to the instantaneous nature of the magnetic element during a short circuit.
What are the two types of overcurrent events?
There are two types of overcurrent events; a thermal overload and a short circuit. Thermal Overload: A thermal overload is a slow and small overcurrent situation that causes the ampacity and temperature of the circuit to gradually increase.
What is a B curve MCB?
1. B-Curve MCB. ‘B’ Curve MCB is used for the protection of circuits with equipment that does not cause surge current, like lighting and distribution circuits. So they are, the best fit for residential applications and domestic appliances with mainly Resistive Load. 2.
What is the function of a MCB?
One major function of MCB is to protect the electrical circuit from excessive current flow, and short circuits, by tripping. Trip curves of MCB educate us concerning the trip current rating of Miniature Circuit Breakers.
The difference among C Curve and B Curve MCB
The crucial difference between Type B and C devices is primarily based totally on their potential to address surge currents without tripping. These are, commonly, inrush currents related to reactive hundreds along with lights, or hundreds containing vehicles or battery charging devices.
Conclusion
MCB or Miniature Circuit Breaker is an electromechanical tool that protects an electric powered circuit from an overcurrent. The overcurrent in an electrical circuit may also result from a short circuit, overload, or defective design.
