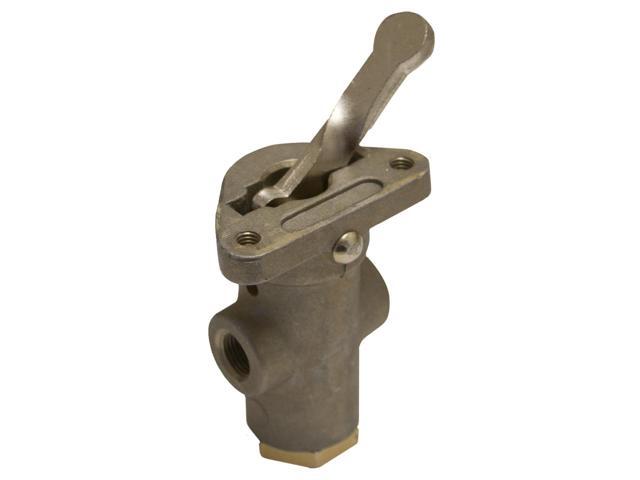

What is a trailer brake hand valve? The trailer hand valve (also called the trolley valve or Johnson bar
Johnson bar
A Johnson bar is a hand lever with several distinct positions and a positive latch to hold the lever in the selected position. The latch is typically activated with a spring-loaded squeeze handle on the lever so that only one hand is needed to release the latch, move the lever, then re-engage …
Can brakes be retrofitted to trailer?
You can purchase brake flanges and have a qualified welder weld them to the axle. When a brake mounting flange is welded to an axle, it must be welded square and concentric. This usually requires a jig to hold both parts in position. A trailer shop should have the equipment and personnel to weld brake mounting flanges to your axle.
What is a trailer brake hand valve?
Dynaflo’s Last Patrol
- Saturday, June 25, 1977 Crescent City to Nowhere. ...
- Sunday, June 26 Nowhere to Mobile. ...
- Monday, June 27 Mobile to Natchez. ...
- Tuesday, June 28 Natchez to Dallas. ...
- Wednesday, June 29 Dallas to Nowhere in Particular. ...
- Thursday, June 30 Wherever We Were to Tucumcari. ...
- Friday, July 1 Tucumcari to Albuquerque. ...
- Saturday, July 2 Drunk All Day in Albuquerque. ...
What are the trailer brake requirements?
- Trailers that do not exceed an aggregate trailer mass (ATM) of 2500kg must have at least one safety chain fitted.
- Trailers more than 2500kg and not exceeding 3500kg ATM must have two safety chains of 3500kg designation fitted.
- Trailers more than 3500kg ATM must have two safety chains made from steel of a minimum 800MPa breaking stress. ...
What is a trailer brake system?
- 1,000 pounds: New York and North Carolina
- 1,500 pounds: California, Indiana, and Nevada
- 2,000 pounds: Mississippi
What is a brake hand valve?
The hand valve, or "spike" (Fig. 39) is added so that you can apply the trailer's brakes independent of the tractor. The hand valve is typically supplied from primary and secondary circuits and plumbed to a double-check valve (which is also fed from the foot valve).
What is the hand valve on a tractor trailer?
trolley valveThe trailer hand valve (also called the "trolley valve" or "Johnson bar") works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.
What is the trailer brake control valve?
0:072:22TRAILER CONTROL VALVE - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf the trailer starts to swing out a lane. The driver has the option of pulling on the service brakeMoreIf the trailer starts to swing out a lane. The driver has the option of pulling on the service brake spike for the trailer which would put on the service brakes on the trailer.
When should you use a hand valve?
Explanation The trailer hand valve, also called the trolley valve or Johnson bar, is used to work the trailer brakes. It should be used only to test the brakes. Using it while a vehicle is in motion could cause a skid.
How does a hand valve work?
The tractor-protection valve and relay emergency valve are operated by application air, as explained in the foot-valve application. Closing the hand valve releases the brakes by closing off application air. Air pressure in the chambers and lines will exhaust, also as explained in the previous foot-valve application.
What happens when the wheels of a trailer lock up?
If the trailer wheels lock up, the trailer will usually begin to swing slowly outside of the vehicle path, as shown in the figure below. When this occurs the driver again has time to modulate the brakes to roll up the trailer wheels and bring the trailer back in line.
How does a trailer spring brake valve work?
The supply port on the valve is connected to an air line from the red gladhand. When air pressure is introduced it begins to fill the spring brake chambers through the delivery ports. Eventually the pressure builds until it cages (retracts) the spring allowing the trailer to move.
What is the purpose of the tractor spring brake valve?
Spring brake control valves are designed to respond to air brake system pressure dropping below a certain level (normally 414 kPa or 60 psi ) by exhausting the remaining air that is holding the spring brakes in the released position.
What is a double check valve?
The double-check valve isolates either the foot valve or the hand valve, depending on which one has the highest application pressure.
Can you use a hand valve as a parking brake?
CAUTION: The hand valve is not to be used as a parking brake. Related Items.
What are types of control valve?
List of common types of control valve Sliding Stem. Globe valve. Angle body valve. Angle seat piston valve. Rotary. Butterfly valve. Ball valve. Other. Pinch valve. Diaphragm valve.
When should the hand valve be used?
The trailer hand valve (also called the "trolley valve" or "Johnson bar") works the trailer brakes. The trailer hand valve should be used only to test the trailer brakes. Do not use it in driving because of the danger of making the trailer skid.
What is on off valve?
An ON/OFF Valve is the fluid equivalent of an electrical switch, a device that either allows unimpeded flow or acts to prevent flow altogether. These valves are often used for routing process fluid to different locations, starting and stopping batch processes, and engaging automated safety (shutdown) functions.
What is a positioner?
A valve positioner is a device used to increase or decrease the air load pressure driving the actuator of a control valve until the valve's stem reaches a position balanced to the output signal from the process variable instrument controller.
What is the symbol for a gate valve?
The “bow tie” symbol is the piping symbol for a gate valve. In symbol #1 we have two vertical lines, one of which is part of the “bow tie” symbol, on each end of the valve. This tells us that the valve is installed using a flange.
Where are control valves used?
What Are Control Valves Used For? Control valves have a variety of purposes and are critical building blocks of industrial control systems. Generally, they control the pace of fluids, like chemicals, gas, or steam. This is done by changing the size of the flow passage based on signals from a controller.
What is PSV valve?
A Pressure Safety Valve (PSV) is a type of valve used to quickly release gasses from equipment in order to avoid overpressurization and potential process safety incidents. PSVs are activated automatically when pressure exceeds prescribed pressure limits in order to return equipment pressure to a safe operating level.
