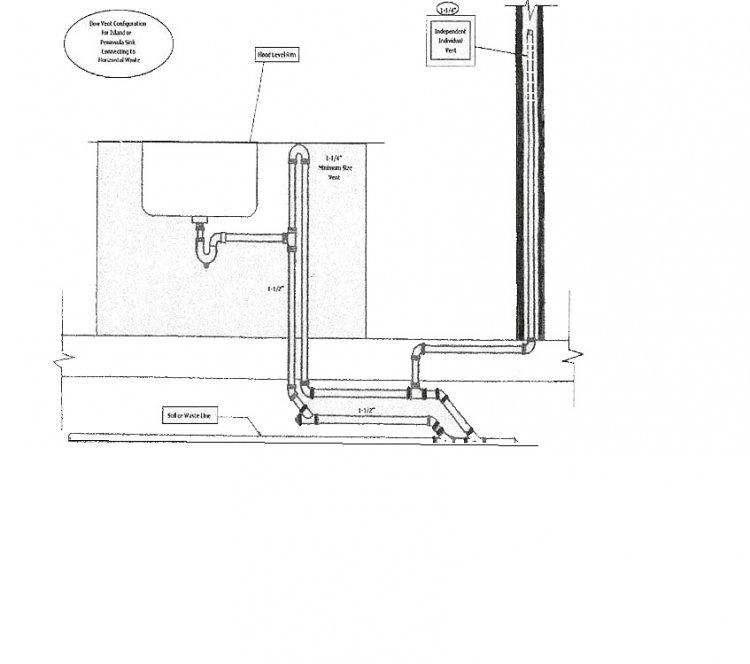

What is a bow vent? A bow vent is necessary for the waste water to flow smoothly without clogging. These are also needed for a sink placed in front of a large picture window.
What is a Bow Vent on a kitchen island?
(a) Bow vents are permitted for fixture installations in island cabinets and peninsula cabinets that cannot be vented in a conventional manner. (b) The bow vent shall be sized in accordance with 248 CMR 10.16 (16): Table 2.
When are bow vents permitted in kitchen cabinets?
(a) Bow vents are permitted for fixture installations in island cabinets and peninsula cabinets that cannot be vented in a conventional manner. (b) The bow vent shall be sized in accordance with 248 CMR 10.16 (16): Table 2. (c) The installation should conform to 248 CMR 10.22: Figures 13 (a), (b) or (c). (3) Prohibited Venting.
Are bow vents allowed in hazardous waste piping?
Vent piping on chemical and corrosive waste systems shall conform to that required for Hazardous Wastes under 248 CMR 10.13. (2) Bow Vents. (a) Bow vents are permitted for fixture installations in island cabinets and peninsula cabinets that cannot be vented in a conventional manner.
What is a branch vent on a roof?
A branch vent is a vent pipe that connects one or more individual vents to either a vent stack or stack vent. The vent stack or stack vent eventually terminates outdoors to open air through the roof. The height above the roof the plumbing vent terminates is set by your local plumbing code.
How does a bow vent work?
1:112:25Loop Vents for venting islands in your kitchen - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis is what a loop vent looks like the water in the loop rises to this point before the curve. AndMoreThis is what a loop vent looks like the water in the loop rises to this point before the curve. And past this point the loop is filled with air the air goes below the floor.
Do I need a vent for every drain?
Without getting too far into building science, a general plumbing rule of thumb is that every drain needs a trap, and every trap needs a vent. All those traps and drains are designed to prevent sewer gas from entering your home.
What is the purpose of a loop vent?
A loop vent is a venting solution for a sink fixture P-trap that requires the vent pipe to run under the floor, such as a kitchen island sink. It rises from the trap and forms a loop inside the sink cabinet before dropping under the floor and running horizontally to the vent stack.
Does my kitchen sink need a vent?
A sink needs a vent because the pressure put on the drain pipe when water flows down the drain pipe needs to equalize. The air needs to escape the drain pipe in order for the sink to vent.
Can a toilet and sink share a vent?
Wet venting is most common in conjunction with toilets and sinks; the drain for the sink is also the vent for the toilet. It can also be used for a variety of other applications but due to the following rules this is the most convenient and common situation to run into.
Do plumbing vents have to go through the roof?
It does not have to go through the roof. From the plumbing code (I have the 2003 edition), P3103: It must not be less than 4 feet directly beneath a door, openable window or other air intake of the building or adjacent building.
Why are Crown vents prohibited?
Heavy flow down the drain could briefly backup into the crown, and debris would collect there over time, eventually clogging the vent. The P-trap, with a vent separated from the trap, evolved to become a better design, and crown vents were banned by the building codes in the 1950s.
How many plumbing vents should a house have?
At least one main vent stack is required for every building that has plumbing when connecting separately to the sewer for the building or its septic tank. The stack has to run the most direct route through open air or be ventilated to extend to open air.
What is the difference between a stack vent and a vent stack?
A vent stack is a vertical pipe that is only used for venting, and runs upward from the drain piping to the open air outside the home. Vent stacks are primary vents and accept connections from other vents in a plumbing system. A stack vent is used for both drainage and venting.
What happens if you don't vent a sink?
If your sink is not vented, it will not be able to drain properly. Not only can it cause sewer gases to enter your home, but it will also prevent human waste, dirty water, and other byproducts from being removed from the pipes. Drains are pointed downward to allow gravity to assist in the removal of waste.
What happens if a sink is not vented?
Without venting, the negative pressure caused by the flow of draining water can potentially suck water out of the drain trap and allow sewer gases to enter the home. The vents allow air into the drain pipes to help keep the drain flowing properly.
Does plumbing vent go before or after trap?
The simple answer is if your trap from the fixture cannot see the vent then it is installed wrong. We must always keep the vent connection above the trap weir to prevent siphoning and keep proper pressures on both side of the trap.
What size waste pipe is used for wet vent?
1. A two inch or larger waste pipe installed with drainage fittings may serve as a wet vent. 2. The lowest portion of this horizontal pipe serving as the wet vent shall be above the top or above the center line of the horizontal drain it serves except as specifically prohibited in 248 CMR 10.16 (8) (e).
How far above the top of a fresh air intake should a plumbing vent be located?
2. Plumbing vent terminals shall be located no less than 25 feet horizontally from all fresh air intakes. 3. Plumbing vents that terminate no less than two feet above the top of the fresh air intake may be located as close as ten feet. 248 CMR 10.16 (6) (a) does not apply in this case.
What is a plumbing vent?
The plumbing vent system is part of the building plumbing drain system and serves two basic functions: 1. Allow building drains to flow freely by allowing air into the drain system, avoiding the vacuum and slow drainage that would otherwise occur at fixtures.
What is a wet vent?
In contrast with a classic or standard "dry" plumbing vent pipe , a wet vent is a combination drain line and vent line. To work successfullly, the wet vent piping must be large-enough in diameter that it will never fill with water, thus allowing air to enter the drain system simultaneously with the passage of wastewater draining from fixtures connected to the wet vent system.
What is a re-vent in plumbing?
A re-vent or revent pipe in a plumbing drain-waste-vent or DWV system is an auxiliary vent that is attached to the drain pipe close to an individual plumbing fixture.
How high should a loop vent be above a sink?
To keep the loop vent dry, that is so that the vent can work without flooding, the loop vent has to connect at the top of the fixture's vertical drain line, and the horizontal portion of the revent pipe must be at least 6-inches above the flood rim of the sink or other plumbing fixture being vented.
What is a backflow valve?
A device or valve installed in the building drain or sewer pipe where a sewer is subject to backflow, and which prevents drainage or waste from backing up into a low level or fixtures and causing a flooding condition. - UPC 2006
What is the reference point for a backflow preventer?
An elevation (height) reference point that determines the minimum height at which a backflow preventer or vacuum breaker is installed above the flood level rim of the fixture or receptor served by the device.
What is a trap seal?
A piping arrangement in which a drain from a fixture, appliance or device discharges indirectly into another fixture, receptacle or interceptor at a point below the flood level rim and above the trap seal. - UPC 2006
What is a plumbing vent?
What Exactly Is a Plumbing Vent? The plumbing vent, also known as a vent stack, helps regulate the air pressure in your plumbing system. Just as drain pipes remove water and waste from your home, the plumbing vent pipe – also known as a plumbing air vent – removes gas and odors. It also allows fresh air into the plumbing system to help water flow ...
Why is it important to know the vents are clogged?
Understanding this sensitive part of your plumbing system is important in order to keep the drains flowing smoothly in your home.
What is the purpose of a drain pipe?
Drainage pipes carry waste out of your home to either the city sewer or a septic tank. Vent pipes supply fresh air to each plumbing fixture in the house, which helps the system move water through the drainage pipes each time a toilet is flushed or a sink is drained.
Does water run through a vent pipe?
However, no water runs through the plumbing vent pipe. It is a vertical pipe attached to a drain line and runs through the roof of your home. The vent stack is the pipe leading to the main roof vent. It channels the exhaust gases to the vent and helps maintain proper atmospheric pressure in the waste system.
The secondary benefits of a plumbing vent include
These plans give you the inside scoop on how drain & vent systems come together.
Conventional Venting
This venting method is approved in all plumbing codes (assuming installed correctly).
Individual Vent
An individual vent is a single pipe that vents a plumbing fixture’s trap.
AAV ( Air Admittance Valve )
An AAV is a one-way valve that allows air to enter the drainage system when negative pressure exists. Once the pressure returns to normal, the AAV closes by gravity and seals off the vent.
Branch Vent
A branch vent is a vent pipe that connects one or more individual vents to either a vent stack or stack vent.
Common Vent
A common vent is an individual vent that connects at the intersection of two trap arms.
Circuit Venting
Both the IPC and UPC permit circuit venting (Chapter 9). It’s an efficient method of venting a battery of plumbing fixtures with one single vent. The circuit vent connects between the two most upstream fixtures. As few as 2 fixtures or a maximum of 8 fixtures may be served by the circuit vent.
