What does NPT stand for in pipe?
What is NPT? NPT stands for National Pipe Tapered threads, also known as ANSI/ASME B1.20.1 pipe threads. It is a U.S. standard for measuring tapered threads on threaded pipes and fittings. Threaded pipes can give an effective seal for pipes using hydraulic fluids.
What are PVC specialty fittings?
The advantages:
- Considerably lower friction factor (K factor 7.5) compared to that of Corrugated Duct (50+)
- Ability to reduce the diameter (36″ compared to Corrugated Duct’s 42″)
- Increased efficiency level of 66% using the same sized fan (75HP)
- Use of smaller headings
- Increased Air Flow
- Healthier work environment
- Better safety
- More reusable and cleaner air
How to measure NPT fittings and pipe sizes?
Measure the Outside Diameter (OD) of your pipe or pipe fitting:
- Wrap a string around the pipe
- Mark the point where the string touches together
- Use a ruler or measuring tape to find the length between the tip of the string and the mark you made (circumference)
- Divide the circumference by 3.14159
What is NPT pipe threads full name?
NPT thread full form is National pipe taper thread. It's also known as American National Standard Taper Pipe Thread. Tapered for sealing, often without any thread sealant, for connections in nearly every type of service NPS thread full form is National pipe straight thread. It's also known as American National Standard Straight Pipe Thread.

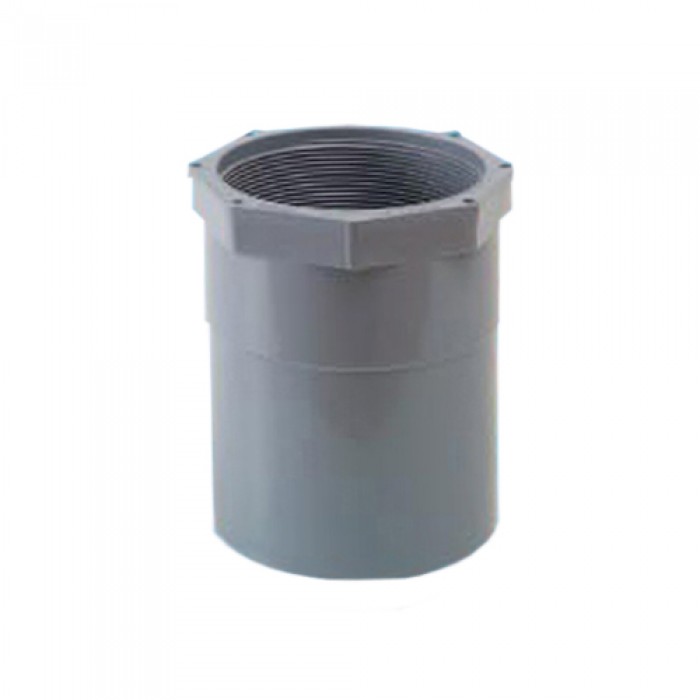

What kind of thread is PVC?
FPT (FIPT) – aka Female (Iron) Pipe Thread. This is a type of threading that is found on the inside lip of a fitting, allowing connection to a MPT or male pipe threaded end. FPT/FIPT threading is commonly used for PVC and CPVC piping systems.
Can I use Teflon tape on PVC fittings?
Two turns past finger tight plus the stress of the system pressure is within the tensile strength of one-inch PVC. ([1,788 psi x 2] + 2,000 psi = 5,576 psi). Don't use Teflon tape, Teflon paste or pipe dope.
How do I know if my pipes are NPT?
2:294:01How to identify National Pipe Taper ( NPT ) and National Pipe ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf we look here at an mps we see that all the teeth touch the straight edge. If we look at an npt weMoreIf we look here at an mps we see that all the teeth touch the straight edge. If we look at an npt we see that only some of the teeth touch a straight edge.
What is NPT type?
NPT is the abbreviation for National Pipe Thread Tapered, which is the U.S. standard for tapered threads used to join pipes and fittings. They were established as a standard by the American National Standard Pipe Thread, commonly referred to as the national pipe thread standards.
Why are my threaded PVC joints leaking?
Threaded pipefittings will leak if they are not sealed properly. A common mistake made by homeowners is using plumber's putty instead of joint compound or thread tape. Professional plumbers apply pipe joint compound or thread tape to the fittings before connecting them to seal the joints and prevent leaks.
What do you seal PVC pipe with?
Epoxy. Repair epoxy is putty or viscous liquid that can be used to repair pipe leaks on PVC and its joints. To repair your pipe or joint using epoxy, first clean and dry the damaged area, ensuring water can't reach the affected area. If necessary, mix the putty or liquid according to the manufacturer's directions.
What is plumbing NPT?
NPT (or National Pipe Taper) is a U.S. standard for tapered threads widely used on pipes and fittings for over 100 years. NPT connections rely on thread deformation- a metal to metal sealing design where the threads of the connectors themselves form together.
What does 1/4 NPT stand for?
As a general “rule of thumb” an NPT thread is approximately 1/4" (0.25”) larger than its “name.” For a 1/4" NPT fitting the “nominal” OD is 0.533”. NPT fittings are slightly tapered so the “nominal” diameter is the diameter in the middle of the threaded portion, as measured by the top (crest) of the threads.
What does NPT mean in piping?
National Pipe Tapered ThreadThe best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal is the American National Pipe Tapered Thread, or NPT.
How do I know if I have NPT or BSPT?
BSP threads come in two different variants: It is fairly common for a tapered BSP thread to be mistaken for an NPT thread. The way to tell the difference between the two is the flank angle. The flank angle for NPT is 60° compared to the BSP tapered which is 55° (this can be verified with a thread gauge).
What thread count is NPT?
14 threads per inchThe 3/4" NPT pipe thread has 14 threads per inch. Both the TPI (threads per inch) and OD (outside diameter) of the thread are required for positive identification of thread size because several sizes have the same TPI.
What is NPT and BSP?
Pipe threads are governed by two sets of standards: National Pipe Thread (NPT) and British Standard Pipe (BSP). These standards stipulate the types of screw threads used to connect and seal pipe fittings together.
What is NPT thread?
NPT = National Pipe Thread. NPTF = National Pipe Thread Fuel. Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). Both threads have a 60° included angle and have flat peaks and valleys.
What is the difference between NPT and NPTF?
The differences come in the major and minor diameters, the root and crest of the threads. The NPTF thread crests fall with in the parameters of the NPT requirements, but have a smaller range than the NPT.
What is NPTF in pipe?
National Pipe Taper Fuel ( NPTF ), also called Dryseal American National Standard Taper Pipe Thread, defined by ASME B1.20.3, is designed to provide a more leak-free seal without the use of PTFE tape (aka "Teflon") or other sealant compound.
What is a tapered pipe thread?
Both threads have a 60° included angle and have flat peaks and valleys. Tapered Pipe Thread is commonly found on ends of pipe, nipples and fittings (ex: couplings, elbows, tees, etc.). Sharply angled threads are very critical to joint being tight with no leaks.
Do straight pipe threads need a gasket?
Thread sealant or tape is typically required to complete the seal. Straight Pipe Threads need a gasket or O-ring to create a seal. While NPT and NPS threads will engage, they do not seal properly with each other.
What is the OD of a PVC pipe?
Well here's the confusing part: the outer diameter (OD) of PVC pipe is greater than the size in its name. That means that 1" PVC pipe will have an OD that is greater than 1", and a 1" PVC fitting will have an even larger OD than the pipe. The most important thing when working with PVC pipe and fittings is the nominal size.
What is PVC cement?
PVC cement seals pipe through a chemical reaction that bonds the plastic of one part to another. For a guaranteed seal on a slip fitting, you will need both PVC primer and PVC cement. The primer softens the inside of the fitting, preparing it to bond, while the cement keeps the two pieces stuck together tight.
What are PVC elbows?
Elbows are most commonly available in 90-degree angles and 45-degree angles, so your pipeline can be directed however you want it. Side elbows are a slightly different piece that are commonly used as corners in projects such as canopies, tents, displays, and boxes. They have three ends instead of two. Most elbows have slip socket ends, but threaded versions are available.
Why does PVC have slip ends?
"Slip" in PVC does not mean the connection will be slippery, but rather that the fitting will slip right over the pipe. When putting pipe into a slip fitting, the connection may seem tight, but to transport any liquid media, it will need to be sealed.
What size fitting should I use for PVC?
The most important thing when working with PVC pipe and fittings is the nominal size. A 1" fi tting will fit on a 1" pipe, regardless of whether either one is schedule 40 or 80. So, while a 1" socket fitting has an opening wider than 1" across, it will fit on a 1" pipe because the OD of that pipe is also greater than 1".
Why do people use threaded fittings?
Threaded fittings need to be sealed differently. The main reason people use threaded parts is so that they can be taken apart if necessary. PVC cement bonds pipe together, so if it is used on threaded joints, it will make a seal, but the threads will become useless.
What is a tee in plumbing?
They are also often used for PVC structures. Tees are an extremely versatile fitting that are some of the most widely used parts in plumbing.
What is a NSF certified fitting?
These fittings are NSF certified for use in corrosive waste gravity-flow systems. Made of CPVC,they have better chemical resistance than ABS plastic gravity-flow fittings and can stand up to highly-corrosive acids and other harsh substances. Plastic Pipe and Pipe Fittings for Drain,Waste,and Vent.
What is a nylon hose fitting?
Made of nylon,these fittings are lighter in weight than metal barbed hose fittings. They have sharper barbs than standard barbed hose fittings to grip push-on hose without the need for clamps or ferrules. The more you pull on the fittings,the tighter the hose will grip. Easy-FitBarbed Hose Fittings for Air and Water.
What is the difference between NPT and NPS threads?
What is the difference between NPT and NPS thread? Both NPT and NPS have the same thread angle, shape, and pitch (threads per inch). However, NPT threads are tapered and NPS threads are straight (parallel). Both threads have a 60° included angle and have flat peaks and valleys.
Do straight pipe threads need a gasket?
Thread sealant or tape is typically required to complete the seal. Straight Pipe Threads need a gasket or O-ring to create a seal. While NPT and NPS threads will engage, they do not seal properly with each other.
Why does a female NPT fitting crack?
When fittings with a tapered thread such as NPT are tightened the male fitting is compressed and the female fitting is stretched (tensile stress). In general most materials have a higher compressive strength then a tensile strength. This is why the female fitting is the one that will crack when over tightened.
Is metal stronger than plastic?
Metals are stronger than plastics. The female fitting has to be metal and the male fitting plastic. Please note that mixing metal and plastics is not highly recommend and should be avoided if possible.
