What is a Sloan Flushmate toilet?
The Sloan Flushmate toilet is a pressure-assisted flush system. As the tank fills with water, it traps air inside the bladder. The rising water in the tank compresses the air. When the flush valve actuates, the trapped pressurized air pushes the water in the tank into the bowl.
How does a Flushmate toilet work?
How Flushmate Works. The FLUSHMATE Pressure-Assist system is a component inside of a specially designed toilet that harnesses the pressure from the water supply line to provide the energy needed to complete the flush. The FLUSHMATE Pressure-Assist technology cannot be retrofitted into a standard, gravity-fed toilet.
What to do if your Sloan Flushmate is leaking water?
If the leak continues, the flush valve cartridge on the Sloan Flushmate system may be defective. If the water supply static pressure and water flow are good, check the flush valve operation. Pour a small amount of water into the flush valve cartridge housing.
How does a Sloan flushometer work?
How Sloan Flushometers Work Both types of valves have an inner chamber divided into an upper and lower section. The lower chamber is connected to the pressurized water system, and a pinhole in the diaphragm or piston allows water into the upper chamber to equalize the pressure between the two chambers and keep the valve closed.
Should there be water in the tank with a Flushmate?
WHY IS THERE STANDING WATER INSIDE THE CHINA TANK? FLUSHMATE units can emit a few drops of water inside the tank during the flushing cycle. This water collects on the bottom of the china until the water level reaches the height of the built-in drain. Normal level of water is about 1-inch.
How does pressure assist toilet work?
A pressure-assisted toilet uses a secondary tank, located in its main toilet tank to create additional air pressure to aid toilet flushing while maintaining more water in the toilet bowl. The toilet is exceptionally stronger than traditional, gravity flow models and flushes more waste using less water.
How do you use a Sloan Flushmate pressure canister?
3:4512:01HOW TO WORK ON THE SLOAN FLUSHMATE PRESSURE CANISTERYouTubeStart of suggested clipEnd of suggested clipThat's why you have to always turn the water off and depressurize your tank before you start doingMoreThat's why you have to always turn the water off and depressurize your tank before you start doing this if you don't have a tool this is the way to do. It.
How do you adjust the pressure on a Flushmate?
Make sure the water supply valve is turned off and the toilet has been flushed to relieve the pressure.Remove the Air Inducer Cap. ( ... Remove the Duckbill Valve from the Air Inducer Cap. ... Insert the Duckbill Valve into the Air Inducer housing. ( ... Put the Air Inducer Cap back on, and tighten finger-tight only. (More items...
How do you flush a flushmate toilet without water?
0:071:21DIY how to FLUSH a toilet without running water - YouTubeYouTubeStart of suggested clipEnd of suggested clipOkay if you don't have running water you need this go ahead you take a bucket of water come here.MoreOkay if you don't have running water you need this go ahead you take a bucket of water come here. And you pour a large volume of water in the toilet all the ones.
Are pressure-assisted toilets better?
Not only does it use less water, but it also doesn't take away from water pressure elsewhere in the home. At times of peak usage, your water pressure can be less than ideal. Like in the shower, for instance. If your water pressure is poor, a pressure-assist toilet won't contribute to the problem.
How do flushmate toilets work?
The Flushmate system traps air as it fills with water, uses the water supply line pressure to compress the trapped air, forces water into the bowl, and effectively pushes waste out.
Why does my Sloan flushmate keeps running?
A run-on condition may be caused by insufficient water pressure, an improperly adjusted Flush Valve Cartridge, or a clogged inlet screen. Refer to "Installation Requirements" for recommended minimum pressure. (See "Points to Remember" for a simple method to determine whether your water pressure is adequate).
How do you adjust a Sloan flushmate actuator?
The Actuator needs to be set at the proper clearance, 1/8” from either the Flush Rod or push button. To make this adjustment, hold the Actuator while loosening the Phillips setscrew in the center of the Actuator, and rotate the Actuator up (counterclockwise) or down (clockwise) until the proper clearance is obtained.
How do you reset a Sloan automatic flush valve?
2:564:10Troubleshooting a Sloan Optima Flushometer | Repair and ReplaceYouTubeStart of suggested clipEnd of suggested clipIf you don't hear a click then hold down the button and release after 40 seconds. If there is noMoreIf you don't hear a click then hold down the button and release after 40 seconds. If there is no flashing red light after 40 seconds then remove the cover check the position of the batteries.
Can flushmate be installed in any toilet?
Flushmate Pressure Assist This change-out kit works only on a specific selection of tanks from other pressure-assisted toilets. According to Flushmate, its pressure-assisted system cannot be retrofitted into a standard, gravity-fed toilet.
In This Article

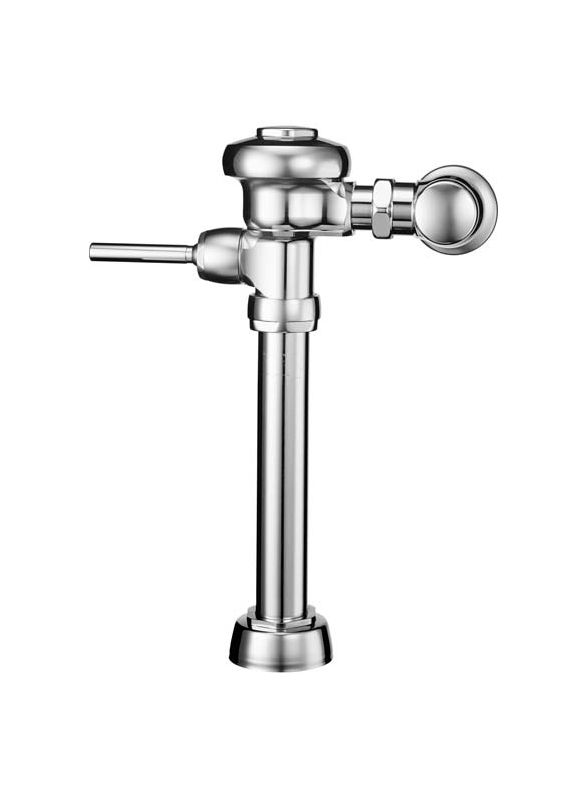

If you went to elementary or high school in North America, you're no doubt familiar with Sloan flush valves, also known by the brand name "Flushometers." They are common in schools, public bathrooms and government offices, although they are slowly being phased out in many places in favor of motion-sensor flushing devices that use essentially the same technology..
Types of Sloan Flush Valves
Sloan manufactures two types of Flushometers: one with an internal diaphragm and one with an internal piston. They both rely on the water pressure of the water system to do their job, but if the pressure is lower than it should be, a piston-style valve is the recommended choice because the piston is more responsive.
How Sloan Flushometers Work
Both types of valves have an inner chamber divided into an upper and lower section. The lower chamber is connected to the pressurized water system, and a pinhole in the diaphragm or piston allows water into the upper chamber to equalize the pressure between the two chambers and keep the valve closed.
Troubleshooting a Sloan Flush Valve
The fitting that connects a Sloan valve to the plumbing has an exposed nut that opens and closes a control valve. If the flush valve doesn't work or if it's supplying too little water for a flush, it's often because this valve is closed. You can open it by turning the nut counterclockwise with an adjustable wrench.
Why do Sloan toilets have a cleaner bowl?
With Sloan’s pressure-assisted toilets you’ll also notice a cleaner bowl, because the higher velocity and pressure of the rim jets creates a better scrub. Plus, with no flappers, chains or clunky multi-linkage mechanisms, these toilets offer smooth, quiet, trouble-free flush activation and easy maintenance.
What is a Sloan pressure assisted toilet?
Your Sloan pressure-assisted toilet looks like an ordinary tank-type toilet, and people flush it the ordinary way. Its performance, however, is anything but ordinary. Even the highest-traffic toilets will be far less likely to back up or clog, because pressure supplied by the Flushmate vessel pushes waste out of the bowl and into ...
How much pressure does a gravity tank toilet need?
Simple and cost-effective, they install exactly the same way as gravity toilets and require the same basic water supply pressure (20–25 psi). They require no extra infrastructure at all, so you can easily upgrade from your gravity tank toilets.
