How does an auto cistern work?
An auto cistern is usually the term applied to a urinal cistern. The work is in-fact all done by an auto syphon which will release the stored water down into the sparge pipes to flush the urinals once the water level within the cistern has reached a sufficient level. Click to see full answer. Simply so, how does an automatic flush valve work?
How does an automatic urinal flusher system work?
Every automatic urinal flusher system needs a power source in order to work. While some models get their power from alkaline batteries, others will use a low-voltage current from an AC transformer.
What is an automatic toilet flush?
What is automatic toilet flushers? Automatic toilet flusher uses active infrared sensor technology which uses the emission and reception of infrared beams to detect the presence and movement of objects or people in their field of detection. When the sensor detected the body, it is ready to work.
How does a presence sensor work on a toilet?
When the presence sensor detects any object coming, the sensor will give a signal to the solenoid valve to let the water flow out for 2 seconds pre-flush.As soon as the presence sensor detects the absence of that object, it will instruct the solenoid valve to open again to have 6s flush.
How are auto flush toilets powered?
0:072:54Auto Flush® Toilet - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe auto flush package includes the auto flush unit a battery compartment wrench a collar gasket aMoreThe auto flush package includes the auto flush unit a battery compartment wrench a collar gasket a collar wrench and four c alkaline batteries. To begin the installation.
Do automatic toilets use batteries?
The kit includes a motion sensor that prompts the toilet to flush when a body moves away from the fixture. The sensor kit is usually battery operated, but the batteries last for around 300,000 flushes.
How does a urinal auto syphon work?
The auto-syphon will flush the urinals once the required amount of water is in the cistern. The short-term drops in water pressure are caused by the use of taps or toilet flushing within the washroom, which approximates the use of the urinals.
How do automatic toilets know?
Automatic toilet flusher uses active infrared sensor technology which uses the emission and reception of infrared beams to detect the presence and movement of objects or people in their field of detection. When the sensor detected the body, it is ready to work. When people leave, it flushes water automatically.
Can you manually flush an automatic toilet?
You can activate a flush by holding the palm of your hand up to the sensor for a few seconds before taking it away. Or place a piece of toilet paper over the the sensor and remove it once you're finished.
How do you fix a automatic toilet that won't flush?
1:393:10Sloan Optima Flushometer | Sensor | Repair and Replace - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf there is no flashing red light after replacing the batteries or if the unit doesn't flush with aMoreIf there is no flashing red light after replacing the batteries or if the unit doesn't flush with a new solenoid. Then replace the sensor module replace the cover and tighten the cover screws.

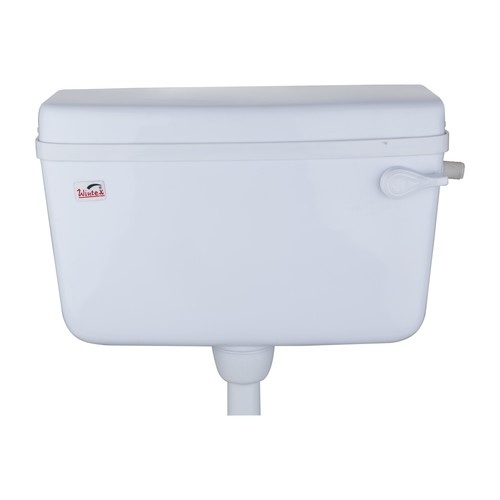

How does a siphon cistern work?
How does a syphon work? The syphon is a type of flush valve which acts as an internal plunger. When the handle is pressed, the syphon draws up the water which then passes through a folding diaphragm washer before bridging over to the syphon outlet.
How often should urinals flush?
Urinals therefore often flush regardless of use, wasting a lot of water, especially out of hours. Typical uncontrolled flushing of urinals is three times an hour, which with a 7.5 - 12 litre cistern will be using 197 - 315 m3 water per year.
How do you adjust a urinal flush valve?
Turn the water control screw counterclockwise to increase the flow in the urinal if the water level is too low. Start with a 1/4-inch turn and then flush the urinal. Wait for the urinal to fill and then make another adjustment if needed. Repeat this until you have the proper water level.
Why do automatic toilets flush randomly?
The most common cause of toilet which continuously flushes is a flush valve seal malfunction. The flush valve needs to seal completely after each flush to keep water from leaking. When this seal fails, the toilet tank leaks water into the bowl continuously.
What is the job of a urinal flusher sensor?
As the most important part, the work of the sensor is to forward the signals to the valve to turn on the urinal flusher after detecting your body. Its job is to inform the valve when to turn on or off the water when your body comes and leaves.
What are the parts of a touchless urinal flusher?
Four parts of touchless urinal flusher. There are four key parts for the automatic urinal flusher, the faceplate with sensor eye, the solenoid valve, the power supply and the waterproof connector. 1. Faceplate with sensor eye. As the most important part, the work of the sensor is to forward the signals to the valve to turn on ...
How does a solenoid valve work?
The positive or negative signals from the sensor control the solenoid valve. The polarity of the signal determines if the solenoid will either engage a pull or push actions. The valves control the water flow by using a rubber-like disc. When there is no signal, the valve is closed, meaning no water flow through the valve. The presence of a hand will send a positive signal to the solenoid causing it to pull the valve open for water to flow. The solenoid will close up the valve by a push action when the hand is no more.
How to connect a 220V power supply to a urinal?
1. A wire connected to the 220V power source should be laid before placing the control box into the wall. 2. Connect the connectors as shown right, place the power supply box as figure 1 shows. 3. Connect the power supply box to the power source. 4. Fix the auto urinal flush face plate on the control box. Notice:
How long does it take for a touchless urinal to flush?
It can automatically flush if no usage in 24 hours.
What kind of batteries do touchless faucets use?
Some touchless faucets may use DC 3V or lithium batteries.
Why do people not flush their urinals?
In today’s life, most people fail to flush the urinal system after using it. It creates bad odor and an unpleasant environment especially in public restrooms, which affects the health of the people when using it. And typically in some cases, people fail to close the faucet/tap properly after using it, which leads to the wastage of water .
