The padlock version pintle hitch lock fits most pintle type hitches. Simple: Lower the padlock with the pintle lock attached through the pintle ring. Move the padlock to its horizontal position (below the flange on the pintle-lock) and lock the shackle.
How do you attach a pintle hook to a trailer hitch?
Pintle hooks can either be bolted directly to a reinforced utility truck bumper or attached to a trailer hitch using a mounting plate. You can purchase a pintle hook without a shank and buy a mounting plate separately, or you can purchase a pre-mounted pintle hook .
What is a pintle hitch?
In the case of the pintle hitch, the pintle part is usually in the form of a pintle hook, with a slight collar to retain a ring better. Pintle hitches are used with a lunette ring, which work in combination with the pintle hook.
How do you lock the jaw on a pintle hook?
The pintle hook jaw can be lowered to the top of the pintle to lock the lunette ring in place and prevent it from coming off. The jaw itself can be locked with a safety pin, which is inserted to a locking slot from the side. The locking pin itself may also come with a chain to tie it to the pintle hook and prevent it from getting lost.
What is a pintle hitch and lunette ring used for?
This ability of the pintle hitch and lunette ring combination is particularly useful for towing a load across rough roads, off-road terrain, or even along regular loads that features steep climbs and dips.
What is pintle lock?
0:041:19Secure jobsite equipment with the pintle hitch lock - YouTubeYouTubeStart of suggested clipEnd of suggested clipBeing taken unauthorized removal from parking lots job sites. And they simply come and hook up toMoreBeing taken unauthorized removal from parking lots job sites. And they simply come and hook up to the hitch and tow it away this little lock will block entrance to the Pindell ring.
Why does the military use pintle hitch?
Because of their superior weight capacity, pintle hitches are commonly used for industrial, military, or agricultural applications. Pintle hitches also allow for more movement at the attachment point than ball couplers do.
What does a snubber do in a pintle hitch?
Air cushioned snubber is designed to minimize the space between the pintle hook and the drawbar on vehicles with air systems. Plunger/snubber force is developed by the vehicle's air system to reduce wear and to provide shock absorption.
Can you flip a pintle hitch?
Expert Reply: Yes, it is okay to use the 10 hole Cushioned Pintle Mounting Bar, part number AMPC3, in the rise position and use the top four holes to mount your ring, as long as you stay within the weight rating of the ring, mounting bar, hitch and towing vehicle, whichever is the lowest capacity.
Are pintle hitches any good?
Pintle hitches are generally used for more heavy-duty towing jobs. They are more common in agricultural, military, and industrial trailers. Part of the reason for this is that they allow a greater range of movement that is more well-suited for off-road towing.
Should you grease a pintle hitch?
5. Do not grease or lubricate the horn of the pintle hook. Doing so will attract sand and dirt, which acts as an abrasive, accelerating wear of the horn and drawbar eye.
How much weight can you put on a pintle hitch?
Our pintle hooks are available in a receiver style to fit a standard receiver trailer hitch, or in an adjustable style to mount onto an adjustable mounting plate. They range in towing capacity from 10,000 to 60,000 lbs. and have vertical load limits ranging from 2,000 to 12,000 lbs.
How much weight can a pintle hook carry?
Another limitation is often the capacity of the pintle hitch. Heavy-duty pintle hooks normally have a 15,000-lb. vertical load limit and a 25-ton tow rating.
What height should a pintle hitch be?
22-24" inches should be good, maybe look around at pup trailers in your area to get an idea of what tongue heights are like. Having said that, raise your box all the way up, measure your clearance and if you can drop your tongue as much as practical.
What is a military hitch called?
Pintle hitches on the other hand, are typically used with larger trailers and have higher weight capacities than ball hitches. Pintle hitches are commonly used for industrial, military, or agricultural applications.
How do you secure a hitch ball?
0:180:46How to Install a Ball Mount onto your Vehicle - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd ball mount secure the hitch pin by inserting the straight leg of the clip. Through the hole inMoreAnd ball mount secure the hitch pin by inserting the straight leg of the clip. Through the hole in the hitch pin. For more information visit uhaul.com or refer to the users guide.
Can bulletproof hitches be used upside down?
Unlike many other ball hitches on the market, the correct answer is yes!
What is a pintle hitch?
A pintle hitch is primarily used for heavy-duty towing, particularly on rough, off-road terrain. At the most basic level, a pintle provides a pivot point around which another object turns. Pintles have a variety of mechanical uses, such as in boat rudders and door hinges. In the case of towing, a stationary pintle hook provides ...
How does a pintle hitch work?
Pintle hitches work using two main components: a pintle hook and a lunette ring. The pintle hook attaches to the tow vehicle, and the lunette ring is bolted to the trailer being towed. The pintle hook jaws lock around the lunette ring and are then secured with a safety pin (included).
How to tow a trailer with a ball coupler?
If you need to tow a trailer with a traditional ball coupler, open the hook and attach your coupler to the hitch ball instead. Some combination mounts, such as the Convert-A-Ball option, come with three easily interchangable balls to match ball couplers of differing sizes.
What is a stationary pintle hook?
In the case of towing, a stationary pintle hook provides the point around which a lunette ring is able to pivot, thus allowing for a greater range of motion compared to a traditional ball coupler.
Why do you need a separate mounting plate for a trailer?

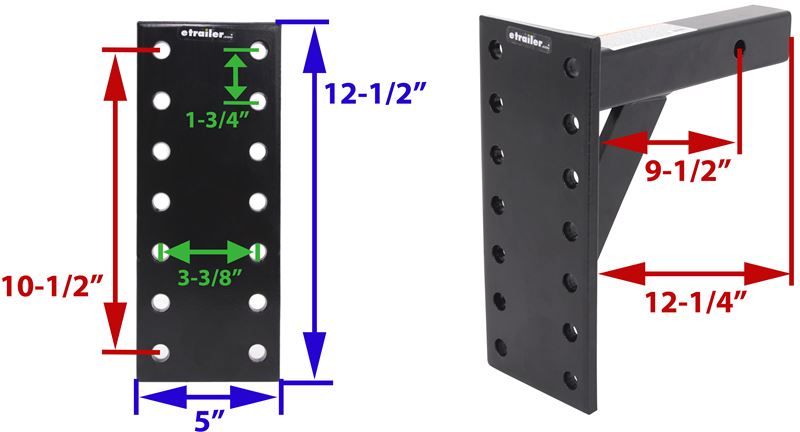

Mounting plates provide multiple locations for attaching your pintle hook so that you can easily match your trailer height.
Why are pintle hitches used?
Because of their superior weight capacity, pintle hitches are commonly used for industrial, military, or agricultural applications. Pintle hitches also allow for more movement at the attachment point than ball couplers do.
What size is a trailer ball?
The most common shank size for a trailer ball is 1", while the most common size for a pintle ball shank is 1¼". You can switch out your pintle ball for a different diameter ball, (for instance, a 2" ball for a 2 5 ⁄ 16 " ball), but you should make sure your shank remains the same size.
Types of Trailer Hitch Locks
A quarter-inch coupler lock and a stainless coupler lock can be attached to the latch.
Coupler Lock and Hitching Mechanism
People do not only use these to prevent tow-away theft and unhitching of trailers from vehicles. One of the most elementary forms of this particular type of coupler lock consists of a U-shaped lock (metal pin or a metal bar) that fits over a couple on the trailer’s tongue.
How to Choose a Coupler Lock?
One must concentrate on the material of the coupler lock. It is important always to choose a lock that provides incredible security and best quality. In addition, it must be corrosion resistant, and it should always be a rust-free material.
Conclusion
It is important to know how to tow a vehicle and hitch a trailer to a vehicle. If a person must move a truckload of cargo in a trailer or go far away to relax in a trailer, they must know about necessary safety precautions to keep the trailer safe and secure. As mentioned above, one can never be too careful.
How does a pintle hitch work?
The way a pintle hitch works is based on the idea of the pintle and gudgeon joint. Pintles have a wide variety of uses, and you can see them in a wide variety of mechanical applications. At its most basic, a pintle is a stationary pin, made to be thick enough to support a substantial load, which sticks out straight upward.
Why use pintle hitch?
That is why pintle hitches are particularly useful for towing heavier loads on rough roads, rugged terrain or similar conditions where you need a wider range of motion between the hitch and the coupler. A pintle hitch is an alternative to the usual tow ball mount, and it has its own advantages compared to the latter.
What is the advantage of a pintle hitch?
Compared to the usual ball mount hitches, pintle hitches generally come ahead when it comes to towing capacity and weight limit.
What is a pintle hook?
The pintle hook is the part that we generally refer to as the pintle hitch since it is the main component that is installed right on to the tow vehicle. The pintle hook goes on to the tow vehicle with the pintle facing up, such that the lunette ring can be easily lowered over the pintle. Pintle Hook (curtmfg.com)
How much weight can a Class V pintle hook hold?
Some Class V pintle hooks, for example, are rated for 12,000 pounds tongue weight capacity and a 60,000 gross trailer weight capacity. This means you can get around 20 percent tongue weight relative to the gross trailer weight with a pintle hook setup.
Where do you put pintle hooks on a truck?
Depending on the type of vehicle and pintle hitch kit you have, you can have the pintle hook installed to the bumper, or to the frame of the tow vehicle itself. Pintle hooks can be installed to the bumper of a truck, but for best results, they are best installed with bolts or even welded to a suitably reinforced bumper.
Can you use a pintle hook on a receiver?
These hooks can be directly installed to receivers, as long as the sizes match. In the case that they don’t, you can also use a receiver adapter to convert pintle hook shanks to fit larger or smaller receivers.
