(1) Demand factor
- Demand Factor = Maximum demand of a system / Total connected load on the system
- Demand factor is always less than one.
- Example: if a residence having 6000W equipment connected has a maximum demand of 300W,Than demand factor = 6000W / 3300W = 55%.
- The lower the demand factor, the less system capacity required to serve the connected load.
- Feeder-circuit conductors should have an ampere sufficient to carry the load; the ampere of the feeder-circuit need not always be equal to the total of all loads on all branch-circuits ...
- Demand Factor = Maximum demand of a system / Total connected load on the system.
- Demand factor is always less than one.
- Example: if a residence having 6000W equipment connected has a maximum demand of 300W,Than demand factor = 6000W / 3300W = 55%.
How do you calculate lighting demand factor?
Calculation: Lighting Demand Factor = Demand Interval Factor x Diversity Factor. = (15 minute run time/ 15 minutes) x 1.0 = 1.0 Lighting Demand Load = 5 kW x 1.0 = 5 kW Receptacle Outlet Demand Factor = Demand Interval Factor x Diversity Factor = (15 minute run time / 15 minutes) x 0.1 = 0.1
How do you find the demand factor of a motor?
Demand Factor = Maximum demand / Total connected load For example, an over sized motor 20 Kw drives a constant 15 Kw load whenever it is ON. The motor demand factor is then 15/20 =0.75= 75 %. Demand Factor is express as a percentage (%) or in a ratio (less than 1).
How do you calculate maximum demand in electrical load calculation?
General Formula to calculate the Maximum Demand is described below: Maximum Demand= Connected Load * Load Factor / Power Factor. Where, Connected Load = Total Connected load in the facility in kW. In respect to this, what is diversity factor in electrical load calculation?
What is the definition of demand factor in electrical?
The ratio of the maximum coincident demand of a system, or part of a system, to the total connected load of the system. Demand Factor = Maximum demand / Total connected load. For example, an over sized motor 20 Kw drives a constant 15 Kw load whenever it is ON.
How is demand factor calculated?
Demand Factor = Maximum demand / Total connected load For example, an over sized motor 20 Kw drives a constant 15 Kw load whenever it is ON. The motor demand factor is then 15/20 =0.75= 75 %.
How do you calculate electrical demand load?
Calculating LoadAdd together the wattage capacity of all general lighting branch circuits.Add in the wattage rating of all plug-in outlet circuits.Add in the wattage rating of all permanent appliances (ranges, dryers, water heaters, etc.)Subtract 10,000.Multiply this number by . ... Add 10,000.More items...•
How is electrical diversity factor calculated?
1:403:19Diversity Factor - YouTubeYouTubeStart of suggested clipEnd of suggested clipOf individual maximum demand ratio of sum of individual maximum demand to the maximum. Power demandMoreOf individual maximum demand ratio of sum of individual maximum demand to the maximum. Power demand using this we will calculate the diversity factor for this particular case the individual maximum
What is demand factor in relation to electrical energy consumption?
Definition of demand factor : the ratio of the maximum demand during an assigned period upon an electric-power system to the load actually connected during that time expressed usually in per cent.
What is demand factor in electrical engineering?
In electrical engineering the demand factor is taken as a time independent quantity where the numerator is taken as the maximum demand in the specified time period instead of the averaged or instantaneous demand. This is the peak in the load profile divided by the full load of the device.
What is demand factor and diversity factor in electrical?
Diversity is usually more than one. Demand factor is the ratio of the sum of the maximum demand of a system (or part of a system) to the total connected load on the system (or part of the system) under consideration. Demand factor is always less than one.
How do you calculate total demand load?
Using Load Factor to Determine Demand Limit3000 kWh divided by 720 hours = 4.16 (demand limit if at 100% load factor)4.16 divided by .60 = ~7kW.20kW multiplied by 720 hours = 14,400 Total kWh (if at 100% load factor) 3000 kWh divided by 14,400 Total kWh = 21% load factor at 20kW.
What is load factor and demand factor?
It is ratio of average load to maximum demand during certain period of time (e.g. day/month/year) is called load factor. Following formula is used to calculate Load Factor. Load factor = Average Demand/Maximum Demand. Since average load is always less than maximum demand, hence load factor is always less than unity.
What is maximum demand in electrical system?

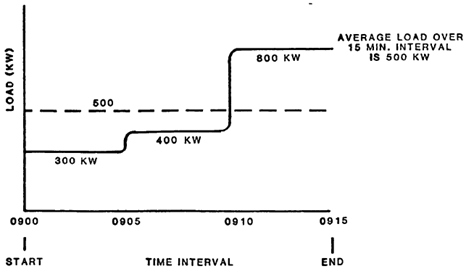

Maximum demand (kW or kVA) i.e the maximum power value during a specified time interval, usually the average of 15 minutes (may vary) reached during the billing period.
Is demand factor same as Power Factor?
Power factor (PF) is the ratio of working power, measured in kilowatts (kW), to apparent power, measured in kilovolt amperes (kVA). Apparent power, also known as demand, is the measure of the amount of power used to run machinery and equipment during a certain period. It is found by multiplying (kVA = V x A).
What is utilization factor in electrical?
Definition of utilization factor : the ratio of the maximum demand on a generator or generating station to the capacity of the generators.
How to calculate electrical demand for feeders?
The estimated electrical demand for all feeders served directly from the service entrance is calculated by multiplying the total connected loads by their demand factors and then adding all of these together . This sum is divided by the diversity factor (frequently assumed to be unity) to calculate the service entrance demand which is used to determine ampacity requirements for the service entrance conductors.
What is demand factor?
The word “demand” itself says the meaning of Demand Factor. The ratio of the maximum coincident demand of a system, or part of a system, to the total connected load of the system.
What is the role of load factor and diversity factor in electrical energy?
Load factor and diversity factor play an important part in the cost of the supply of electrical energy. Higher the values of load factor and diversity factors, lower will be the overall cost per unit generated.
How to find maximum demand load?
The sum of the maximum demand loads for two or more feeders is divided by the diversity factor for the feeders to derive the maximum demand load.
Why is load factor less than 1?
Load Factor is always less than 1 because maximum demand is always more than average demand. Load Factor can be calculated for a single day, for a month or for a year. Load factor in other terms of efficiency. It is used for determining the overall cost per unit generated.
When to use diversity and demand factor?
When used Diversity and Demand Factor in an electrical design it should be applied as follows, the sum of the connected loads supplied by a feeder-circuit can be multiplied by the demand factor to determine the load used to size the components of the system.
How does capital cost affect power plant capacity?
The capital cost of the power station depends upon the capacity of the power station. Lower the maximum demand of the power station, the lower is the capacity required and therefore lower is the capital cost of the plant. With a given number of consumers the higher the diversity factor of their loads, the smaller will be the capacity of the plant required and consequently the fixed charges due to capital investment will be much reduced.
How to calculate load factor?
To calculate your load factor take the total electricity (KWh) used in the billing period and divide it by the peak demand (KW), then divide by the number of days in the billing cycle, then divide by 24 hours in a day.
Why do utilities use load factor?
Utilities use load factor to determine the tariff classification your business is placed in that determines how much you pay for demand charges. A high load factor is more desirable than a low load factor.
What is the best load factor?
In general a load factor greater than 80% is great, 50%-65% is average, and below 50% is low. Since a higher load factor usually means lower prices, the higher the load factor the better.
How to reduce the maximum demand?
Maintain power factor near to unity. Since the power factor is inversely proportional to the maximum demand. Hence by increasing power factor , the maximum demand will be reduced.
What is the maximum demand in kVA?
The maximum demand in kVA is nothing but a peak operating load (maximum load) in kW of the consumer for the specific interval divided by the operating power factor . The interval will be defined by your electricity provider. Hence, the maximum demand formula can be written as,
How does power factor affect the cost of a power distribution system?
A required increase in conductor and equipment sizes. Finally, power factor increases the overall cost of a power distribution system because the lower power factor requires a higher current to supply the loads.
Why do utilities charge demand?
Many utilities add a demand charge to the bills of large customers to offset differences between supply and demand (where supply is lower than demand). For most utilities, demand is calculated based on the average load placed within 15 to 30 minutes.
Why is the power factor of an AC circuit always equal to one?
In most ac circuits there is never power factor equal to one because there is always some impedance (interference) ...
What is a 96% power factor?
A 96% power factor demonstrates more efficiency than a 75% power factor . PF below 95% is considered inefficient in many regions.
How to determine kW demand limit?
To determine a kW demand limit for a percentage load factor desired, take the actual kWh’s used by a home in a given month and divide by 720 (total hours in an average 30-day month):
How to calculate peak load factor?
To calculate the On-Peak load factor, simply take the energy used during the On-Peak times and use the load factor calculation. Let’s say that a total of 4,000 kilowatt-hours were used during the billing period. We’ll assume that 15% or 600 kwh’s were used On-Peak with a demand of 8kW. The load factor is:
What is load factor?
It is the ratio of actual kilowatt-hours used in a given period, divided by the total possible kilowatt -hours that could have been used in the same period, at the peak kW level established by the customer during the billing period .
How to find load factor of 60%?
If a 60% load factor is desired, take the 4.16 (100% load factor) and divide by .60. If the kW peak is known and the kWh is known, load factor can be found by multiplying the kW by total hours, and dividing the actual kWh’s into that number. For example:
What is demand control?
Conceptually, you can think of demand control as making the total size of the box smaller by decreasing the height. In the figures below, the yellow line is the demand limit or set point. By using an Energy Sentry demand controller, the peak demand is reduced by load management, and the original peak of energy use is redistributed below the limit. It’s not about changing how much electricity is used, but when it is used.
Why are load factors lower in off peak?
Off -Peak load factors will be lower because they have more hours. These are the hours when there's the lowest average use per hour.
Do load factors have to be calculated separately?
If you are working with TOU rates, load factor must be calculated in a different way. Time-of-Use rates have separate On-Peak and Off-Peak times which must be calculated separately. The only changes here are:
