What are wheel spacers and their functions?

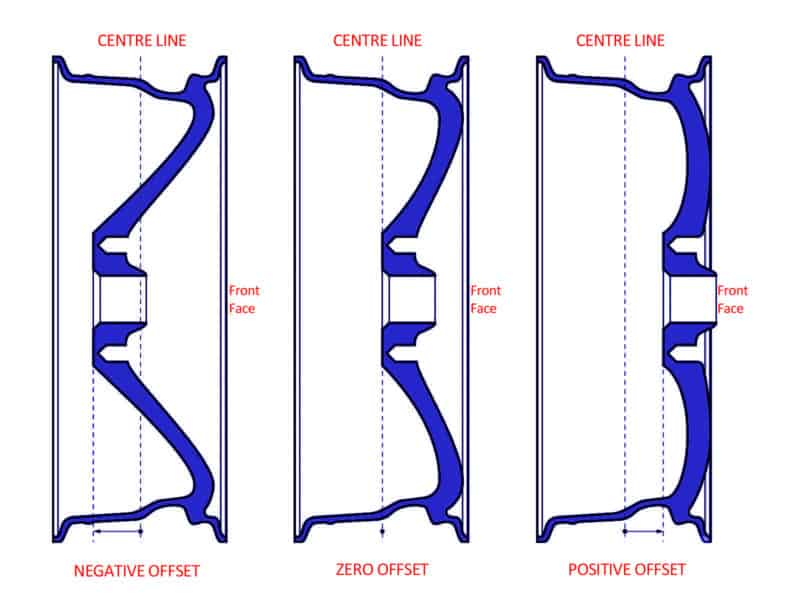

Wheel spacers are components installed on a car’s wheel stud to form extra clearance between the wheel hub housing and the wheel. Simply put, wheel spacers extend the distance or offset between the wheel hub housing and the wheel itself.
What are the pros of wheel spacers?
As alluded above, The common reason most people install wheel spacers is to create an offset between the wheels and their corresponding hub housing. They’re used for several reasons. However, they have advantages and disadvantages.
What are the cons of wheel spacers?
Just as the saying goes, whatever has advantages also has disadvantages. Having seen the reasons most motorists choose to install wheel spacers on their vehicles, you might wonder, are wheel spacers legal? Are there disadvantages to it? There are no federal laws that prohibit wheel spacers in the United States.
Final words
At this juncture, it is apparent that we’ve cleared the air on the mind-boggling question, are wheel spacers safe? Spacers have been in the automotive industry for the past decades. And as long as you get the matchable ones and mount them properly, there are few chances of failure.
What are the negatives of a wheel spacer?
The Negatives. The main issue with a wheel spacer is that it moves the wheel to a wider position whilst the rest of the suspension arms remain in the same place. In particular, the king pin inclination axis remains in the same place.
How does a wheel spacer affect the life of a car?
The larger the spacer, the larger the leverage becomes. This reduces the life of the wheel bearing as they are not made to take leverage forces and can therefore wear faster, increasing rolling resistance and power loss of the car.
Why do you need spacers on your wheels?
Installing wheels spacers is common within the tuning scene. They are a cheap and easy way to improve wheel fitment and increase the track width of your car. However, they are also a fast and easy way to ruin the geometry of your car and can badly affect your handling.
What does it mean when a car's damper is softer?
This means that the wheel will have a larger effect upon the damper and will act upon it with more leverage. This effectively makes the spring and damper softer and less effective on the wheel. This means that the car can roll more on corner entry and exit and feel generally softer out on track or on the road.
Why does track width increase?
The increase in track width also lowers the roll centre of the car and therefore increases the amount of cornering force that the car is able to carry through its tyres. Due to being able to manage an increase in cornering G force, it means that it is possible to corner at higher speeds.
Does a wheel spacer increase the scrub radius?
Fitting a wheel spacer will increase the positive scrub radius at the front wheels which has some unfavourable consequences. If your car already has a bit of positive scrub radius then the wheel spacer will increase it. An increase in positive scrub radius increases the forces on the steering rack under braking conditions.
Wheel spacers... do they affect alignment?
Here's a few questions: 1. If I want to add spacers to my car to bring the stock wheels out to "enhance" the appearance, will they screw up my alignment? Will I have to get it re-aligned? Can it be aligned properly? 2. What are the different sizes that are offered? At what "size" would I have to want to get ones that have their own lugs? 3.
Say What?
1. Yes, it should be re-aligned. 2.????have Clue not question. what is 3. Has this car been in an accident? Wheels 'sticking out' on one side more than the other is not going to be 'fixed' by spacers, and is not a good thing.
spacers
I put my 25mm H&R wheel adapters on last night. The wheels look incredible. I'm no longer looking at getting aftermarket wheels since my stock wheels, when pushed out look so good now. I took some pictures. I'll try to post. If you are worried about the lifted look, don't worry. Its not a problem. The car does not look lifted at all.
Why are wheel spacers not installed correctly?
This is because the entire weight of your vehicle is dependent on the strength of your wheel assembly.
How does wheel spacers affect tire track?
Wheel spacers increase the scrub radius as the tire track becomes wider , making your vehicle less maneuverable. For a more in-depth analysis on wheel spacers and their function, watch this video!
What is lugcentric vs hubcentric?
Lug-Centric vs Hub-Centric: There are two types of wheels on vehicles: Lug-centric wheels and hub centric wheels. Whatever type of wheels you have, your vehicle will need to match up with the type of spacers you may choose to buy. Hub-centric means that the wheel bore and axle line up perfectly, and lug nuts are used to secure the wheel to ...
Why add spacers to your car?
Adding wheel spacers to your vehicle may be necessary for upgraded component fitment such as brakes or suspension. Fitting larger or even different brakes to your vehicle may cause clearance issues with your stock wheels.
What is a wheel spacer?
Wheel spacers are devices that are fitted to the wheel assembly hub of a vehicle to increase the distance between the wheel itself and the inner wheel well. In other words, wheel adapters are added to the wheel assembly to increase how far they stick out from your vehicle, increasing its track width.
Why are wheel spacers important?
Improve the Handling Characteristics of Your Vehicle. Because wheel spacers set the vehicle track wider than it normally would be, vehicle stability (and therefore the car’s handling) can be greatly improved. This can be important on a truck or SUV with a high center of gravity.
What is hub centric?
Hub-centric means that the wheel bore and axle line up perfectly, and lug nuts are used to secure the wheel to the mounting plate. Lug-centric means that the lugs themselves do the centering due to an increased hub diameter.
