Why is the top of the dishwasher loop so high?
Because the top of the loop is located above the flood level of the dishwasher, it makes it unlikely that drain water can be siphoned back into the dishwasher. The high loop method is not as reliable as an air gap, but it can help to prevent contaminated water from being drawn back into the dishwasher. Where allowed, the high loop method frees up ...
How does the dishwasher drain hose work?
The incoming dishwasher drain hose connects to one fitting, while a secondary hose runs from the other fitting to the kitchen sink's drain pipe or garbage disposer. The air gap works by allowing fresh air into the drain hose if there is a backup causing negative pressure.
What is dishwasher hose?
The dishwasher hose is fitted onto the ribbed branch fitting and secured with a hose clamp. The dishwasher hose must connect to the sink drain before the drain's P-trap. If the hose connects after the P-trap, sewer gasses can flow up into the dishwasher hose and into the dishwasher. Read More.
What is venting in dishwasher?
What Is Dishwasher Venting? Dishwasher venting prevents dirty water from re-entering the dishwasher. There are several common ways to do this: creating a high loop in the drain hose, connecting the hose to an air gap fitting, or installing a check valve on the drain line.
Does a dishwasher drain into the kitchen?
Because a dishwasher drains into your kitchen's plumbing system, there is a slight possibility of dirty drain water siphoning back into the dishwasher and contamina ting clean dishes or being drawn back into the fresh water supply.
Can a dishwasher drain through a garbage disposal?
When there is no garbage disposal present, the dishwasher hose should run down from the air gap or high loop and connect to the sink drain by means ...
Do dishwashers have backflow preventers?
Backflow preventers can isolate the hot-water heater and prevent backflow during pressure drops. Backflow from a clogged sink into a dishwasher won't run back into the supply line, but can flood the dishwasher with dirty water. A dishwasher might contain a simple flapper valve in the drain outlet.
How do I unclog my dishwasher?
Break up drain clogs with a homemade solution. If your dishwasher drain is clogged and causing water to back up, you can try using a homemade solution of vinegar, baking soda and hot water to break up the clog. First, pour a solution of baking soda and vinegar down the basket at the bottom of your dishwasher.
Where is the air gap on my Bosch dishwasher?
Locate your air gap. It's usually a little hood or cylinder at the back of your sink. Remove the cover. Most just unscrew or pop off by hand, but some have a small screw that holds it in place.
Is it OK to leave a dishwasher on its side?
like the pump on dishwashers. Laying the unit on its back won't hurt the component but dropping it on its back can. You'll know right away if there is a problem.
How do you hook up a dishwasher water line?
Slide the dishwasher into its place between base cabinets after you complete the electrical and drain hose connections. Attach the opposite end of the supply hose to the empty valve on the dual outlet/dual shutoff valve. Tighten the compression connector with the wrench and turn on the hot water supply.
How far away can a dishwasher be from the sink?
Distance. Quality appliance manufacturers place little or no limitation on how far away from a sink you can install their dishwashers. The unit will include standard, flexible supply lines and a drainage hose that are about 6 feet long. If you need longer pipes or hoses, you can usually get them at home centers.
Can you install a dishwasher without a sink?
A dishwasher can be installed without a sink, though it makes it a bit more difficult of a project. Without a sink nearby, separate supply lines for water will need to be run to the island, and a separate drain will need to be laid out.
Why do you need a high loop on a dishwasher?
A high loop should always be installed with the dishwasher drain line to prevent backflow of waste water to the dishwasher. The high loop should be fastened, secured to the bottom of the countertop.
How does a dishwasher work?
Dishwashers work by pulling in water from the home's water supply line and then spraying and washing the dirty dishes and utensils. Then the dirty water is pumped out of the dishwasher through a drain line ordinarilly under the kitchen sink and into the home's sewer system.

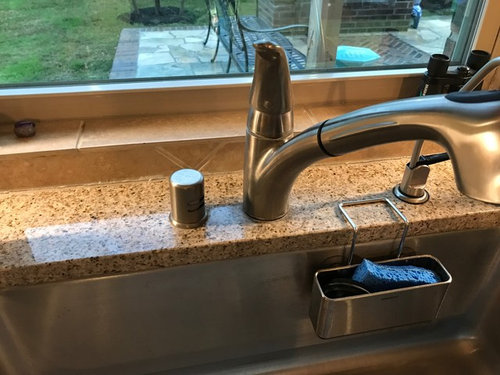

What is an air gap in a kitchen sink?
The high loop is shown properly fastened to the underside of the countertop as needed. An air gap is a vent that goes up through the top of the sink or countertop. An air gap is optional, but not needed with a properly installed high loop drain line.
Do dishwashers have a high loop?
It is required by most jurisdictions and manufacturers that the dishwashers drain line be installed with a high loop. This prevents the dirty water that is being drained from being inadvertently pulled back into the dishwasher or even siphoned back into the water system. The high loop will also allow a slope, up to the high point ...
Can a garbage disposal back up without a high loop?
The high loop will also allow a slope, up to the high point of the drain line from the disposal. Any connection that allows the potential for waste from the disposal / disposer to enter the drain line is improper. If a garbage disposal backs up, without a high loop drain line or air gap, the waste can back up into the dishwasher ...
What is a high loop in a dishwasher?
A "high loop" in the drain line of a dishwasher is one method of preventing backflow of fluid to the dishwasher. In the past I think this had to be created manually when the drain line was installed under the sink.
Why is there a high loop in the drain hose on my Bosch dishwasher?
Bosch: The high loop in the drain hose of your dishwasher is to keep water from settling in the hose if it were hanging down any lower or horizontally. This keeps the drain hose dried out and keeps any odors from backing up into the dishwasher.
Why do dishwashers have a high loop?
The high loop is necessary for 2 reasons. The first is to ensure proper drainage of waste water during the dra in cycle and prevent siphoning. The second is to prevent contaminated water from the garbage disposal or sink drain from back-flowing into ...
Does a dishwasher drain line make a high loop?
Without a doubt, one of the most common issues I see pertains to the dishwasher installation. The issue is that the dishwasher drain line does not make a high loop underneath the kitchen sink. In the diagram below, you can see that a high loop is just what it sounds like. As you see, the dishwasher drain should make a high loop up to ...
