What does the arrow on the piston crown mean?
On those that do, an arrow on the piston crown/top generally indicates how it is to be installed. The arrow should be pointed “up” (towards the center of the engine) if the arrow is orthogonal to the pin bore, or towards the front of the engine if it’s parallel to the pin bore.
Which way does the Arrow go on a carburetor?
The arrow should be pointed “up” (towards the center of the engine) if the arrow is orthogonal to the pin bore, or towards the front of the engine if it’s parallel to the pin bore. Be aware that some connecting rod bearings also must be installed in a specific orientation.
What side is the right side of the piston?
Typically, a ‘right’ is when the intake pocket is on the right side of the piston when looking at the top of the piston with the valve reliefs up.” Piston orientation is extremely critical when you look at asymmetrical valve reliefs, but other aspects of the piston design are also affected.
What is the thrust direction of a piston?
The major thrust direction is the side that is against rotation. For example, if the engine rotates clockwise when viewed from the front pulley the major thrust would be to the left (against rotation).” An asymmetric piston design has a wide and narrow skirt panel.
Which way do pistons face?
The DI piston shows the forward facing directional arrow while the standard 4-valve piston shows which side should be positioned towards the exhaust valves. In any type of high-horsepower and/or high-RPM application, piston-to-valve clearance is critical.
Which direction should the triangle marking on the piston be pointing?
INSTALLATION: Position the connecting rod of the cylinder near top dead center by rotating the crankshaft slowly. Install the piston (1) on the connecting rod (2) with triangle mark (3) of the piston pointing toward the flywheel side as shown.
Which way do you install a piston?
1:554:56Installing a piston into a cylinder - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis should go toward the bottom or toward the block.MoreThis should go toward the bottom or toward the block.
Which way do 2 stroke piston rings go?
0:091:08How to Install a 2 Stroke Piston Ring Quick Tip - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou always want to use a spiral method when you put it on Piqua which side you want to work with itMoreYou always want to use a spiral method when you put it on Piqua which side you want to work with it doesn't matter which one push. It in there get it by your pin.
What does the notch or mark on the piston head indicate?
Some piston designs have the piston pin offset from centre in the piston. The proper orientation of the piston pin offset is marked by a notch or an arrow on the piston head.
What do the markings on a piston mean?
Some pistons may have a laser marking on the crown of the piston to indicate which direction the piston should be installed. “FRONT” with an arrow shape, or just an arrow shape, means that the marking should be pointing to the front of the engine, when the piston is installed.
How do you install pistons on a new rod?
2:273:43A Better Way to Install Rods on Pistons - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo the clip isn't necessary to hold the wrist pin. Then rotate the second spiral lock onto the lockMoreSo the clip isn't necessary to hold the wrist pin. Then rotate the second spiral lock onto the lock in tool until the end matches up with a reference mark. And spin it into place exactly like before.
How do you install a piston on an engine?
0:522:10How to insert a piston using piston tool to engine block. - YouTubeYouTubeStart of suggested clipEnd of suggested clipAll these piston rings and the oil rings will be tightened. Towards the piston itself so that it canMoreAll these piston rings and the oil rings will be tightened. Towards the piston itself so that it can be easily pushed. Inside into the cylinder block.

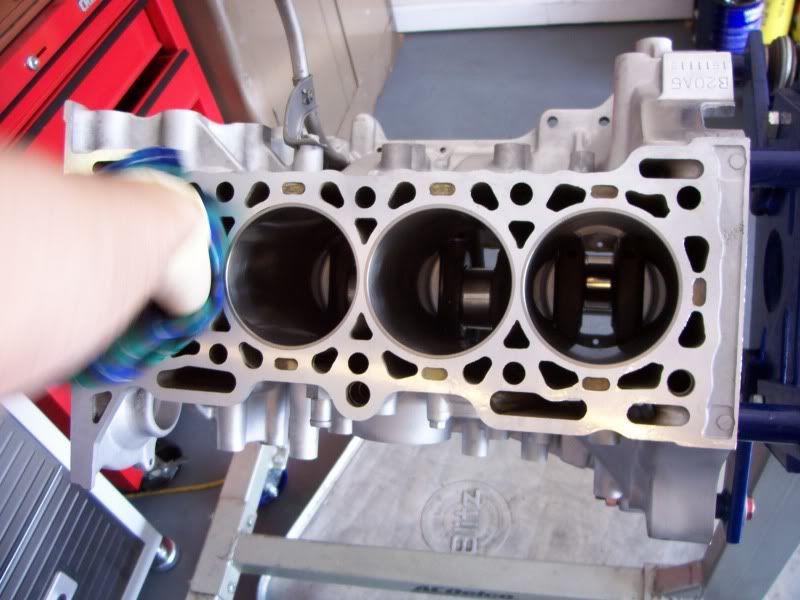

How do you install a piston on an engine block?
8:3513:42How To Assemble an Engine Block - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you actually have less risk of damaging the piston ring you do want to make sure that you do notMoreAnd you actually have less risk of damaging the piston ring you do want to make sure that you do not over twist the piston ring though because it can distort.
What happens if you put piston rings on upside down?
With the taper of the ring upside down, oil will be scraped up with each upward stroke to be left in the combustion chamber and burned on the power stroke. It only takes a minute, check all rings on the piston for correct installation before installing the pistons.Correct Compression Ring Installation: Piston Ring Assembly Tiphttps://www.hastingspistonrings.com › tech_tip › correct-c...https://www.hastingspistonrings.com › tech_tip › correct-c...Search for: What happens if you put piston rings on upside down?
Does piston ring orientation matter?
0:175:55Piston ring gap orientation - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo when you put rings on your piston rings is really a ring orientation that important and if so whyMoreSo when you put rings on your piston rings is really a ring orientation that important and if so why. So this works about two and four stroke.Piston ring gap orientation - YouTubehttps://www.youtube.com › watchhttps://www.youtube.com › watchSearch for: Does piston ring orientation matter?
Can you put a piston ring upside down?
The gas pressure on the back side of the ring helps seal it against the wall. It won't work if the ring is installed upside down. The second ring is usually the same as the top ring. It won't work properly if you mix them up.What happens if you put piston rings upside down? - HomeXhttps://homex.com › ask › what-happens-if-you-put-pisto...https://homex.com › ask › what-happens-if-you-put-pisto...Search for: Can you put a piston ring upside down?
Why do pistons have notches?
Notching the skirt is something CP-Carrillo does primarily to provide clearance for an oil squirter. Most modern engines have oil squirters at the bottom of the cylinder that point up and shoot oil at the pistons to keep them running cooler.
How do you install a piston on a chainsaw?
1:264:22Quick Tip For Fitting Replacement Piston Rings Into A Chainsaw EngineYouTubeStart of suggested clipEnd of suggested clipIt around the piston and the ring they're lining up the Rings first of all. So that little Mark'sMoreIt around the piston and the ring they're lining up the Rings first of all. So that little Mark's the tube is thin enough it to get inside the cylinder yet stiff enough to squash the Rings.
Why is the piston pin offset?
With an offset pin, the piston wrist pin is slightly offset to one side of the piston so the rod doesn't move straight up and down when the piston is at TDC or BDC. This allows the crank to rotate with less resistance giving the engine more power and speed.
Are pistons symmetrical?
Most pistons, whether full round or slipper skirted are symmetrical in skirt contour; that is, both skirts are identical in size and profile.
What is the right side of a piston?
Typically, a ‘right’ is when the intake pocket is on the right side of the piston when looking at the top of the piston with the valve reliefs up.”.
What is the importance of piston orientation?
The last big area that plays into the importance of piston orientation is wrist pin location. This is primarily done to control piston noise. Different wrist pin offsets may require a specific direction when installed. Like the piston skirts, the correct installed location plays into the major thrust side of the engine.
What are the four areas of pistons?
When pistons are designed, the face of the piston can be broken down into four areas—top, bottom, left, and right. While this may seem like an overly simple concept, overlooking something as basic as installing the pistons in the correct orientation can wreak havoc on an engine in the blink of an eye. Beyond the face of the piston, the correct orientation is also required for some piston skirt and wrist pin designs. When we talk about piston orientation, the basic concept is the pistons need to be installed in certain direction based on certain design criteria.
What direction is the pin offset?
The pin offset direction will be towards the major thrust side of the engine. ”. Most pistons will come with an arrow or some sort of marking to illustrate the required piston orientation, but it is always good to verify this information, especially if you are using an asymmetrical piston configuration.
Is it important to install pistons in the correct orientation?
Although the installation might seem easy and straightforward, a little extra time and attention to ensure the pistons are installed in the correct orientation can save you from big headaches later. It’s always important to remember the basics when assembling your engine.
Do pistons need to be symmetrical?
Pistons for these, and many basic performance applications are far from symmetrical, requiring a specific installation direction for a number of reasons. “There are a few main reasons why pistons need to be installed in a certain direction,” explains Clayton Stothers.
Can pistons be designed with spark plugs?
This simple concept, if overlooked can lead to instant piston-to-valve contact, which would result in a wide range of possible engine damage. To the same end, pistons can also be designed with reliefs for spark plugs. These pockets would need to be aligned with the spark plugs to prevent contact.
Open Questions
Be the first to answer Feb 25, 2022 • Harley Davidson FXD Dyna Super Glide...
2006 Harley Davidson Dyna Glide. Why no rear brake or signal lights? I just lost power to rear brake and signal lights. The signal lights do work when I put turn signals on but other then that nothing. I did put on a new eagle rear light a couple months ago so I don't think it's the bulb (although I haven't checked) but, there is a white light on top of the brake light and that does come on. No power when engaging the front and rear brake either
Be the first to answer Feb 25, 2022 • Harley Davidson FXD Dyna Super Glide...
What is the minor thrust side of a piston?
The piston’s minor thrust side is directly opposite of the major thrust side. The minor thrust side is forced to the opposite side of the cylinder wall as it moves upon the compression stroke, due to the resistance generated by meeting the air/fuel mixture. The role of the minor thrust side is basically to provide piston stability, with the major thrust side taking the brunt of the cylinder wall contact. Due to its “less force” role, the minor thrust side skirt can be narrower, saving weight, without sacrificing strength.
What is an asymmetric piston?
Asymmetric pistons will also feature an offset wrist pin, with the pin centerline biased from zero towards the major thrust side by 0.020”. This slight offset tends to balance the piston to accommodate the difference in skirt mass and to compensate for and alter the effect of rod angle, transferring a bit of force away from the major thrust side.Again citing JE’s development in this area, the asymmetric design allows the use of shorter, stiffer and lighter wrist
What is offset on a rod?
This is to accommodate engine designs where the centerline of the cylinder bore is slightly offset from the fore/aft intended location of the rod bear ing radial centerline. Depending on the specific engine deign, the rod may feature an offset of as much as 0.100” or more.
What are grooves in rod bearings?
The grooves in the rod big end and cap and the protruding tangs on the rod bearings exist to facilitate bearing installation and are not specifically intended to prevent bearing “spin.” The bearing crush that is generated when the cap is properly tightened prevents bearing movement. The grooves in the rod and cap and the tangs on the bearings merely serve as an installation aid in order to align the bearings during assembly (locating upper and lower bearings correctly fore/aft). Bearings as-installed feature the ends slightly protruding beyond the parting line. The bearings are locked in position and secured as a result of radial bearing crush when the cap bolts are fully tightened to specification.OE engine designs have begin to use tang-less bearings (Chrysler 3.7L and 4.7L engines are an example). Eliminating machining of grooves in the rod and cap and eliminating the tang on the bearings
