Repair Siding: Use a Kick-Out Flashing to Stop Rot
- Install this special flashing to stop or prevent rot. Sidewalls, where a roof abuts a wall, are potential leak spots and...
- The side wall flashing problem and solution. The intersection between a roof and a sidewall can be a rot problem waiting...
- Install the kickout flashing. Lift the bottom shingle and slip in the...
- Similar Projects.
Where can I buy kickout flashing products?

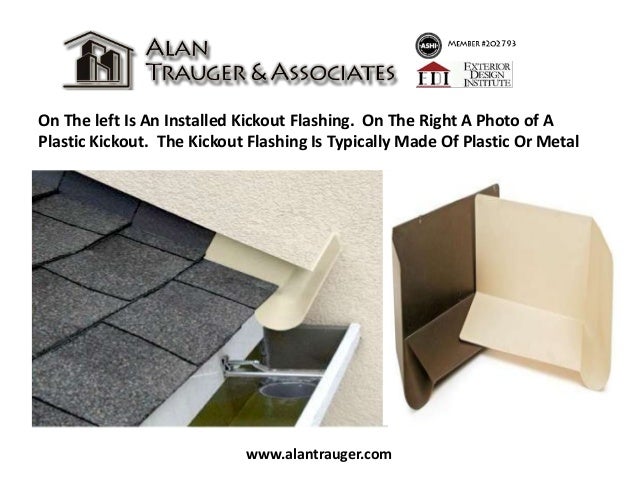

DryFlekt makes polypropylene flashing. The product comes in many colors, which can help you choose based on your exterior decor preferences. Standard kickout flashing cuts out of strips of metal. There are also some kickout flashing plastic products available on Amazon.
How do you install kickout flashing?
To install kickout flashing, you will need a caulk gun, a drill, a hammer, a pry bar, and tin snips. You’ll be using exterior caulk and cap flashing to affix the kickout flashing.
What is kick flashing and why do you need it?
Sidewalls, where a roof abuts a wall, are potential leak spots and rot spots. Good metal flashing prevents these problems, including a specially shaped “kick-flashing.” The intersection between a roof and a sidewall can be a rot problem waiting to happen.
Can you paint over kickout flashings?
You should also wash the flashings with soap and water and dry them before applying any primer or paint. Washing rids the metal of oil from the milling process, which prevents paint chipping. Kickout flashing pays off! A little money and some extra labor can save you thousands of dollars on your home repair and improvement costs.
Where should kick out flashing be installed?
Kick-out flashing should be installed at the end of a roof-wall intersection to divert water away from the wall and into gutters. The kick-out flashing should be large enough to handle expected stormwater flows.
Is kickout flashing required for vinyl siding?
The wall leg of a kickout flashing extends out from the wall, protruding away from the siding and directing roof runoff away from the wall. Kickouts in the code. Kickout flashings have been required by the International Residential Code (IRC) since 2009, yet I've rarely seen them installed on new homes and additions.
Can you install kickout flashing on existing roof?
4:185:32How I Would...Install Kickout Flashings on Asphalt Shingle Roofs - YouTubeYouTubeStart of suggested clipEnd of suggested clipPlace the first piece of step flashing. Directly on top of the kick-out flashing. And cover bothMorePlace the first piece of step flashing. Directly on top of the kick-out flashing. And cover both pieces of flashing with the first shingle. A properly installed kick-out flashing.
How much does it cost to install kick out flashing?
Generally, the cost of fixing flashing is anywhere between $15 to $25 per linear foot, which includes both the price of the new flashing itself and the caulking used to seal it in place (which is about $10 on its own or sometimes more). A total flashing replacement might cost anywhere between $300 to $600.
Do I need kickout flashing?
The kickout was never installed. The increased amount of insulation and building wrap that is used in modern construction makes buildings less breathable and more likely to sustain water damage. Kickout flashing prevents rainwater from being absorbed into the wall and is more essential than ever.
Can you put flashing over siding?
In certain instances flashing may need to be installed on the exterior of siding. However, in most instances, step flashing should be installed “behind” siding. It is always recommended to install step flashing behind stucco, Dryvit, wood panel, lap siding, vinyl siding, cedar shingle siding, etc.
Can you put flashing on top of shingles?
Flashing should overlap the roof-covering material, but on asphalt shingle roofs, for aesthetic reasons, the part of the headwall flashing that extends down over asphalt shingles is often covered with a course of shingle tabs.
How do you install kickout flashing under existing siding?
Nail the siding, stopping before placing the final nail at the end. Slide half of the piece of pan flashing, oriented vertically, under the end of the siding. Make sure the bottom of the flashing does not emerge at the bottom of the lap siding. Secure the flashing and the siding by fastening them to the structure.
How do I add flashing to an existing roof?
5:1911:08How To Properly Replace Roofing Step Flashings - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou can drop right down through your nail line that nails covered right okay that water runs thoseMoreYou can drop right down through your nail line that nails covered right okay that water runs those are all that nail that's just a bunch from the best damn route for starting to wrap.
How do you install kickout flashing on brick?
0:013:21Step Flashing to a Brick Wall - YouTubeYouTubeStart of suggested clipEnd of suggested clipMake sure the inside corner is at least four inches above the roof deck to clear the step flashing aMoreMake sure the inside corner is at least four inches above the roof deck to clear the step flashing a 2x4 laid on the roof is a good gauge for locating the blocks.
How do you flash a porch roof?
2:435:30Roof Flashing - YouTubeYouTubeStart of suggested clipEnd of suggested clipUm the step flashing goes in between uh each layer of the shingles. As you can see he nails it onMoreUm the step flashing goes in between uh each layer of the shingles. As you can see he nails it on the horizontal on the roof surface. But not on the vertical. Surface. Right.
How do you attach flashing to stone?
0:030:45Installing Flashing at Brick or Stone - YouTubeYouTubeStart of suggested clipEnd of suggested clipVinyl must be treated just like any other siding material where it comes in contact with brick orMoreVinyl must be treated just like any other siding material where it comes in contact with brick or stone. This means it must be installed over flashing to assure a watertight joint.
Install this special flashing to stop or prevent rot
Sidewalls, where a roof abuts a wall, are potential leak spots and rot spots. Good metal flashing prevents these problems, including a specially shaped “kick-flashing.”
The side wall flashing problem and solution
The intersection between a roof and a sidewall can be a rot problem waiting to happen. Even if the roof has been properly flashed against the sidewall (this one hasn’t), water can still run down the side of the house and behind the siding, causing rot.
Install the kickout flashing
Lift the bottom shingle and slip in the kickout flashing. Nail it to the sidewall (or glue it if nailing isn’t possible).
Required Tools for this Project
Have the necessary tools for this DIY project lined up before you start—you’ll save time and frustration.
Required Materials for this Project
Avoid last-minute shopping trips by having all your materials ready ahead of time. Here’s a list.
What happens if you miss a kick out flashing?
Missing kick-out flashings can cause thousands of dollars in water damage, and depending on what type of siding you have, this damage can even migrate into the wall cavity behind the kick-out flashing location and cause huge problems.
What is sidewall flashing?
In the code, it is labeled as ‘sidewall flashing’ but is also referred to as ‘diverter flashing’. This means that if your home was built before 2009 (ish), there is little to no chance that the roofer installed a proper kick-out flashing.
Is it hard to install kick out flashing?
Installation of a kick-out flashing is not difficult…if done during the initial build process. It is installed with the roof’s step flashing and is literally the first step in the process. However, when something is the first step during new construction, it is the last step when deconstructing–which means that in order to fix and install a missing kick-out flashing, you have to peel back all the layers of a finished wall assembly if your home is already built.
Do contractors have to install flashings?
Contractors are just not installing them, even though they are required. And the building code officials, at least in my area, are not making them. Here is what the IRC says about kick-out flashings through each code cycle. Most states will use this exact wording or something very similar.
How does housewrap work?
1. Housewrap creates the foundation. Ideally, I like to start by installing a 3-ft. by 3-ft. sheet of housewrap (or even better, a piece of self-adhering roof underlayment) to the wall before the first truss or roof rafter is placed against it. The sheet acts as a backup at a vulnerable junction.
Can you use flexible flashing tape to protect it?
Protect the flashing tape. Although flexible flashing tape is pretty durable, it’s best to protect it with metal flashing and to treat it as a backup for water leaks. I fold a piece of metal flashing for the inside corner between the subfascia and the wall.
Can you cut into siding with a kickout?
Even though you end up cutting into the siding at the vertical wing of a kickout, it is still the best solution. The alternative is common practice and will often end up causing leaks because the end the step flashing ends up behind the siding. This only dumps water directly behind the housewrap and/or siding. Mike.
1. Start with coil stock
Use a knife and a straightedge to cut a 12-in. by 14-in. piece of flashing from the same metal used for the roof’s step flashing.
2. Make a 90° bend
Use a straightedge to make a bend that will leave 6 in. of flashing on the roof and 6 in. going up the wall.
3. Measure the first bend
Mark the flashing 6 in. from the end to locate the approximate location of the first fold.
4. Position seamers for the next bend
Hold the seamers at an angle slightly beyond 90° in relation to the first bend so the bottom of the flashing will drain. Keep the seamers away from the first bend or the metal might tear at the corner point.
5. Bend the flashing upward
As you push the seamers forward, the metal on the other side of the bend will follow, beginning to form the dam.
6. Fold the flashing like wrapping a present
Bend the leg that will abut the house at 90° and the roof leg a bit greater than 90° to encourage drainage.
7. Flatten the bends
Use a block (and, if needed, a hammer) to make the flashing smooth and crisp.
