What is line VTY 0 4 used for?
The VTY lines are the Virtual Terminal lines of the router, used solely to control inbound Telnet connections. They are virtual, in the sense that they are a function of software - there is no hardware associated with them. They appear in the configuration as line vty 0 4. Furthermore, what is the meaning of line Vty 0 15?
What is the meaning of line VTY 0-4 in Cisco switch?
Originally Answered: What is the meaning of line VTY 0-4 in Cisco? The line vty is used to configure a device for example a router or switch to operate remotely. When a Switch is configured with Virtual Terminal Lines it can be accessed and controlled via Telnet or SSH from another device.
What does the output from VTY 0 mean?
The output above reflects that a user is connected (steve) coming in from 10.0.0.1, and is currently connected through the logical interface of "vty 0". If another user connected, they would be connected on vty 1 and so forth.
What is the difference between VTY lines 0-4 and 5-15?
Re: Difference between vty lines 0 4 and 5 15. VTY lines are usually used for creating out-of-band management sessions to devices. If a password is not supplied on a vty line, that line cannot be used for managing the device. In some cases administrators may decide to let junior staff to use lines 0 - 4 and senior staff to use lines 5 - 15.
What is the difference in line vty 0 4 and 5 15?
VTY lines are usually used for creating out-of-band management sessions to devices. If a password is not supplied on a vty line, that line cannot be used for managing the device. In some cases administrators may decide to let junior staff to use lines 0 - 4 and senior staff to use lines 5 - 15.
What is the meaning of Vty 0 15?

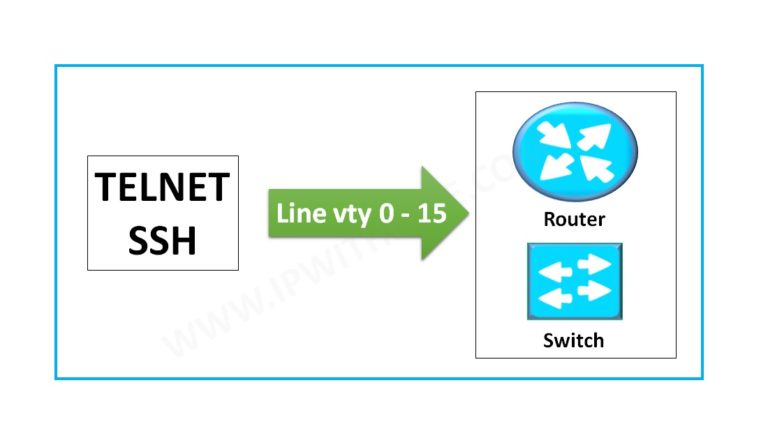

Lines 0 15 is vty lines 0, 1, 2 ,3 ,4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14 and 15. for example if you were type in global configuration mode, line vty 0 15 you will enter configuration for lines 0-15. I hope this answers your question.
What is the meaning of line Vty?
The virtual terminal or “VTY” lines are virtual lines that allow connecting to the device using telnet or Secure Shell (SSH). Cisco devices can have up to 16 VTY lines.
What is Vty line in switch?
Basically, the vty lines is the quantity of connections that you can do remotely to manage the device (Switch). The expression "0 15" means the range between 0 to 15 lines (in total 16 connections in simultaneous). The expression "0 4" will be 5 connection in simultaneous.
What does interface VLAN 1 mean?
VLAN 1 contains control plane traffic and can contain user traffic. It is recommended that user traffic be configured on VLANs other than VLAN 1, primarily to prevent unnecessary user broadcast and multicast traffic from being processed by the Network Management Processor (NMP) of the supervisor.
What is SDM Cisco?
What is Cisco SDM? SDM (Security Device Manager) is a web-based device management tool for Cisco IOS routers. It includes several functions that point to ease of management, standard interfaces, interoperability, and security. The first thing to highlight is that it is embedded.
What is line Vty 0 4 in Cisco router?
VTY is a virtual port and used to get Telnet or SSH access to the device. VTY is solely used for inbound connections to the device. These connections are all virtual with no hardware associated with them. The abstract “0 – 4” means that the device can allow 5 simultaneous virtual connections which may be Telnet or SSH.
What is the meaning of line console 0?
The use of "line console 0" command is to connect a switch/router through medium console. If there is only one console port, you can only choose "line console 0". However if you have more than the number goes as 1,2,3,4 ... You can set different or same password to all your console ports.
What is SVI on a switch?
A switch virtual interfaces (SVI) or VLAN interface, is a virtual routed interface that connects a VLAN on the device to the Layer 3 router engine on the same device.
How do I enable IPv6 routing?
This Article Applies to:Log in to the web-based interface of the router. ... Go to Advanced > IPv6.Enable IPv6 and select the internet connection type provided by your ISP. ... Fill in information as required by different connection types. ... Configure LAN ports.More items...•
What is config line?
Line configuration mode commands allow you to configure the virtual terminal line settings. To configure the virtual terminal line settings and access line configuration mode, use the line vty command in configuration mode. The CLI prompt changes to (config-line).
What is Cisco line password?
Put the command line console 0 to the router. Provide the password by using password command. For example, if you want to put password "cisco" then the command will be password cisco.
What is VTY 0 4?
Accordingly, what is the use of line Vty 0 4? The VTY lines are the Virtual Terminal lines of the router, used solely to control inbound Telnet connections. They are virtual, in the sense that they are a function of software - there is no hardware associated with them.
What is console 0?
March 2017. console 0 is the physical console port on the switch/router you plug into. line vty is when you remote into the switch/router via telnet or ssh. the config-line is letting you know you are currently in configuration mode for that specific line.
What is line vty?
The line vty is used to configure a device for example a router or switch to operate remotely. When a Switch is configured with Virtual Terminal Lines it can be accessed and controlled via Telnet or SSH from another device. CISCO devices are by default configured to use Telnet when the “line vty 0” command is used. If you want to enable SSH for use, you can use the “transport input ssh” command inside the global configuration mode.
What is a VTY in Unix?
The vty, or “Virtual Terminal, ” is analogous to a pty in a Unix system.
What is VTY in Cisco?
VTY refers to telnet connections, used to access the command line interface in a cisco device. The config for those connections allows you to restrict access to only certain IP addresses (a recommended setting) and also how the login process is done, ie, authentication.
What does 0 - 4 mean?
The abstract “0 - 4” means that the device can allow 5 simultaneous virtual connections which may be Telnet or SSH. In a way, we may say that 5 (0 – 4) are connection ports to the Router or Switch. In fact, we may have connection ports up to 16 (0 – 15).
Why is the number 0-4 used?
The number 0-4 is used because by default 5 sessions can be established simultaneously, 15 is the max if I recall correctly. VTY is basically a virtual terminal.
What is VTY 5 15?
Beside above, what is the meaning of line Vty 5 15? VTY lines are usually used for creating out-of-band management sessions to devices. If a password is not supplied on a vty line, that line cannot be used for managing the device.
What is Cisco VTY?
What are Cisco Vty lines? The VTY lines are the Virtual Terminal lines of the router, used solely to control inbound Telnet connections. They are virtual, in the sense that they are a function of software - there is no hardware associated with them.
How many virtual connections can a 0 – 4 router allow?
The abstract “0 – 4” means that device can allow 5 simultaneous virtual connections which may be Telnet or SSH.In a way we may say that 5 (0 – 4) are connection ports to the Router or Switch. How many Vty lines are there? 16 VTY lines.
What is a VTY line?
VTY lines are usually used for creating out-of-band management sessions to devices. If a password is not supplied on a vty line, that line cannot be used for managing the device. In some cases administrators may decide to let junior staff to use lines 0 - 4 and senior staff to use lines 5 - 15.
How many lines are there in vty?
In traditional IOS there were 5 lines for vty (line vty 0 4) to support remote access. In recent versions (and perhaps differing by feature set) there are 16 lines vty 0 15. Even if you configure all 16 lines exactly the same (same password, same login properties, same transport protocol, etc) the output of show run/show start will separate lines 0 4 and lines 5 15. I assume this is some legacy effect in the parser and does not have any operational impact.
