What causes the brake pedal to pulse or vibrate?
Brake Pedal Vibration: Causes And How To Fix
- Brake Pad Issue. Each caliper of the wheel has two brake pads, with the friction surface of these pads confronting the rotor.

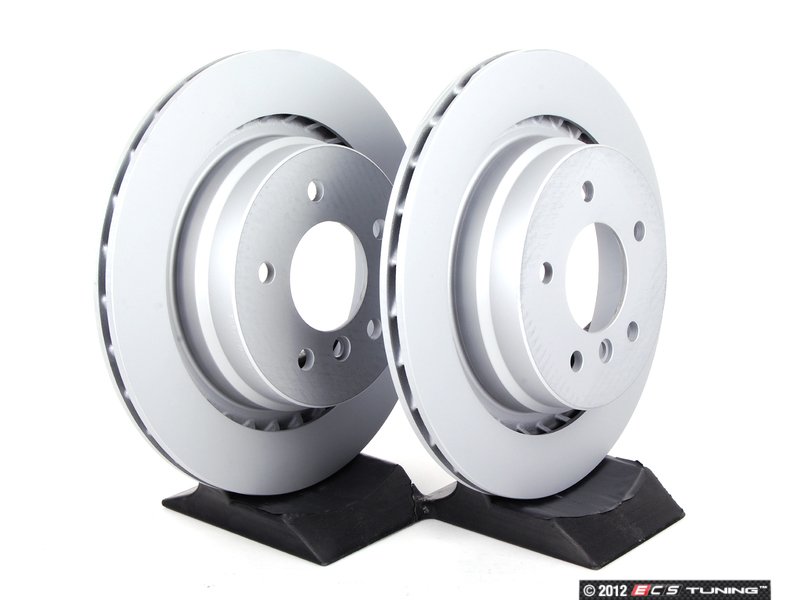

- Brake Disc (Rotor) The rotor part of the braking system is important. Therefore, it is critical to the overall safety of the vehicle that it is maintained properly.
- Improper Wheel Alignment. ...
- Wear Out Components. ...
Why do my brakes pulsate when stopping?
There are many causes that can lead to a pulsating brake. One of the most common causes of a warped brake rotor is the improper installation of the wheel. Modern brake rotors are thinner at the friction surface and overall there is less material everywhere.
What are the common causes of pulsating car brakes?
The common causes of pulsating car brakes can include the Antibrake System (ABS), a poorly installed wheel or a warped rotor. In fact, pulsating car brakes is a common complaint regarding ABS brakes when the ABS system kicks in. This usually happens when braking on ice, wet roads, or gravel.
How to fix pulsating brakes?
Symptoms that can indicate you have air in your brake lines include the following:
- Brake pedal feels spongy when you press down.
- Brakes feel soft and not as effective as they usually are.
- Brake pedal depressed too much or goes to the floor.
What is the condition that ultimately causes most brake pedal pulsation?
A pulsating or vibrating brake pedal is often caused by brake rotors that have warped due to long use or overheating. Because these warped rotors aren't smooth, the pads can't get a solid grip, causing that freaky pulsing.
What do you do if the brake pedal pulsates?
0:422:48Pulsing Brake Pedal might not be a Warped Rotor. Avoid ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipUsing a grinder such as we have here this is a very simple air-powered grinder with a scotch-briteMoreUsing a grinder such as we have here this is a very simple air-powered grinder with a scotch-brite pad on it just clean the entire surface of the rotor.
How is brake pulsation diagnosed?
4:465:59How To Isolate A Brake Pulsation - Eric The Car Guy - YouTubeYouTubeStart of suggested clipEnd of suggested clipAgain also inspect your rear calipers. If you have them if you have rear disc brakes. And see if theMoreAgain also inspect your rear calipers. If you have them if you have rear disc brakes. And see if the parking brake cable goes to the caliper.
Can a bad caliper cause pulsating?
2:514:24Vibrating or Pulsing Brakes? Diagnose Brake Problems on Your ...YouTubeStart of suggested clipEnd of suggested clipAnd potentially a pulsation as well the grinding noise will be what you'd hear first though ofMoreAnd potentially a pulsation as well the grinding noise will be what you'd hear first though of course this is very bad when you see a rotor that looks like what I just showed you more likely this is
Can ABS cause brakes to pulsate?
If your vehicle is equipped with an anti-lock brake system (ABS), and you have to hit the brakes quickly, you will feel a pulsation, but that is completely normal.
Can rear brakes cause pulsating?
When you are experiencing a jerking or pulsing from the brakes, it is quite likely that it is being caused by a defect in the brake drum or rotor, rather than being caused by the anti-lock braking system. An out-of-round drum, or a warped rotor can cause unmistakable pulsating that is felt in the brake pedal.
Is it safe to drive with pulsating brakes?
If you suspect you have warped rotors or your brakes are failing, it is important that you avoid driving your vehicle and contact a mechanic right away. Driving with warped rotors potentially will result in a brake system failure, which can cause injury to yourself and those around you.
Can air in brake lines cause vibration?
If air gets into a brake line, it can produce uneven pressure across the brake calipers and pads, which could make the car shake when you apply the brakes.
Why does my brake rotor pulsate?
Whether it’s caused by heat, driving habits, normal wear-and-tear, or manufacturing error, imperfections in your parts can also cause brake pulsation. Checking that your rotor surface is flat and isn’t warped when you install it can save a lot of time and hassle later. As stated before, making sure to clean parts and use new hardware in installation ensures secure fits and helps to avoid unnecessary damage and grinding parts later on. Finally, ensuring your parts all have the proper alignment and clearance can go a long way in maintaining the health of your vehicle.
Why do my brakes vibrate?
Another common cause for vibrating or pulsating brakes is heat spots on your rotors. The parts in your brake system are designed to operate within certain temperature conditions and exposing your car to excess heat due to extreme temperatures or friction from hard braking can actually damage your brake pads and rotors. When your rotors overheat, material from your brake pads can melt and glaze onto your rotors, and the friction forms uneven spots on the braking surface, known as heat spots. In minor cases this can cause shaking, noise, and vibration, while more serious cases can lead to increased braking speeds or even brake failure.
Is it normal to feel pulsation when you brake?
First things first, if you have an anti-lock brake system (ABS) and you’re feeling pulsation when you have to brake quickly, that’s normal. ABS’s automatically pulsate the brakes for you while braking hard to prevent them from locking up and causing the vehicle to slide into whatever you’re trying to avoid.
What causes unevenly worn rotors?
Once the problem of your brake pulsation has been diagnosed as unevenly worn rotors, it’s time to figure out what caused unevenness in the first place. It could be that your vehicle’s calipers aren’t fully releasing the brake pad when you take your foot off the brake pedal.
How do you fix unevenly worn rotors?
In some cases, we can fix your rotor by resurfacing them on a lathe machine so they’re even once again. Sometimes this is a less costly method than replacing your rotor. However, in some cases, the rotor is beyond repair because the rotor thickness has already been used up or it's simply less costly to replace them.
Why does my brake pedal vibrate?
However, if pads are contaminated with oil, dirt, or other substance, then it causes brake pedal vibrates during the clamping of brake pads onto the rotor. Besides this, the wrapped, damaged, or excessively worn pads can also be one of the causes of brake pedal vibration.
When the pressure is applied by foot on the brake pedal with optimum force, the system automatically strives to stop/?
When the pressure is applied by foot on the brake pedal with optimum force, the system automatically strives to stop/slow the vehicle . It gives a nice firm feel while applying the pressure, however, sometimes the vibration in brake pedal occurs when this pedal is deployed.
What happens when you apply brakes hydraulically?
Each caliper of the wheel has two brake pads, with the friction surface of these pads confronting the rotor. So, when brakes are hydraulically applied (In simple words, brakes are made operational with liquid oil) then, the caliper squeezes the brake pads together onto the spinning rotor to stop the vehicle. ...
Why do tires squeal?
The aligned tires of the vehicle obey the steering wheel perfectly. On the contrary, when there is a disorganization of tires, they tend to produce squealing sounds. This unpleasant sound or vibration is caused by rubbing wheels against brake pads, when the vehicle is fastened or slowed-down.
What is the rotor part of a wheel?
2. Brake Disc (Rotor) The rotor part of the braking system is important. Therefore, it is critical to the overall safety of the vehicle that it is maintained properly. This spinning part of a wheel’s disc brake assembly works against the brake pads.
How much does it cost to replace brake pads?
In case that can not help, however, your last choice is replacement your pads. The cost of car brake pads vary from $35 to $150 for a complete set for one axle. It is higher for labor which costs from $100 to $300. 2.
Can you replace brake rotors?
How To Fix: Brake rotors need either resurfaced or replaced. Replacing or resurfacing both rotors (front set or rear set), even if only one of them is in bad condition, is crucial. New brake pads are highly recommended when replacing the rotors because worn surfaces of the pads will not make proper contact with new smooth rotors. It takes time for the surfaces of both parts to align properly, if you do not replace them in unison.
What does it mean when your brakes pulsate?
Brake pulsation is usually felt when the brake pedal is pressed and the brakes are hot. It usually means there is an issue with the brake rotor and can appear as. Shaking in the steering wheel (usually an issue with front brakes) Shaking in the seat (usually an issue with the rear brakes) Pulsating in the brake pedal.
How to tell if brakes are pulsating?
Signs Your Vehicle Has Pulsating Brakes 1 Shaking in the steering wheel (usually an issue with front brakes) 2 Shaking in the seat (usually an issue with the rear brakes) 3 Pulsating in the brake pedal
What does pulsating brakes feel like?
Pulsating brakes can be felt in the steering wheel as a steering wheel shaking, at the brakes or in the brake pedal as a brake pedal pulsation, or in the seat as a seat vibration when braking.
What happens if a brake caliper is stuck?
If the caliper slider is stuck and does not move, the brake pads can wear out and damage the rotor.
What causes brake rotors to vibrate?
Other defective brake parts can wear out the brake rotor. These parts can cause the rotors to wear out faster or cause the brakes to pulsate or vibrate when stopping.
What does pitting mean on a brake rotor?
Pitted Rotors. Brake rotors with tiny dotted divets throughout the rotor, also known as pitting, is a sign the rotor needs to be replaced. After the vehicle sits for a period of time, moisture accumulates on the rotor. Moisture eventually seeps into the porous material on the rotor, creating “pits.”.
What is brake line hose?
Brake line hose. The brake line hose that supplies brake fluid to the brake caliper can collapse, tear, or twist from being reinstalled incorrectly. A collapsed or damaged brake line needs a replacement. Anything disrupting the flow of brake fluid can cause braking issues.
What causes pedal pulsation?
Rotor thickness variation (RTV) or the lack of parallelism between the rotor surfaces is the major cause of pedal pulsation. In general, RTV in a rotor should be less than 0.001” or less than manufacturer’s specifications.
How to tell if rear brakes are pulsating?
In most cases, using the park brake pedal or lever to apply the rear brakes while the vehicle is rolling along at slow speeds in a low-traffic area will quickly determine if the rear brakes are pulsating. On occasion, rear brake drums can be forced out-of-round if the rear drums are overheated and the park brake is left in the applied position.
What is the high point of a rotor on a brake lathe?
Mounting a rotor on an off-vehicle brake lathe is a critical part of rotor service. In short, the high point of runout indexed on the rotor should be the same high point of runout as indicated by the brake lathe. If the high points significantly differ, either the wheel hub or the brake lathe has excessive runout.
What does it mean when the axle hub establishes concentricity?
If the axle hub establishes concentricity, the fit must similarly be sufficient to hold the wheel in a concentric manner. Last, remember that the rear brakes may also cause brake pedal pulsation.
Why is it important to service disc brake rotors?
The reduced mass of modern brake rotors often causes them to be less tolerant of dimensional inaccuracies and poor installation procedures than are earlier systems.
What to do if torque isn't increasing?
Next, remove all traces of rust from around the wheel studs and hub using a scraper, wire brush or mild abrasive wheel.
How to remove torn metal from rotor?
Remaining torn metal is removed by applying a non-directional “crosshatch” finish to the rotor with finishing stones or an abrasive pad. Thoroughly washing the rotor with soapy water and drying with a paper towel will remove metal particles.
