What should be the minimum width of corridors or hallways?
The minimum width of any hallway/corridor/landing within a communal area is 1200mm, which may reduce to 1050mm at 'pinch points' (e.g. due to a structural column) as long as the reduced width is not opposite, or adjacent to, a doorway. Similarly one may ask, how wide should a hallway be in a house? Hallways are no exception.
What is the minimum Ada aisle width?
What is the minimum ADA aisle width? The ADA requires that walkways be a minimum of 36″ wide. The CBC, however, requires that walkways be a minimum of 48″ wide. Clear widths can be reduced to 36″ if the 48″ requirement creates a hazard, upon approval of the enforcing agency. What is ADA door width?
How wide should a residential hallway be?
How wide should a residential hallway be? The bare minimum width, in my opinion, a hallway should be is 42 inches. Four feet wide would be ideal. Also to know is, how wide does a corridor need to be in a house?
What is minimum Hall width?
The standard minimum size of a hallway is 36 inches wide. Some argue that it should be 42 inches to feel more comfortable. Both can be supported with arguments, just never go below these 36 inches.
What is the minimum ADA aisle width?
32 inchesADA Compliant Commercial Spaces This means you must be sensitive to handicapped needs by reducing clutter, rearranging furniture, and making your aisles wide enough so there are no barriers to access. Generally, the minimum width of a clear aisle must be 32 inches or more to allow a general wheelchair to pass through.
What is ADA aisle width?
According to the ADA, an accessible space must be 8 feet wide and have a 5-foot-wide access aisle on one side. If you rent a retail space and corresponding parking lot, you should be aware of who's responsibility it is to set up accessible parking spaces.
How wide does a doorway need to be to be ADA compliant?
32 inches wideTo assure passage of people using wheelchairs, or crutches, the opening must be at least 32 inches wide. If it is not readily achievable to provide a minimum 32 inch wide opening, then the opening should be as wide as possible.
How many inches is ADA compliant?
An ADA compliant sales or service counter must have a portion that is 28"-36" inches high, measured from the finish floor to the sales counter top. This portion of the counter must also be at least 36" inches long for a parallel approach or a 30" length for a forward approach.
How wide does a corridor need to be for a wheelchair?
The corridor should not be reduced below a minimum width of 750mm and is ideally 900mm for a wheelchair user.
What is the minimum clear width of an accessible route?
36 inchesThe minimum clear width of an accessible route shall be 36 inches (914 mm) except at doors (see Section 1133B. 2). If a person in a wheelchair must make a turn around an obstruction, the minimum clear width of the accessible route shall be as shown in Figure 11B-5E.
Does a 34 door meet ADA?
By ADA standards, the clear width of a door opening must be a minimum of 32 inches and a maximum of 48 inches. This clear width measurement is taken between the face of the door and the stop of the frame with the door open to 90 degrees (Figure A).
What is handicap accessible door width?
Accessible doors should provide at least 32 inches of clear width. Clear width is measured between the face of the door itself and the opposite stop.
What is the minimum width for disabled access door?
32 inches wideFor a wheelchair user to comfortably navigate within their home, it's essential that the doorways must be at least 32 inches wide. In order to meet this standard, increase mobility and improve quality of life for wheelchair users, installing a wheelchair accessible door and widening a door frame may be necessary.
Can a wheelchair go through a 32 inch door?
ADA (Americans with Disabilities Act) sets forth the following recommendations: A door requires a minimum of 32” with a maximum of 48” which would accommodate most wheelchairs. (Hallways require 36”). The height of a door should be 80”.
What is ADA knee clearance?
Where knee clearance is required under an element as part of a clear floor space, the knee clearance shall be 11 inches (280 mm) deep minimum at 9 inches (230 mm) above the finish floor or ground, and 8 inches (205 mm) deep minimum at 27 inches (685 mm) above the finish floor or ground. 306.3.
How high should ADA compliant door hardware be?
ADA-compliant door hardware should open with one hand and be 34 to 48 inches above the floor. Visitors to public establishments are protected under ADA law. If a person with a disability sees that the business has not met ADA compliance, they may be able to take legal action.
How wide is a hallway in California?
It requires that halls measure no less than 36 inches wide for commercial establishments, and the halls must provide a clearance space for turns.
What is the ADA requirement for carpet?
The ADA requires carpets to be securely fastened with a maximum pile of half an inch and strips along the exposed edges. Halls that change levels of more than half an inch are required to have platforms or ramps.
How high should a door be to be accessible to wheelchair users?
Doors. Doors are also required to be accessible to wheelchair users. Doors that open 90 degrees should have a minimum 32-inch opening. Doors that only security personnel can open do not have to follow the guidelines. ADA-compliant door hardware should open with one hand and be 34 to 48 inches above the floor.

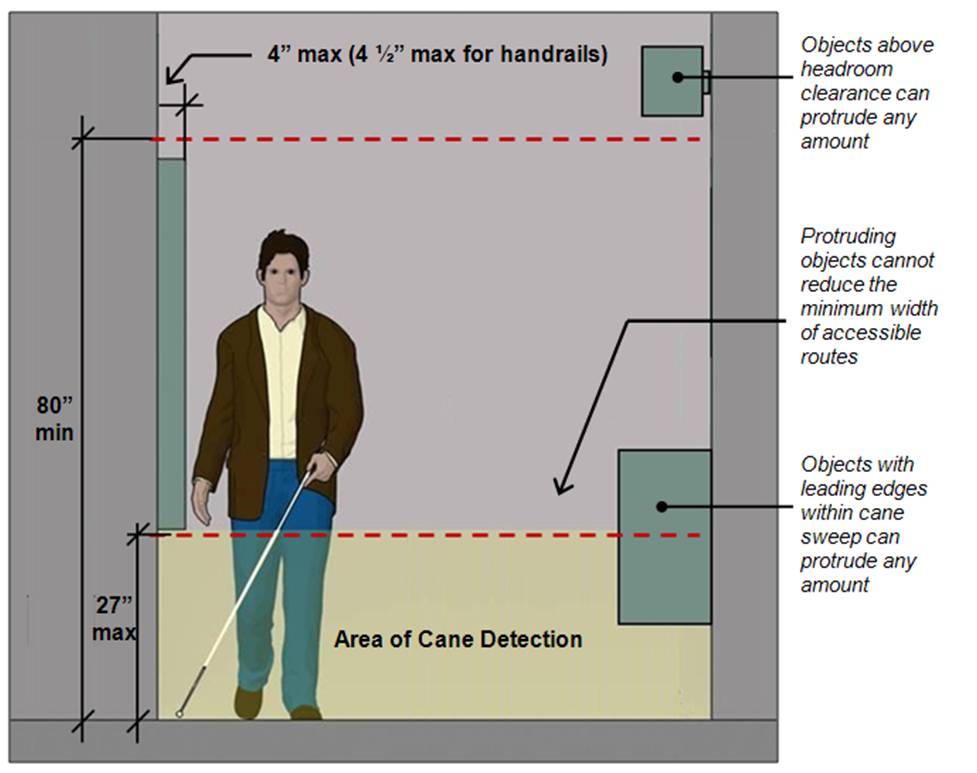

What is the ADA clearance for a head bump?
Head room. The ADA requires a clearance of 80 inches to help blind and disabled people prevent injuries from head bumps. If a commercial building has part of an accessible intersection with less than an 80-inch clearance, a barrier should be put in place.
How wide is a check out lane?
Checkout lanes have their own guidelines. Checkout lanes must be at least 36 inches wide and should include the international wheelchair-accessible sign. All types of checkout aisles must have an accessible lane.
How wide is a hallway?
The minimum width of a hallway allowed by law is 36 inches or 3 feet. This is the absolute bare minimum. So, as long as you’re at or above 36 inches, your hallway will not be considered a hazard. Knowing this will save you the hassle on time and the cost of reconstructing your hallway later. In this article, we will explain why your hallway must be ...
How wide should a hallway be in a dream house?
Unless you’ve dreamed of 36-inch hallways in your dream house (Which you probably haven’t, unless you planned on building a tiny home or a hobbit home), you shouldn’t settle for the minimum. It would be best if you considered building a house with a hallway wider than 36 inches . With a hallway this narrow, you’ll run into a lot of issues, such as: ...
How high should a hallway ceiling be?
The minimum ceiling height of a hallway is 7 feet, but with an already narrow width, having a ceiling of only 7 feet will still leave it feeling cramped. Raising the ceiling will allow for more ceiling decoration, which may take away from the fact that your hallway is so narrow.
How to display art in a house?
Use divots in the ceiling or wall to display features of your house. Opt to have a wooden beam in the ceiling like an arch. Use the wall divots to display art, photos, or objects such as surfboards. Build furniture into your hallways, such as shelves for books or some drawers.
Why do you need an arch in a hallway?
Creating an arch with your hallways allows you to create more focal points in your home. The focal point should be centered at the end of the archway, drawing your eye in. Guests will feel propelled by curiosity to see what’s at the end of the hall, like a child drawn to candy.
Can a hallway be a reading nook?
With a wide enough hallway with ample lighting, the hallway could even host a reading nook. Without the help of a seasoned architect, it’ll be hard to make your home flow into a 36-inch hallway without it looking like a black market alleyway.
Is a wide hallway good?
Also, a wide hallway is excellent, only as long as the ceiling matches. If the space is too wide, but the ceiling is too low, it could be disorienting. While the hall will be beautiful and spacious width-wise, your guest may find their eyes drawn to the ceiling and wonder why it feels so close compared to the walls.
What is the ADA door requirement?
Guide to ADA Door Requirements (Width, Clearance and Handle Guidelines) The Americans with Disabilities Act (ADA) is an American Law which was enacted in 1990. The legislation actually deals with the civil rights of individuals with disabilities. The law has imposed several guidelines and requirements on a number of different areas including:
Who is required to comply with the ADA?
The law has imposed several guidelines and requirements on a number of different areas including: Architects, designers and contractors are required to abide by all sections of the ADA — the most pertinent requirements being those in the public accommodation sector.
What is the maximum force required to activate operable parts?
The force required to activate operable parts shall be 5 pounds (22.2 N) maximum.”. The maximum force required is 5 pounds, but less than this would be ideal for those who either can’t grip well or are in a position prohibiting good leverage to open a door.
How wide should a door be?
“Door openings shall provide a clear width of 32 inches (815 mm) minimum. Clear openings of doorways with swinging doors shall be measured between the face of the door and the stop, with the door open 90 degrees.”
What is clear width?
The width requirements are known as the “clear width” clear width is essentially how wide a clearing/opening is required, measured from between the face of the door and the stop.
Is there an ADA section for ADA guidelines?
In fact, there is a special section of the ADA for extra guidelines. These aren’t part of the law, but fall under and “advisory”. Here it is from the ADA, “Door hardware that can be operated with a closed fist or a loose grip accommodates the greatest range of users.
How wide is a door?
Doors at Entrances to Businesses. Most entrances to stores and businesses use 36 inch wide doors that are wide enough to be accessible. However, some older doors are less than 36 inches wide and may not provide enough width (32 inch clear width when fully opened). Door openings can sometimes be enlarged.
What is lobby entrance?
Using the lobby entrance provides access to the store. When one entrance is not accessible and another entrance is accessible, a sign must provide direction to the accessible entrance. The alternative entrance must be open during store hours.
How high should a buzzer be?
If used, the buzzer or call bell must be located on an accessible route and mounted at an accessible height (generally not more than 48 inches above ground). When a ramp is added to provide an accessible entrance, the slope of the ramp should be as shallow as possible but not more than 1:12.
Why is it important to have only one step at the entrance?
Having only one step at the entrance can prevent access by a person using a wheelchair, walker, or cane and can make entry difficult for many other people with mobility disabilities. Where one or two steps exist at an entrance, access can be achieved in a variety of ways -- for example, by using an alternate accessible entrance, ...
Can you enlarge a door opening?
Door openings can sometimes be enlarged. It may also be possible to use special "swing clear" hinges that provide approximately 1 1/2 inches more clearance without replacing the door and door frame. Inaccessible door hardware can also prevent access to the business.
Can a wheelchair use a narrow turnstile?
Standard narrow turnstiles are not usable by wheelchair users and by most people who walk with crutches, walkers, or canes. Whenever a narrow turnstile is used, an accessible turnstile, gate or opening must be provided, if doing so is readily achievable. Illustration - view of a turnstile with three rotating bars.
