What is depth perception in psychology?
Stereopsis (depth perception) is the visual ability to perceive the world in three dimensions (3D) - length, width, and depth - which then allows a person to judge where an object is relative to him or her. Depth perception arises from a variety of visual stimuli referred to as depth cues.
How big is a second of Arc?
Each minute of arc can be further divided into 60 smaller segments - this is termed a second of arc (or arcsecond). So one arcsecond is 1/3,600th of a degree or 1/1,260,000th of a circle! That's some really fine vision!
How is stereoscopic depth perception measured?
Stereoscopic depth perception is measured in seconds of arc. In general, you are considered to have gross stereoscopic vision at 3,600 seconds of arc. The smaller the number (some people can achieve stereovision better than 20 seconds of arc), the better your stereopsis.
What is the average depth interval of stereoscopic vision?
For the average interocular distance of 6.5 cm, a target distance of 6m and a typical stereoacuity of 0.5 minute of arc, the just detectable depth interval is 8 cm. What is the cause of stereoscopic vision in human?
What is a normal depth perception score?
On occasion, the subject with good acuity scores will fail to fuse the left and right eye patterns and experience an overlapping of images. Turn the dial back to a test where the subject can stabilize fusion, then proceed. SCORING: Reading all the circles correctly through #9 is normal depth perception.
How do you measure Stereoacuity?
Stereopsis is calculated by taking the least difference in seconds of arc that the individual can perceive binocularly. This value changes as the object's distance from the eyes changes. Stereopsis improves at as distance from the eyes decreases.
How is depth perception measured?
Depth Perception Tests When an optometrist checks your eye muscles, they'll perform a cover test. A cover test measures how well your eyes work together by checking the way one eye behaves when the other eye is covered. A cover test is used to check for strabismus, such as esotropia or exotropia.
What are the 3 aspects of depth perception?
The brain perceives three main types of visual signals, called depth cues, to create a three-dimensional image: Binocular – Depth cue from both eyes. Monocular – Depth cue from one eye. Oculomotor – Depth cue from focusing on an object.
What is good Stereoacuity?
The level of stereopsis was categorized as good stereoacuity (<120 sec arc), moderate stereoacuity (121–240 sec arc), and poor stereoacuity (>241 sec arc).
What is Stereoacuity in an eye test?
Stereopsis, or depth perception, is based on the horizontal retinal image disparity between the two eyes. Stereoacuity, which is a threshold measure of the acuteness of this depth perception, provides an indication of the level of sensory binocularity an individual has.
Do you need 2 eyes for depth perception?
At distances greater than arms length we really do not use binocular vision. We can judge depth with one eye or both eyes equally. Depth perception means the ability to determine what is closer to us, but the tools we use to do this vary. Up close the most important one is binocular vision.
What is poor depth perception?
The brain is able to merge both images into a single 3-D image in a process called stereopsis. This information allows one to determine how far the objects are, as well as how far apart they are from each other. People with poor depth perception lack the ability to process the information correctly.
What is another name for depth perception?
•Other relevant words: (noun) Astucity, Depth Perception, in sight, sagaciousness.
What are the 5 depth cues?
The psychological depth cues are retinal image size, linear perspective, texture gradient, overlapping, aerial perspective, and shades and shadows.
What are the 3 depth cues?
There are three main classes of depth cues: oculomotor cues, visual binocular cues, and visual monocular cues.
What are the two types of depth perception?
There are two main kinds of depth cues: binocular and monocular. These words really just mean 'two-eye' and 'one-eye'; you can remember it because you look through binoculars with both eyes, but a proper English gentleman holds up a monocle to only one eye.
What is depth perception?
Depth perception is the ability to see things in three dimensions (including length, width and depth), and to judge how far away an object is. For accurate depth perception, you generally need to have binocular (two-eyed) vision.
What causes depth perception problems?
Some conditions that can cause depth perception problems include: Blurry vision, usually in one eye. Strabismus. Amblyopia. Nerve problems in one eye. Trauma to one eye. If you suspect you are having trouble with your depth perception, talk with your ophthalmologist.
What is it called when both eyes see clearly?
When both eyes see clearly and the brain processes a single image effectively, it is called stereopsis . People who rely on vision primarily in one eye (called monocular vision) may struggle with depth perception.
What is depth perception?
Stereopsis (Depth Perception) Stereopsis (depth perception) is the visual ability to perceive the world in three dimensions (3D) - length, width, and depth - which then allows a person to judge where an object is relative to him or her. Depth perception arises from a variety of visual stimuli referred to as depth cues.
What is the highest level of depth information?
Stereopsis is the highest (most difficult) level of extracting depth information from the visual world. The eyes must have a relatively similar image (this is why patients with lazy eye or strabismus have difficulty with stereopsis - the brain is working with dissimilar quality of images!). Due to the front-facing location of our two eyes, each eye sees a very similar, yet slightly offset image when looking at an object in space. This slight offset is termed retinal disparity. The brain can then interpret this offset as a binocular depth cue.
How do binocular depth cues work?
Binocular depth cues are more complicated and required a coordinated effort from both eyes. The eyes must both move in the correct direction so that the visual axis of each eye is pointing at the same object of interest, and the images must be able to be fused.
What are the cues of depth?
These cues may be monocular (single-eye) or binocular (two-eye) cues to depth. You could also use the word "clues" for cues as these are the "clues" that tell the visual system about the 3D components of an object or space. Monocular cues include: Relative object size. Overlap (also called interposition)
What is the depth cue?
These are grouped together as light or shadowing of an object becomes a depth cue. Our visual system assumes light comes from the top-down of an object - changing how light and shadows appear on an object can change how the depth is interpreted.
What is the ability of the visual system to take two similar objects and combine them into a single object?
Fusion. Fusion is the ability of the visual system to take two similar objects and combine them into a single object. Flat fusion has no cues to depth - these are simple objects that look flat on a surface. The next level is stereopsis.
How many minutes of arc can you see with stereopsis?
Not everyone has the same ability to see using stereopsis. One study shows that 97.3% are able to distinguish depth at horizontal disparities of 2.3 minutes of arc or smaller, and at least 80% could distinguish depth at horizontal differences of 30 seconds of arc.
What is the term for the perception of depth and 3-dimensional structure obtained on the basis of visual information deriving from
For other uses, see Stereopsis (fungus). Stereopsis (from the Greek στερεο- stereo- meaning "solid", and ὄψις opsis, "appearance, sight ") is a term that is most often used to refer to the perception of depth and 3-dimensional structure obtained on the basis of visual information deriving from two eyes by individuals with normally developed ...
What is static depth perception?
It has also been suggested to distinguish between two different types of stereoscopic depth perception: static depth perception (or static stereo perception) and motion-in-depth perception (or stereo motion perception). Some individuals who have strabismus and show no depth perception using static stereotests (in particular, using Titmus tests, see this article's section on contour stereotests) do perceive motion in depth when tested using dynamic random dot stereograms. One study found the combination of motion stereopsis and no static stereopsis to be present only in exotropes, not in esotropes.
How many perceptual mechanisms are involved in stereoscopic processes?
There are strong indications that the stereoscopic mechanism consists of at least two perceptual mechanisms, possibly three. Coarse and fine stereopsis are processed by two different physiological subsystems, with a coarse stereopsis being derived from diplopic stimuli (that is, stimuli with disparities well beyond the range of binocular fusion) and yielding only a vague impression of depth magnitude. Coarse stereopsis appears to be associated with the magno pathway which processes low spatial frequency disparities and motion, and fine stereopsis with the parvo pathway which processes high spatial frequency disparities. The coarse stereoscopic system seems to be able to provide residual binocular depth information in some individuals who lack fine stereopsis. Individuals have been found to integrate the various stimuli, for example stereoscopic cues and motion occlusion, in different ways.
Can stereoscopes be used to reverse binocular disparity?
However, by using a stereoscope, researchers have been able to oppose various depth cues including stereopsis. The most drastic version of this is pseudoscopy, in which the half-images of stereograms are swapped between the eyes, reversing the binocular disparity.
Does coarse stereopsis develop before fine stereopsis?
There are indications that in the course of the development of the visual system in infants, coarse stereopsis may develop before fine stereopsis and that coarse stereopsis guides the vergence movements which are needed in order for fine stereopsis to develop in a subsequent stage. Furthermore, there are indications that coarse stereopsis is ...
How many arc seconds does a t-test measure?
The test can be performed at different distances, which changes the disparity of the test. The test can measure values between 600 and 20 arc seconds.
What is the difference between 3D and 2D vision?
The biggest difference is that the 3D vision can be more precise and accurate compared to the 2D visual cues that we might use to understand the depth of objects around us.
How is stereopsis measured?
Stereopsis is measured in the value seconds of arc - this is actually a very small value. To understand how small, first think of a circle that is made of up 360 degrees all the way around - the other way to think of this is a circle is made of 360 individual 1-degree segments. So, one degree of a circle represents 1/360th of the circle.
Monocular Depth Cues
- What's very interesting about vision is that crudedepth perceptiondoes not require the use of both eyes. Take a moment to perform a quick experiment. Cover one eye with your hand and look around. Are you able to tell what items in the room are closer to you? Farther away? The answer should be yes! Even someone with one eye is able to use single-eye...
Binocular Depth Cues
- Binocular depth cues are more complicated and required a coordinated effort from both eyes.The eyesmust both move in the correct direction so that the visual axis of each eye is pointing at the same object of interest, and the images must be able to be fused.
Types of Stereopsis
- Stereopsis can be broadly classified into two types - coarse stereopsis and fine stereopsis. Coase stereopsis is large, more easily distinguishable amounts of depth using retinal disparity cues. Finestereopsis is often what is tested in an eye exam - this is very fine amounts of depth between objects. What is interesting is that the humanvisual systemappears to have developed two differ…

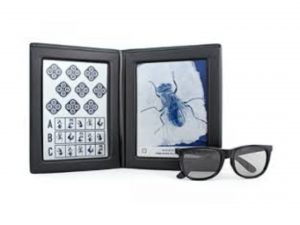

Testing Stereopsis
- Random Dot vs. Contour TestsThere are different methods of stereo testing targets. Random dot targets at first glance look like a bunch of scattered dots. These targets require the patient to combine the images to see a shape or pattern. Countour targets have a distinct shape but use smaller and smaller offsets of the shape to measure stereo ability. Most tests require some for…
References
- Michael Kalloniatis and Charles Luu. The Perception of Depth. https://www.ncbi.nlm.nih.gov/books/NBK11512/ Deborah Giaschi. Sathyasri Narasimhan, Aliya Solski, Emily Harrison, and Laurie M.Wilcox. On the typical development ofstereopsis: Fine and coarse processing. https://en.wikipedia.org/wiki/Depth_perception https://www.sciencedirect.co…
