What is the maximum overflow rate for a sedimentation tank?
The maximum overflow rate must be equal or less than 1.0 gallons per minute per square foot of surface area (1.0 gpm/ft 2). This is calculated by dividing the maximum instantaneous flow rate (gpm) and by the surface area of the sedimentation tank. Surface area is calculated by multiplying the length (feet) by the width (feet) of the tank.
What is the overflow rate of the tank?
The overflow rate (also known as the surface loading or the surface overflow rate) is equal to the settling velocity of the smallest particle which the basin will remove. Surface loading is calculated by dividing the flow by the surface area of the tank.
What are the recommended overflow rates for each type of basin?
There are recommendations on the overflow rates for each design that ideally take into account the change in particle size as the solids move through the operation: 1 Quiescent zones: 9.4 mm (0.031 ft) per second 2 Full-flow basins: 4.0 mm (0.013 ft) per second 3 Off-line basins: 0.46 mm (0.0015 ft) per second More ...
What is the efficiency of sedimentation tank?
Efficiency Efficiency is nothing but the performance of sedimentation tank. It is maximum when the maximum amount of suspended particles in the raw water are separated. In sedimentation tanks, efficiency purely depends upon the settling velocity and over flow velocity.
What is the significance of overflow rate in sedimentation tank design?
This overflow rate is the design factor for settling basins and corresponds to the terminal setting velocity of the particle that is 100% removed. Detention period: for plain sedimentation: 3 to 4 h, and for coagulated sedimentation: 2 to 2.5 h. Velocity of flow: Not greater than 30 cm/min (horizontal flow).
What is weir overflow rate?
The weir overflow rate is simply the gallons per day of wastewater that flow over one foot of weir. In other words, it's the flowrate of wastewater leaving the clarifier per linear foot of weir.
What is sor in sedimentation tank?
SOR is defined as the rate of flow of clarifier effluent per unit of clarifier surface area and is theoretically the upflow rate that the settling solids in the clarifier need to overcome in order to settle before the liquid is carried out of the clarifier.
How do you calculate the overflow rate for a sedimentation tank?
The maximum overflow rate must be equal or less than 1.0 gallons per minute per square foot of surface area (1.0 gpm/ft2). This is calculated by dividing the maximum instantaneous flow rate (gpm) and by the surface area of the sedimentation tank.
What is weir overflow?
A weir is an overflow structure that is used to alter flow characteristics. In the example below, the water is flowing from left to right. The black triangular-shaped structure is the weir. It is impeding the flow of water causing the water to flow over the weir structure.
What is detention time?
Detention Time is the amount of time it takes for a molecule of water to travel a certain distance. In a sedimentation basin it is the time it takes for a particle to travel across the basin. Water treatment operators calculate detention times for settling basins, flocculation basins, or rapid mixing chambers.
What is settling velocity in sedimentation tank?
The main principle involved in the sedimentation tank is to reduce the flow velocity of water which allows the major amount of suspended particles to settle down. The velocity with which the particle is settling is known settling velocity.
Why is low surface overflow Sor important?
Surface overflow rate (SOR) SOR is the gallons per day per square foot (gpd/ft²) of clarifier surface area. A SOR that is too high will cause solids to be discharged with the effluent. A SOR that is too low may cause a long detention time and septicity.
What is the process of sedimentation in water treatment?
Sedimentation in potable water treatment generally follows a step of chemical coagulation and flocculation, which allows grouping particles together into flocs of a bigger size. This increases the settling speed of suspended solids and allows settling colloids.
Which direction does sedimentation occur in the inlet zone?
In the inlet zone, flow is established in a same forward direction. Sedimentation occurs in the settling zone as the water flow towards to outlet zone. The clarified liquid is then flow out from outlet zone.
What is the primary treatment for sewage?
Sedimentation has been used to treat wastewater for millennia. Primary treatment of sewage is removal of floating and settleable solids through sedimentation. Primary clarifiers reduce the content of suspended solids as well as the pollutant embedded in the suspended solids.
How are solid particles entrained by the turbulence of moving water removed?
Solid particles entrained by the turbulence of moving water may be removed naturally by sedimentation in the still water of lakes and oceans . Settling basins are ponds constructed for the purpose of removing entrained solids by sedimentation. Clarifiers are tanks built with mechanical means for continuous removal of solids being deposited by ...
What are the four main parts of a continuous flow settling basin?
All continuous flow settling basins are divided into four parts: inlet zone, settling zone, sludge zone and outlet zone (Figure 2). In the inlet zone, flow is established in a same forward direction.
What is the process of removing suspended solids from water?
Sedimentation (water treatment) Sedimentation is a physical water treatment process using gravity to remove suspended solids from water. Solid particles entrained by the turbulence of moving water may be removed naturally by sedimentation in the still water of lakes and oceans.
What are the four types of sedimentation?
Depending on the size and density of particles, and physical properties of the solids, there are four types of sedimentation processes: Type 1 – Dilutes, non- flocculent, free-settling (every particle settles independently.) Type 2 – Dilute, flocculent (particles can flocculate as they settle).
What is a high rate basin?
High rate basins are designed for a better treatment with high load and less detention time. They are compact units. Detention time is generally 1 to 2 hours, as compared to 4 to 6 hours in the conventional basins. These basins consist of tube settler basins, plate settler basins, and solid contact basins.
Where does sludge accumulate in a tank?
Sludge accumulates at the bottom of the tank/basin. Typical tanks or basins used in sedimentation include conventional rectangular basin, conventional center-feed basins, peripheral-feed basin, and spiral-flow basins. In conventional treatment plants, the amount of detention time required for settling can vary from 2 to 6 hours.
How deep is a basin?
Conventional basins are rectangular or circular. Generally, they are 15 to 20 feet deep to allow proper sedimentation by keeping sludge, light floc (above the sludge), and clear water on the top well separated. Thus, carryover of the floc into the effluent is prevented. Detention time of water in these basins is 4 to 6 hours.
What happens to the water after the floc is mixed?
After raw water and chemicals have been mixed and the floc formed, the water containing the floc (because it has a higher specific gravity than water) flows to the sedimentation or settling basin.
How many zones are there in a sedimentation basin?
All sedimentation basins have four zones - the inlet zone, the settling zone, the sludge zone, and the outlet zone. Each zone should provide a smooth transition between the zone before and the zone after. In additon, each zone has its own unique purpose.
Why do plants have two sedimentation basins?
Many plants have at least two sedimentation basins so that water can continue to be treated while one basin is being cleaned, maintained, and inspected. If sludge is not removed from the basin often enough, the effective (useable) volume of the tank will decrease, reducing the efficiency of sedimentation.
How to detect short circuit in sedimentation basin?
Short-circuiting in a sedimentation basin can be detected in a variety of ways. If areas of water in the basin do not appear to be circulating , or if sludge buildup on the bottom of the basin is uneven, then tests may be called for. Floats or dyes can be released at the inlet of the basin to determine currents.
How long does water stay in a sedimentation tank?
The allowable detention period in the sedimentation tank is 4 to 8 hours.
What is the principle of sedimentation tank?
The main principle involved in the sedimentation tank is to reduce the flow velocity of water which allows the major amount of suspended particles to settle down. The velocity with which the particle is settling is known settling velocity.
What is the flow through velocity of water?
The velocity of water with which it travels from inlet to outlet of sedimentation tank is called flow through velocity (V). The allowable flow through velocity of water in sedimentation tank is 0.005m/s.
How deep is sludge?
It is provided only when removal of the sludge takes place manually. Generally it is limited to 0.8 to 1.2 meters.
What is the process of removing suspended particles in water?
Sedimentation is the process of removing suspended coarser particles in water by settling down them to the bottom of tank. For a particle to settle down, the flow velocity must be reduced. This process is carried out in a structure called sedimentation tank or settling tank.
Overview
Designs

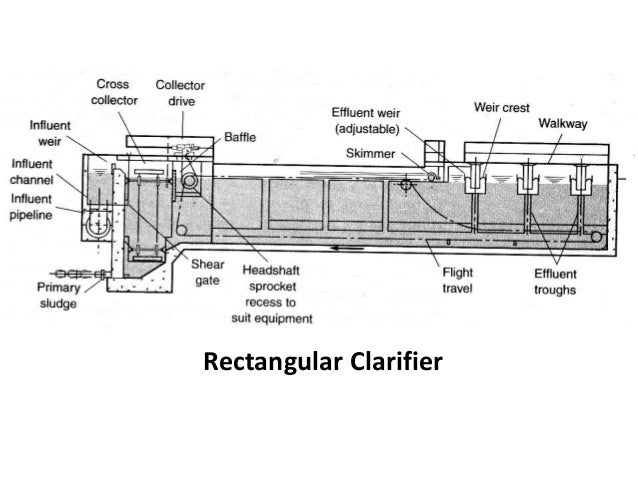

Although sedimentation might occur in tanks of other shapes, removal of accumulated solids is easiest with conveyor belts in rectangular tanks or with scrapers rotating around the central axis of circular tanks. Settling basins and clarifiers should be designed based on the settling velocity (vs) of the smallest particle to be theoretically 100% removed. The overflow rate is defined as:
Basics
Suspended solids (or SS), is the mass of dry solids retained by a filter of a given porosity related to the volume of the water sample. This includes particles 10 μm and greater.
Colloids are particles of a size between 1 nm (0.001 µm) and 1 µm depending on the method of quantification. Because of Brownian motion and electrostatic forces balancing the gravity, they are not likely to settle naturally.
Assessment of main process characteristics
Settling basins and clarifiers are designed to retain water so that suspended solids can settle. By sedimentation principles, the suitable treatment technologies should be chosen depending on the specific gravity, size and shear resistance of particles. Depending on the size and density of particles, and physical properties of the solids, there are four types of sedimentation proces…
Applications
Sedimentation in potable water treatment generally follows a step of chemical coagulation and flocculation, which allows grouping particles together into flocs of a bigger size. This increases the settling speed of suspended solids and allows settling colloids.
Sedimentation has been used to treat wastewater for millennia.
Primary treatment of sewage is removal of floating and settleable solids through sedimentation. …
See also
• API oil-water separator
• Dissolved air flotation
• List of waste-water treatment technologies
• Sewage treatment
Bibliography
• Weber, Walter J., Jr. Physicochemical Processes for Water Quality Control. John Wiley & Sons (1972). ISBN 0-471-92435-0.
