What is extended keratometer? Sometimes a patient has a corneal curvature so steep (keratoconus) or flat (post-LASIK or PKP) that they're beyond the range of a conventional keratometer . You can extend the keratometer range by taping a trial lens over the central aperture on the patient's side of instrument (be sure not occlude the mires).
What are the types of keratometers?
What are the types of keratometer? The Javal-Schiotz keratometer is based on the Javal-Schiotz principle that works with a fixed image, a doubling size, and an adjustable object size for obtaining the curvature of the corneal surface. It is a two-position instrument and uses two self-illuminated objects.
When was the keratometer invented?
In 1851, German physiologist Hermann von Helmholtz built the first keratometer, although a similar instrument was built by Jesse Ramsden and Everard Home in 1796. This diagnosing instrument helps in evaluating the degree and axis of astigmatism. • The radius of curvature of the anterior surface of the cornea.
What is a one-position keratometer?
This is a one-position keratometer and the image size can be varied. In this, the incoming reflected light rays (converging in nature) are passed through a Scheiner disc having four discrete apertures. The two prisms are aligned perpendicularly with each other.
What is the difference between manual and automated keratometers?
While automated keratometers are useful and comparatively easy to use for beginners, manual keratometers provide a more accurate reading. An experienced professional generally prefer using the manual instrument for fine adjustments. However, nowadays updated automated instruments are comparable to manual design.
How do you extend keratometry reading?
You can extend the keratometer range by taping a trial lens over the central aperture on the patient's side of instrument (be sure not occlude the mires). For steep corneas, use a +1.25 lens. For flat ones, use a -1.00 lens. Multiply the K readings by the following conversion factors to get the extended values.
What is the range of extended keratometer?
The range of the Extended Keratometer is: For steep cornea: +1.25 D lens is placed in front of keratometer, so that keratometer range will be extended upto +9.00 D. For flat cornea: -1.00 D lens is placed in front of the keratometer, so that keratometer range will be extended upto -6.00 D.

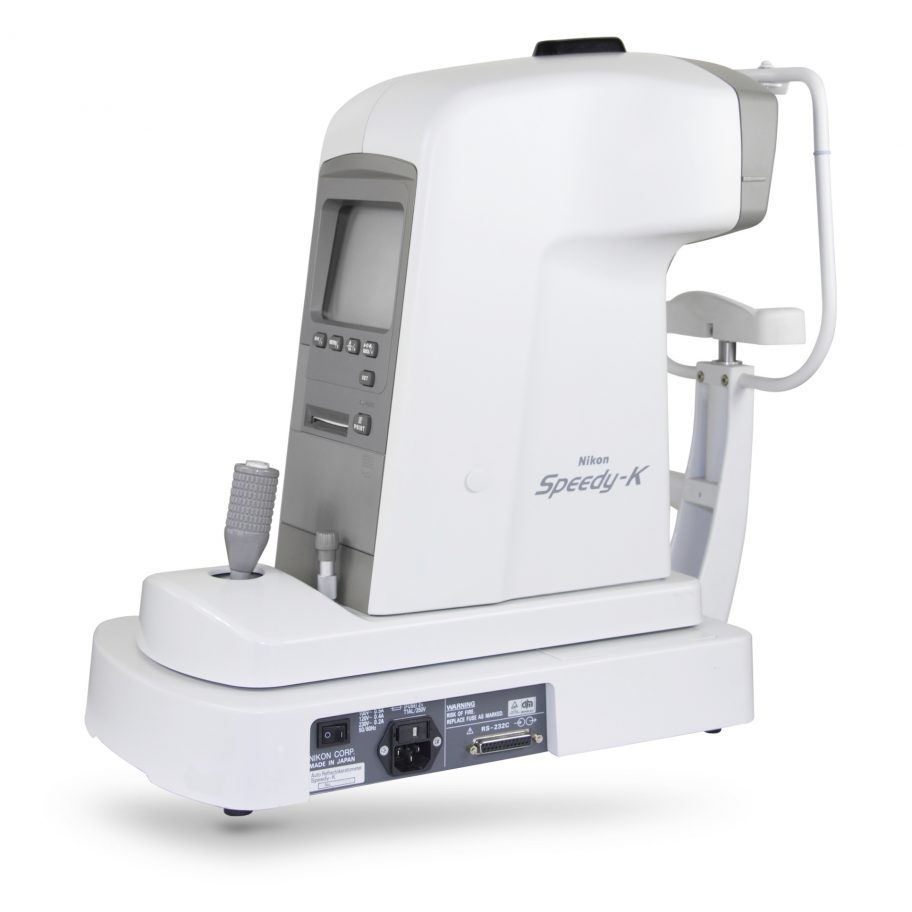

What does a keratometer do?
1. A keratometer. This device measures the curvature of the anterior corneal surface based on the power of a reflecting surface. It does this by measuring the size of an image reflected from 2 paracentral points and utilizes doubling prisms to stabilize the image enabling more accurate focusing.
What is the normal range of keratometer?
Central Keratometry (K Central). This is the average value of corneal power for the rings with diameters of 2, 3 and 4 mm. Values below 47.2 D are considered normal, while values between 47.2 and 48.7 D are considered probable keratoconus.
What is K1 and K2 in keratometry?
Keratometric changes with cycloplegia. K1: flat meridian of the anterior corneal surface, K2: steep meridian of the anterior corneal surface.
What are the types of keratometry?
Keratometer (Ophthalmometers) There are two types of keratometers: single position Helmholtz keratometers, which are more common, and can adjust image size; and Javal-Schiotz keratometers, two-position machines that adjust object size.
What is keratometry in cataract surgery?
Because a cataract can cause myopia, it can be difficult to correlate the patient's current manifest refraction with his axial length measurements. Keratometry. Keratometry is a measurement of the anterior curvature (power) of the cornea and is another critical component for determining IOL power.
How does a manual keratometer work?
2:445:50Keratometry - YouTubeYouTubeStart of suggested clipEnd of suggested clipTurn the rotating grip knob so that the tips of the plus signs touch if the patient has regularMoreTurn the rotating grip knob so that the tips of the plus signs touch if the patient has regular astigmatism. Remember this is when the principal meridians are 90 degrees apart.
What is a two position keratometer?
The Grafton Two Position Keratometer is used to measure diopter and curvature of the corneal surface and the axis and diopter of corneal astigmatism. It can also be used to measure the diopter of IOL assisted by A ultrasonic.
What are the stages of keratoconus?
Central radius, visual acuity with glasses and contact lenses, corneal thickness and transparency were used to classify keratoconus into the stages: normal, suspect, mild, moderate or severe (stage 0 to 4).
Can keratoconus be cured?
There is no cure for keratoconus, but you can manage it effectively with treatment. The most effective treatment for this condition depends on its severity. There are several treatments available to help effectively manage keratoconus.
What is considered severe keratoconus?
Mild Keratoconus = steepest corneal curvature of ≤ 48.00D. Moderate Keratoconus = steepest corneal curvature of 48.00D to 53.00D. Advanced Keratoconus = steepest corneal curvature of ≥ 53.00D.
What color are Gulden fixation sticks?
The set includes fixation sticks in five colors (white, red, blue, green, yellow) and a handy pocket leather case. Call 1 (800) 659-2250 or visit their website, guldenophthalmics.com.
What are the new Geggel markers?
Rhein Medical announces the new Geggel Corneal Transplant Markers, developed in coordination with Harry S. Geggel, MD. These markers are available with 16 or 24 circular inner and outer teeth, with an inner 6.5-mm diameter and an outer 9.5-mm diameter. The markers are designed to mark the donor and recipient corneas in one single step for a 16 or 24 running bite suture placement. Each marker places inner and outer points on the cornea to achieve a precise and rapid 16 or 24 bite anti-torque closure. The special center pointer provides precise centralized alignment for symmetrical suture placement. Contact Rhein Medical at (813) 885-5050 or visit rheinmedical.com.
Abstract
This paper describes about keratometer, its principle, various types and its use.
