What is a conduit used for?
A conduit is a hollow tube that wires are pulled through during installation. This differs from cable, which is a group of wires encased inside a flexible protective sheathing. The most common type of cable used in home wiring is non-metallic (NM), or Romex , cable. While NM cable can be run inside a conduit, this is seldom done.
What type of wire is used in Conduit?
Wiring Used With Conduit The most common type of cable used in home wiring is non-metallic (NM), or Romex, cable. While NM cable can be run inside conduit, this is seldom done. The types of wire most commonly installed inside of conduit are THHN and THWN.

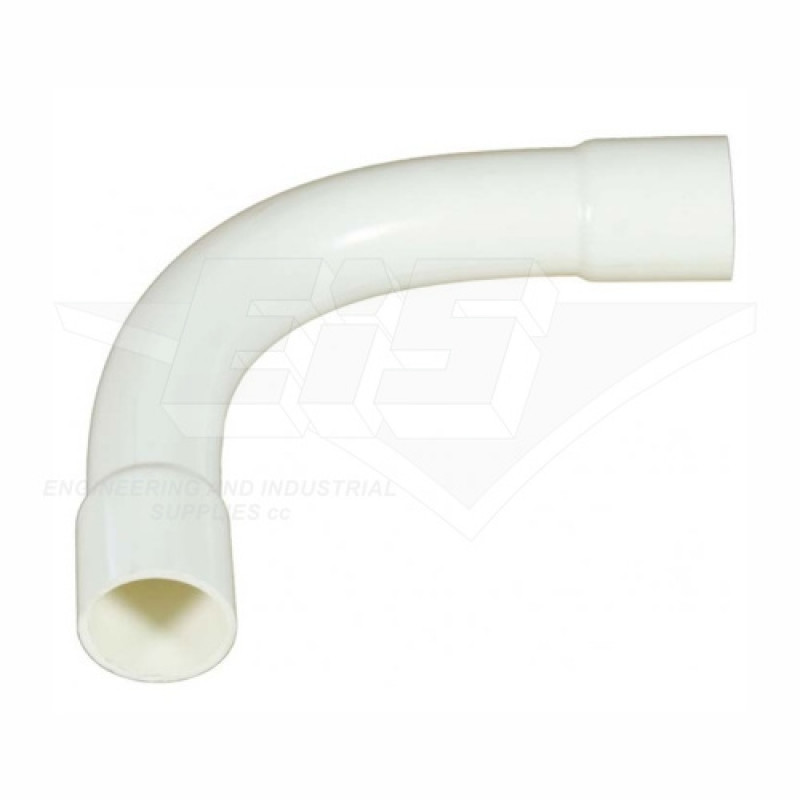

What is the use of PVC conduit?
PVC conduit is often used in underground and wet location applications. This type of conduit has its PVC fittings, connectors, couplings, and elbows. They are easy to attach with a cleaner and PVC glue.
What are special connectors used for in Conduit?
Special connectors are used to secure conduit to boxes and to join lengths of conduit together to form long straight runs or bends. The boxes, connectors, and conduit form a wire enclosure system called a raceway. In most cases, the conduit material matches the box material.
What is blue metal conduit used for?
Nonmetallic Conduit Blue electrical nonmetal tubing (ENT) is for indoor use only. Some code-compliant PVC fittings can be used with ENT inside walls, floors, some ceilings or encased in concrete. Outdoor flexible nonmetallic tubing is strong, watertight, non-corrosive and weighs less.
What are the 4 types of conduit?
There are seven different types of conduit used commonly in residential and light commercial wiring.Rigid Metal Conduit—RMC and IMC.Electrical Metallic Tubing—EMT.Electrical Non-Metallic Tubing—ENT.Flexible Metal Conduit—FMC and LFMC.Rigid PVC Conduit.May 19, 2020
What type of conduit is used for outside?
Intermediate metal conduitIntermediate metal conduit (IMC) is a type of a rigid conduit rated for outdoor exposure and is intended for protecting insulated electrical cables and conductors.Feb 19, 2021
Where is PVC conduit not allowed?
Ambient temperature — PVC conduit isn't permitted to be installed if the ambient temperature exceeds 50°C (122°F) [Sec. 352.12(D)].Jan 16, 2020
What is orange conduit used for?
Rigid Heavy Duty Orange Conduit Heavy duty conduit is used to install cables below ground. It provides mechanical protection for the cables. Orange heavy duty conduit is very strong and is designed to go underground, if this conduit is used above ground it becomes brittle as it is not UV protected.
When should conduit be used?
Conduit typically is used only where circuit wires are exposed (or surface-mounted or buried) and therefore need protection from damage or moisture. Conduit offers protection to electrical wires that run in exposed locations.
Can you run conduit on outside of house?
Using conduit, circuits can be run along the exterior walls, then fed inside to junction boxes where outlets, switches and fixtures are needed.
Will conduit rust outside?
Typical EMT Type conduit will resist rust for a few years. It is however inevitable that it will rust. The most likely place for rust to start will be at the ends where it has been cut or along the surface where the finish has been scratched.Mar 16, 2015
Can I use plastic conduit outside?
Out of the many conduit forms available, PVC conduit is considered best for outdoor applications. Among all conduit types, PVC is lightweight and versatile. Available in a variety of thicknesses or grades, PVC is well suited for direct burial or above ground work.
Can I use plumbing pipe for electrical conduit?
Regular PVC pipe shouldn't be used in electrical applications, and PVC conduit won't work well in plumbing situations. But when you use them correctly, they are both effective and reliable.Apr 16, 2020
Can I use white PVC pipe for electrical conduit?
4 8AWG THHN wires take up just under 96mm2 of fill, while a 3/4" Schedule 40 PVC conduit has 131mm2 of fill available, so you are fine with your conduit sizing.Jul 21, 2018
Can I use regular PVC as conduit?
PVC pipe may be used in place of PVC conduit if the PVC pipe has been manufactured to meet safety requirements on flame and temperature resistance, but because PVC conduit isn't pressure tested, PVC conduit cannot replace PVC pipe.
What is a blue smurf tube used for?
Around here, the only place on commercial jobs that the blue smurf tube is used is by the control people for thermostats, low voltage, and hard to get places, add ons by the electrician to run additional conductors.
Where is Flex Plus Blue ENT made?
The most common type, Flex-Plus Blue ENT, is manufactured by Carlon, Cleveland, Ohio. Workers nicknamed it “smurf tube” because of its distinctive blue color.
What is electrical conduit?
The term "electrical conduit" refers to durable tubing or other types of enclosure used to protect and provide a route for individual electrical wiring conductors. Conduit is typically required where wiring is exposed or where it might be subject to damage. A conduit can be made of metal or plastic and may be rigid or flexible.
What is conduit made of?
A conduit can be made of metal or plastic and may be rigid or flexible. All conduit is installed with compatible fittings (couplings, elbows, connectors) and electrical boxes, usually made of the same or similar material. Conduit must be installed in accordance with the National Electrical Code (NEC) and all applicable local code rules. 1 .
What is RMC tubing?
Rigid metal conduit, or RMC, is heavy-duty galvanized steel tubing that is installed with threaded fittings. It is typically used outdoors to provide protection from damage and can also provide structural support for electrical cables, panels, and other equipment. RMC is sold in 10- and 20-foot lengths and has threads on both ends.
What is rigid conduit?
Another example of a rigid electrical conduit is EMT (electrical metal tubing), which is most commonly made of galvanized steel but can also be aluminum. EMT is also called "thin-wall" conduit because it is thin and lightweight, especially compared to RMC. EMT is rigid but can be bent with a simple tool called a conduit bender.
What size is EMT tubing?
The tubing itself is not threaded like RMC and IMC. Common sizes of EMT include 1/2-inch, 3/4-inch, and 1-inch. It is commonly used for exposed indoor wiring runs in residential and light commercial construction. If installed outdoors in exposed locations, it must be assembled with special watertight fittings. 3 .
Where is conduit used?
Either rigid or flexible, conduit protects the wires and is used in exposed locations, such as along the exterior surface of a wall. It is also used in unfinished areas, like basements, crawlspaces, and attics, and for surface-mounted installations outdoors.
What type of wire is used in conduit?
The types of wire most commonly installed inside of conduit are THHN and THWN. THHN/THWN wires are individual, insulated, and color-coded wires. They are similar to the wires you see when you strip the outer sheathing off of NM cable.
What is a flexible PVC pipe?
PVC: Rigid PVC is a plastic pipe similar in size to EMT. It can be heated and bent and is joined with glued or threaded connections. LFMC: Liquidtight flexible metal conduit is a flexible metal conduit covered with plastic sheathing to make it watertight.
What is conduit connector?
Conduit always terminates at some type of electrical box or at fixed equipment that also serves as a box. Special connectors are used to secure conduit to boxes and to join lengths of conduit together to form long straight runs or bends. The boxes, connectors, and conduit form a wire enclosure system called a raceway.
What is EMT conduit?
EMT: Electrical metallic conduit is rigid, thin-walled metal conduit typically made of galvanized steel. Because it is thin-walled and lightweight, it is easy to bend with a special tool called a conduit bender, and it cannot be threaded like a heavier conduit. FMT: Flexible metal conduit has a spiral construction that allows ...
Can you use plastic conduit with metal boxes?
Plastic conduit typically is used with plastic boxes, but it can also be used with metal boxes and special connectors. Metal conduit must be used only with metal boxes.
Is conduit the same as BX?
Conduit Is Not the Same as BX. At first glance, the electrical conduit may seem similar to BX (or AC, for "armored cable") wiring. Like conduit, loose but insulated individual wires are encased in BX's metal shell. Also like a conduit, BX can be used in exposed locations.
What type of conduit is used for electrical wires?
2. Rigid Polyvinyl Chloride (Rigid PVC) This is the most popular type of non-metallic conduit has several advantages. PVC conduits are used for electrical wires that may be required to run under the ground or in an open environment that is exposed to air, dust, and water.
What is a conduit?
Conduits protect electrical wires as well as any individual who come in close proximity to electrical wires. These are available in different sizes with accessories such as junctions, clamps, bends, T- shapes, C-shapes, L-shapes, etc.
What is a RMC pipe?
Rigid Metal Conduit (RMC): Both ferrous and non-ferrous metals as a rigid metal conduit, in practice, galvanized pipe is generally used-the same type galvanized pipe commonly found in water supply and gas lines. As always the use of pipe smaller than ½” trade size is not allowed.
What is flexible metal conduit?
Flexible Metal conduit (FMC) is used wherever good flexibility is required due to movement or vibration of equipment, or where bends and offsets would be difficult with rigid conduit. To meet various physical or chemical requirements, flex is made of galvanized steel, aluminum, brass, or bronze.
What is conduit electrical?
What is Electrical Conduit? An electrical conduit is a piping system used to carry electrical wiring in domestic, commercial, and industrial use. The purpose of conduits is to protect the enclosed wiring from fires, mechanical damages, and corrosion. Conduits protect electrical wires as well as any individual who come in close proximity ...
What is a non-metallic conduit?
1. Non-metallic conduit (NMC) Image Courtesy: usesi. Non-metallic conduit is common both in rigid and flexible conduits. They are usually made of PVC.

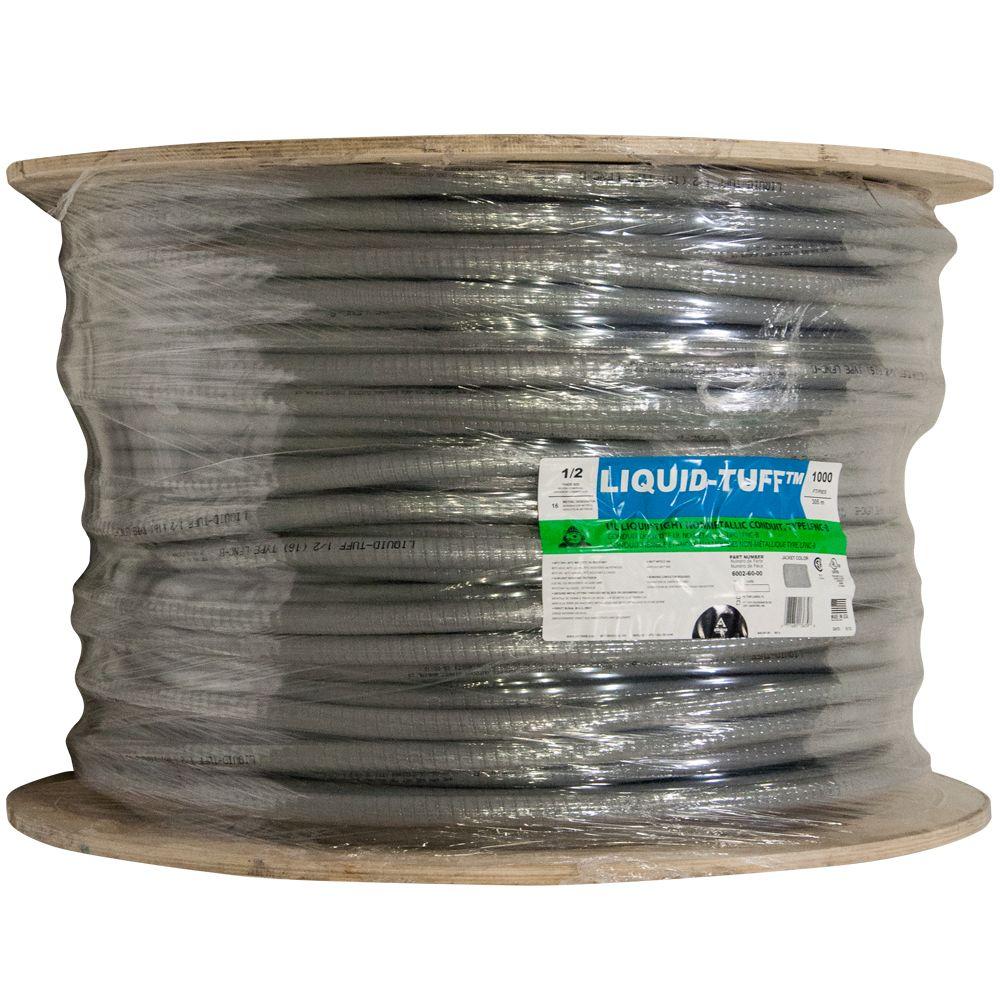

What is liquid tight wire?
Liquid-tight carries no marking for wire size, insulation, or voltage rating because wires must be pulled as needed. The difference between flexible metal conduit (FMC) and Liquid-tight flexible metal conduit is that PVC coated on LFMC. Its use in residences is quite limited.
