What is a SWM line for DirecTV?
The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The satellite dish had to send out a dedicated line that would power a single tuner/ receiver .
How do I connect my receiver (s) to SWM?
3) Connect your receiver (s). (a) ONE RECEIVER: If you have only one receiver to connect, simply connect the IRD output of the power supply to your SWM-compatible receiver. If you are using a DVR (HR20, HR21, HR22, HR23, HR24, HR34 or R16-R23), connect only ONE line to the SWM port (sometimes labeled FTM), which is typically the satellite 1 input.
How many DVRs can a swm8 control?
SWM stands for "single-wire multiswitch" and the SWM8 is a single-wire multiswitch that can control up to 8 DIRECTV satellite tuners. That means a single SWM8 can control up to 4 DVRs total (2 tuners per DVR), up to 8 single-tuner receivers total, or a combination (eg. 2 DVRs and 4 single-tuner receivers).
What dish do I need to connect to SWM?
There are two basic requirements: (1) you need a compatible dish, and (2) you need SWM-compatible receivers. The only SWM-compatible dishes are the 5LNB dish (both slimline, and regular, both AT9 and AU9) and the slimline 3LNB from DIRECTV. The following is a list of SWM-compatible receivers: How do I connect the SWM8?
Will DIRECTV work without SWM?
The DIRECTV H24 will work without a SWM multiswitch and so will the HR24 DVR. These older boxes will even get HD programming if used with a B-Band Converter.
How do I know if I have SWM DIRECTV?
Typically it would be installed behind one of your DirecTV Receivers/DVRs. Usually the one closest to where the satellite cables enter your house. Do a Google Image search for "SWM Power Inserter" to see what one looks like.
What is a SWM connection?
It stands for 'Single-wire multi-switch. All you need to do now is connect one line to the back of your DVR instead of multiples for each device. SWM technology uses a single wire to feed multiple receivers and tuners from the dish instead of each device needing its exclusive wire.

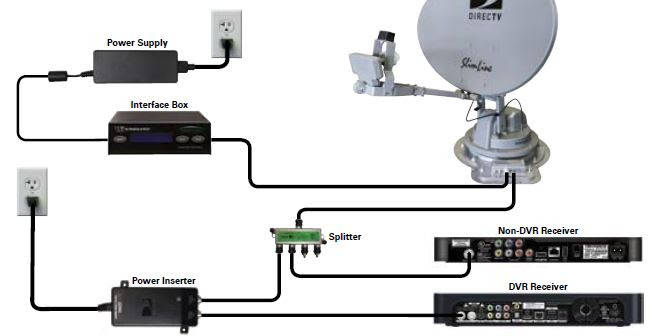

How do I connect my SWM to DIRECTV?
DIRECTV specs suggest connecting the power inserter one of three ways. On SWM-enabled dishes, a single line is run to a splitter. A cable is run from the red connection on the splitter into the “Power to SWM” connection on the power inserter. Then, a cable is run from the “Signal to IRD” connection to your receiver.
What is a SWM DIRECTV receiver?
The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The usual configurations allow 5, 8, 16, or 32 connections to a single satellite dish.
How do you hook up a SWM?
8:089:33DIRECTV New SWM Line LNB Satellite Dish Install Part 1 - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe swim stand-alone unit requires a 29 volt DC power inserter. And the swim LM b requires a 21 voltMoreThe swim stand-alone unit requires a 29 volt DC power inserter. And the swim LM b requires a 21 volt DC power inserter. Because these units can't be powered by the receiver.
How does a DIRECTV SWM work?
DIRECTV's SWM system allows one wire to each receiver no matter how many tuners. It's different from the old system where you needed one wire for each tuner and each wire had to go straight to the multiswitch. SWM lets you use splitters, although they have to be special ones.
Do you need a SWiM adapter for DIRECTV?
Yes, the Genie DVRs require a Single Wire Mulitsiwtch (SWM) setup.
What receivers does DIRECTV use?
The Genie, Genie 2, and Genie Minis are all DIRECTV satellite receivers.
Can I move my DIRECTV SWM?
Yes, absolutely. Most DIRECTV installations today use the SWM system which lets you move your equipment easily.
How do I connect my DIRECTV to my RV?
Basically, all you need to do to have DIRECTV in your RV is pay a flat fee for the mobile satellite equipment, and then either take your receiver from home or rent one specifically for your RV for a small monthly fee. You'll be able to receive over 100 DIRECTV channels while on the go.
How do I reset my DIRECTV SWM?
Restart the SWiM device Here is how: Unplug the SWiM's power cable. Wait 30 seconds and plug it back in. Try watching DIRECTV to see if error 775 goes away.
What is the SWM port?
The SWM has two ports labeled Flex Port 1 and Flex Port 2. These are used in DIRECTV installations that have more than one dish (such as an international dish or, in certain markets, where a separate dish is required for local channels).
How does SWM8 work?
These three ports work like the output from a conventional 3LNB dish and allow you to use receivers that are not listed as S WM-compatible. In other words, if you want to continue using a DIRECTV TiVo or some other older receiver, you can do that. However, to use both tuners on a TiVo, you must have lines run from two of the legacy ports into Sat 1 and Sat 2 of the TiVo. A few notes about the legacy ports: (1) You cannot use any splitters to split outputs from the legacy ports. (2) We recommend that you not connect SWM-compatible equipment to the legacy ports. (3) This follows from the prior note, but the legacy ports do not transmit the signals from 2 of the 5 5LNB satellites, so only the content available from a 3LNB dish is available via the legacy ports.
How far away can you connect a SWM?
If you are connecting only one or two receivers to a SWM port (using no splitter or a 1x2 splitter), each can be as far as 300’ away from the SWM. If you are using a 1x4 splitter, the maximum distance is 250’. If you are using a 1x8 splitter, the maximum distance is 200’. Note that results may vary based on many factors, including the type/quality of cable you are using, and if you find that you are not getting a signal or that you are missing transponders or having other problems with particularly long runs, you might require additional equipment (such as an amplifier).
How many DVRs can a SWM8 control?
SWM stands for "single-wire multiswitch" and the SWM8 is a single-wire multiswitch that can control up to 8 DIRECTV satellite tuners. That means a single SWM8 can control up to 4 DVRs total (2 tuners per DVR), up to 8 single-tuner receivers total, or a combination (eg. 2 DVRs and 4 single-tuner receivers). The SWM8 should not be confused ...
How far away from a direct TV dish should the SWM be?
DIRECTV has put out wiring diagrams suggesting that the SWM must be within 40’ of the dish, although actual field testing suggests that longer distances are fine. Keep in mind, however, that the farther the SWM is from the dish, the more the signal loss.
What are the outputs of a 5LNB dish?
The four outputs from your 5LNB dish attach to inputs 1-4 on your SWM8. So long as the SWM is the only multiswitch that you are using with your 5LNB dish, it does not matter which wire from the 5LNB connects to which input on the SWM, but all four outputs from the dish must be connected to all four inputs on the SWM.
What ports carry the 101 satellite?
The legacy ports carry only the 101, 110 and 119 satellites, and really only the 101 is used now. If you take two lines from legacy 1 and legacy 2 and connect them to the 18V (99/101) and 13V (99/101) inputs on a 6x8 multiswitch, you will then have 8 outputs from the multiswitch that get the 101 satellite.
What is a SWM adapter?
Similarly, what is directv SWM adapter? The DirecTV Single Wire Multiswitch (SWM) is a specially designed piece of hardware that allows a DirecTV satellite dish signal to be split and used with many different tuners/receivers. The satellite dish had to send out a dedicated line that would power a single tuner/receiver.
How to connect a direct TV power inserter?
On SWM-enabled dishes, a single line is run to a splitter. A cable is run from the red connection on the splitter into the “Power to SWM” connection on the power inserter. Then, a cable is run from the “Signal to IRD” connection to your receiver.
Can you use a H44 box with a SWM dish?
These boxes have the ability to power a SWM dish without a power inserter and that can make your setup a lot cleaner. They supply enough voltage through the line to power the dish easily.
How many tuners does DirectV SWM8 have?
DIRECTV SWM8 allows the use of up to eight tuners with a Winegard satellite antenna. Count the tuners in your SWM installation to check that there are less than or equal to eight tuners being used with SWM8.
Does Winegard have a SWM receiver?
Winegard mobile satellite TV antennas operate with Multi-switch technology and require separate accessories to operate with DIRECTV Single Wire Multi-switch (SWM) only technology receivers. For an up-to-date list of DIRECTV DVR and non-DVR receiver models that are only compatible with SWM technology, visit www.winegard.com/directv.
Does Winegard have a SWM?
Winegard mobile satellite TV antennas require separate accessories to operate with DIRECTV SWM only technology receivers. For proper SWM operation with Winegard satellite TV antennas, the SWM8, DIRECTV PI-28 or PI-29 power supply, and DIRECTV approved splitter (typically 2, 4, or 8 port) must be used. Failure to use this equipment may cause issues with your system.
Can a DirectV power inserter damage a receiver?
The DIRECTV power inserter PI-28 or PI-29 may damage a DIRECTV receiver if improperly connected in the system. The SWM output of the power inserter should never be directly applied to the input of a receiver. During installation, verify all wiring before applying power to the power inserter.
What is a SWM port?
With a SWM, only the SAT1 port (labeled FTM or SWM) is used (and potentially an OTA port on an HR20 or H20). In the satellite setup section of your receiver, you can cycle through the various satellites and transponders. When cycling through the satellites (101, 110, 119, etc.), one of them should be SWM. If you do not see SWM as one of the ...
How to tell if SWM is not working?
The symptoms of a non-working SWM really are pretty simple: You don’t get satellite signal on all units, on all satellites, or your signal comes in and out.
What dishes does SWM work with?
There are other layouts, but this is the simplest, and should be your starting point. The SWM will work with the AT9 and AU9 dishes - both are 5LNB dishes. The SWM will work with older single, dual, or triple LNB dishes, although generally the receivers used with those dishes are NOT SWM compatible.
How many runs to a legacy DVR?
So to connect to a legacy DVR, you'll need two runs to the DVR, each from its own legacy port.
Can you have multiple satellite receivers?
If you have multiple receivers, do not turn them all on at the same time. Each satellite receiver has to get its "SWM assignment" and these can conflict if receivers request them at the same time. So turn off all machines, and power them back on one at a time to see if that solves the issue.
