How does a power shift transmission work?
Power shift transmission operation is like a collar shift transmission, except clutch packs are employed rather than collars. The clutch packs lock the desired gear onto the transmission’s rotating shaft. You do not need to use the clutch for directional changes as well as some gear changes.
What is a 24×24 Power Shift transmission?
When the speeds also operate in reverse, you have a 24×24 power shift transmission. With a power shift transmission, the operator selects the RPMs and appropriate gear for the job.
How do you shift gears in a hydraulic transmission?
To shift gears, hydraulic pressure is applied via an electric solenoid or mechanical valve. The power shift concept is very versatile because it is possible to design the transmission with many speeds by using multiple clutch packs for every speed. The transmission operates within a range.
What is the difference between Power Shift transmission and clutch pack?
Some clutch packs use the hydraulic pressure and springs in reverse, with the springs applying the pressure and the hydraulics releasing the pressure. Power shift transmission operation is like a collar shift transmission, except clutch packs are employed rather than collars.
What is a John Deere power Reverser transmission?
The John Deere built PowrReverser transmission provides 12 forward speeds and 12 reverse speeds for operators requiring additional operating ranges for field work and other applications. It comes standard as the 12F/12R PowrReverser with shiftable 540/540 Economy PTO.
What does power reverse mean on a tractor?
A power shuttle is an additional unit used in transmissions and is generally used in agricultural tractors. While the vehicle is moving forwards, the driver can pull a lever that makes it stop and go backwards at the same speed. Power Shuttles are also known under various trade names including Power Reverser.
How do you operate a John Deere power Reverser?
16:4019:48Hydro vs Power Reverser vs Gear Shift Transmissions: John Deere ...YouTubeStart of suggested clipEnd of suggested clipAnd so you just have to push in the clutch. You can see here but if you're on the fly if you're onMoreAnd so you just have to push in the clutch. You can see here but if you're on the fly if you're on the move and on the go you can go ahead and just depress that clutch. And keep on moving forward.
What is a Sync Reverser transmission?
The SyncReverser transmission provides 16 forward speeds and 16 reverse speeds. This transmission comes standard with a shiftable 540/540 economy PTO and provides operators a console-mounted left-hand reverser. Hydraulic wet forward and reverse clutches maximize durability and will outlast the life of any dry clutch.
Are hydrostatic tractors good?
If your tractor will be primarily used for lawn and garden chores or with attachments that don't require consistent speed, a hydrostatic transmission tractor may be the best choice and offers a variety of benefits. Easy to operate – simplified high-to-low lever to shift, no clutch to depress.
What is John Deere hydrostatic transmission?
The 3032E and 3038E Tractors are available with a two-range hydrostatic transmission (HST) incorporated in a die-cast aluminum transmission case. Fluid under pressure transmits engine power to the drive wheels via a closed-loop pump and motor arrangement.
How much can a 4044M lift?
The 400E loader on a 4044M has a 2,396 lb lift capacity. The 440R loader on a 4044R has a lift capacity of 2,539 lb.
How does John Deere Power Shift Work?

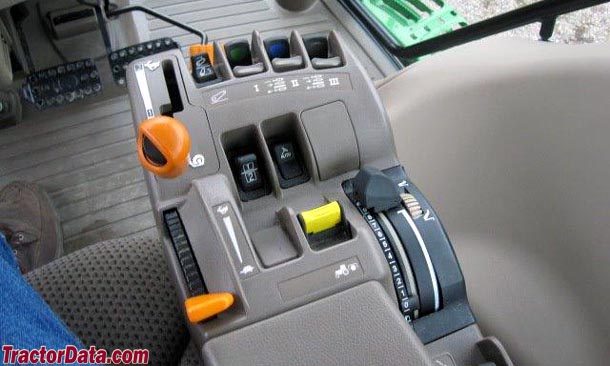

PowerShift controls The automatic PowerShift transmission uses a single lever gear selector conveniently located on the CommandARM™. It provides full powershifts for on-the-go shifting; resulting in no need to stop or clutch when changing gears or shuttle shifting between forward and reverse.
How does John Deere shuttle shift work?
0:334:35HST and Shuttle shift differences - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd then the hydrostatic transmission is forward and excuse me if you can see it there it is forwardMoreAnd then the hydrostatic transmission is forward and excuse me if you can see it there it is forward and reverse just by switching up the foot.
How does power shuttle transmission work?
3:186:10Understanding Tractor Transmissions - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd you throw it in reverse they'll gradually slow you down and move you into reverse. It's a greatMoreAnd you throw it in reverse they'll gradually slow you down and move you into reverse. It's a great setup if you do a lot of loader work.
What is a SyncShuttle transmission?
The SyncShuttle transmission has nine forward and three reverse speeds and is perfect for operators needing a durable basic transmission to do a mix of field work and light loader work. The transmission is available on tractors equipped with the mechanical front-wheel drive (MFWD) front axle.
What is a left hand reverser on a tractor?
A left-hand reverser includes a new PowerZero setting, which holds the tractor and load in position without braking. The tractor will not roll regardless of engine rpm or slope. Move the reverser out of PowerZero and the tractor automatically resumes the preset speed.
What are the common problems with John Deere Power Reverser transmission?
Some of the most common problems with John Deere Power Reverser transmission are:
Why is Transmission fluid leakage a problem with John Deere Power Reverser transmissions?
John Deere Power Reverser transmissions are very advanced and leakage proof systems and if anything is leaking out of them then this could cause transmission overheating. It is definitely a sign of a problem which may cause serious trouble for you in the future.
Why is Transmission slippage a problem with John Deere Power Reverser transmissions?
John Deere Power Reverser transmission system is not designed to slip and if you are experiencing slippage then it could cause slow response or further damage to the transmission system. So, it is definitely a sign of a problem with the mechanical components of the transmission.
Why is Difficulty shifting gears a problem with John Deere Power Reverser transmissions?
You would want a seamless and easy shift even at low throttle input, so if your John Deere Power Reverser transmission is shifting harshly or with difficulty even at low speed then there is definitely a problem.
Why is Hesitation and jerking a problem with John Deere Power Reverser transmissions?
Because hesitation and jerking would mean the John Deere Power Reverser transmission is not functioning smoothly as automatic transmissions are designed for and also they are meant to be a smoother drive than manual. This could cause a very unpleasant driving and passenger experiences
Why is Loud and clunking noise a problem with John Deere Power Reverser transmissions?
These John Deere Power Reverser transmissions are not manufactured to make such loud and clunking noises and if you are hearing such unpleasant noises while driving then you should check with your mechanic as this might get a serious damping issue.
How to precisely diagnose these common problems in John Deere Power Reverser transmission?
To properly diagnose these problems, you need a scan tool to read these codes from the Transmission Control Unit. Firstly, If a John Deere Power Reverser transmission is malfunctioning, it immediately informs the driver with an error message on the screen.
What is power shift transmission?
A more recent advance is the power shift transmission, which allows you to change gears on the run, under various loads. Traditional manual and hydrostatic transmissions still have their place, but power shift transmissions are an ideal choice for the right applications.
What is a tractor power shift?
The tractor power shift transmission is an ideal choice for several applications. With a full power shift transmission you can shift through all gears without clutching. A semi-power shift is a transmission that can be shifted two or more speeds without clutching, although it must still be clutched to shift ranges.
How does a semi power shift work?
A semi-power shift design makes use of a clutch to move from one range to another.
What is a synchromesh transmission?
The low-cost constant mesh design requires you to stop the tractor to shift gears. A synchromesh transmission operates much like a manual on a passenger vehicle – it allows you to shift gears on the go.
How is hydraulic pressure applied to gears?
To shift gears, hydraulic pressure is applied via an electric solenoid or mechanical valve. The power shift concept is very versatile because it is possible to design the transmission with many speeds by using multiple clutch packs for every speed.
How does a clutch pack work?
Each clutch pack is composed of a stack of clutch discs that can be pushed together via a hydraulically driven piston. A spring or springs release the piston when the hydraulic pressure is off. Some clutch packs use the hydraulic pressure and springs in reverse, with the springs applying the pressure and the hydraulics releasing the pressure. ...
