What is difference between on delay and off delay timer?
- Time delay relays are simply control relay with a time delay.
- Use of on time delay relay, the contacts can open or close with some time delay.
- Time delay relays are initiated by applying triggering signal to the relay .
What if the time delay until shutdown is zero?
You can set the delay time for a minimum of 15 minutes and a maximum of two hours. When activated, a countdown timer displays the minutes and seconds until shutdown. You won't be prompted before shutdown, so you'll lose any unsaved data in open applications.
How long do time delay fuses last?
Wear and Tear on the Fuse The lifespan of a fuse can be up to 20 years. AC fuses are usually what is known as ‘slo-blow’ or ‘time delay’ fuses. This means that they are at work every time you turn the machine on and off and eventually, will simply wear out due to the strain of the operation.
How to test air conditioner time delay fuses?
How to Test the Voltage on an Air Conditioner
- With the wiring exposed, you should be able to locate the incoming and outgoing wires. ...
- First, set your meter to the voltage (V) setting and make sure that the display reads "0" volts (or infinity).
- The positive (+) and negative (-) leads need to be placed on the lugs of the "line" side of the circuit or fuses. ...

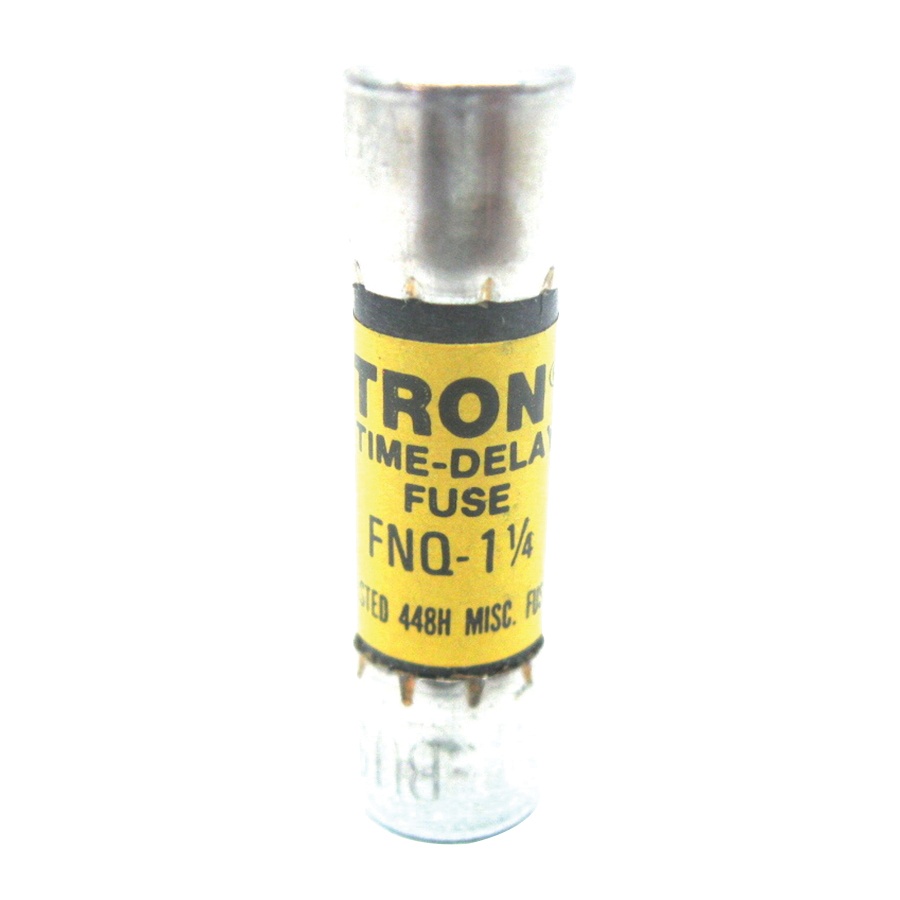

What is time delay fuse?
The time-delay, or "slow blow", fuses were developed for situations where acceptable momentary overloads are encountered, such as starting a motor. As the name implies, this type of fuse will carry an overload several times the normal load for a short period of time without blowing.
What is time delay fuse and non time delay fuse?
FAST- ACTING fuses blow immediately after the maximum rating of the fuse is exceeded. A FAST ACTING fuse used on a motor with a high starting current will blow before the motor can start running. TIME –DELAY fuses will not blow unless an over- load condition exists for an extended period of time, typically 10 seconds.
Is a time delay fuse better?
By making a circuit dead, they protect devices and power lines from short circuits and damage. A time delay fuse, on the contrary, can handle 100 or 200% more electrical current than a regular type because it has an extra spring-attached short connector.
What is the difference between current limiting and time delay fuses?
The standard naming of fuse types is "non-time delay" and "time delay". These are describing how the fuse reacts to medium levels of currents (usually starting about 6X). Current limiting deals with how fast the fuse extinguishes the arc.
What are the 3 types of fuses?
Classification of Fuses Fuses can be classified as “One Time Only Fuse”, “Resettable Fuse”, “Current limiting and non – current limiting fuses” based on the usage for different applications.
Can I replace a normal fuse with a time delay fuse?
The fast acting ones cannot take the place of the time delay models, though. Their fuse wire will melt because of the initial excess supply of electricity. However, replacing the fast acting fuses with the time delay versions will not be cost-effective because the latter is more expensive.
What is the difference between gG and GR fuses?
Partial-range breaking capacity (short-circuit protection only) for the protection of Power Semiconductors....Fuse Speed Markings on Industrial Fuses.Fast Acting FusesMarkingDescriptiongGFull-range breaking capacity (overload and shortcircuit protection) for general applications.gLSame as gG.gFSame as gG.
What does F mean on a fuse?
F = fast acting fuse. TT = very slow burn fuse. FF = very fast acting fuse.
What is the difference between gG and gL fuses?
gG and gL is the same thing where gL is an older definintion. The application cateogory is a two-digit code. The first letter is a if the fuse is for short-circuit protection only; an associated device must provide overload protection.
What does non mean on fuse?
NON one-time fuses do not have any appreciable degree of time- delay and thus should not be specified in circuits where large transients or motor overloads occur. Use Bussmann advanced protection FUSETRON™ FRN-R or ultimate protection Low-Peak™ LPN-RK dual-element, time-delay fuses.
What is non current-limiting fuse?
A non-current limiting protective device by permitting a short-circuit current to build up to its full value, can let an immense amount of destructive short-circuit heat energy thru before opening the circuit.
What is the difference between AT and F fuse?
Read the manufacturer's label, if it says fast or slow, the fuse type is as it is labeled. If it says F it means the fuse is a fast-blow, and if it says T or S it means it is a slow-blow. Other letters will indicate unique fuses for your specific device.
Why is a slow blow fuse important?
An electrical motor takes a lot more electricity to start than it does to continue operating. This means that a slow blow fuse is a great way to protect the circuit.
What happens if a fuse is drawn too much?
A thin wire is used in the fuse, which is the right size for the amount of current being drawn. If any more is drawn then the fuse will burn out and blow, resulting in a dead circuit.
How does a fuse work?
Part of the fuse works like a normal fuse that has the burnout link, but in addition to this, there is a short connector that has a spring attached to it. This spring is soldered onto the fuse wire.
Why is it bad to have a higher rated fuse?
The downside of getting a higher rated fuse is that it would also mean that the fuse is too big for the normal load of the light, and risk overheating during a malfunction. This could potentially be dangerous because it could mean that the fuse will not blow when the circuit is overloaded.
Why are fuse sizes important?
Fuses are an important part of every electrical system as they protect the user from electrocution and fire. The size of the fuse is carefully chosen to suit the requirements of the appliance or circuit. Continue reading below Our Video of the Day. If more power is being drawn than there should be, the fuse blows.
Is it safe to use a time delay fuse?
However, it's beneficial and actually much safer for certain types of electrical appliances. These time-delay fuses are designed for specific applications and it's not normally possible to fit a different fuse inside the receptacle.
What is a time delay fuse?
A time delay fuse has the capacity to sustain transient pulse currents, which is not the strong suit of a fast-acting model. The slow-blow version can withstand the electrical surge in a repeated cycle upon switching the power on/off.
Why are time delay fuses less effective?
Protection. Many people think that time delay fuses are less effective because they allow current overloads pass through the circuits. Well, it’s not true. They are used only for those tools and appliances that need a high voltage current to start their operation.
Why does a fuse wire melt?
Their fuse wire will melt because of the initial excess supply of electricity. However, replacing the fast acting fuses with the time delay versions will not be cost-effective because the latter is more expensive.
What is a fuse?
A fuse is a protective device that keeps electrical appliances safe in the event of a surge of electrical current. They come in various types. One category differs from the other in terms of functions and response time to a peak of electricity. Depending on these features, you can divide them into time delay and fast acting fuses.
Why do fuses need a high inrush?
Some electrical devices need a high inrush of current to start their function. These time-delay or slow-blow fuses can sustain overloads for a limited period. They are perfect for those electronics as they allow the initial surge of power without destroying the circuit.
What is a fast acting fuses?
Fast acting fuses are perfect for resistive circuits that include IC and other sensitive mechanisms. Even the slightest spike in electrical current can damage these components. So, these fuses are the right choice for them. The appliances that use such circuits are laptops, digital cameras, DVD players, and more.
How to tell if a fuse is slow blowing?
Another way to find out the difference is to look into the glass tube of the fuse. A thick wire with a tiny spring at one end makes it a slow-blow fuse while a thin wire means that it’s a fast acting fuse.
