What happens to the refrigerant when the evaporator coil is flooded?

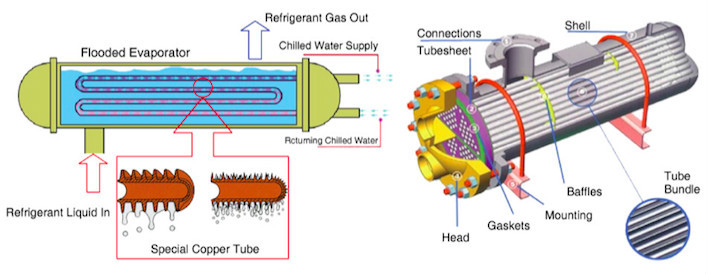

In the flooded type of evaporator coil remains completely filled with liquid refrigerant as shown in the figure. The level of liquid refrigerant is maintained constant in the surge chamber by using float control. The liquid refrigerant enters into evaporator coil from the surge chamber.
What is a flooded evaporator?
Flooded evaporators, which are sometimes called wet evaporators, are divided into forced-flow evaporators and thermosiphon evaporators. Forced-flow evaporators use a pump or an ejector as the driving force, while the density difference between liquid and gaseous refrigerant drives thermosiphon systems.
What is an evaporator coil?
Technically, the evaporator moves the heat from the air into the refrigerant and the cooled air is then blown into the home through the ductwork. The evaporator coil can be a magnet for dust, debris, and other contaminants, this is because it is installed within the airstream of your HVAC system.
What are flooded Atomizer coils?
Flooded atomizer coils are a fact of life for many vapers. The characteristic gurgling sounds or e-juice leaking from the airflow holes are both signs that e-liquid has flooded into your atomizer coil without being vaporized.
What does flooded evaporator mean?
The flooded evaporator is a device which is used to control and maintain the required level of liquid refrigerant in evaporator and this evaporator is used to store the liquid refrigerant with the help of a drum. Flooded evaporator helps to run the refrigeration system cleanly by maintaining the constant liquid level.
What causes a flooded evaporator?
Dirty or blocked evaporator coil. Capillary tube overfeeding. Capillary tube system overcharged. Expansion bulb loose on evaporator outlet.
What is the difference between a flooded and a dry type evaporator?
Answer. Evaporator is said to be flooded type if liquid refrigerant covers the entire heat transfer surface. This type ofevaporator uses a float type of expansion valve. An evaporator is called dry type when a portion of theevaporator is used for superheating the refrigerant vapour after its evaporation.
What is a flooded coil HVAC?
0:150:50What Causes Flood Back? - YouTubeYouTubeStart of suggested clipEnd of suggested clipHappens is is that liquid refrigerant then hit your compressor. What causes flood back an oversizedMoreHappens is is that liquid refrigerant then hit your compressor. What causes flood back an oversized piston a failed TXV an overcharge system a dirty evaporator coil.
What is the advantage of a flooded evaporator?
Characteristics of flooded systems. An advantage of flooded evaporators is that the potential problem of poor refrigerant distribution in the evaporator is reduced. The refrigerant is 100% liquid, and a liquid stream is much better distributed between the channels compared with the two-phase mixture of DX systems.
What would the symptoms of a dirty coil be?
An extremely dirty evaporator coil can cause your AC to breakdown completely. This happens when condensation forms on the dirt and then freezes during the AC's operation. The buildup of frost stops the heat transfer with the air in your home, which causes the air conditioner to stop cooling air at all.
What is difference between flooded type and DX type evaporator?
A flooded evaporator works in conjunction with a low-pressure receiver which separates gas and liquid refrigerant. In a flooded evaporator, the refrigerant is not fully evaporated and heated, while in a direct expansion evaporator, the refrigerant is fully evaporated and heated at a high temperature.
What is flooded condenser?
Flooded condensers are the prime tower pressure-control methods for total condensers that generate only liquid products, and although these control methods can be troublesome, a good understanding of their principles will help achieve improved, trouble-free operations Pressure is the most important variable for ...
Which type of evaporator is used in household refrigerator?
The household fridges use plate surface evaporators. The coil is attached to the plate in the form of an evaporator. The internal and external surface of the finned evaporators are made of the same copper coil.
What causes a flooded condenser?
Compressor floodback is a common cause of HVAC/R system failure. Floodback occurs when uncontrolled liquid refrigerant enters the compressor during system operation. In an HVAC/R system, the refrigerant exits the evaporator and enters the compressor in a vapor state.
What happens when we flood our condenser?
If the condenser coil was exposed to flood waters, the equipment's designed efficiency level might be severely reduced. A dirty, inefficient coil may also lead to premature failure given the extra effort required to heat or cool your home.
What happens if liquid refrigerant enters the compressor?
If liquid refrigerant is entering the compressor, liquid will fall directly into the crankcase oil and eventually be flashed. As mentioned earlier, this is referred to as flooding. This causes oil foaming and excessively high crankcase pressures.
How does a flooded evaporator coil work?
The liquid refrigerant enters into evaporator coil from the surge chamber. In evaporator coil, part of liquid refrigerant boils and converts into vapor. The vapor formed is collected at the top of the surge chamber and the remaining liquid refrigerant is returned to the surge chamber. From the top of the surge chamber, refrigerant vapors are drawn in the suction line of the compressor. In the flooded type evaporator rate of heat transfer is very high as the whole evaporator coil remains in contact with liquid refrigerant but this type of refrigerant requires a large amount of refrigerant.
Where does liquid refrigerant enter the evaporator coil?
The liquid refrigerant enters into evaporator coil from the surge chamber. In evaporator coil, part of liquid refrigerant boils and converts into vapor. The vapor formed is collected at the top of the surge chamber and the remaining liquid refrigerant is returned to the surge chamber.
How does a refrigerant evaporator work?
As the refrigerant passes through the evaporator, more and more liquid is vaporized by the load. The refrigerant, by the time it reaches the end of the evaporator, is purely in the vapor state and that too superheated. Thus the evaporator in its length is filled with a varying proportion of liquid and vapor. The amount of liquid in the evaporator will vary with the load on the evaporator. The inside of the evaporator is far from ‘dry’ but wetted with liquid. All the same, this type is called the ‘dry-expansion’ system to distinguish it from the ‘flooded’ system and also probably because by the time the refrigerant reaches the evaporator outlet it is no more wet (no liquid) but dry (superheated) vapor.
What happens to refrigerant at the inlet of an evaporator?
At the inlet of the evaporator, the refrigerant is predominantly in the liquid form with a small amount of vapor formed as a result of flashing at the expansion valve. As the refrigerant passes through the evaporator, more and more liquid is vaporized by the load.
How does a cold refrigerant change state?
As the cold refrigerant passes through the evaporator coil, heat moves from the warm air into the cooler refrigerant. When the liquid refrigerant receives enough heat, a change of state – from a low-pressure liquid into a low-Pressure vapor – takes place.
What is the purpose of an expansion valve in an evaporator?
The expansion valve controls the rate of flow of refrigerant to the evaporator in such a way that all the liquid is vaporized and the vapor is also superheated to a limited extent by the time it reaches the outlet end.
How does an evaporator work?
Working of Evaporator: When the air conditioning system is turned on, warm air from the passenger compartment is blown through the coils and fins of the evaporator. The evaporator receives refrigerant from the thermostatic expansion valve or orifice tube as low pressure, cold atomized liquid.
How does an evaporator coil work?
The evaporator coil works when air flows over a series of thin metal fins that are cooled by the refrigerant within the copper tubing. Technically, the evaporator moves the heat from the air into the refrigerant and the cooled air is then blown into the home through the ductwork.
What is the coil of an evaporator made of?
The evaporator is where the cold air actually comes from and the coils are made from metals that easily conduct heat. Frequently the coils are made from copper, but steel and aluminum is also used. The tubes are bent into "U" shapes and are stacked into a panel. There are several steps that take place to cool the air.
How much does it cost to replace an evaporator coil?
Replacing your evaporator coil isn't cheap. On average, it'll cost about $1,000, but depending on the size and make of your system, it could be as low as $600 or as high as $2,000.
How does a compressor work?
The compressor keeps the process running by pulling the cold, low pressured refrigerant through the evaporator coils and transfering it to the condenser in a hot, high pressured condition.
Why does my evaporator leak?
Unfortunately, evaporator coils will leak. There are a variety of factors that can cause leaks, including corrosion as well as a clogged drain. If you find that your evaporator has started leaking, you basically have three options:
What happens if your AC coil freezes?
If you notice your evaporator coil is frozen you need to immediately shut down your system. Failure to do so can damage the compressor.
Why are evaporators and condensers important?
The evaporator and condenser coils are both essential to the cooling cycle. Each handles a different side of the process. You might think of it as your favorite basketball team playing offense and defense. Both roles are necessary in order to win a game.
Why do old coils flood?
1 – Not Changing Your Coil or Wicks When You Need To. Old coils are particularly prone to flooding. As the wicks lose their ability to soak up e-juice, the liquid that does get pulled in isn’t absorbed properly and can flood the atomizer head. The same effect happens when your wick has gotten gunked up from using coil-killing e-juices ...
Why does my atomizer flood?
You can also flood your atomizer if your mod isn’t vaporizing e-juice quickly enough. The higher your power (i.e. wattage) setting, the more e-juice your coils will vaporize. If you set your power too low, not much juice will vaporize but more will be pulled into the chamber when you inhale, and so the coil will flood.
What does it mean when your atomizer is flooded?
Flooded atomizer coils are a fact of life for many vapers. The characteristic gurgling sounds or e-juice leaking from the airflow holes are both signs that e-liquid has flooded into your atomizer coil without being vaporized. As well as the irritation of gurgling and leaking, this can also lead to spitback, and generally makes your vaping ...
Why is my e juice leaking?
The most common cause of this is a damaged O-ring or a component of the tank that isn’t properly screwed in place and is leaving a gap that juice can leak through .
What to do if your vape tank isn't screwed in?
If a part of your tank wasn’t screwed in properly, this is much easier to fix: just screw it in properly, being sure to avoid cross-threading, and then fill up and vape as usual.
Can you overfill a tank?
The important thing is to avoid the central tube and make sure you don’t overfill the tank. This is much simpler if your tank has fill-holes, but even if it doesn’t, it’s easy to avoid as long as you know to avoid the central chimney.
What Causes The AC Evaporator Coil To Leak?
One of the most common causes of AC evaporator coil leaks is a chemical reaction! It happens when high humidity, “volatile organic compounds (VOCs),” and copper come together. Once combined, they make a formic acid solution that erodes the copper altogether, leading to coil leakages.
Signs Of A Leaking AC Evaporator Coil
If you have evaporator coil leakages, the refrigerant will start to leak out slowly. Without an adequate cooling agent, your AC unit will work significantly harder and take a longer time to cool. If you believe your system takes much time than usual, chances are the coil is leaking.
How To Fix Leaking Evaporator Coil Of Your Air Conditioner
How to fix a leak in an evaporator coil? Well, it is recommended to call a professional to fix it right away. However, while repair jobs are best when left to experts, fixing a coil leak yourself can save you several maintenance costs.
How To Prevent Evaporator Coil Leaks?
The first thing you must do to prevent evaporator coil leakages is to stop using the products that caused them in the first place. Stop using cleaning products that contain high levels of volatile organic compounds. When purchasing these detergents, make sure they do not contain harmful chemicals that your AC units could absorb along with the air.
Why Do Evaporator Coils Leak On Popular AC Products?
Trane air conditioning systems constantly rank higher in customer dependability and satisfaction mainly because they manufacture some of the best HVAC units with superior components and features. Nevertheless, like other famous HVAC technologies, Trane AC units also experience issues.
People Also Ask (FAQ)
How much does it cost for a HVAC contractor to fix a leaking evaporator coil?
Conclusion
Evaporator coil leaks are common AC problems. They are pretty troublesome for homeowners as they minimize energy efficiency and performance and drastically increase your monthly utility bills. Moreover, they can also damage other components, leading to more costly repairs. Therefore, promptly addressing leaky coils is the only viable solution.
What is an evaporator coil?
The evaporator coil is made of metals like copper or steel because they conduct heat well. Outside the coil are fins, which protect the coils and allow the air to pass through to the coils.
Where is the evaporator coil located in a split system air conditioner?
What is an Evaporator Coil and How Does It Work? In a split-system air conditioner, your evaporator coil is located inside, away from the condenser.
Why is cooling misnomer?
The process of cooling is somewhat of a misnomer, because air is not cooled so much as the heat is removed. Refrigerant is sent to the evaporator coils inside the home to remove heat and humidity from the indoor air.
Do AC coils work in summer?
When summer comes around, you count on your air conditioner’s evaporator coils to remove warm air from your home, eliminate excess humidity and deliver that warm air outside. With careful maintenance, your evaporator coils will do their job well for many years. Maintenance is the difference between effective cooling in the hot summer, and a system that seems perpetually overworked and at-risk for breaking down. For more information about your Sacramento HVAC system, contact us at Ace Plumbing.
Do evaporator coils need to be repaired?
Evaporator Coil Repairs. Your air conditioner’s evaporator coils also need repairs on occasion, particularly related to maintenance. Without regular maintenance, the coils may become too dirty. If you wait too long, they may accumulate condensation and freeze from the refrigerant.
What does it mean when an evaporator is starved?
A starved evaporator is simply not being fed enough refrigerant for whatever reason. It will primarily reveal itself as low suction pressure with high super heat. Low pressure as there's just not much refrigerant in it and high super heat as what little is there is boiling off quickly and has time to continue to collect heat above it's saturation point before it leaves the coil.
Why is my evaporator starving?
Low pressure as there's just not much refrigerant in it and high super heat as what little is there is boiling off quickly and has time to continue to collect heat above it's saturation point before it leaves the coil. Low charge and liquid line restrictions are the two main caused of a starving evaporator.
Is subcooling elevated?
Subcooling will also be elevated as the volume of refrigerant in the condenser is not only greater than normal, but also moving more slowly through the coil and having more time to be cooled below it's saturation point. Take care to distinguish between low suction pressure and low superheat.
What causes ice to accumulate on evaporator coil?
Incorrect defrost cycles or a less effective method of defrosting could also cause ice to accumulate on the evaporator coil, eventually leading to compressor floodback. Overcharged conditions and/or incorrectly sized capillary tubes – An overcharge of refrigerant or a capillary tube that’s too large and/or too short indirectly means ...
Why does my compressor flood?
Causes of Compressor Floodback. Many different factors may lead to refrigerant floodback in an HVAC/R compressor. Most of them could be traced to: Problems with the evaporator – Ice buildup on the evaporator coil due to poor ventilation, a damaged evaporator fan belt, and a failed fan motor are some common problems that could result in refrigerant ...
What happens when a refrigerant expansion valve is misadjusted?
Defective or misadjusted expansion valves – Because expansion valves regulate the rate at which the refrigerant flows into the evaporator, a malfunctioning or a misadjusted valve could result in refrigerant floodback. Refrigerant migration – During the off cycle, a difference in pressure may occur between the refrigerant liquid/vapor within ...
How does oil affect a refrigerator?
The oil particles entrained by the refrigerator will increase the density of the refrigerant charge. As the refrigerant gets pumped through the cylinder, higher than recommended crankcase pressures will develop. That extra load will cause the compressor motor to draw more current, which will result in unwanted inefficiencies.
What causes a compressor to fail?
Compressor floodback is a common cause of HVAC/R system failure. Floodback occurs when uncontrolled liquid refrigerant enters the compressor during system operation. In an HVAC/R system, the refrigerant exits the evaporator and enters the compressor in a vapor state. But when the refrigerant is not vaporized entirely in the evaporator, a part of it gets sucked into the compressor in its liquid form. Compressor floodback may be misdiagnosed as compressor failure, even though the compressor doesn’t cause this phenomenon.
What happens when refrigerant is not vaporized?
But when the refrigerant is not vaporized entirely in the evaporator, a part of it gets sucked into the compressor in its liquid form. Compressor floodback may be misdiagnosed as compressor failure, even though the compressor doesn’t cause this phenomenon.
What happens when oil foams in a compressor?
Oil Foaming. When the compressor starts, the pressure of the refrigerant-oil mixture in the crankcase drops suddenly. As a lower amount of liquid refrigerant is required to saturate the oil, the rest of the refrigerant will expand and evaporate into vapor.
The Thermosiphon Compression Cycle
The Forced-Flow Compression Cycle
- A forced-flow flooded system is identical to a thermosiphon system, except that a pump is installed before the evaporator to serve as a driving force for the refrigerant (see Figure 6.45, no. 6). If the installation site does not offer the minimum necessary height difference between the receiver and evaporator to allow density circulation, a forced-flow system may be preferable ove…
Co-Current Versus Counter-Current Flow
- For thermosiphons, it is often recommended that evaporation be operated in co-current flow, despite the mean temperature difference (MTD) being less favorable. Co-current flow ensures a large temperature difference in the beginning of the evaporator, enabling the boiling process to start as soon as possible. Because the thermosiphon evaporation process is driven by differenc…
Design
- The driving force of the thermosiphon process is based on natural density differences. It is therefore of vital importance that the relationship between the liquid static head and the two-phase static head (see Figure 6.48) is correct, i.e. the driving force should be larger than the restraining forces. For the two-phase mixture to return to the separator, the static head pressur…
