What is the difference between a psychrometer and a hygrometer?
- Measures both temperature and humidity instantly
- Fast response time without any hassle
- BIG LCD Display that works in both day and night
- An ideal choice for accurate measurements
- Two in one sensor to use in various industries
What is psychrometer and how does it work?
What is a psychrometer and how does it work? It is an instrument used to measure humidity, and it works by comparing the difference in temperatures between a dry thermometer bulb and a wet thermometer bulb! What might the ¨wet bulb¨ have a lower temperature reading than the ¨dry bulb¨.?
What are the units of a psychrometer?
Terms for Humidity
- Relative Humidity. RH is an expression of the moisture content of a given atmosphere as a percentage of the saturation humidity at the same temperature.
- Absolute Humidity. The weight of water vapor in grains or pounds of moisture per pound of dry air or grams of water vapor per kg of air, i.e. ...
- Saturation Humidity. ...
- Degree of Saturation. ...
What does a sphygmomanometer measure what?
A sphygmomanometer is an instrument used to measure blood pressure which is also known as a blood pressure meter or blood pressure gauge or blood pressure monitor. The word sphygmomanometer is derived from the Greek word ‘sphygmos’ meaning beating of the heart or the pulse and manometer mean the device used for measuring the pressure or tension.
Does a psychrometer measure dew point?
This test method describes how to determine the dew point using a sling psychrometer. A psychrometer measures the ambient air temperature (dry bulb temperature) and the wet bulb temperature. From the dry bulb and wet bulb temperature the dew point is calculated.
What is the function of a psychrometer?
A psychrometer measures the dry-bulb and wet-bulb temperatures simultaneously. The measurement of the wet-bulb temperature is achieved by means of a wet wick placed over the thermometer bulb. The thermometer can be practically of any type.
What data does a psychrometer collect?
Psychrometers can be used to measure humidity, and relative humidity. To measure relative humidity, the psychrometer relies on the fact that humidity will change evaporation speed. The device consists of two thermometers. One is a dry bulb thermometer that is exposed to the air to measure the temperature.
What is measured by selling psychrometer?
A psychrometer is a device for measuring air humidity. It does so by measuring the temperature difference between a dry thermometer bulb and a wet thermometer bulb that has lost some moisture due to evaporation. A psychrometer tests both the dry and wet bulb temperatures at the same time.
What is humidity measured by?
hygrometersHumidity defines the amount of water present in the vapour phase and is measured by hygrometers. Absolute humidity (HA) is the mass of water present in a volume of gas.
How does a psychrometer measure humidity?

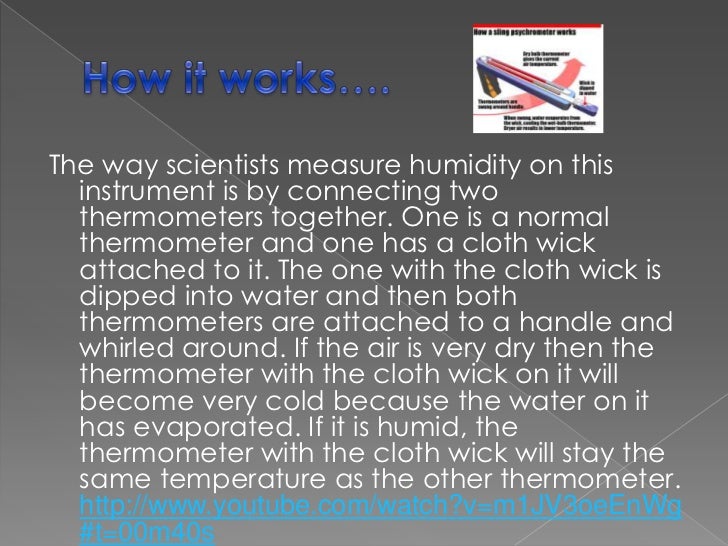

A sling psychrometer consists of two thermometers mounted side by side. One is an ordinary thermometer, the other is covered with a wet piece of cloth. To make a humidity measurement you swing the psychrometer around for a minute or two and then read the temperatures from the two thermometers.
What is a psychrometer used to determine quizlet?
What is a psychrometer used to determine? A psychrometer measures the relative humidity in the atmosphere through the use of two thermometers: a dry bulb thermometer, is used to measure the temperature by being exposed to the air.
What measures relative humidity and dew point?
A hygrometer measures humidity. A sling psychrometer measures wet bulb and dry bulb from which you can get temperature, dewpoint and relative humidity.
How do you measure humidity in a weather station?
A hygrometer is a device used to measure humidity. Hygrometers come in both analog and digital versions, but modern, digital hygrometers are more accurate, so they are the most commonly used today. The Davis Temperature and Humidity sensor measures temperature and humidity for both inside and outside.
What units does a psychrometer use?
Psychrometric Charts Dew point: The temperatures at which the moisture present in the air will start to condense. Enthalpy: How much heat the air contains in units of BTU per pound of dry air. Humidity ratio: Pounds of moisture in the air per pounds of dry air. Specific volume: How much space the air takes up.
How do you read a psychrometer?
0:347:00Titus Timeout Podcast - How to Read a Psychrometric Chart - YouTubeYouTubeStart of suggested clipEnd of suggested clipOutside the dry bulb temperature is shown across the bottom of the chart. So let's say 40 50 60 70MoreOutside the dry bulb temperature is shown across the bottom of the chart. So let's say 40 50 60 70 degrees. And so on and is represented by vertical lines like this.
What weather instrument measures wind direction?
Wind VaneWind Vane. A wind vane is a tool that identifies the direction the wind is blowing.
How does a psychrometer measure temperature?
A psychrometer measures the dry-bulb and wet-bulb temperatures simultaneously. The measurement of the wet-bulb temperature is achieved by means of a wet wick placed over the thermometer bulb. The thermometer can be practically of any type. A cylindrically shaped sensor is preferred.
Where was the psychrometer made?
The instrument, called psychrometer, was soon produced by Rudolf Fuess' factory in Germany. The historic Assmann-type psychrometer was composed of two identical mercury-in-glass thermometers, ventilated by a mechanical fan and at that time, it provided the most accurate humidity measurements.
What is the psychrometric coefficient?
where A is the psychrometric coefficient, which is independent of the evaporating surface area, i.e. the size of the wet bulb wick covering, but is slightly dependent on ventilation rate and, to an even minor degree, on psychrometer design, size and dimension of the dry and wet bulb, ambient temperature and RH.
What is a psychrometer with a fan called?
A psychrometer fitted with a fan is called an aspirated psychrometer or Assmann hygrometer. Another variant is the sling or whirling hygrometer. In this case the wet- and dry-bulb thermometers are attached to a frame with a handle. When measuring the temperatures, the frame is whirled around like a football rattle.
How does a soil psychrometer work?
The soil psychrometer consists of a fine-wire thermocouple, one junction of which is equilibrated with the soil atmosphere by placing it inside a hollow porous cup embedded in the soil, while the other junction is kept in an insulated medium to provide a temperature lag.
How many thermometers are there in a sling?
These units consist of two thermometers with thin bulbs. One is covered in a cotton sleeve which is wetted with (ideally distilled) clean water. The two thermometers are mounted in a sling which is swung rapidly around-and-around and then quickly read to obtain a steady wet- and dry-bulb temperature.
What is an aspirated thermometer?
In an aspirated psychrometer, the wet- and dry-bulb thermometers are mounted inside a plastic case, which contains a battery-powered fan. The fan draws air across both dry and wet thermometers at a constant, high velocity to provide uniform evaporation.
What is the purpose of psychrometers?
They use it as a backup for automatic air temperature and dew point sensors. Psychrometers are attached with musical instruments like pianos, guitars, violin, which get damaged by improper humid conditions.
How does a psychrometer work?
A Psychrometer works on the assumption that evaporation is a cooling process. After we have finished swinging the psychrometer in the room for about a minute, we must note down the temperature of the dry and wet bulb.
How to measure temperature of room?
In order to measure the temperature of a room, we first remove the wet-bulb from the water. As the water evaporates, the wet-bulb will start cooling eventually. Furthermore, we can measure the cooling of the wet bulb and can estimate how much water is evaporating. Consequently, it will give us the data on how humid the air is.
Does a psychrometer measure relative humidity?
Also, relative humidity changes continuously. Irrespective of any such factor, a psychrometer can certainly measure relative humidity.
What is psychrometer?
A psychrometer is a type of hygrometer that measures the relative humidity in the atmosphere. It is different in shape than the hygrometer. Similarly, it is composed of two thermometers: dry and wet bulb thermometers. Dry bulb thermometer uses its dryness and exposure for the measurement of temperature.
What is a digital psychrometer?
Digital Psychrometer Thermo-Hygrometer, LCD Mini Temperature and Humidity Meter with Dew Point have multiple features. It is a complete psychrometer and hygrometer. It uses the latest technology and helps the users to measure relative humidity.
How many types of psychrometers are there?
Psychrometer has two different types: the sling psychrometer and the aspirating psychrometer. Sling Psychrometer is also the general psychrometer and it has two bulbs. A handle controls the sling psychrometer. As discussed before, it has two thermometers. One thermometer is wet and the other one is dry.
How does a sling psychrometer work?
Traditional Psychrometers also known as Sling Psychrometers. Psychrometer works on the base of the evaporation and cooling process. After removing the wet-bulb from the water, the bulb starts cooling down and water starts evaporating. Therefore, the cooling of the bulb estimates the amount of water evaporating.
What is the name of the tool that measures humidity?
The word “Psychrometer” is unfamiliar to most of the people. It is familiar to those who know about the tools. There are a bunch of different tools that measure the relative humidity in the atmosphere. Relative Humidity refers to the number of water vapors in the atmosphere. There is something that confuses many people regarding ...
How long does it take to swing a hydrometer?
So, If it happens, it means water is hot. Dismiss alert. The maximum time to swing the hydrometer in the room is approximately one minute. After this interval time, the period temperature must be noted for both bulbs.
Where can I buy a psychrometer?
Below is one of the best and cheapest psychrometer that you can buy easily on Amazon. Although, many psychrometers are available to purchase online but we get the best one for you.
What is Psychrometer?
A psychrometer is a hygrometer made up of two thermometers that are identical. One thermometer’s bulb is kept wet, causing it to record a lower temperature than the dry-bulb thermometer due to evaporation cooling.
Sling Psychrometer
The relative humidity, which is calculated as a percentage, can be determined using a sling psychrometer. It’s calculated by multiplying the amount of moisture in the air at a given temperature by the maximum amount of moisture the air could hold at the same temperature, dividing by 100, and multiplying the quotient by 100.
Design of Psychrometer
A wet-bulb thermometer and a dry-bulb thermometer are kept in a sling psychrometer. Psychrometric charts are complicated graphs that show the dry-bulb temperature, wet-bulb temperature, relative humidity, specific volume, dew point temperature, humidity ratio, and enthalpy of moist air at a specific atmospheric pressure.
Working of Psychrometer
The amount of evaporative cooling on the psychrometer’s wet bulb is proportional to the amount of moisture in the air. Drier air absorbs more moisture from the bulb, which causes it to cool down faster. The temperature does not change as much because the warmer air cannot retain as much water from the bulb.
Uses of Psychrometer
While psychrometers are no longer widely used, they are still sometimes used to calibrate humidistats, which regulate the internal humidity of air conditioning and heating systems in buildings. Psychrometers were once used in the construction of building ventilation systems.
Frequently Asked Questions – FAQs
The temperature of a wet bulb can be determined with a thermometer and the bulb covered in wet muslin. The cooling effect of adiabatic evaporation of water from the thermometer is indicated by a “wet bulb temperature” in the air that is lower than the dry bulb temperature.
What is the oldest instrument used to measure humidity?
One of the oldest used instrument for determining relative humidity is the whirling hygrometer (or sling psychrometer). Whirling hygrometer consists of two thermometers that are turned by vigorously swinging the handle and exposing the thermometers to rapid air movement.
How is humidity measured?
One of the oldest used instrument for determining relative humidity is the whirling hygrometer (or sling psychrometer). Whirling hygrometer consists of two thermometers that are turned by vigorously swinging the handle and exposing the thermometers to rapid air movement. The bulb of one thermometer is placed in direct contact with the room air to measure dry-bulb temperature. The bulb of the other thermometer is covered with a silk or muslin sleeve that is kept moist to record the wet bulb temperature. The atmospheric humidity is determined by calculations, steam tables, or using a psychrometric chart (considering the difference in reading between the two thermometers) and, therefore, the use of these devices for monitoring purposes is very limited [37].
How accurate are hair hygrometers?
Provided an allowance is made for the effect of temperature, hair hygrometers are usually accurate to within 5% over most of the humidity range.
