Full Answer
How do you test if the engine points are closed?
Rotate the engine until the points are closed. Use the multi-meter to test for a good connection between the points. A slight gap when the points are supposed to be closed will keep your machine from running. If you do not have a test meter you can use a self-powered test light to do essentially the same thing.
What are the parts of a point point ignition system?
Point Type Ignition Systems 1 Overview of the Parts 2 Ignition Coil. This part makes the high voltage (up to 40,000 volts) for the spark plugs from the low voltage that is supplied to it by the battery. 3 Points. ... 4 Condenser. ... 5 Ballast Resistor. ... 6 Replacing the Points. ... 7 Setting the Point Gap. ... 8 Dwell Angle. ...
How to set points on a Tecumseh small engine?
How to Set Points on a Tecumseh Small Engine. 1 Step 1. Disconnect the spark plug wire from the spark plug by pulling on the black rubber boot that covers the tip of the spark plug. Remove the spark ... 2 Step 2. 3 Step 3. 4 Step 4. 5 Step 5. More items
Is it okay to adjust dwell points while the engine is running?
It is a perfectly acceptable and accurate way of adjusting the points. In fact, most all GM distributor caps have a little door that allows access to the points so the dwell can be adjusted while the engine is running. On engines that don't have that access, you need to be a little more creative.
What are points on small engine?
Points. These points, whose motion is guided by the distributor shaft lobes, allow the coil to be turned on and off as desired. They are also affected by the mechanical action of the distributor shaft. As you speed along a rural road, the points need to switch on eight amp of current at very high speeds.
How do points work on lawn mower?
2:116:39How Points and Condensers Work Small Engines - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe points are open 99% of the time they're not touching.MoreThe points are open 99% of the time they're not touching.
How do I know if my engine has points?
How do you know if your older car has points? It's fairly simple. If you open your hood, be sure your car has a distributor cap with very thick wires coming out of the top and going to each spark plug. If you don't have a standard distributor cap like this, you don't have points.
How do you adjust small engine points?
2:508:19HOW TO ADJUST The Points on 3.5 HP BRIGGS & STRATTON EngineYouTubeStart of suggested clipEnd of suggested clipSo to adjust the points you simply loosen the condenser here with a quarter inch socket.MoreSo to adjust the points you simply loosen the condenser here with a quarter inch socket.
How do you set points on 5hp Briggs?
Place the starter housing over the engine and secure it with the three bolts. Remove the spark plug from the cylinder and reconnect the spark plug wire to the tip of the spark plug. Pull on the starter cord a few times, watching the electrode on the spark plug. If a spark appears, then the points are set correctly.
When did Briggs and Stratton stop using points?
Magnetron Ignition – This solid state ignition system introduced by Briggs & Stratton in 1982 eliminated the points and condenser system, the performance of which steadily degraded between required periodic maintenance service.
How do you know if your points are bad?
If your vehicle runs rough, the engine will not fire, or the vehicle will not start at all, the points and condenser system may be failing.
What do ignition points look like?
0:545:48Classic Car Tech-Ignition Points Explained - YouTubeYouTubeStart of suggested clipEnd of suggested clipComes in contact with the rubbing block right there can you see a road block on the points andMoreComes in contact with the rubbing block right there can you see a road block on the points and essentially. It's doing this when the points are closed. The circuits of the coil is completed.
How do you adjust points?
14:5823:08How to Install Adjust and Set Breaker Points in an Automobile Episode ...YouTubeStart of suggested clipEnd of suggested clipThis actually sits in that slot. And then you can open. And close the points with the screwdriver toMoreThis actually sits in that slot. And then you can open. And close the points with the screwdriver to get the correct. Point setting that you need. So I'm going to get me another screwdriver.
What happens if point gap is too big?
This can cause engine performance issues. Much like with a spark plug gap that's too small, symptoms of a spark plug gap that is too big include cylinder misfires, rough idling, engine hesitation, and the engine not starting.
How do you set ignition timing with points?
0:297:41How to set a Motorcycle Points Ignition, Statically - YouTubeYouTubeStart of suggested clipEnd of suggested clipNow that we have the covers removed feed off small breaker bar and wait turn the flywheel rotate theMoreNow that we have the covers removed feed off small breaker bar and wait turn the flywheel rotate the engine around a couple times counterclockwise because that's the way the motor runs.
Should points be fully open at TDC?
On many engines including Tecumsehs, there is a timing dimension in the engine specifications. This is the distance of the piston below Top Dead Center (TDC) at which the points should just open.
What happens when coil primary points close?
When the points close, the current through the coil primary increases from zero to maximum in an exponential manner, rapidly at first, then slowing as the current reaches its maximum value. At low engine speeds, the points are closed long enough to allow the current to reach a higher current level.
How to measure point gap?
To measure the point gap, you need a set of feeler gauges. Adjusting the point gap is a simple process, but it takes some practice to get the hang of doing it properly. First, make sure the rubbing block is on the high point of one of the cam lobes.
What was the basic ignition system in 1975?
The principles were the same and it simplified the ignition system. The basic ignition system consists of the ignition coil, points, condenser, distributor, and spark plugs. A ballast resistor may also be included in this system.
How does an ignition coil work?
The way an ignition coil works lies in the physical properties of electrical current. When a current flows through a conductor, it generates a magnetic field around the conductor. Conversely, when a conductor is moved through a magnetic field, a voltage will be induced in the conductor.
Do you have to use a dwell meter to check points?
Many mechanics like to check the dwell measurement with a dwell meter after setting the points. There are some who say you don't have to. But it is a good way to check the point gap and make sure it is right. There are many mechanics that set the points by dwell alone.
Does engine speed affect ignition?
Indeed, as engine speed increases, the efficiency of the ignition system decreases, thanks to heating problems and fundamental electrical laws. This declining efficiency has a serious effect on the spark voltage and results in poor high-speed performance, incomplete combustion, and other drivability problems.
Step 1
Disconnect the spark plug wire from the spark plug by pulling on the black rubber boot that covers the tip of the spark plug. Remove the spark plug with a deep socket.
Step 2
Loosen the bolts that hold the starter shroud onto the engine. Lift the starter shroud off of the engine, and set it aside.
Step 3
Hold the flywheel in place with a flywheel holder, and place the clutch tool over the clutch on top of the flywheel. Turn the clutch counterclockwise to remove from the crankshaft.
Step 4
Attach a Tecumseh flywheel puller over the tip of the crankshaft and attach the bolts of the puller to the flywheel. Tighten the nuts on the flywheel puller to pop the flywheel off the crankshaft.
Step 5
Remove the ignition cover from the ignition housing with a screwdriver.
Step 6
Insert the TDC dial indicator into the spark plug hole in the end of the cylinder. Rotate the crankshaft until the dial indicator shows zero-degrees. Then rotate the crankshaft counterclockwise until the dial reads 0.010 inches, or 0.254 mm, past the top-dead-center, zero-degree mark.
Step 7
Check the gap between the points inside the ignition housing with a feeler gauge. The correct gap setting depends on which model Tecumseh engine you have. Consult your engine manual or references accompanying this article to find the appropriate gap spacing for your model. To adjust the gap, loosen the locking screw with a flathead screwdriver.
What ignition system does Briggs and Stratton use?
Since 1982, Briggs & Stratton engines have used a solid-state ignition. Models built before 1982 employed a magneto, points and condenser system to generate spark for the spark plug. If you are using an older model Briggs & Stratton engine that has no spark, you might need to set the points. Advertisement.
What is a Briggs and Stratton mower?
A mower powered by a Briggs & Stratton engine can be used to cut the grass. Briggs & Stratton is a manufacturer of small engines used in lawn and garden equipment such as lawn mowers, rototillers, snow blowers and more.
How to adjust a 020 gauge?
If the gap is too narrow or wide, loosen the points' adjustment screw. Move the points so that they are lightly touching both sides of the feeler gauge and tighten the adjustment screw.
What is a breaker point ignition system?
Breaker point ignition systems were, until the advent of electronic ignition systems, used on millions of engines . From the engines powering rum runners of the 1930s to all those Jeeps in World War II, all of them had breaker point ignition systems. Simple to troubleshoot and repair, they are, like anything else, ...
What happens when an engine is running?

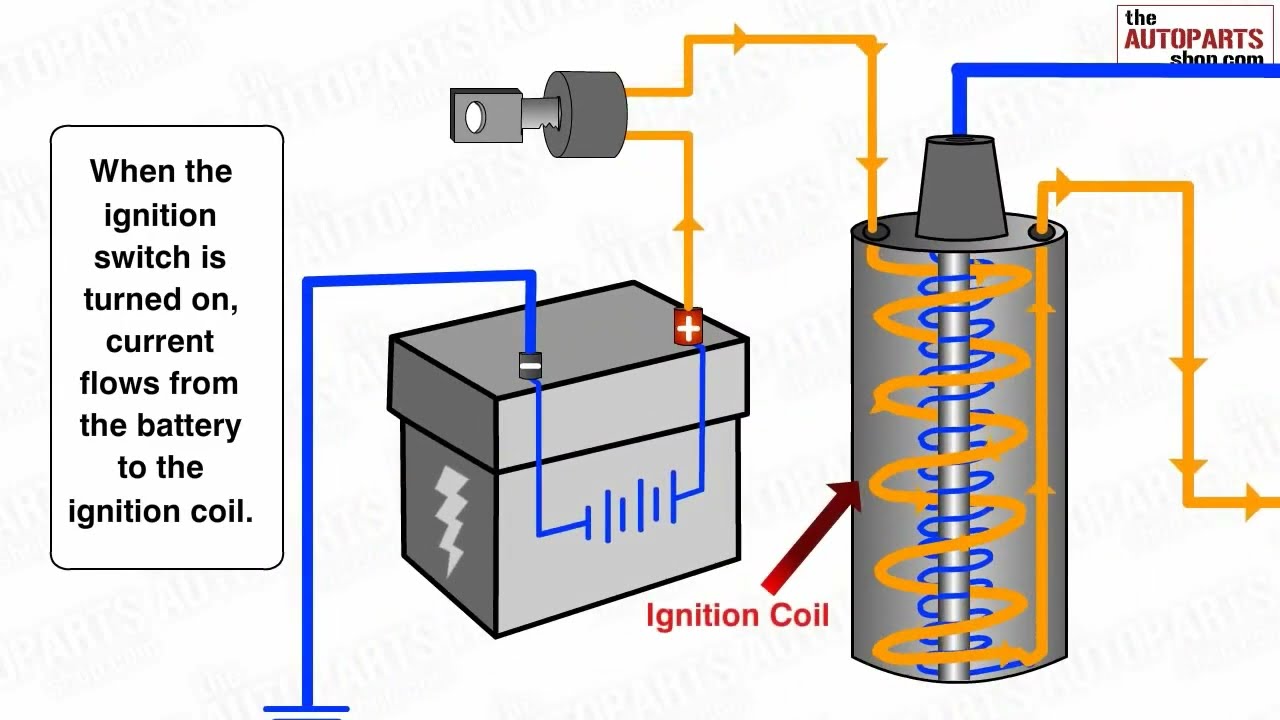

When the engine is running the battery is continuously being recharged by an alternator or, on older systems, a generator. Current flows from the positive terminal of the battery to the ignition switch and an ignition coil.
How does a breaker point work?
Knowing how a breaker point system works puts you in a much better position to repair it when it breaks down . If your engine isn’t running and you suspect the ignition system, the first thing to do is look the whole thing over for anything that is obviously wrong, like loose or broken wires.
Where is the point condenser located?
It is a good idea to replace the point condenser at the same time. The condenser is usually located inside the distributor , but sometimes is attached to the outside housing. It has a single lead that attaches to the points where the negative wire from the ignition coil attaches.
What is the function of the ignition system?
The function of the ignition system is to fire the spark plugs at the correct time, just before the piston hits top dead center (TDC) on the compression stroke, to ignite the fuel/air mixture, thence producing high pressure in the cylinder to force the piston down and, subsequently, the wheels to move the car forward.
How long does it take for a piston to build pressure?
It takes a few milliseconds for the pressure in the cylinder to build, and waiting until TDC would make the pressure peak too late in the piston's downward stroke to be most efficient. Under some engine-operating conditions, the advance might adjust the ignition timing to as much as 45 degrees before TDC.
Do high rev engines need premium points?
High-revving engines will need premium points with a high-pressure spring to keep the points from bouncing at increased revs. Some points assemblies include the condenser, yet for others, it's a separate part. Condensers are inexpensive enough that it makes no sense not to replace them with every set of points.
