How many amps does a coil draw?
I read that modern coils draw about 4 amps while the points are closed. Either 12V across a 3-ohm primary coil or 6-9V across 1.5 ohms in a ballast coil. Either way, somewhere in the 4-6 amp range while the car is running.
How many ignition coils does a car have?
A modern passenger automobile may use one ignition coil for each engine cylinder (or pair of cylinders), eliminating fault-prone spark plug cables and a distributor to route the high voltage pulses. Ignition systems are not required for diesel engines which rely on compression to ignite the fuel/air mixture.
How many ignition coils does a lawn mower have?
Modern ignition systems. Much smaller coils are used with one coil for each spark plug or one coil serving two spark plugs (for example two coils in a four-cylinder engine, or three coils in a six-cylinder engine). A large ignition coil puts out about 40 kV, and a small one such as from a lawn mower puts out about 15 kV.
How does an ignition coil work?

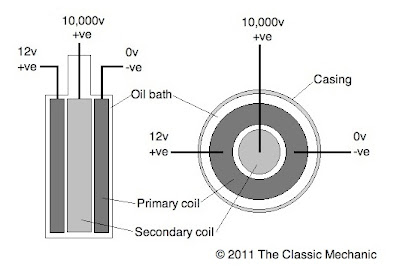

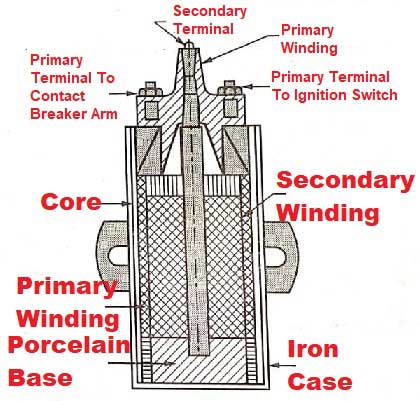

An ignition coil consists of a laminated iron core surrounded by two coils of copper wire. Unlike a power transformer, an ignition coil has an open magnetic circuit — the iron core does not form a closed loop around the windings. The energy that is stored in the magnetic field of the core is the energy that is transferred to the spark plug.
How many amps does a 12 volt coil draw?
Either 12V across a 3-ohm primary coil or 6-9V across 1.5 ohms in a ballast coil. Either way, somewhere in the 4-6 amp range while the car is running. If you have a ballast coil (e.g. runs on 6 or 9V) that bypasses the ballast resistor when starting the engine, you could get higher amps (12V over 1.5ohms = 8Amps).
How much power does ignition system use?
Slightly more energy is needed to fire the cylinder on compression. On traditional distributor ignition systems, the primary current was limited to 3 to 5 amps, which allowed the coil to produce approximately 20,000 to 30,000 volts.
How much current does a spark plug draw?
Voltage of Automobile Spark PlugsBibliographic EntryResult (w/surrounding text)Zitzewitz, Paul & Neff, Robert. Physics. New York: Glencoe/McGraw-Hill, 1995: 482."In your car, voltage as high as 35,000 volts is used in spark plugs and currents as large as 300 amperes are needed to turn the starter motor."4 more rows
How much voltage does a ignition coil produce?
Modern coil designs produce voltage pulses up in the neighborhood of 40,000 volts from the interruption of the 12 volt power supplied by the battery. Some modern engines have multiple ignition coils mounted directly on the sparkplugs.
Does a ignition coil have constant power?
Re: Coil has constant power Yes, the coil is always connected to the battery. It's no more of a problem for the wires IN the coil than it is for the wire ON THE WAY to the coil, as long as there is no current flow.
Where does the ignition coil get power?
Power from the ignition coil is supplied to the rotor. The rotor spins in time with the engine. When the end of the rotor is near one of the contacts, electricity arcs to the contact. From there, the power travels down a spark plug wire to the associated spark plug.
How many amps does a car draw while running?
The bare minimum to keep a car running is something like 4-5 amps. This includes the fuel pump, computer, fuel system and ignition. The power steering pump is spun by an engine belt and uses no electricity. The power breaks use vacuum from the engine and use no electricity.
How many amps do LS coils draw?
The LS1 coil can draw up to 10A. If high rpm and high power is being used, together with conventional 30A Relays to provide power, it may be necessary to have a separate fuse and relay for every pair of coils. This is rare but it is possible.
How many amps does a car use at idle?
Typical Current Loads for Automotive Systems, Lighting, and Accessories: Engine Idling (no lights or accessories on) - 35 to 50 amps.
Are ignition coils AC or DC?
direct currentIn a car's ignition system, however, direct current (DC) is used (provided by the Battery), because the idea is not to create steady, continuous induction, but one single, dramatic induction from a sudden collapse of a magnetic field.
How many volts does a 12v coil produce?
The coil becomes a transformer, stepping the voltage up. If your car uses a 12 volt battery, the 12 volts you put into the primary side of the coil will exit the secondary side as 30,000 volts!
Why does a 12v coil get hot?
The answer is simply, that due to an internal fault, such as a short circuit, the current through the primary coil will have increased, consequently the heat generated will have increased. Referring to a standard 12-volt coil has a resistance of 3.5 ohms and when connected to a 12-volt battery 3.42 amps flow.
How many ignition coils are needed for a diesel engine?
A modern passenger automobile may use one ignition coil for each engine cylinder (or pair of cylinders), eliminating fault-prone spark plug cables and a distributor to route the high voltage pulses. Ignition systems are not required for diesel engines which rely on compression to ignite the fuel/air mixture.
Which cars have one ignition coil per cylinder?
Notable exceptions are the Saab 92, some Volkswagens, and the Wartburg 353 which have one ignition coil per cylinder. The flat twin cylinder 1948 Citroën 2CV used one double ended coil without a distributor, and just contact breakers, in a wasted spark system.
What is the wire that goes from the ignition coil to the distributor called?
The wire that goes from the ignition coil to the distributor and the high voltage wires that go from the distributor to each of the spark plugs are called spark plug wires ...
What is a dual coil on a Saab 92?
Dual ignition coils (blue cylinders, top of picture) on a Saab 92. An ignition coil (also called a spark coil) is an induction coil in an automobile 's ignition system that transforms the battery's voltage to the thousands of volts needed to create an electric spark in the spark plugs to ignite the fuel. Some coils have an internal resistor, ...
What happens when a coil has a magnetic field?
Since it has a capacitor connected across it, the primary winding and the capacitor form a tuned circuit, and as the stored energy oscillates between the inductor formed by the coil and the capacitor, the changing magnetic field in the core of the coil induces a much larger voltage in the secondary of the coil.
How many coils are in a single spark plug?
A modern single-spark system has one co il per spark plug. To prevent premature sparking at the start of the primary pulse, a diode or secondary spark gap is installed in the coil to block the reverse pulse that would otherwise form.
Why does the current flow when the contact breaker closes?
When the contact breaker closes, it allows current from the battery to flow through the primary winding of the i gnition coil. The current does not flow instantly because of the inductance of the coil. Current flowing in the coil produces a magnetic field in the core and in the air surrounding the core.
What type of ignition coils does MSD use?
MSD has a whole series of Blaster 2 and 3 cannister-type ignition coils that can replace stock coils used in various OE ignition systems. They're also a good complement for MSD 6-series ignitions. With a 100:1 turns ratio and relatively low resistance, output is about 45,000 volts.
How fast does a capacitor charge?
Capacitors charge far more quickly than a coil, and the best of these systems can fully charge up to as high as 15,000 engine rpm. Invariably, a coil intended for use with a CD system has a different turns rate, internal resistance, and rise time compared to a coil used on a traditional inductive system.
What causes a momentary voltage spike?
Magnetic attraction: The very act of the points opening or an electronic signal breaking the circuit (interrupting the magnetic field) causes a momentary voltage spike. As the magnetic field continues collapsing, the electromagnetic phenomenon of inductance causes another current to flow in the secondary windings.
What does it mean when a coil is oil filled?
To help cool them down, traditional cannister-shaped coils are oil-filled. If oil starts leaking out, it's a sign that the coil's days are numbered. Modern irregularly shaped performance and racing coils typically reject heat with epoxy potting. And the iron core is no longer a round tube in the new designs.
Why is a higher turns ratio counterproductive?
At some point a higher turns ratio becomes counterproductive. Too high a ratio causes secondary voltage to start decreasing. Also note that as voltage output increases, current output decreases. Increasingly higher turns ratios affect other electronic properties such as resistance, reactance, and impedance.
What happens when battery current flows into the primary windings?
When battery current flows into the primary windings, it produces a magnetic field. When a switch—the distributor points opening or an electronic trigger—interrupts the flow of battery current, the magnetic field collapses across the secondary windings. See all 6 photos.
Can you use high output coils in drag racing?
Some extremely high-output coils may only be used in short- duration drag racing, as compared with others optimized for long-duration oval track or an extended lifetime of street performance. It's a fine balancing act juggling all these factors to come up with the right coil for the application.
How does an ignition coil produce a high voltage?
The first step in generating a high voltage from an ignition coil is to store energy in the inductance of the primary winding. That energy is then released, generating the high voltage output.
Why do ignition coils overdrive?
Ignition coils can be overdriven to increase the power output.# N#As mentioned earlier, the energy stored in the primary is related to the current flowing in the primary. Also recall that the length of time required for the current to increase to a certain point is related by the time constant and the steady state current. The time constant is unchanged by a change in drive voltage, but the steady state current does increase with a greater drive voltage. So, driving with a higher voltage allows the primary current to reach a given level of current in a shorter amount of time. Overdriving therefore increases the output power by allowing more pulses of the same energy to be released in a given amount of time (a higher drive frequency) compared to the case where a lower power supply voltage is used.#N#When overdriving the coil with a voltage greater than that of the electrical system it was designed for (usually 12 volts), it is possible to damage the primary if the switch is left on too long. The current in the primary will increase to a level beyond what the coil was designed to carry in the automotive electrical system, and so excessive power will be dissipated in the resistance of the primary winding. This must be taken into consideration when setting the maximum on time produced by the pulse generator circuit. By properly limiting the on time of the switch, the coil can deliver more energy to the HV output without increasing the power dissipation in the primary winding or the switch. This is possible because the power dissipated in the primary is determined by the RMS current in the primary. Using a higher power supply voltage and properly limiting the ON time allows the RMS current in the primary to be kept the same while the energy throughput is increased.#N#Overdriving risks drastically increasing the power dissipated in the semiconductor switch if the on time is not limited. A switch that is adequate for 12 volt systems may easily be destroyed when overdriving, if care is not taken. The on time of the switch will have a significant effect on the power that is dissipated in the switch. It becomes even more important to use adequate heat sinking for the switch when overdriving. The image below shows the remains of an IGBT that burned out when overdriving a coil. Keep the on time propely limited to avoid burning up your driver circuit!#N#If you are overdriving your coil, also keep in mind you will also have to make sure that the circuit protection (MOV and electrolytic capacitor) are rated for the higher supply voltage.
Why does a coil need to be short?
In typical automotive use, the coil only needs to generate a short spark to ignite the fuel-air mixture in the engine. A higher voltage output allows the generation of a sufficient spark, even if the spark plugs have deteriorated and become fouled.
What happens when you breathe in high voltage discharge?
High voltage discharges generate Ozone gas, which can cause irritation if breathed in. High voltage discharges also generate some ultraviolet radiation, so limit your exposure and don't stare directly at the arcs. First, enjoy some video! YouTube. badcat1989. 37 subscribers.
Where is the energy stored in a coil?
That energy is then released, generating the high voltage output. Energy is stored in the primary of the coil when current is flowing through it. This energy is provided by a DC power supply, usually the 12 volt battery of a vehicle’s electrical system.
Can high voltage discharges cause ozone?
The arcs can be hot enough to to ignite paper and plastic, so operate it in a safe location. High voltage discharges generate Ozone gas, which can cause irritation if breathed in. High voltage discharges also generate some ultraviolet radiation, so limit your exposure and don't stare directly at the arcs.
Can you run a spark plug with a distributor disconnected?
It is generally not suggested to run with the distributer disconnected , as the output voltage of the coil can then rise high enough to damage the coil internally. In normal operation the coil output voltage is limited due to the shorter gap of the spark plug.
When is it important to know how much current the engine, lights and other accessories require?
It's important to know how much current the engine, lights and other accessories require when troubleshooting electrical problems or when adding aftermarket lighting and sound system upgrades to your vehicle.
How much more load should a fuse handle?
As a rule, the wiring and fuse should be able to handle maybe 25 to 30 percent more load than the peak load that would be expected in that circuit. This will give you some margin for overloads that might otherwise blow the fuse or damage the wiring.
Why is it dangerous to replace a standard fuse with a higher amp?
WARNING: Replacing a standard fuse with one that has a higher amp rating may be dangerous because the higher amp fuse may not provide adequate protection against overloading and overheating the wiring circuit.
How many amps can a handheld multimeter handle?
Most inexpensive handheld multimeters cannot handle currents larger than 10 to 15 amps. Another method is to use a multimeter with an inductive amp probe. There are both high amp and low amp probes available for measuring currents in live circuits.
How to measure amp load?
Measuring Amp Loads. One way to measure the amp load in a circuit or device is to use a multimeter that can read amps. Connect the meter in series with the device, then apply 12 volts to see what the current reads. Make sure the multimeter can safely handle a large amp load if the device or circuit is a high load device or circuit.
How many volts should I use for a key?
Use 12.8 volts if the key is off and the circuit is pulling current directly from the battery, or use 13.8 volts if the engine is running and the current is coming from the alternator. Dividing watts by voltage will tell you how much current the device will draw on the electrical system.
Why replace a 20 amp fuse with a 30 amp fuse?
For example, replacing a 20 amp fuse with a 30 amp fuse may prevent an overloaded circuit from blowing the fuse, but it will also allow up to 50 percent more current to flow through that circuit. This may cause the wiring to overheat and short out if the gauge of the wire is not heavy enough to handle the extra load.
