A fully discharged 12V 100Ah auto battery will need 3 solar panels each rated at 100 watts to fully recharge in one day, assuming average 4 peak-sun-hours. A 100Ah lead-acid deep-cycle battery discharged to 50% of it’s capacity will need 2 solar panels each rated at 100 watts to fully recharge in one day.
How many solar panels do I need to charge a 110ah battery?
In reality it is recommended that you always overrate your requirements by at least 20%, therefore you would need 180W of solar panels. What size solar panel do I need to charge a 110ah battery? To charge a 12v battery efficiently you need to use 14v charging voltage, so 14v at 110amps (1,540watts) for 1 hour, will put 110Ah into the battery.
How many Watts Does It take to charge a 100Ah battery?
The answer to the question above is 240 watts of power. This assumes it is a 12V battery with 6 hours of sunlight available plus 20% extra watts to compensate for energy loss. It takes 5-6 hours to fully charge a 100ah battery depending on how depleted it is.
What size solar panel do I need for my battery?
We can also use the battery size to find the right solar panel to pair to it: I can get two 120 Watts panels or 3 *100 Watts panels; this solar panel array can suit this particular battery size. Solar panel ‘s power is measured in watts, and it generally varies between 2 watts to over 360 watts.
How much sunlight does it take to charge a solar panel?
A typical panel can put out 120 watts, so it would take about 20 hours of sunlight to charge the battery. Well, add about 50% for things like charging losses and clouds.
How long will a 100W solar panel take to charge a 100Ah battery?
A 100W rated solar panel using an MPPT solar charge controller will take approximately 12.5 hours to fully recharge a 50% discharged 100Ah lead-acid deep-cycle battery. 200 watts of solar panels is recommended to recharge the same 100Ah battery in one day, if the battery is used for home energy storage.
What size solar panel do I need to keep a 100Ah battery topped up?
Charging your battery at 12 volts and 20 amps will take five hours to charge a 100 amp hour battery. By multiplying 20 amps by 12 volts, 240 watts is how big of a panel you would need, so we'd recommend using a 300w solar panel or 3 100 watt solar panels.
How long will a 300W solar panel take to charge a 100Ah battery?
Since your 100Ah, 12V battery requires 1200 watt-hours to be fully charged, this means a single solar panel rated at 300W will be able to charge your battery in a five-hour timeframe.
How long will a 200 watt solar panel take to charge a 100Ah battery?
A 200-watt solar panel that produces 1 amp of current takes between 5 and 8 hours to fully charge a 12-volt car battery. A 100-watt solar panel will take double this amount of time to charge a battery — between 10 and 16 hours.
How many watts solar panel can charge 100Ah battery?
In general, a 100Ah deep-cycle lead-acid battery would require 180 watts of solar panel to fully recharge from 50% Depth of Discharge (DOD) assuming 4.2 peak-sun-hours per day. It would take 8 hours to fully recharge with a clear sky.
How many solar panels does it take to charge a 100Ah lithium battery?
A fully discharged 12V 100Ah auto battery will need 3 solar panels each rated at 100 watts to fully recharge in one day, assuming average 4 peak-sun-hours. A 100Ah lead-acid deep-cycle battery discharged to 50% of it's capacity will need 2 solar panels each rated at 100 watts to fully recharge in one day.
What size inverter do I need for 100Ah battery?
So, with this information at hand, a common 100Ah-150Ah lithium battery of this type can deliver enough energy to operate a maximum of a 1000w inverter.
How long will a 100Ah battery run a fridge?
A 100Ah lead-acid deep-cycle battery will run a fridge using 630kWh/year for 13.3 hours. 80% discharge is assumed, but at the recommended DoD of 50% the same 100Ah battery will run the fridge for 8.3 hours. A lithium iron phosphate 100Ah battery will run the fridge for 15.8 hours at 95% discharge.
How long will a 100Ah battery run an appliance that requires 1000w?
1.2 Hours'How Long Will A 100Ah Battery Last' CalculatorAppliance Power Draw (Watts):How Long Will 100Ah Battery Last:1,000W1.2 Hours1,100W1.09 Hours1,200W1 Hour1,300W0.92 Hours or 55 Minutes21 more rows
What size solar panel do I need to charge a 120Ah AGM battery?
Summary. You would need around 350 watts of solar panels to charge a 12V 120Ah lead acid battery from 50% depth of discharge in 5 peak sun hours with an MPPT charge controller.
How many watts solar do I need to charge a 12V 200Ah battery?
To charge a 12V, 200Ah battery in 5 hours of sunshine you will require a minimum of 2 numbers of 325 Watt of solar panels with MPPT based charge controller and seasonal structure.
How long will a 200W solar panel take to charge a deep cycle battery?
between 5 to 8 hoursHow Long Will It Take to Charge a 12-Volt Deep Cycle Solar Battery? The short answer is that a 200-watt solar panel that generates 1 amp of current takes between 5 to 8 hours to completely charge a 12-volt car battery.
How Many Solar Panels Does It Take To Charge A 100Ah Battery?
A fully discharged 12V 100Ah auto battery will need 3 solar panels each rated at 100 watts to fully recharge in one day, assuming average 4 peak-su...
How low can you discharge a lead acid battery?
This depends on the battery type. There are two broad kinds of lead acid battery – car or truck, and deep-cycle, sometimes called leisure batteries...
How low can you discharge a deep-cycle battery?

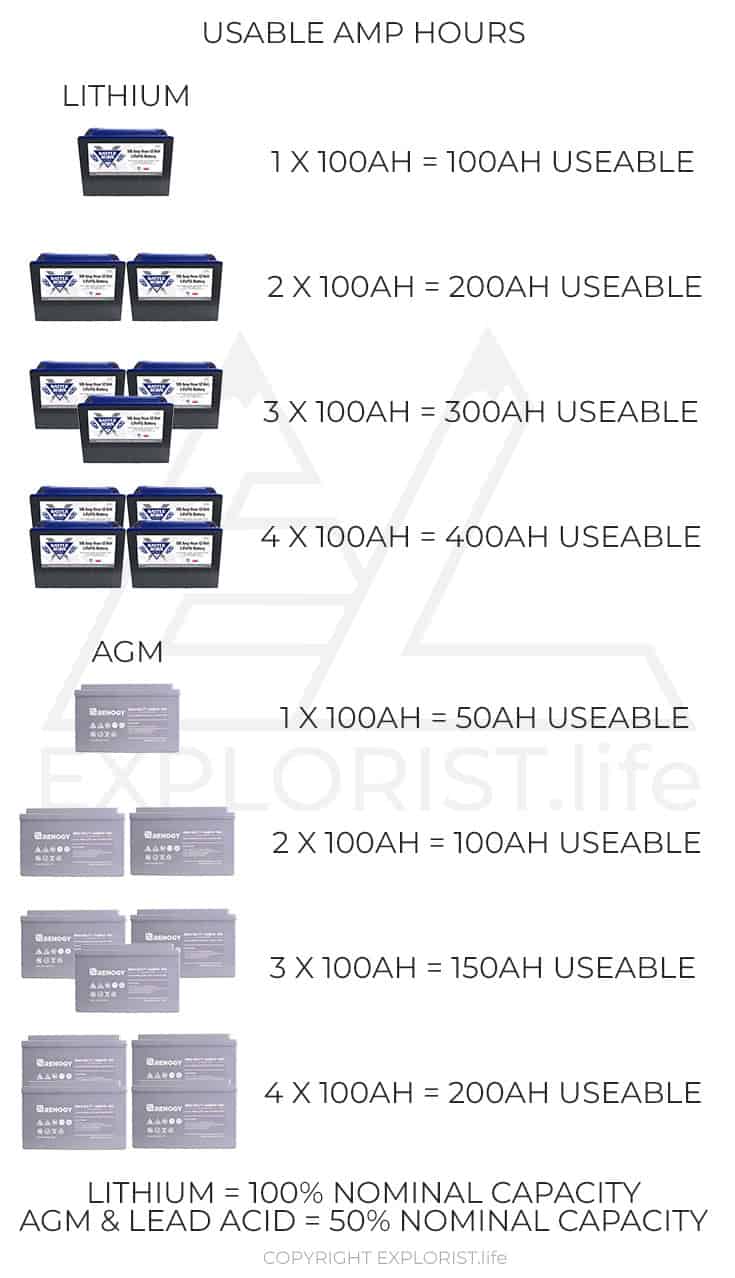

Deep cycle lead-acid batteries can be discharged up to 80% without damage but only 50% is recommended for regular discharge. This is because deep d...
How Many Solar Panels Does It Take To Charge A 100Ah Car or Truck Battery?
Auto battery at 15% discharge Energy needed to fully recharge: 100Ah x 15% = 15Ah 15Ah in watt-hours = 15 x 12 volts = 180Wh With an irradiance of...
How many solar panels to charge a 12 volt 100Ah deep-cycle lead acid battery?
Assuming that 50% depth of discharge is respected, then: Energy required = 50Ah x 12 volts = 600 watt-hours In this case, 200 watts of solar panels...
How long will a 100w solar panel take to charge a 100ah battery?
Assuming a lead-acid battery, I can imagine 3 common situations: A 100 Ah car battery depleted 15% (normal operation) A 100Ah car battery or deep-c...
How long will a 300W solar panel take to charge a 100ah battery?
Assume a lead-acid battery again, in these situations: A 100 Ah car battery depleted 15% (normal operation) A 100Ah car battery or deep-cycle deple...
How long will a 100w solar panel take to charge a battery?
This depends on the rated capacity of the battery and how far it has been discharged. Use the table below to find the right values for your situation:
How long will a 100 Ah battery last?
Although there are other minor factors, 100Ah battery run-time will be driven by the load wattage. However, the relationship isn’t strictly linear,...
How many solar panels do I need to charge a 100ah battery in 5 hours?
00Ah discharged 50% of rated capacity Energy required to recharge = 50Ah x 12 volts = 600 watt-hours Solar panel power required = 600 watt-hours/4...
How low can you discharge a lead acid battery?
This depends on the battery type. There are two broad kinds of lead acid battery – car or truck, and deep-cycle, sometimes called leisure batteries.
How low can you discharge a deep-cycle battery?
Deep cycle lead-acid batteries can be discharged up to 80% without damage but only 50% is recommended for regular discharge.
How long will a 100w solar panel take to charge a 100ah battery?
Everything is driven by the load, that is, how far is the battery discharged? You need to know this to work out how much energy to put back in.
How long will a 100w solar panel take to charge a battery?
This depends on the rated capacity of the battery and how far it has been discharged. Use the table below to find the right values for your sitution:
How long will a 100 Ah battery last?
Although there are other minor factors, 100Ah battery run-time will be driven by the load wattage.
How many watts of solar panels should I use for a 100AH battery?
You should also know your average power consumption before choosing your battery and its charge capacity. As a general rule of thumb, I recommend getting 250 watts of solar panels for every 100Ah of batteries capacity. Remember, this is just to have a rough idea of your needs, and it depends on many other factors.
How many watts does a solar panel need?
Estimate how many solar panels you need. Solar panels power is measured in watts, and it generally varies between 2 watts to over 360 watts. For first-timers, it’s not easy to correctly size your system. It is recommended to get the solar panel based on your battery capacity.
How many amps does a 100AH battery last?
Batteries are rated in Amps. We recommend Lithium-Ion batteries as the best for any Recreational Vehicle, but you can research this more if you want. A 100ah battery is calculated as providing 1 amp for 100 hours, 2 amps for 50 hours, 3 amps for 33 hours, etc.
What is the best deep cycle battery?
The best deep cycle batteries are one that provides consistent, reliable, and safe power for as many charging cycles as possible over its prescribed lifetime . The following 100ah 12V batteries are reliable and have a reasonable or fair amount of cycles available. They also provide consistent levels of storage power.
What are the three things to keep in mind when building a solar system?
There are three main points you want to keep in mind when building a solar installation: Budget constraints: try to build your install within the set budget. Space constraints: build your system within the available space, especially regarding your solar panels. Energy offset: Build that caters to your energy usage.
How to build a solar system?
There are three main points you want to keep in mind when building a solar installation: 1 Budget constraints: try to build your install within the set budget. 2 Space constraints: build your system within the available space, especially regarding your solar panels. 3 Energy offset: Build that caters to your energy usage.
What is a sealed lead acid battery?
Sealed lead-acid batteries are of two types: absorbent glass matt (AGM) and gel batteries. Gel batteries use silica to stiffen the electrolyte solution in the battery. This type of batterie has a lower charger rate and battery output than absorbed glass matt batteries. They take long periods to charge.
How long does it take for a 100W solar panel to charge?
Likewise, people ask, how long will a 100w solar panel take to charge a 100ah battery? After a full week, the battery will be just about fully charged. Using this example, you can see that it will take at least 100 watts of solar power to recharge a 100-amp hour battery in a few days.
How many hours of sunlight does 1200 watts of solar power need?
So you need 1200 / 250 = 4.8 hours of bright sunlight. A single solar panel of 280 watts will do the work for you. There are other solar panels with various power ratings you can install to charge your batteries such as 100 watts, 150 watts, 235 watts, 250 watts and many more. Click to see full answer.
What is the Most Recommended Type of Battery for Your Solar Panel System?
Typically, a set of batteries or a battery will save the solar energy captivated by the solar panels. So, what battery types are best fitted for this application?
How Can You Figure Out the Size of the Solar Panel Required?
When deciding what size of solar panel you need to charge your equipment, please note that this could differ depending on your criteria. Such criteria involve your budget, setup location, what devices you prefer to run with it, and future power plans.
The Time It Takes to Charge Your 100 Ah Battery
The time to charge the battery = 100 divided by 15, so we get 6.66 hours.
Charging Your 100 Ah Battery With Your Solar Panel
There’s no denying that the best green energy source is solar power. Solar devices and vehicles, not to mention giant firms having solar factories, significantly help minimize the usage of non-renewable energy sources. As a result, we can enjoy more sustainable energy.
Frequently Asked Questions
It is impossible to gather power from the battery while synchronously charging it. The current could go either into your battery or out of your battery. In short, it does not work in both ways simultaneously.
The Bottom Line
In this post, you have learned several factors to consider when you charge 12V battery with solar panel. And, determining the size of solar panels required is not as complicated as you imagine.
How long does it take a 300 watt solar panel to charge a 100AH battery?
On average a 300-watt solar panel will be more than enough to charge a 100ah battery fully for 5-hours per day. This will help to account for any drop-offs in power throughout the course of the day.
How many volts are in a 100AH battery?
Most of the batteries that are 100ah will be 12-volt s. In theory, you could use this information to work out the charge time of a 6V and 24V battery. However, because there are several factors that could impact the charge time here, as well as cause damage to your battery, we won’t go into that.
How many amps per hour does a solar panel produce?
As we said before, you need a solar panel that is capable of producing at least 20- amps per hour.
Why do you need a charge controller?
A charge controller will help to ensure that the battery is receiving the right amount of power. It will also help to ensure that the battery is not overcharged by the solar panel. Basically, the charge controller will help to preserve the lifespan of your battery.
What is solar energy?
Solar panels are an increasingly popular way to provide electricity to residential homes. These systems allow you to significantly reduce how much you rely on the grid, dropping your power bill and...
What does AH stand for in batteries?
This is because a lot of people are somewhat confused about the time, many of whom are used to dealing with watts and voltage. The AH stands for ampere-hours. It is one of the most important numbers to know when you are buying a battery. It essentially means the amount of power that can be stored in the battery.
Is it better to have a solar panel in the shade or cloudy?
This means that it should not be cloudy , and your solar panel should not be in the shade. The charge time will be a lot slower if this happens. You will also need to account for the quality of the solar panel. The better the quality of the solar panel, the more stable the power that it produces will be.
What kind of batteries are used for solar panels?
A common and cheap solution is lead deep cycle batteries. A more expensive but higher quality battery would be a lithium battery .
What kind of battery does Tesla use?
On the other hand, Tesla solar setups use a massive lithium battery to store energy. Lead deep-cycle batteries are cheap, but should always be held above half charge and can require maintenance. They also typically have a shorter shelf life than lithium batteries.
How can solar energy be used?
Solar energy can be used in a huge variety of applications, from home power to RV power to emergency situations. You can use SanTan Solar’s Calculator to get some idea of how much energy you’ll need for your specific situation. (2) The kind of battery bank you’re hoping to work with.
What are the factors that affect solar panels?
These factors include: (1) Your daily drain and how much sunlight you expect to receive. (2) The kind of batteries that you buy. (3) Your charge controller. (4) The specifics of wiring of your solar panels. (5) The capacity of your batteries.
Can lead batteries go below half charge?
Remember, we don’t want to damage lead deep-cycle batteries by allowing them to go below half charge, so be sure that your battery bank has more than double the capacity of your daily drain.
Can you put solar panels on your RV?
This makes guessing at your number of solar panels very difficult. You could be hoping to install solar panels on the roof of your RV to help power a TV or recharge a laptop. You could be looking for a small solar panel to bring with you on a backpacking trip to recharge your phone.
How long does it take for a solar panel to charge?
If a battery is completely drained, a panel can typically charge the battery within five to eight hours. The total charging time will vary depending on the state of a battery. If a battery is totally drained, a solar panel can energize the cells within five to eight hours. The position of the sun in the sky can impact a panel’s charging speed.
How much energy does a 200AH battery use?
If you have a 200ah battery, only 80% of that is usable due to depletion limitations, so you really only have 160 amp-hours of energy to draw on. If you learn that you typically can last two days with energy from that battery, that means you consume 80 amp hours a day. Based on the earlier calculation, a 100 watt panel will produce an average ...
How many amps can a 200AH battery supply?
This refers to the amount of current that is supplied from the battery over a certain period of time. If you have a 200ah battery, it can supply 20 continuous amps for 10 hours or 10 amps for over 20 hours.
How do solar batteries work?
Solar batteries store the energy that is collected from your solar panels. The higher your battery’s capacity, the more solar energy it can store. In order to use batteries as part of your solar installation, you need solar panels, a charge controller, and an inverter. When using batteries for solar panels as part of a home solar system, ...
How long does it take to charge a 100 amp battery?
Charging your battery at 12 volts and 20 amps will take five hours to charge a 100 amp hour battery. By multiplying 20 amps by 12 volts, 240 watts is how big of a panel you would need, so we’d recommend using a 300w solar panel or 3 100 watt solar panels. What are the best conditions to charge a battery?
Why do solar panels need to be connected?
Your solar panels will first need to be connected to a charge controller which will help monitor how much energy is stored in the batteries to prevent overcharging. Charge controllers will also shut down a system if the batteries become too depleted.
Why is battery capacity important?
For example, battery capacity is important because it measures the amount of energy you can store. If you need to power certain appliances for long periods of time, you'll need more batteries to carry a bigger load. Capacity is measured in total amp hours.
