How high should a light switch be installed?
A: There’s no hard and fast rule for the correct light switch height; rather, how high you should install your own will depend on your local electrical code ordinances and federal laws governing accessibility.
How far should an outlet be from a door?
The NEC does not, however, specify a minimum or maximum distance that an outlet should be from a door. Potential hazards can be avoided by the proper use of electrical devices that are plugged into the outlet.
What size light switch do I need for a 12 year old?
The 48-inch standard works well for anyone aged 12 and above. For light switch installations in rooms used primarily by kids (like a new playroom), the ADA recommends different ranges for minimum outlet and light switch heights: • 20 to 30 inches above the floor for kids aged 3 to 4.
What are the ADA requirements for a light switch?
ADA Requirements. The Fair Housing Accessibility Guidelines, which are based on ADA guidelines, set these requirements for switch locations: The height from the floor to the middle of the switch plate should not exceed 48 inches, and the minimum height should not be less than 15 inches.
What is the code for light switches?
Start with the NEC Code According to NEC 210.70, at least one wall switch-controlled lighting outlet (including ceiling fans) must be installed in every habitable room and bathroom of a dwelling unit.
Where should light switches go?
For a majority of rooms, builders tend to place the bottoms of light switches 48 inches above the floor. This is a comfortable height for most home dwellers when sitting or standing, plus it makes it easier to install switches during construction.
What is code height for light switch?
48 inchesEven if your local electrical code doesn't require a specific minimum height, these acts offer guidance when installing your light switch: According to ADA guidelines, wall controls and outlets that can be reached from a forward position need to be a minimum of 15 inches and a maximum of 48 inches above the ground to ...
Do you need a light switch at every door?
At least one wall switch-controlled lighting outlet must provide illumination on the exterior side of outdoor entrances or exits of dwelling units with grade-level access. The NEC doesn't require a switch adjacent to each outdoor entrance or exit.
How close can an outlet be to a door?
The National Electrical Code requires the placement of an electrical outlet no further than 6 feet from a door. However, there is no code stating how close to a door an outlet can be installed. Therefore, you can install an electrical outlet as close to a door as you desire.
What side of the door is a light switch installed?
Switches are mounted on the hinged side of the door jamb. Most switches include mounting templates.
How high do you mount a switch?
Many builders position switch boxes so the bottom of the box is 48 inches above the floor. To satisfy the accessibility requirements of the Fair Housing Act, however, the switch itself should be no more than 48 inches from the floor.
What is code height for electrical outlets?
Electrical receptacle outlets on branch circuits of 30 amperes or less and communication system receptacles shall be located no more than 48 inches (1219 mm) measured from the top of the receptacle outlet box nor less than 15 inches (381 mm) measured from the bottom of the receptacle outlet box to the level of the ...
What height should outlets and switches be?
Generally, you want to mount receptacle boxes with the bottom of the box about 16-inches off the floor. Coincidentally, this roughly equates to the same height as your garden variety 22-ounce framing hammer.
Can a light switch be outside of the room?
It can be anywhere you want unless required to be there by some other code. The NEC doesn't specify a location as this is a design issue.
NEC Switch Height Regulations
The National Electrical Code (NEC) specifies home wiring requirements, but when it comes to standard light switch height, it leaves a lot of room for flexibility. The decision will ultimately come down to the individual homeowner’s needs as well as local electrical codes, which vary.
ADA Height for Light Switches
The homepage for the Americans with Disabilities Act (ADA) details very specific and helpful guidelines for switch placement when considering individuals who need special accommodations. For example, locating switches closer to the floor can make them more comfortable for some people in wheelchairs to reach.
Kitchen Light Switch Standard Height
For light switches and garbage disposal switches that'll be located above a kitchen counter, it’s standard practice to install them approximately 4 inches above the countertop. Since the standard height for most countertops is 36 inches, that places the bottom of the switch plate 40 inches from the floor.
Other Light Switch Placement Considerations
For hot tubs, the NEC dictates that switches be at least 5 feet away, so that it's impossible to touch a switch while in water. Also, if you have small children in your home, you might want to install your hot tub switch higher so they can’t turn the tub on and off.

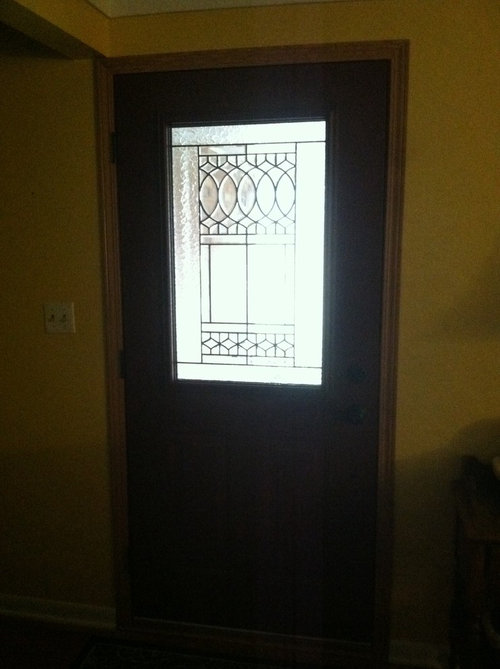

How close can a switch be to a door?
How close can a switch can be to a door. I have always presumed that a switch can be as close as 1-1/2" away from a door (i.e., as measured from the edge of the switch plate to the door trim, which would be 2-1/4" from the door itself.)
Can a switch be anywhere?
There is NO rule on this. The switch can be literally anywhere. In the room, outside the room. In the corner of the room. In another room. The proximity to the door frame is a non-issue.
How high should a switch plate be?
The height from the floor to the middle of the switch plate should not exceed 48 inches, and the minimum height should not be less than 15 inches. When the switch is over a counter that has a knee space, and the counter depth exceeds 20 inches, the maximum height of a switch is reduced to 44 inches.
What is the height of a standard door frame?
The only location requirements specified in Article 404 -- the section of the NEC that elucidates standards for switch installation -- are that switches must be in readily accessible locations and can be no higher above the floor than 6 feet, 7 inches, almost the height of a standard door frame.
How wide should a counter be?
If the counter has no knee space, the counter width shouldn't exceed 24 inches, and the maximum height of the switch is 46 inches.
Do electricians have to comply with the ADA?
The Americans with Disabilities Act is more specific about placing switches, and most electricians follow its guidelines, especially for new installations. If you're making renovations, it's wise to comply with ADA requirements to ensure universal accessibility. Advertisement.
Do switches have to be accessible?
As far as the ADA is concerned, switches must be accessible to people in wheelchairs. The Fair Housing Accessibility Guidelines, which are based on ADA guidelines, set these requirements for switch locations: Advertisement.
How far from a receptacle outlet should a kitchen be?
Article 210.52 (A) (1) of the NEC states that “A receptacle outlet must be installed in every kitchen, family room, dining room, living room, den, bedroom or recreation room so that no point along the wall space will be more than 6 feet from a receptacle outlet.”.
What is the most important aspect of determining the placement of an electrical outlet?
When determining the placement of an electrical outlet, the most important aspect to consider is safety. The location of an outlet will be dictated in part by the governing body of electrical installations, the National Electrical Code.
Does the NEC specify a minimum distance?
The NEC does not , however, specify a minimum or maximum distance that an outlet should be from a door.
Can an electrical cord be pinched?
Consider that a lengthy electrical cord in use near a doorway may present a tripping hazard. Outlets placed behind the door's swing radius could result in the cord being pinched between the door and the frame. Before deciding on the location for an outlet in proximity to a door, identify all hazards and ensure the installation complies with ...
