How does a push button grill ignitor work?
- Open the lid of your grill and find the lighting hole on the side of the grill.
- Once you see that, place a match in the curled end of the holder.
- Turn on the gas burner closest to the hole.
- After the first burner is lit, turn on adjacent burners to cross-light them.
What is a push button ignitor used for?
This type of ignitor is used on push button cigarette lighters, push button grills, and many other devices. It functions differently than a flint ignitor. Piezo electrical ignition creates enough energy that a small hammer strikes an object within the device.
How does a gas grill ignition system work?
The electronic ignition sets off a spark when an ignitor button is pushed. The ignition rod is placed in the gas flow that leads to the grill burners. The gas must first be turned on before the ignition button is pressed, or the grill burners will not light. Once lit, the flame is adjusted higher or lower for optimal cooking heat.
How does a spark generator ignite a grill?
A spark generator uses the voltage from a battery to generate a spark. These have also become a common source of igniting a grill. If there is no battery pack on your grill, you have a piezo electric starter.
How do you ignite a gas grill?
Igniting a gas grill is supposed to be simple: Push the spark igniter on your gas grill and you’re fired up and ready for steak. But after a few years, those piezo-style igniters stop working.

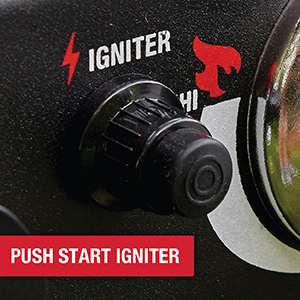

How does a push button igniter work?
It consists of a small, spring-loaded hammer which, when a button is pressed, hits a crystal of PZT. This sudden forceful deformation produces a high voltage and subsequent electrical discharge, which ignites the gas.
Do all grill igniters have a battery?
These igniters create clicking continuous sparks until the burners ignite. Battery systems will use either AAA, AA or 9 volt batteries to generate the power. There are some igniters that do not have the battery directly placed in the module.
How does a propane grill igniter work?
Pushing the Button According to Cheap Humidors, in the case of a piezo starter, a small hammer inside of the ignitor will forcefully contact a quartz crystal. This action causes a spark to jump off off of the ignition electrode rod onto a ground plate. When the rod is placed into a gas flow and sparks, the gas ignites.
Can you repair a piezo igniter?
There are no serviceable parts. How to Troubleshoot: To trouble shoot a piezo igniter you will need a good pair of insulated pliers (figure 2) and any tools that are needed to remove the igniter from the unit. Shut off any gas supply to the unit, and remove the piezo igniter.
Why is my igniter not clicking?
Make sure that the igniter is making a clicking noise when you press the igniter button. If it doesn't click, then the wires may not be connected properly, the battery may be dead or installed incorrectly, or the igniter module may have failed.
How do you fix an electric igniter on a gas grill?
0:221:39Fix Your Electric Igniter in 2 Minutes - YouTubeYouTubeStart of suggested clipEnd of suggested clipMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you mayMoreMost of them simply unscrew. And there is a double-a battery. Inside pull your battery out you may have to use a pair of pliers you should be able to get it with your fingers. Pull it out replace.
How does an ignitor work?
When the button on a Piezo electric ignitor is pressed, a spring loaded hammer strikes quartz in order to create a spark. This is the typical process used in such lighters. This creates the necessary amount of voltage to generate a spark.
How many volts does a grill igniter have?

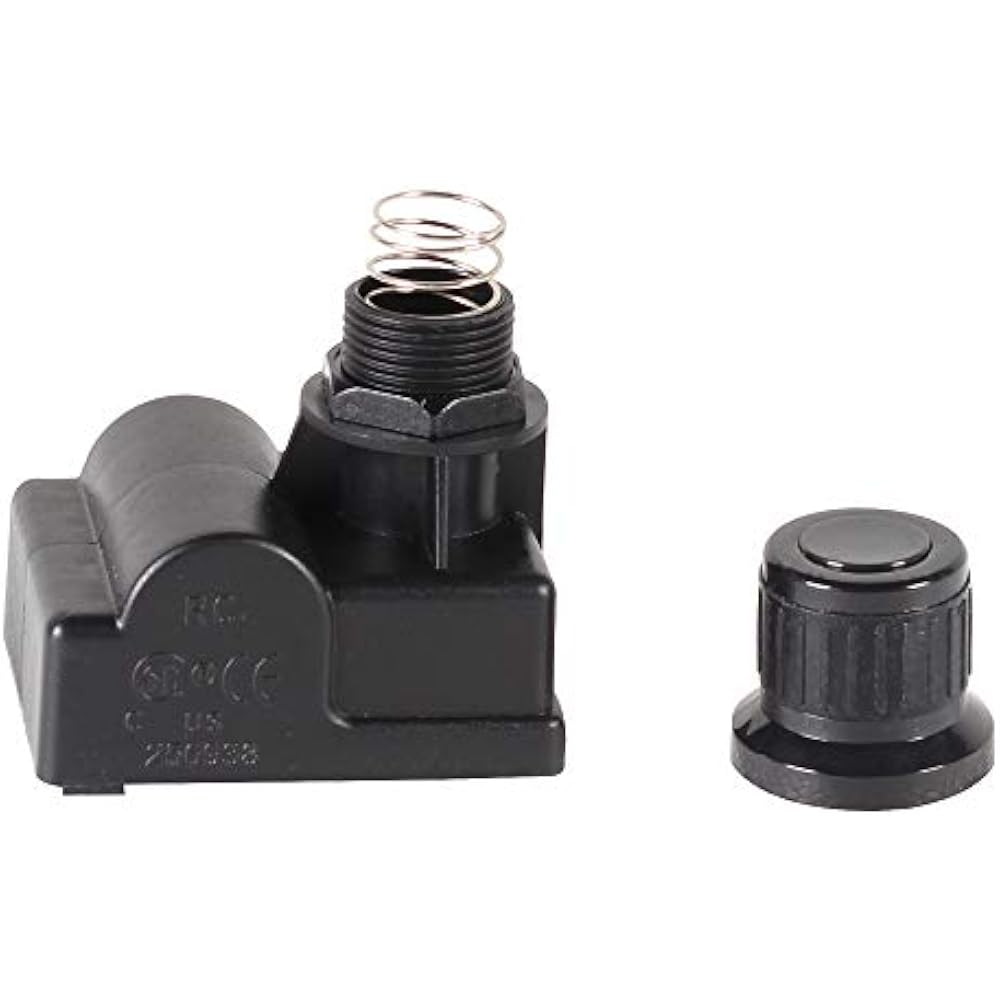

This is a battery igniter targeted to the outdoor grill market. It provides up to four (4) spark outputs for igniting gas or LP fueled burners. It is compact and resistant to the environmental conditions of gas grill applications. A single 1.5 volt “AAA” battery powers this module with long life expectancy.
How do you light a gas grill with a broken igniter?
0:240:58How to Light Your Grill Manually - YouTubeYouTubeStart of suggested clipEnd of suggested clipTurn on the gas to the burner closest to the hole and insert the lid match. After the first burnerMoreTurn on the gas to the burner closest to the hole and insert the lid match. After the first burner is lit turn on the adjacent burners to cross light.
Do piezo igniters wear out?
How long does it last? While matches and lighters must be replaced or refilled, matchfree ignition systems are built to last for life. While malfunctions do occur, the average piezo lighter lasts for a minimum of ten years, far longer than even a whole box of matches!
Why is my piezo not working?
The piezo is most likely not properly connected. Ensure that the two copper pads on the piezo product are properly connected. This is most reliably done if you check the capacitance. If you are reading a capacitance than no output may be a sign of a broken or damaged.
How do I test my grill igniter?
Press on the ignitor button on the grill's control panel a few times, while watching the ignitor in the mirror. If you see a spark with each click, the ignitor is functioning properly. If no spark is visible, then the ignitor and ignitor wire need to be replaced.
Is there battery in a BBQ lighter?
If your switch/button doesn't make a clicking sound when you try to light the BBQ, then probably you need to align it well with the surrounding control panel. Battery is gone. There is a battery (most likely AA size) right behind the button – just unscrew it and you'll see it.
Do piezo igniters need a battery?
There is a battery that is battery operated. The igniters create sparks when they ignite. The power will be generated by either AA or 9 volt batteries.
How does battery powered grill igniter work?
0:252:37How to Light a Gas Grill | Ignition Types Explained | BBQGuys.comYouTubeStart of suggested clipEnd of suggested clipThe spark is normally fired by pressing a button like this one while you turn the burner knob to getMoreThe spark is normally fired by pressing a button like this one while you turn the burner knob to get the gas flowing. This ignition style is commonly used for igniting side burners as well it's worth
Does a lighter have a battery?
When a button on one side of the compact rectangle is pressed, a gas flame is ignited. The lighter operates on a battery that activates two electrodes into igniting the gas.
How does an electronic ignition work?
The electronic ignition sets off a spark when an ignitor button is pushed. The ignition rod is placed in the gas flow that leads to the grill burners. The gas must first be turned on before the ignition button is pressed, or the grill burners will not light.
How does a spark generator work?
With a spark generator, the circuit is closed by either pushing a button or turning a knob. Electricity from the battery will flow through the wires and a spark or sparks will be generated between the electrode ignition rod and a ground plate.
How does a piezo starter work?
According to Cheap Humidors, in the case of a piezo starter, a small hammer inside of the ignitor will forcefully contact a quartz crystal. This action causes a spark to jump off off of the ignition electrode rod onto a ground plate. When the rod is placed into a gas flow and sparks, the gas ignites. With a spark generator, the circuit is closed by ...
What to do if there is no battery on grill?
If there is no battery pack on your grill, you have a piezo electric starter. Alternatively, if there is a battery pack on your grill, you have a spark generator.
Can you clean an ignition rod on a grill?
If the ignition rod gets covered with contaminants, it won't spark. However, the rods can be cleaned, using rubbing alcohol on the tip of a cotton swab.
Can you replace a piezo ignition after cleaning?
If the piezo electronic ignition no longer works after the ignition rod has been cleaned, the unit must be replaced. There are no user-serviceable parts on a piezo electronic ignition. Alternatively, if you have a spark generator electronic ignition that does not work, replace the batteries after cleaning the ignition rod, suggests Family Handyman.
What is a BBQ lighter called?
A BBQ grill ignitor. A BBQ lighter uses something called piezoelectricity to generate a nice spark that lights the grill. "Piezo," in Greek, means "pressure," and you find piezoelectric materials in a number of different places.
How does a crystal microphone work?
In a crystal microphone, air pressure deforms the crystal enough to cause very small voltage changes in the crystal. These voltage changes are amplified and used to record or transmit sounds. Piezoelectric materials also work the other way -- if you apply a voltage across the crystal, the crystal will change shape.
What is piezo ignition?
Piezo or Push-Button) The piezo ignition is one of the original ignition systems made to automatically light a gas grill. You would either push a button or turn a knob in a rotary style igniter and hear a hard click. Charbroil made the push button piezo ignition popular in many of their grill designs. Many high end brands opted for the rotary style ...
What is Charbroil's piezo ignition?
Charbroil made the push button piezo ignition popular in many of their grill designs. Many high end brands opted for the rotary style piezo igniters including TEC and Lynx.
Do you need electricity to power an ignition?
This is the latest innovation found mostly in high end grills (including Alfresco, Artisan, Lynx, Fire Magic and more). This means no more batteries. But you will need electricity to power the ignition. The ignition module is powered by a transformer and the electrodes get plugged into the module.
Does a spark igniter take a battery?
There are some igniters that do not have the battery directly placed in the module. For example, in the picture below, The spark ignition does not take a battery directly, rather the 9 volt gets places in a battery holder that gets plugged into the spark generator.
