How does a governor on an air compressor work? That is the air pressure governor. The compressor builds air pressure and the governor controls the system air pressure limits. When 120 PSI is reached, the governor bypasses the compressor so that it stops pumping air.
How do you adjust the governor on an air compressor?
To raise the pressure settings, turn the adjusting screw counter-clockwise. To lower the pressure settings, turn the adjusting screw clockwise. Note: Be careful not to over adjust. Each 1/4 turn of the adjusting screw raises or lowers the pressure setting approximately 4 psi.
How do you check the air compressor governor?
5:087:20How to Test The Governor for Air Brakes Course - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe governor like a thermostat on furnace when it gets to minimum it turns it on when it gets toMoreThe governor like a thermostat on furnace when it gets to minimum it turns it on when it gets to maximum turns it off a governor works exactly the same as part of your pre-trip. Inspection.
At what pressure does the air compressor governor cut-out?
around 125 pounds per-square-inch5.1.2 – Air Compressor Governor The governor controls when the air compressor will pump air into the air storage tanks. When air tank pressure rises to the "cut-out" level (around 125 pounds per-square-inch or "psi"), the governor stops the compressor from pumping air.
What happens when governors cut?
When air-pressure is high enough in the system, the governor causes the compressor to stop pumping air (cut-out). When the air-pressure drops to a certain point, the governor will cause the compressor to start pumping air again (cut-in).
How does a air governer work?
0:343:445.04 Air Governor Operation - YouTubeYouTubeStart of suggested clipEnd of suggested clipAir from the governor enters the compressor. And acts upon the unloader pistons which move and holdMoreAir from the governor enters the compressor. And acts upon the unloader pistons which move and hold the compressor inlet valves off their seats.
At what pressure should the governor cause the compressor to return to its loading stage?
The governor must take the compressor out of its pumping stage (unload/cut-out) when system air pressure reaches 120 to 145 psi (828 to 1,000 kPa), and also put it back into the pumping stage at a minimum of 100 psi (690 kPa).
How fast should an air compressor build pressure?
Compressors 10 Gallons and Under – Shouldn't take more than 5-10 minutes to fill from zero to 125 – 150 psi.
How do you hook up an air Governor?
2:012:54D-2 Governor Installation - YouTubeYouTubeStart of suggested clipEnd of suggested clipThis one's going to stay open and be sealed by the gasket. So you're probably going to end up havingMoreThis one's going to stay open and be sealed by the gasket. So you're probably going to end up having to plug this one in between the two bolts that hold your governor to your compressor.

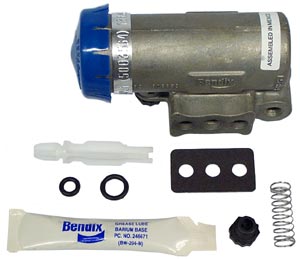

Air Governors
Legend tells that if left running on its own, a compressor will keep pressurizing air until the pressure gets so high that everything explodes!
The Structure
Despite how it looks from the outside, the governor is a surprisingly complex device.
