How do you wire a zing ear fan switch?
- Identify which of the two wire's supplying the device is the hot wire.
- Turn the power off for the device at the source.
- Cut the hot wire with wire cutters in the location you want to install the switch.
- Strip 3/8 inches of insulation off the end of each cut wire with wire strippers.
Full Answer
What is a zing ear switch for ceiling fans?

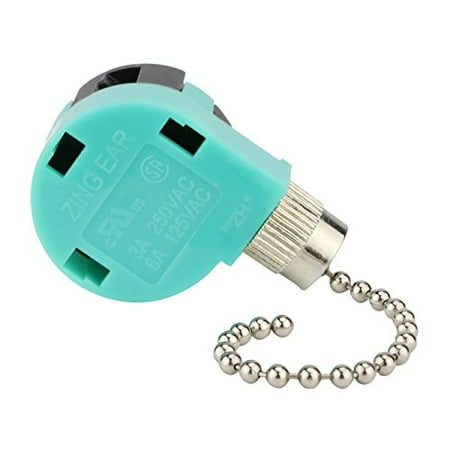

This zing ear switch is not just a cost-effective replacement part, but also a genuine alternative as most ceiling fans come originally with Zing Ear pull chain switches.
How do you wire a harbor Breeze fan switch?
Insert wires into the new switch as in the previous switch (see step 1). Wires should be inserted into the slots on side of the switch not the holes on surface. Harbor Breeze ceiling fan: L=Black, 2=Brown, 1=Gray, 3=Purple OR L=Black, 2=Gray, 1=Brown, 3=Purple
How do you remove wires from a fan switch?
Remove wires from existing fan switch. If wires are hard to remove, insert a paper clip or a large sewing needle into each hole (numbered 1, 2, 3, L) and pull the wire out (repeat this step for each wire) Make sure that the wire lead length is the same length as the line beside word “STRIP”
Is the Ace Zing ear Ze 3 speed fan switch Universal?
I found a zing ear ze s at Ace hardware, they said it is universal 3 speed. The Zing Ear ZEs 3 speed 4 wire fan switch provides three settings: OFF, High, Medium, and Low. Designed for ceiling fans with 4 wires. Available in nickel, black nickel, brass and antique brass.
How do I wire a zing ear switch?
StepsWrite down the color of each wire and the portal number to which they are attached.Take wires off the existing switch.Make sure that the wire lead length is the same length as the line beside word “STRIP”Connect wires to the new switch as noted in step 1.
How do you wire a fan switch?
2:095:50HOW TO WIRE A CEILING FAN SWITCH - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd the lights to the top of the switch normally electricians will use the red wire to connect toMoreAnd the lights to the top of the switch normally electricians will use the red wire to connect to the ceiling fan lights. And the black wire to connect to the fan.
How do you wire a 4 wire fan switch?
1:315:59Replace a 3-way 4 wire ceiling fan switch - YouTubeYouTubeStart of suggested clipEnd of suggested clipSomething might be different with this four wire one what's really nice is that there are numbers onMoreSomething might be different with this four wire one what's really nice is that there are numbers on the bottom that go with each of the wires right so one two three and L.
How do you wire a fan light switch combo?
0:523:38How to Wire a Ceiling Fan With a Light With Different Switches - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe light to the fan fixture. That is the blue wire up to my red wire. And then my neutral which isMoreThe light to the fan fixture. That is the blue wire up to my red wire. And then my neutral which is the white wire to the white wire and the green which is your ground to the copper wire.
What color wires go together?
The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active....US AC power circuit wiring color codes.FunctionLine, 3-phaselabelL3Color, commonblueColor, alternativeyellow5 more columns
Can black and red wires go together?
These wires are typically used for switch wiring as well as the interconnection between smoke detectors hard-wired into the power system. You can link two red wires together, or you can link a red wire to a black wire. Since red wires conduct current, they are considered hot.
Why does my ceiling fan switch have 4 wires?
In order for the light to be controlled by its own switch, the wiring between the switch and the fan unit needs a fourth wire, a red wire, to carry power to the light kit.
What do you do with the red wire?
The exact purpose of a red wire for a light fixture can vary. Except in rare cases, it is a hot wire or a switched hot wire. Check the wire with a non-contact voltage tester with the power and switch turned on. If the tester indicates the wire is hot, turn the switch off and retest.
How do you wire a 3 way fan switch?
0:337:293-way combination switch, wiring a ceiling fan/light - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo black wire is gonna hook up to the top screw. From my fan and then my white wire and my red wireMoreSo black wire is gonna hook up to the top screw. From my fan and then my white wire and my red wire are going to be travelers. That go up and they connect together that lead to this other switch.
Which wire is hot when both are same color?
In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.
What happens when you push wire into a hole?
What happens, is when you push the wire into the hole, that tab will push downward. Once the wire is past the tab, it is locked into place as the tab will not move in the upward direction . It locks against the wire to keep it in place and make contact in the switch. 1.
Can you push stranded wire into a switch?
If you can get short pieces of solid wires the same size as the stranded ones, you can push those into the switch and then wire nut the wires to the short ones installed on the switch. Sometimes it is a combination of the safety pin and solder or solid wire, just depends on how tight that tab is inside.
