How do you test a TCC solenoid 4l80e?
- The check engine light comes on: The TCM continuously monitors shift solenoid operation.
- Erratic shifting or shift slippage: The shift solenoids regulate the flow of hydraulic fluid for shifting.
- Transmission won't shift gears: A faulty shift solenoid can prevent fluid pressure from activating the appropriate gear.
Full Answer
How do you test a TCC solenoid?
This test checks the mechanical state of the TCC. When the TCM commands the TCC solenoid “OFF.” TCC slip speed should increase. Diagnostic Aids: If the TCC is mechani- cally stuck “ON,” vehicle speed is zero, brakes are applied, and is selected, the TCC fluid will mechanically apply the TCC causing an engine stall. Page 91 AM General Corporation
How do I find the Diagnostic Code on a 4L80-E TCM?
Page 58 4L80-E TCM Diagnostic Code Retrieval (using a Diagnostic Switch Cable) 1. Connect the Diagnostic Switch Cable to the J-2 connector on the Transmission Control Module protective Box. 2. Disconnect the Glow Plug Controller. Note: The Diagnostic Switch Cable switch has three positions: a.
Where is the Transmission Control Module on a 4L80E?
TRANSMISSION CONTROL MODULE (TCM) The 4L80E Transmission system is equipped with a computer called the Transmission Control Module (TCM), located in the left/rear passenger seat compartment which interprets, ana- lyzes and records electronic signals from sensors and switches located on the engine, brake pedal, and transmission.
What happens when the TCC solenoid is turned off?
When the TCM commands the TCC solenoid “OFF.” TCC slip speed should increase. Diagnostic Aids: If the TCC is mechani- cally stuck “ON,” vehicle speed is zero, brakes are applied, and is selected, the TCC fluid will mechanically apply the TCC causing an engine stall.
How do I know if my TCC solenoid is bad?
3 Signs of Transmission Solenoid ProblemsUnpredictable Gear Shifts. One of the most common sign that one or more of your transmission solenoids are going bad is unpredictable gear shifts. ... Inability to Downshift. ... Delays In Shifting.
How do you test a TCC solenoid?
The best way to test the TCC solenoid is to measure the OHMs and make sure its within a suitable range. If it is not, then simply replace it.
How do you test a 4L80E shift solenoid?
1:155:424l80e Solenoid Resistance Check Without Dropping Pan. - YouTubeYouTubeStart of suggested clipEnd of suggested clipFrom the 12-volt over to the torque converter clutch solenoid. 12 volt up to a 12 volt up to B toMoreFrom the 12-volt over to the torque converter clutch solenoid. 12 volt up to a 12 volt up to B to check those and then I'm gonna measure a resistance across C. And D so do have some specs.
How do you bypass a TCC solenoid?
To bypass the shift and TCC solenoids, you simply need to connect standard 194 light bulbs to these individual circuits coming from the PCM and then connect the other side of the bulbs to ignition B+. The light bulbs will then serve as a "load" which will simulate the solenoids.
How many ohms should a TCC solenoid have?
Measure the resistance of all solenoids. The TCC On/Off solenoid should be 12-28 Ohms. The TCC PWM solenoid should be 7-20 Ohms. The EPC solenoid should be 3-6 Ohms.

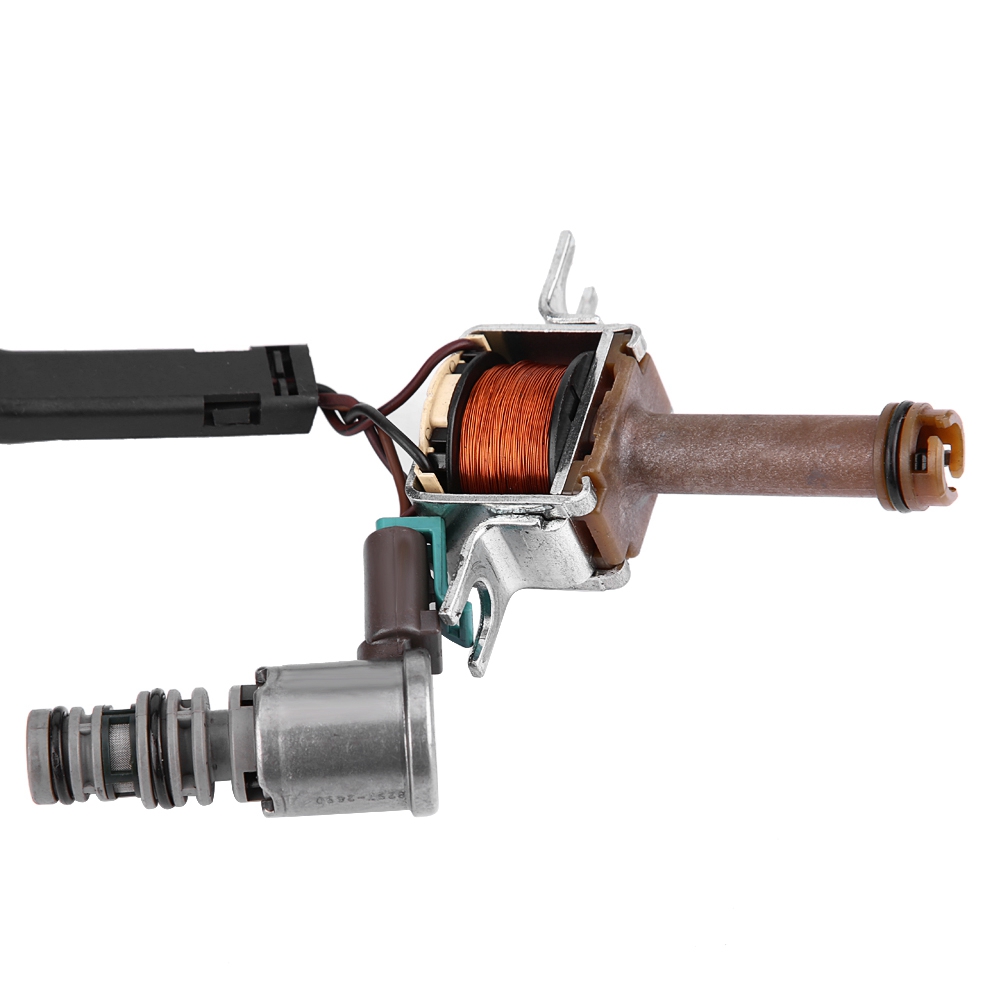

What does a TCC solenoid look like?
0:463:09TCC or Torque Converter Solenoid - YouTubeYouTubeStart of suggested clipEnd of suggested clipThe TCC solenoid is a two wire component. Most domestic transmissions employ ground controlled TCC.MoreThe TCC solenoid is a two wire component. Most domestic transmissions employ ground controlled TCC. This means that a relay or the ignition switch supplies. Power to one side of the solenoid.
How do you test a pressure control solenoid?
1:062:42Transmission Pressure Control Solenoid (PCS) - YouTubeYouTubeStart of suggested clipEnd of suggested clipApply power or 12 volts to one of the two wires. Then using a multimeter probe at the other wire.MoreApply power or 12 volts to one of the two wires. Then using a multimeter probe at the other wire.
How do you test a shift solenoid with a multimeter?
7:108:16Automatic Transmission Basic Solenoid Testing - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe're just going to go to ohms. And then you're just going to do a resistance test of each solenoid.MoreWe're just going to go to ohms. And then you're just going to do a resistance test of each solenoid. So there's 10 point 9 ohms.
How do you check transmission shift solenoid?
Raise up the vehicle with a jack and place jacks stands at all four corners to support it. Remove the bolts that are securing the transmission oil pan with a ratchet set and slide out the pan. This should reveal the solenoid that is attached to the transmission body.
How do you fix a torque converter clutch circuit stuck on?
What Repairs Will Fix P0742?Replace the torque converter clutch solenoid.Replace the torque converter or clutch.Change transmission fluid and filter.Repair/replace damaged wiring and connectors.Repair/replace TCM or ECU.Install a rebuilt or remanufactured transmission.
What does a TCC lockup solenoid do?
Lockup solenoids are electronic components found in some automatic transmissions. These solenoids are designed to lock a torque converter in place under certain circumstances, such as highway speeds. This is done for a variety of reasons, including to keep the transmission from overheating and to improve gas mileage.Mar 31, 2022
How do you reset a shift solenoid?
Steps to Resetting Transmission Control ModuleStep 1: Turning Key Position.Step 2: Press gas pedal.Step 3: Keep Waiting.Step 4: Turning the Key Off.Step 5: Releasing Gas Pedal.Step 6: Wait Again.Step 7: Ready.Identification.More items...
Why does a line pressure solenoid pulse?
The line pressure solenoid is also pwm - PCM pulses it to full pressure every so often to prevent the shuttle-type valve from sticking in it's bore - over a period of time, as mileage accrues, this can be felt at steady speeds as a slight 'bump' - this does not apply to the TCC solenoid
What is the resistance of a solenoid?
They tend to have a +/- factor of 10%. Also when testing a solenoid like this, you have to be careful not to test it too long.
How many ohms does a 1994 C3500 have?
Docdray mentioned in the other thread that his 1994, c3500 4L80e transmission TCC solenoid tests out at 20-40 ohms.
Does a 1992-1995 truck have a hard lockup?
My understanding was that all 1992-1995 trucks with OBD-I had the earlier solenoids, making the 'hard-lockup' mod acceptable, as Bill Heath indicates on his blog.
Does GM mods cause transmission wear?
That being said, it is ALWAYS prudent to be sure you understand the potential for failure, as gmctd suggests; and I would think that using this mod will, over time, cause your transmission to wear more (seems GM did lots of things to hlep prevent wear and tear). Using it prudently is only, well, prudent.
What is a 4L80E transmission?
The Hydra-matic 4L80E is a 4-speed automatic transmission which uses electronic control for smooth shifting. It offers a fourth gear overdrive to increase fuel efficiency. A torque con- verter clutch automatically engages at cruising speeds to improve fuel efficiency. Unlike hydraulically controlled automatic transmissions, the 4L80-E transmission uses electrical sig- nals to specific gear shift solenoids which produce smooth shifts and quiet operation. A neutral safety switch prevents the vehicle from being started if the transmission shift lever is in a position other than P (park) or N (neutral). A transmission warning light on the floor panel next to the shifter will illuminate if there is a problem with the transmission. For increased power, depressing the accelerator to the floor will activate the throttle position sensor kick-down feature and will shift the transmission into one gear range lower than is selected on the gear range lever. The throttle position sensor is located on the fuel Injection pump. Figure 1. 4L80E Transmission. NEED PHOTO OF 4L80E HERE
What is a TCC PWM solenoid?
The TCC PWM solenoid is used to provide smooth engagement of the torque converter clutch by operating on a negative duty cycle percent of “ON” time. Figure 15. Torque Converter Clutch (TCC)PWM Solenoid.
How does TCM work?
In order to troubleshoot and service this transmission, it is important to understand how the TCM and transmission interact with their sensors and control elements. The TCM receives data from various sensors, computes the optimum gear ratio based on the inputs, and causes the transmission to shift into the correct ratio at the best time. • Throttle position (TP) • Transmission Range (TR) Pressure Switch Assembly • Output Speed Sensor (TOSS) • Brake Switch • Input Speed Sensor (TISS) • Transmission Fluid Temperature (TFT)
What is a TP sensor?
The Throttle Position (TP) sensor is a potentiometer, a device for measuring an unknown voltage or potential difference by comparison to a standard voltage. The TP sensor sends a voltage to the TCM, varying from approximately0.5volts to approximately 4.5volts. This voltage signal to the TCM represents throttle shaft angle. At closed throttle, the signal voltage to the TCM is approximately 0.5volts. As the throttle shaft angle increases, the signal voltage increases to greater than 4.5volts at wide open throttle. The TP sensor is attached to the injector pump assembly (Figure 7). Figure 7. Throttle Position (TP) Sensor.
What is a TCM?
The sole- noids control the transmission operating pressures, upshift and downshift patterns and torque converter clutch (TCC) operations. A removable computer chip called a programmable read only memory (PROM) is used. The PROM programs the TCM for vehicle characteristics including weight, axle ratio, engine size, etc. The PROM differs within each TCM for transmission model year and HMMWV application. Figure 5. Transmission Control Module (TCM). Table 1: PROM Application Chart
What is a 1 / 2 / 3 shift solenoid?
1–2 / 2–3 Shift Solenoid. These electrical devices are used to con- trol fluid flow acting on the 1-2 and 3-4 shift valves. The solenoids are normally open exhaust valves that are used with the 2-3 shift solenoid to allow four different shifting com- binations. The solenoid is attached to the control valve body within the transmission. Figure 14. Shift Solenoids.
Where is the J2 connector located?
J2 Data Link Connector (DLC). This connector is located on the TCM waterproof box under the left/rear seat. Trouble codes may be accessed by connecting the Diagnostic Switch Cable to the TCM J-2 connector and turning the ignition switch to the “RUN” position. If a Diagnostic Switch Cable is not available, use a jumper wire to jump across terminals “” and “AE” of the DLC J2 connector. Figure 6. Data Link J2 Connector (DLC).
