The diaphragm can be found near the bottom of the microscope, above the light source and the condenser, and below the specimen stage. This can be controlled through a mechanical lever, or with a dial fitted on the diaphragm. You can adjust the diaphragm by turning it clockwise to close it, or counterclockwise to open it.
How do you adjust the diaphragm on a microscope?
The diaphragm can be found near the bottom of the microscope, above the light source and the condenser, and below the specimen stage. This can be controlled through a mechanical lever, or with a dial fitted on the diaphragm. You can adjust the diaphragm by turning it clockwise to close it, or counterclockwise to open it.
How does the iris diaphragm of a microscope work?
Below is a more detailed explanation of how it works: The main function of an iris diaphragm of a microscope is to control the amount of light that reaches the specimen. This light comes from the microscope’s light source, and is gathered by the condenser, before being regulated by the diaphragm, then passing through the specimen.
How do you control the size of the field diaphragm?
The size of the field diaphragm is controlled by rotating a knurled ring which is concentric with it. The field diaphragm controls the area of illumination. Locate the field diaphragm and its knurled ring.
Why do you close the diaphragm when viewing a specimen?
If you are observing highly transparent specimens, you may need to close the diaphragm more than you typically would to achieve the contrast necessary to see the detail. This diaphragm is located closer to the light source of the microscope.
Why do you need to adjust the diaphragm on a microscope?
Diaphragm or Iris: Many microscopes have a rotating disk under the stage. This diaphragm has different sized holes and is used to vary the intensity and size of the cone of light that is projected upward into the slide.
How should the condenser and diaphragm be adjusted for viewing?
How should the condenser and diaphragm be adjusted for optimum viewing? Condenser is kept at highest point, just below stage. Diaphragm varies based on how much light is needed.
How should the diaphragm be set when starting to use the microscope?
Working with the condenser aperture diaphragmInstruct the students to completely close the condenser aperture diaphragm when starting to use the microscope.They should then rotate the low power objective (4x) into position and find the focus with the coarse focus knob.More items...
What happens when you adjust the diaphragm on a microscope?
In light microscopy the iris diaphragm controls the size of the opening between the specimen and condenser, through which light passes. Closing the iris diaphragm will reduce the amount of illumination of the specimen but increases the amount of contrast.
How do you adjust the condenser on a microscope?
The condenser lens adjustment knob is located below the specimen stage and on the left side. It allows the user to move the condenser lens assembly up or down. As you move the condenser lens up, closer to the specimen, it concentrates (condenses) more light on your specimen.
How the condenser and diaphragm should be adjusted for optimum viewing of a specimen using the oil immersion lens?
Diaphragm should be adjusted everytime when condenser is shifted up or down. Diaphragm produce best contrast and resolution which change the brightness of the image and helps in view of clear image. At the time of oil immersion lens condenser should be placed at highest point and diaphragm should not be too down.
How do you use a field diaphragm?
0:522:15How to set up and use your CX23 field stop diaphragm for Köhler ...YouTubeStart of suggested clipEnd of suggested clipPlace a specimen on the stage. Engage the 10x objective in the light path. And bring the specimenMorePlace a specimen on the stage. Engage the 10x objective in the light path. And bring the specimen into focus rotate the field diaphragm to the right to narrow the diaphragm.
Is the diaphragm on the microscope opened or closed as one goes from low power to high power and oil?
For work with the high-dry (40x) and oil-immersion objectives (100x), however, the diaphragm should be closed slowly while looking at a sharply focused section until the level of illumination is just slightly reduced.
How do you adjust a microscope?
0:092:45How to Focus a Microscope & How the Field of View Changes - YouTubeYouTubeStart of suggested clipEnd of suggested clipBegin by turning your microscope on and adjusting the light intensity to about five or six thenMoreBegin by turning your microscope on and adjusting the light intensity to about five or six then place your slide in the clamp on the stage. And center the specimen over the condenser.
How does the diaphragm opening affects the clarity of the image?
Furthermore, the resolution of the microscope image depends on the use of both diaphragms. If you just have all the diaphragms fully open – the image is going to be flooded with light. It will appear bland and no contrast and almost “blurry”.
What is the function of diaphragm?
It is a large, dome-shaped muscle that contracts rhythmically and continually, and most of the time, involuntarily. Upon inhalation, the diaphragm contracts and flattens and the chest cavity enlarges. This contraction creates a vacuum, which pulls air into the lungs.
What is the meaning of diaphragm in microscope?
In optics, a diaphragm is a thin opaque structure with an opening (aperture) at its center. The role of the diaphragm is to stop the passage of light, except for the light passing through the aperture.
How to adjust the diaphragm of a microscope?
You can adjust the diaphragm by turning it clockwise to close it, or counterclockwise to open it. Only open the iris diaphragm of the microscope to a point where the light passing through barely extends beyond the microscope’s field of view. Note: Sometimes, the iris diaphragm of a microscope is located within the condenser, ...
Where is the diaphragm located on a microscope?
The diaphragm can be found near the bottom of the microscope, above the light source and the condenser, and below the specimen stage. This can be controlled through a mechanical lever, or with a dial fitted on the diaphragm. You can adjust the diaphragm by turning it clockwise to close it, or counterclockwise to open it.
Why is the diaphragm important?
This is because at higher magnification levels, less light passes through, and as such, the diaphragm needs to have a wider opening to accommodate more light.
What is the difference between iris diaphragm and brightness?
Iris diaphragm vs brightness. What’s important to remember is that the microscope’s iris diaphragm is not what directly determines the intensity of the light, and therefore brightness of the image. This is largely dependent on the intensity of the light source, and the setting of the condenser. The iris diaphragm only works in controlling ...
Why should the iris diaphragm be wide?
Therefore, the iris diaphragm should be wide enough so that the image is not too dark, but not too wide as to wash out the details of the specimen being viewed.
How many blades are in an iris diaphragm?
Iris diaphragms can be made of anywhere from two to twenty blades, with many microscope iris diaphragms consisting of five to ten blades. Curved blades make for a perfectly circular opening, while straight blades create a more polygonal shape. The more number of blades and the rounder the opening is, the better, more focused, ...
What is the function of the iris diaphragm?
The main function of an iris diaphragm of a microscope is to control the amount of light that reaches the specimen. This light comes from the microscope’s light source, and is gathered by the condenser, before being regulated by the diaphragm, then passing through the specimen. Increasing the amount of light passing through by widening ...
Function and Purpose
Types of Diaphragms
- Disc Diaphragm

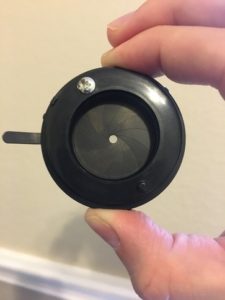

A less common diaphragm is a disc diaphragm looks a little something like this. It is basically a spinning wheel with different diameter openings. Want more light? Switch it over to the large hole. Want less light? Go to the smaller sized hole. - Aperture Iris Diaphragm
The more common type of diaphragm is the iris diaphragm. These are a little more sophisticated and are more common among more expensive and more advanced microscopes. The iris diaphragm is named “iris” mainly because it does the same exact thing as the iris does for our e…
Trade-Offs
- As with many of the settings in the microscope, there are always trade-offs. When you are fine-tuning your image, you must balance the contrast with the total image you are seeing. You cannot fully open your field diaphragm while having high contrast. The more light you are inputting, the less contrast you will get and vice-versa. The less light yo...
Takeaways
- There are no formulas for how to go about using the diaphragms in a complementary manner. It depends on many factors that could be specific to the specimen, or your microscope. There is balance between contrast, brightness and area that you just need to play with and get a feel for. You can never get an image that is high contrast, bright and large. Adjusting the different kind o…
