How do I know if my tool is double insulated?
You can tell if the tool you are using is a double-insulated variety. Just look at the manufacturer's data plate or sticker affixed to the tool, and if it is double insulated and you may see the words “Double Insulated” printed there.
What is a double insulated power tool?
In this way, what is a double insulated power tool? Typical examples are blenders, coffee makers, blow dryers, drills, and other power tools. Appliances and tools of this type are called "double insulated". They have two levels of insulating materials between the electrical parts of the appliance and any parts on the outside that you touch.
How do I choose the right tool for insulated work?
Both ASTM & VDE require comprehensive testing before any tool can be marked as insulated. The key is to choose a tool that bears a symbol clearly indicating it is certified and tested to provide the level of protection expected. Perform a visual inspection of the insulated tool each time you plan to use it.
What happens if you illegally ground a double insulated tool?
If something electrical goes wrong on the jobsite everything will be looked at and someone will scream "release the hounds" even if your illegally grounded double insulated tool wasn't involved. You can run for the front gate if you like but it's pretty much guaranteed you'll eventually be caught and properly mauled.
What does a double insulated tool look like?
0:182:21Double Insulated Appliances - Electrical Safety - GCSE PhysicsYouTubeStart of suggested clipEnd of suggested clipThe two squares symbol and what that means is that the appliance is double insulated doubleMoreThe two squares symbol and what that means is that the appliance is double insulated double insulated and that's what the symbol means okay well that's the words but what does it actually mean.
What makes a power tool double insulated?
Hand-held tools manufactured with non-metallic cases are called double-insulated. If approved, they do not require grounding under the National Electrical Code. Although this design method reduces the risk of grounding deficiencies, a shock hazard can still exist.
What is the symbol for double insulated electrical equipment?
In Europe, a double insulated appliance must be labelled Class II or double insulated or bear the double insulation symbol: ⧈ (a square inside another square).
What is the difference between a tool with external grounding and a double insulated tool?
What is the difference between a tool with external grounding and a double insulated tool? Double insulated appliances and tools are more likely to be found around the home than in commercial and industrial operations where they are more likely to be damaged.
Do power tools need to be double insulated?
OSHA regulation 29 CFR 1926.404(f)(7)(iv) states that electric power tools must be grounded except when they are double insulated.Dec 28, 2018
What is the difference between insulation and double insulation?
Double insulation is insulation that consists of both basic insulation and supplementary insulation. Equipment such as hand-held domestic electric drilling machines has the additional safety precaution of double insulation.
Is double insulated equipment class 2?
These appliances are also referred to as having “double insulation” since in class II appliances a supplementary insulation is added to the basic insulation (see Figure F70).Apr 20, 2021
What does class 2 double insulated mean?
Class 2 double insulated lights are designed to operate without the need for an earth wire. They usually have two layers of insulation which cover the live parts, for example the cables inside the fitting.
What is double insulated plug?
Double or reinforced insulation is another method of protection against electric shock, consisting of an extra layer of supplementary insulation over the basic insulation, or a single layer of special reinforced insulation directly over the live parts.

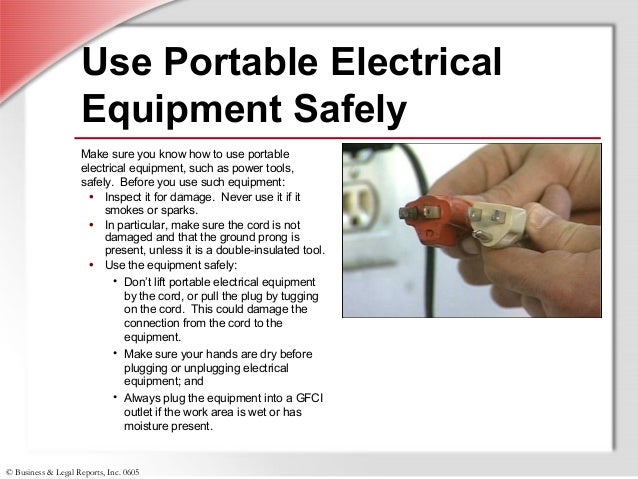

Can you ground a double insulated tool?
However, double-insulated tools do not require the equipment grounding conductor tests, since they are not required to be grounded. The exposure to ground-fault hazards exists when any electric tool is being used even on a grounded circuit.
Are Dewalt tools double insulated?
Class 2 Construction: The DEWALT Tool is double insulated. Class 3 Construction: The DEWALT Tool is grounded and double insulated.Mar 9, 2021
Are double insulated power tools required to have a plug with a grounding connection?
Are double-insulated power tools required to have a plug with a grounding connection? All power tools should be grounded unless they are an approved double-insulated design.
What are the symbols on an insulated tool?
The two most popular symbols are the VDE logo and the double triangle symbol.
What is the most common method used to manufacture insulated tools?
The most common methods used to manufacture insulated tools are dipping and injection moulding. Since the end benefit is the same (user protection against electrical shock), choosing one design over the other comes down to personal preference and habit. The dipping process is used primarily by North American manufacturers; including Gray Tools.
Why is tool safety important?
Tool safety is paramount when it comes to professionals who use them to make a living. Choosing the right tool is not just a matter of performance, but also the protection it provides the user. Selecting between two tools that might look and perform identical, but provide different levels of protection depending on the application, ...
Can insulation be judged solely on insulation method?
The overall quality of an insulated tool cannot be judged solely on the insulation method. The quality and performance of the base tool is fundamental. Brands that specialize solely in insulated tools source their non-insulated product from various sources, which are not disclosed.
Why should you use insulated hand tools?
Why You Should Use Insulated Hand Tools. While these products typically cost more, they provide much-needed protection. You can’t undo a high-voltage incident. Stay safe and use the protection that gloves, insulated hand tools, and other safety practices provide.
Where does insulation go on a screwdriver?
For tools like screwdrivers, insulation starts right at the tip of the tool. That insulation goes all the way to the back end of the handle and protects you from accidental contact with high voltage. Notice we said “accidental”. You should almost never be working on a live wire.
What is the difference between a regular screwdriver and a regular plier?
The difference between these and regular hand tools is that insulated tools provide true electrical isolation on the handle.
Can you use an insulated tool to pry up a bus bar?
Just because you have an insulated tool doesn’t mean you can use it to pry up on a high voltage bus bar. If you nick the insulation on the tool, it’s no longer protecting you as it should. Insulated tools are simply another level of safety and protection—much like seatbelts, the airbag, and the ABS system in your car.
