How do you install angled joist hangers?
- Measure for a middle joist.
- Install it parallel to the outside joist.
- Lay out for more joists.
- Measure for a bevel-cut joist.
- Angle-cut a joist with the crown up.
- Attach with angled joist hangers.
- Use a nail set in a tight spot.
- Where a joist rests on a post.
Can I use screws instead of joist hangers?
You can use screws explicitly made for joist hangers. However, avoid using any other types of screws as they cannot support joist loads and are not designed to withstand shear force. While screws made specifically for joist hanger support are an option, there are other types of attachments used.
How to hang joists by yourself?
What You Need
- Tape measure
- Cordless drill
- Hammer
- Circular saw
- Speed square
- Framing square
- 2x joists and blocking
- Fasteners
- Framing hardware
How should you replace rusted joist hangers?
- Do not leave it alone.
- Replace the damaged hangers with products rated for treated lumber. The same goes for the fasteners (screws and nails).
- It'd take you two beers. Maybe three, if you take your time. And a few simple hand tools you've picked up from Harbor Freight.
How to install stair stringers properly?
What’s the installation process for stair stringers?
- Firstly, attach the bolt down or cast in connector to the base of the stringer pair and position them to where you will need them to go later.
- After they are correctly positioned, use M12 bolts to attach the top fixing bracket to the face of the deck structure (as shown).
- For cast in, fill the footing with concrete and leave to set. ...

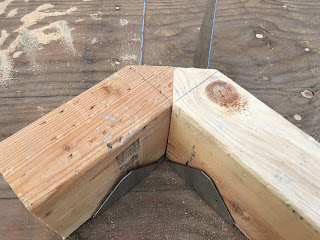

Can joist hangers be angled?
Angled joist hangers should be available at your local lumberyard for 2x6 and 2x10. Double right- and left-skewed joist hangers are also available for angled beams, but they are relatively expensive.
How do you install a 45 degree joist hanger?
0:171:02How to Install a Joist Hanger - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf space is too tight to swing a hammer a pneumatic Paul nailer can be used finally nail into theMoreIf space is too tight to swing a hammer a pneumatic Paul nailer can be used finally nail into the joist through the pre-drilled holes. Again all the holes on both sides of the hanger.
Can you skew a joist hanger?
Many, but not all, joist hangers can be custom-made for specific slopes, skews, combinations of slopes and skews, and even alternative widths and alternative top-flange configurations.
Do they make 45 degree joist hangers?
Product Details The SUR/L are 45-degree skewed hangers designed to support solid sawn and engineered wood products used in wood construction. These U-shaped hangers encapsulate the top flange of the joist, so no web stiffeners are required for standard installation.
Is it better to screw or nail joist hangers?
1:572:44The RIGHT fasteners for your Joist Hangers // The Ultimate Deck ShopYouTubeStart of suggested clipEnd of suggested clipUse a proper screw.MoreUse a proper screw.
Can you use screws to install joist hangers?
While structural nails are typically used to fasten joist hangers, you may be wondering if screws can be used instead. You can use screws explicitly made for joist hangers. However, avoid using any other types of screws as they cannot support joist loads and are not designed to withstand shear force.
How do you use skewed joist hangers?
1:573:59How to Install the LSSR Slopeable/Skewable Rafter HangerYouTubeStart of suggested clipEnd of suggested clipNow fill all nail holes on the obtuse side of the stirrup. Use a hammer to bend the of to sideMoreNow fill all nail holes on the obtuse side of the stirrup. Use a hammer to bend the of to side flange. Until flush against the beam. Then fill all a brown nail holes.
Can you use 2x10 joist hangers for 2x12?
Hangers can be used with both their matching nominal joist size and the next size up—2x10 hangers are approved for use with 2x10s and 2x12s, for example.
Are 2x6 strong enough for deck joists?
You can use 2×6 as deck joists if the deck is low enough to the ground as not to require guard railing. When using S-P-F 2×6 deck joists, the span must not be greater than 9'0″ (2.73m) with joists at 16″ o.c. (400mm), and 9'10” (3.01m)with spacing at 12″ (300mm).
How to measure for cutting a joist?
To measure for cutting a joist at the angled section, hold it in place and mark it. Have a helper hold one end up against the ledger so that its bottom edge is close to the top of the ledger. Mark the bottom of the joist while another helper measures to see that it is parallel with the next joist.
How to mark an angled cut line?
To mark the angled cut line, measure out from the corner an equal distance in both directions. Align a straight 1x4 with both measurements, and mark the header and the rim joist. Transfer the marks to the faces of the boards with a square. cut header and rim joist. Step 3.
How wide is a joist hanger jig?
To make the jig, use a 2-ft. scrap of plywood 10 in. or 12 in. wide.
How to install a hanger without a jig?
Then you slip the next hanger over one block and insert the other block in the first hanger. Tapping the barbs into the jim joist or beam will hold the jig in place while you install the hanger. To remove the jig, tap up on the block.
How to use a jig for a rim joist?
You can even cut a hole in the plywood to serve as a handle. To use the jig, insert a joist hanger into the second set of slots—spring tension should hold it in place—slide the first set of slots over the previously installed joist hanger and rest the depth guide on the rim joist or beam.
What is a U-shaped joist hanger?
U-shaped joist hangers are a standard item on most framing jobs, but installing them accurately , with the right height and spacing, can be tedious and time-consuming.
Can you nail a joist hanger up the rest of the way?
This done, the joist hanger can be nailed up the rest of the way. And yes, all the holes should get a nail.
How to install adjustable joist hanger?
While your joist hanger is adjustable, precise measurements are important. Start from the corner of your ledger board and measure it out in 16 inch intervals. Mark each spot with your pencil.
Why do you need joist hangers?
If you plan on building your own floor or deck, you will need to use joist hangers to increase the amount of weight your project can support. Joist hangers are pieces of metal used to connect outer ledger beams to the parallel boards that support your floor or deck.
How to secure a joist hanger?
Secure the joist hanger in place against the beam with galvanized steel screws, stainless steel screws, or coated steel screws for a long-lasting hold through the openings in the hardware. Then be sure to drive fasteners through the openings to connect the joist to the hanger itself.
What size are joist hangers?
Used to hold and attach your lumber joists in place against your structure's beams. Joists are typically sized 2x6 inches, 2x8 inches, or 2x10 inches depending upon the size and design of your backyard pergola, pavilion, or deck. Joist hangers are usually three-sided components which wrap around the bottom, left, ...
What are roof hangers?
Current versions of roof hangers are typically adjustable two-piece brackets that are attached together via fasteners though older models can be solid one-piece component s.
What is a joist hanger?
Joist hangers can be used anywhere you need to strengthen a load bearing connection. Joist hangers use face mount attachments to fasten joists to ledger boards and beams. You can buy joist hangers for different sized lumber. Single, double, triple, right and left orientation hangers are available for various applications.
What kind of joist hangers are used for angled beams?
Double right- and left-skewed joist hangers are also available for angled beams, but they are relatively expensive. Make sure that all of your deck hardware and fasteners are triple zinc galvanized or stainless steel so they are compatible with ACQ lumber. Never cut, bend or modify deck hardware for alternative uses.
What hangers are needed for an angle deck?
Angled decks may require using right- and left-skewed joist hangers. These hangers are bent to 45 degrees and can be installed with joist hanger nails using the same method as straight joist hangers. Angled joist hangers should be available at your local lumberyard for 2x6 and 2x10. Double right- and left-skewed joist hangers are also available ...
What to do if there isn't a connector?
If there isn’t a connector available, you might need to reconsider your approach to the connection. Sizing Joist Hangers. Always make sure you are using the largest hanger size for a particular joist.
Can a joist hanger be used as a concealed hanger?
Concealed joist hangers can be used in areas where it is difficult or impossible to attach the side flanges of a standard joist hanger.
Can a concealed joist hanger be nailed into a ledger board?
The concealed joist hanger can be nailed into place on the edge of the ledger board without the need to nail into the end grain of the lumber, which is prohibited by code. Concealed hangers can be attached to the sides of support posts to attach the exposed stair stringers and provide a strong and attractive connection.
