How do you cut hollow iron balusters?
- Use reciprocating saw to cut wooden balusters in half.
- Pull out of each end and discard.
- Sand railing and stain or paint.
- Measure the height for each spindle.
- Use reciprocating saw to trim iron spindles to height.
- Stick spindle up into top railing.
- Add glue or epoxy into lower hole.
How do I calculate how many balusters I Need?
- If you are fitting 32mm spindles - divide the measurement by 112.
- When installing 35mm spindles - divide the measurement by 115.
- Or if you are installing 41mm spindles - divide the measurement by 121.
How to build jig to cut balusters for stairway deck?
Build a jig using scrap material to assist in drilling the baluster connector locations. The width of this jig was cut to 1 1/4" wide to fit inside the channel in the top rail and center on the bottom rail. The manufacturer recommends 4 3/8" on center spacing for 3/4" steel balusters.
How to replace wooden balusters?
Tools needed:
- Reciprocating saw
- Sander or sanding block
- Hot glue gun (or epoxy)
What is the best way to cut wrought iron railings?
What Is the Best Way to Cut Wrought Iron Railings?
- Tools. An oxyacetylene torch or a titanium-coated, high-speed steel saw blade on a hacksaw or right angle grinder can all be used to cut wrought iron.
- Safety Considerations. No fire safety procedures are necessary when using a hacksaw. ...
- Methods. ...
- Personal Protective Equipment. ...
- Order of Cuts. ...
Can I cut iron balusters with miter saw?
If your staircase has an Angle Wall, the baluster length will be very short (approx. 29 inches). Use a wood Miter Saw for this project by replacing the blade with a Black Disc (10 inch) used for cutting metal.
How do you install hollow wrought iron balusters?
5:427:15How To Install Iron Balusters - YouTubeYouTubeStart of suggested clipEnd of suggested clipPercent beginning first with the bottom trim. And then inside your handrail. It is helpful to add aMorePercent beginning first with the bottom trim. And then inside your handrail. It is helpful to add a small dab of epoxy. On top of the baluster as well then slide the baluster. Into the handrail.
Are hollow balusters good?
Hollow iron balusters also have a bit more give than solid balusters, but this flexibility doesn't significantly impact the durability of the system once installed on the stairway. Both options are strong and reliable for long-term use.
How do you cut a hole in a baluster?
2:077:51How to Install Iron Balusters on a Knee Wall - YouTubeYouTubeStart of suggested clipEnd of suggested clipSo you you can stay you know they start at your bottom or your top. But just for use on the cameraMoreSo you you can stay you know they start at your bottom or your top. But just for use on the camera we're going to start cutting in the middle where you can see it a little bit better.
How do you cut wrought iron?
An oxyacetylene torch or a titanium-coated, high-speed steel saw blade on a hacksaw or right angle grinder can all be used to cut wrought iron. The torch can cut close as long as the rail is attached to concrete or some other nonflammable surface.
How do you cut spindles?
0:122:51How to Cut Spindles - YouTubeYouTubeStart of suggested clipEnd of suggested clipI'm gonna show you how let's get to it. So really you have three different shaped spindle we haveMoreI'm gonna show you how let's get to it. So really you have three different shaped spindle we have the flat. Which is pretty easy to cut the square.
What is the difference between hollow and solid balusters?
Hollow Balusters have just slightly more flex than Solid Balusters. Solid Iron Balusters require more steel, are heavier and can be more expensive, especially when considering shipping. Hollow Iron Balusters are often less expensive because they require less material and weight less than the solid option.
What is the difference between hollow spindle and solid spindle?
As far as aesthetics, Solid Metal Spindles have a more “hand-forged” appearance with a little more texture, sharper corners and more variations in the surface. Hollow Iron Balusters tend to be smoother with slightly rounded corners and don't typically exhibit the same “hand-made” look.
Are iron balusters out of style?
Iron balusters have become so popular (and affordable!) that they're used in every type of home from starter homes to luxury and custom-built homes. Whether selecting an “Old World” look of solid iron balusters or the more contemporary look of hollow balusters, iron balusters demand attention.

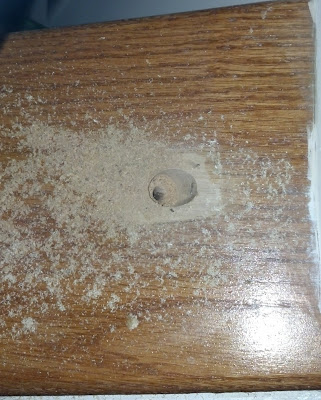

How do you drill holes in metal balusters?
Drill an appropriate size hole for your balusters top and bottom. (If you don't want to use shoes to hide leftover gaps with square balusters, you can use a mortising bit and punch out a square hole instead.) Drill 1 inch to 1.5 inch deep up into the handrail. Drill 1/4 inch to 1/2 inch into the tread / floor.
How do you drill a baluster hole on a railing?
1:265:07How to Install stair railing with baluster - YouTubeYouTubeStart of suggested clipEnd of suggested clipWe uh are going to go ahead and start drilling the uh positions that we marked already for theMoreWe uh are going to go ahead and start drilling the uh positions that we marked already for the balusters as you can see the holes in the bottom of the railing.
How do you drill a hole in a spindle?
The hole in the handrail will need to be at least 1-1/2" up into the bottom of the handrail. Drill the bottom hole to a depth of approximately 5/8" to 3/4". Many of the powder coated metal balusters have the top of the baluster turned round which will may allow you to use a smaller diameter drill bit for the top hole.
How to make a shoe out of a baluster?
First, slide your baluster shoe onto the baluster. Slide the baluster into the top handrail first, and then drop it down into the hole in the floor / tread. We purposely drilled out a deeper hole in top to give us this extra room. Make sure everything lines up and the pattern is correct before adding glue.
Can you use a drop cloth to cut out wood balusters?
Cutting out the wood balusters can be messy. We recommend using a drop cloth to cover any furniture and decor you don’t want covered with sawdust. It’s also a good idea to cover any walking area with drop cloth aswell to prevent damaging your floor.
Can you use square balusters with shoes?
If you are not using shoes, make sure your holes are drilled as tight as you can for round balusters. Using square balusters, punch out a square hole for best results. The goal is to have enough room up top to slide the baluster in, and then drop it down into the bottom hole.
How to cut a baluster without a shoe?
The top of most balusters have a turned section that allows it to be placed in the handrail without the use of a shoe: Cut the baluster with a metal cutting band saw or jigsaw. If you are doing a small job then a hack saw could be used.
How far apart should balusters be?
Most areas of the country require that balusters be have no greater than a 4” separation. This is determined by using a 4” sphere or ball. Contact your local code officials to determine what is mandated where you live.
What tape do you use to attach balusters to handrails?
After “dry” fitting the balusters use the 3M painters tape on the baluster just below the handrail to protect against any drips of epoxy. Then lower into place the shoes and tighten the set screw for a professional appearance.
What is an iron baluster?
Iron balusters (more on this in a sec) Iron baluster shoes – an upper shoe and a lower shoe for each baluster (more on these too, in a second.) Epoxy glue or hot glue. Any power tool with a metal cutting blade, like a jig saw ( we use this one) or a reciprocating saw ( this is the one we have .)
How long does it take for hot glue to dry on balusters?
Hold the baluster straight for the 4.2 seconds it takes the glue to dry, then just use an allen wrench to tighten the shoes and knuckles in place….
What is a solid iron baluster?
Solid iron balusters are made of wrought iron, a tough, forgeable form of iron that can be rolled and manipulated into different shapes. This process results in a lightly textured surface, giving these iron balusters an “Old-World” look. And because artisans can shape the metal more freely, solid iron balusters tend to be more intricate in design.
Why are solid iron balusters more expensive than hollow balusters?
Solid iron balusters are generally more expensive than hollow balusters, because they are made of more iron material and require intricate shaping. With hollow balusters, you also have the opportunity to save on shipping costs.
Why are iron balusters so intricate?
And because artisans can shape the metal more freely, solid iron balusters tend to be more intricate in design. For hollow iron balusters, high-quality iron is poured and shaped through a casting process. This results in a smooth, refined finish.
Do solid iron balusters cut to size?
Solid iron balusters require more time and powerful machinery to cut to size. Aside from cutting, the rest of the installation process is very similar for both styles. Read more about iron baluster installation.
Can you cut down a hollow iron baluster?
Installation. Iron balusters, both solid and hollow, will arrive oversized and must be cut down on-site to fit your stairway. Hollow iron balusters are easier to install, because there is less material to cut through – a small power tool or hand tool will do the job.
Is a hollow iron baluster heavier than a solid iron baluster?
As you may have guessed, solid iron balusters are heavier than their hollow alternative. Hollow iron balusters also have a bit more give than solid balusters, but this flexibility doesn’t significantly impact the durability of the system once installed on the stairway.
Step 1 – Preparing The Work Area.
Step 2 – Cutting Old Balusters
Step 3 – Remove Old Balusters
Step 4 – Drilling Holes
Step 5 – Cutting Iron Balusters to Size
- Measure from the floor to the bottom of the handrail. Add 3/4″ onto that measurement and this is how long you should cut your iron baluster. This gives you enough room to slide the baluster up into the handrail and then drop it down into the tread and still have enough baluster to glue in place. Using a Portaband saw or a chop saw with a metal cutt...
Step 6 – Insert Iron Balusters
Step 7 – Epoxy & Base Shoes
