How to Tie Into an Existing Septic Tank
- Locate the drain line running from the current home to the septic tank. ...
- Once you locate the drainpipe, continue digging until you have exposed approximately three feet of the pipe.
- Lay sections of four-inch PVC pipe from the new drain point to the existing drain line. ...
- Insert the tee fitting into the opening you have just created. ...
How do you attach a toilet to a septic tank?
Cut the main vent with a hacksaw, glue in the T and glue the new vent pipe to the T. Tie the toilet waste pipe to the lateral main waste line by gluing in a Y fitting and gluing the new waste pipe to the fitting. The waste pipe must maintain a minimum 1/4-inch-per-foot slope at every point along its path to the septic tank.
How do you install a waste water pipe in a tank?
Insert the pipe into the inlet opening of the tank until the pipe sticks in about 2 inches. Locate the pipe far enough into the tank that incoming waste water does not follow the tank wall down but free-falls out of the pipe. The pipe must be at least 6 inches from the baffle to prevent clogs from forming.
What size pipe connects a septic tank to a home?
Hunker may earn compensation through affiliate links in this story. Four-inch pipes connect septic tanks to homes. Most modern septic tanks, whether made of concrete or plastic, have two compartments separated by an internal baffle and an inlet and outlet port.
How do you seal a septic tank drain pipe?
A concrete mixture or some other form of mortar combination was traditionally used to seal the area where the pipe entered the septic tank. Furthermore, according to the Environmental Protection Agency, more than 60 million individuals in the United States are served by septic systems.
What do you use to seal pipe to septic tank?
The tar sealant can be used to fill the void between the concrete and pipe. Use a trowel to press the sealant into the void. If the rubber gasket is molded into the tank for the pipe, tighten it up.
Do you glue septic pipe?
Glue pretank sewer pipe with the bell facing uphill When gluing sewer pipe together, especially before the septic tank where there are solids flowing down the pipe, wherever possible glue the bell end of the pipe facing upstream (the male end facing downstream.)Nov 26, 2019
What kind of pipe goes from house to septic?
The septic tank should be positioned at least 50 feet from the house proper. ABS or PVC plastic or cast iron pipe can be used to connect the tank to the house drainage system. [We do not recommend using clay pipe nor "orangeburg" pipe.]
What size pipe connects to septic tank?
Four-inch pipe is standard, and it should extend far enough under the house to connect with the main soil stack, which is a 3-inch pipe that extends vertically past the main bathroom and through the roof.Dec 19, 2018
Does sewer pipe need to be glued?
If you are trying to use PVC pipe to transport fluid or gas, PVC cement or special push-on fittings are necessary to assure there are no leaks. Not all applications require a permanent seal like this, however.Oct 23, 2017
Do you glue drain field pipe?
3. Lay out the perforated pipe pieces on top of the gravel with the majority of the holes pointed downward and connect them with PVC self-priming glue. The pipe sections are made with coupling flanges on one end of each pipe, so the next pipe in line will slide inside of the one before.
Why the inlet pipe in the septic tank is higher than the outlet pipe?
Level the septic tank: The septic tank inlet tee is designed to be higher than the septic tank outlet tee. This helps assure that incoming sewage clears the baffle and enters the tank correctly, while outgoing effluent does not carry along floating solids, scum, or grease (which would clog the drainfield).
What is the fall on a 4 inch sewer pipe?
For 4-inch PVC piping and a building sewer less than 50 feet long, the minimum slope is 1 inch in 8 feet, or 1/8-inch per foot, and the maximum is 1/4-inch per foot. For sewers longer than 50 feet, the slope should be 1/4-inch per foot.
How deep is the septic tank outlet pipe?
approximately 3 inchesAfter the solids settle out, effluent leaves the septic tank through the outlet pipe and flows to the drain field. The outlet pipe should be approximately 3 inches below the inlet pipe.Jan 8, 2020
Can I add another bathroom to my septic tank?
When planning to add a toilet to your septic system, it's important to contact the building authorities to find out if you can do it. Some jurisdictions base septic system size on the number of toilets serviced, and it's illegal to exceed this number without upgrading the tank or leach field.
Can you run sewer line above ground?
Subsection 701.2(2) of the California Plumbing Code, 2019 Edition, is hereby added to read in its entirety as follows: 701.2(2) Drainage Piping. ABS and PVC DWV piping installations above ground shall be limited to residential construction, not more than two (2) stories in height.
What kind of pipe do you use for a leach field?
perforated PVC pipeLeach pipes are usually made of perforated PVC pipe. To encourage the final product to trickle into the soil, the pipes are bedded in gravel and sand or sometimes are covered with plastic septic chambers.May 27, 2021
Who Performs the Task?
Before we get into any details on how to pipe from house to septic tank, it’s necessary to make certain things clear.
Key Parts of a Sewage Disposal System
Connecting a pipe from a house to a septic tank requires knowing different parts of a septic system.
Why Connect the Drain Pipe from the Building to the Tank?
It goes without saying that wastewater being produced by a household needs to be channeled out. Whether such wastewater is coming from the toilet, kitchen or bathroom doesn’t matter.
Connecting A Drain Pipe From A House To A Septic Tank
There needs to be a pipe for septic tanks to have an inflow of wastewater. The installation of this pipe is what we’ll be dwelling on. The pipe connecting a house to the septic tank is known as the inlet pipe.
More Installation Guide

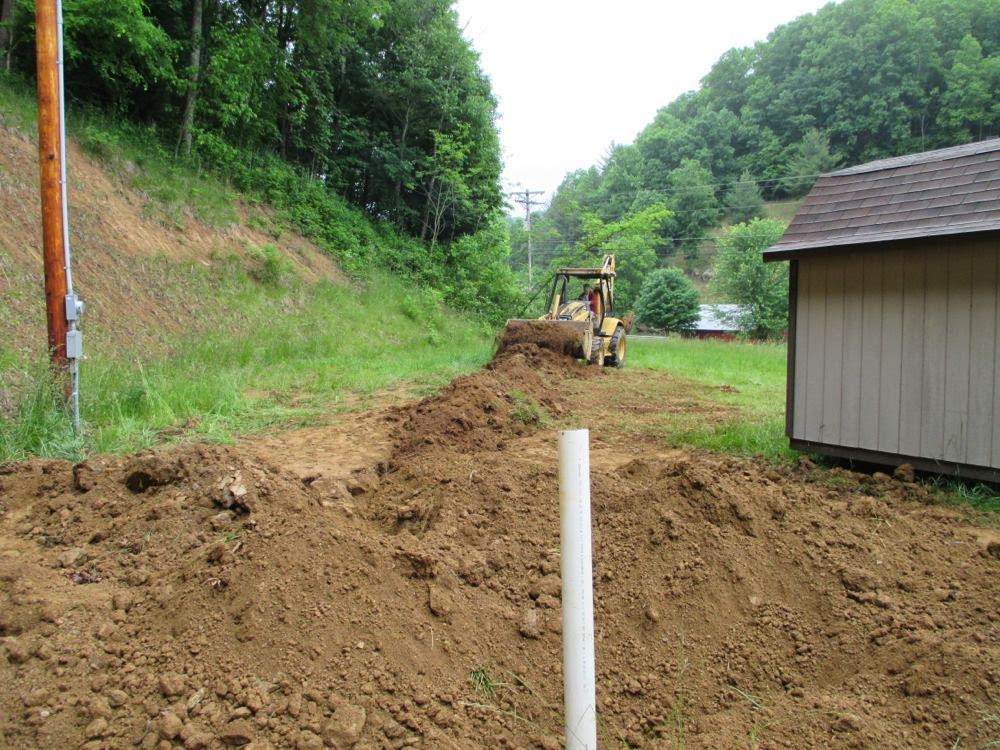

Quite a lot of digging goes on when installing a septic system. There’s a need to dig a hole for the septic tank, as well as a trench that conveys the drain pipe from the tank to the leach field.
Step 1
Locate the drain line running from the current home to the septic tank. This can be done by finding the main drain line under your home and marking where it travels beneath or through the foundation. Outside the home, move along this line until you are approximately eight feet from the home. Dig down until you locate the drain line.
Step 2
Once you locate the drainpipe, continue digging until you have exposed approximately three feet of the pipe. You will also need to dig down slightly to allow access all the way around the pipe. From this point dig a ditch to the start point of the new field line.
Step 3
Lay sections of four-inch PVC pipe from the new drain point to the existing drain line. Be certain to use PVC pipe cleaner on all pipe ends and fittings before applying PVC cement. Connect the drain line to the new drain point, making certain all fittings are secure.
Step 4
Insert the tee fitting into the opening you have just created. You will need to flex the drainpipe and wedge the fitting into place because it will be a very snug fit. Clean the fitting and pipe ends before installing. Once you apply the cement, you will need to work quickly to get the fitting in place because the cement will set very quickly.
What is the fitting for a waste pipe?
In many cases, the most appropriate fitting is a 90-degree drainage fitting called a closet ell.
Can you have multiple toilets in a septic system?
Some jurisdictions base septic system size on the number of toilets serviced, and it's illegal to exceed this number without upgrading the tank or leach field. Others, however, base system size on the number of bedrooms and allow multiple new toilets as long as the number of people using them doesn't increase.
Can you tie a septic system into a toilet?
In some cases, you may be able to tie into the waste line from a nearby toilet, such as one on the other side of the wall or in an adjoining bathroom. Modifying your septic system can potentially alter groundwater composition and is therefore a public health concern.
Lear how to do it if correctly you gonna live in a campground of in an RV park long enough
If you have a recreational vehicle that is more commonly known as an RV, you are able to travel almost anywhere you feel like with all the comfort that a regular home of brick and mortar can offer you!
How to Hook Up Your RV Sewer to a Septic Tank Permanently?
First of all, we need to answer one of the most common questions of all the RV owners and say that you can in fact consider hooking your camper to the septic tank!
How Do You Connect to Your Septic Tank For a Camper?
Typically, you will find a clean out to be the simplest way to connect your recreational vehicle to the septic tank. To be precise, this is going to be a PVC pipe that comes out from the ground with a screw cap.
Tips For Keeping Your Septic Tank Working Well
You might think that it is enough to know how to hook up your RV to a septic system and do it correctly, but this is not quite like that in fact.
