How do you adjust the governor on a Chevy Silverado?
How to Adjust the Governor on a Champion Generator Step 1. Remove the four corner bolts securing the gas tank to the chassis with a socket wrench. Undo the two bolts... Step 2. Take off the air filter cover by undoing the central wing-nut. Remove the …
How do you adjust the governor on a Briggs and Stratton?
The flyweights (not in picture) turn the governor output shaft which moves the governor arm. The arm movement and forces are balanced by the primary and secondary spring. When running, an increase in engine RPM will move the throttle linkage which begins to close the butterfly valve thus reducing air and fuel intake.
How do you adjust the governor on a Tecumseh engine?
To adjust the governor, you would loosen the screw on the bottom of the governor arm and push the governor arm so the throttle is wide open. Then you would turn the bottom "clip" (which is connected to the governor shaft) counter clockwise. This will set the governor shaft on top of the governor spool. Tighten the screw and you're done.
How do you adjust the Governor arm on a throttle lever?
May 31, 2020 · Correspondingly, how do you adjust the governor on a generator? Turn the control knob on the multimeter to the Hz settings. Start the generator and impose a typical load as described. Adjust the yellow governor control screw to raise or lower the Hz output. Set the engine speed so that the generator produces between 60 Hz and 62 Hz while under load.
How do you set the governor on a generator?
0:014:45Generator governor adjustment - YouTubeYouTubeStart of suggested clipEnd of suggested clipControl arm right here goes down to the throttle carburetor right there. And this is a speedMoreControl arm right here goes down to the throttle carburetor right there. And this is a speed adjustment right here. You can just phillips head in you know.
What makes a generator rev up and down?
Surging caused by fuel problems usually happens for one of three reasons: incorrect fuel, low fuel levels, or poor fuel quality. Most generators have specific fuel requirements and using any type of fuel outside of those parameters can cause operational issues, including surges.Mar 25, 2021
Can you adjust governor?
To adjust the governor, you would loosen the screw on the bottom of the governor arm and push the governor arm so the throttle is wide open. Then you would turn the bottom "clip" (which is connected to the governor shaft) counter clockwise. This will set the governor shaft on top of the governor spool.
How do you adjust the governor droop?
To tighten the droop, move the governor spring closer to the governor shaft paddle pivot (a lower hole #). To widen the droop, move the governor spring further away from the governor shaft paddle pivot (a higher hole #).
How do I fix my generator surging?
0:005:37Generator Idles up and down Surging DIY 5 Min fix!! - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou'll see that it starts to idle up and down like. This. And so what happens is that the low speedMoreYou'll see that it starts to idle up and down like. This. And so what happens is that the low speed circuit that's on your carburetor. Gets plugged up from debris that happens to be in your fuel.
What causes a generator to pulse?
There are numerous causes for generator surging, including: Incorrect fuel use, fuel levels, and fuel quality in gas/oil generators. Your generator was designed to use specific fuel sources, and anything else may cause operation problems (and irreparable damage). Failing capacitor or other components.
What is governor control in generator?
The governor's purpose is to control the fuel to the engine cylinders so as to control the speed of the unit, holding the speed constant for all conditions of load imposed on the generator conditions of load imposed on the generator being driven by the engine.
What position should the speed control be in when adjusting the governor?
What position should the speed control be in when adjusting the governor? Rotate governor lever clockwise so that throttle is in full wide open position. Throttle stop must contact cast stop on the carburetor.
What does removing the governor do?
Removing the governor will increase the maximum rpm of the engine, but the internal parts of the Predator 212 are designed for 3600 rpm. Generally, this isn't an issue with just the governor removal, the internal parts can usually withstand 5000 rpm without breaking apart (unless you go full throttle for too long).
What is droop setting in generator?
In droop mode, a generator's output and frequency are inversely proportional. When frequency decreases, output increases. If a generator has a 5% droop setting, for example, then a 5% decrease in frequency will increase the unit's power output by 100%.
How do you increase the power of a generator?
Locate the throttle. This is usually on the side of a generator that does not have a voltage dial or at the top of one that does. It usually has "RPM" imprinted on it. By increasing the rpm, you will increase the power output.
What is droop control method?
Droop control refers to a method of simulating the drooping characteristics of a traditional generator set. This control method is generally applicable to occasions where multiple communication line-free inverters are connected in parallel.
Step 1
Remove the four corner bolts securing the gas tank to the chassis with a socket wrench. Undo the two bolts securing the gas tank end-plate to the chassis. Shut the On/Off fuel-delivery valve. Remove the fuel line by compressing the two spring-loaded lugs on the clip with a pair of pliers. Slide the tube from the On/Off valve.
Step 2
Take off the air filter cover by undoing the central wing-nut. Remove the foam filter element, and wash it in warm water and laundry detergent. Rinse thoroughly in clean water. Squeeze out excess moisture and allow time to dry.
Step 3
Replace the filter element and filter cover. Re-install the gas tank by bolting the end plate back onto the chassis, replacing the four corner mounting bolts and re-connecting the fuel line.
Step 4
Wrap the red lead from a small-engine tachometer around the spark plug wire and attach the white lead to the chassis. Loosen a convenient screw, slip the white terminal under the screw head and tighten. Start the generator and allow sufficient time for the motor to warm up.
Step 5
Plug the generator in and power up the most common tools, lights or appliances used. This will impose a typical load on the generator while adjusting the governor settings.
Step 6
Insert a flat screwdriver into the yellow governor control screw with a spring around the screw threads. This screw is located on the governor linkage. Monitor the tachometer reading during adjustment. Turn the screw counterclockwise to increase engine RPM, and clockwise to reduce engine RPM.
Step 7
Connect a multimeter to the generator power outlet as an alternative to using a tachometer. Turn the control knob on the multimeter to the Hz settings. Start the generator and impose a typical load as described. Adjust the yellow governor control screw to raise or lower the Hz output.
What is the best method to use an electronic governor with a stepper?
If you are using an electronic governor with a stepper then the best method is probably PID. A source that I found VERY helpful was Brett Beauregard's Improving the Beginners PID:
What are the different types of governors?
There are three types of governors in the small engine market; pneumatic, mechanical and electronic. Small engines are lawnmowers, pressure washers etc., with engines in the 100 cc-1000 cc size. Lawnmowers may have a lever to control engine speed manually or a pneumatic governor for constant RPM. A pneumatic governor usually has a vane that gets pushed by the air from cooling blower (attached to the flywheel). The vane has a carburetor throttle linkage and a spring to set tension which governs RPM. Mechanical flyweight governors are very reliable but difficult to repair once they do break since they are usually in the engine block. Finally, electronic governors read RPM, make some calculation and actuate the throttle. These are usually only on more expensive engines. An electronic device had the advantage of mounting components external to the engine and not have to take too much apart.
How to adjust a governor shaft?
To adjust the governor, you would loosen the screw on the bottom of the governor arm and push the governor arm so the throttle is wide open. Then you would turn the bottom "clip" (which is connected to the governor shaft) counter clockwise. This will set the governor shaft on top of the governor spool.
Which way should the governor shaft be turned on a Tecumseh engine?
Tecumseh Engines: First The governor shaft should always be turned in the same direction the governor arm turns to open the throttle wide open. For example, on Tecumseh TVS, LEV, TVM, TVXL and other similar engines, the governor arm rocks in the counter clockwise direction to close the throttle to idle.
How to adjust a Briggs and Stratton horizontal shaft?
To adjust the governor on a Briggs and Stratton horizontal shaft engine, you would loosen the nut on the governor arm and push the governor arm down, clockwise. Then you would turn the governor shaft clockwise also and tighten the nut.
What is an air vane governor?
Many of the smaller lawnmowers used what is called an "air vane governor". This type of system uses the air flowing through the engine to operate a vane back and forth against a spring, just like the mechanical governor does. The big problem with air vane governors is debris sometimes collects in the system blocking air flow.
How to make a governor less sensitive?
Many governor arms have several holes in the arm to change sensitivity. By moving the governor spring to a hole further away from the governor shaft you will make it less sensitive.
What are the complaints about governors?
Most complaints about governors fall into two categories: 1 Engine runs too fast or too slow. 2 Engine surges or hunts.
What is the governor of a diesel generator?
The function of the governor of diesel generator set. The function of the governor is to adjust the fuel supply automatically with the change of the external load of the diesel engine within the required speed range of the diesel engine, so as to keep the diesel engine speed basically stable. When the diesel engine drives other working machinery ...
How does a two pole speed governor work?
Mainly used in cars, to maintain idling stability and prevent high-speed "flying". In other cases, the operator operates the throttle to adjust the fuel supply.

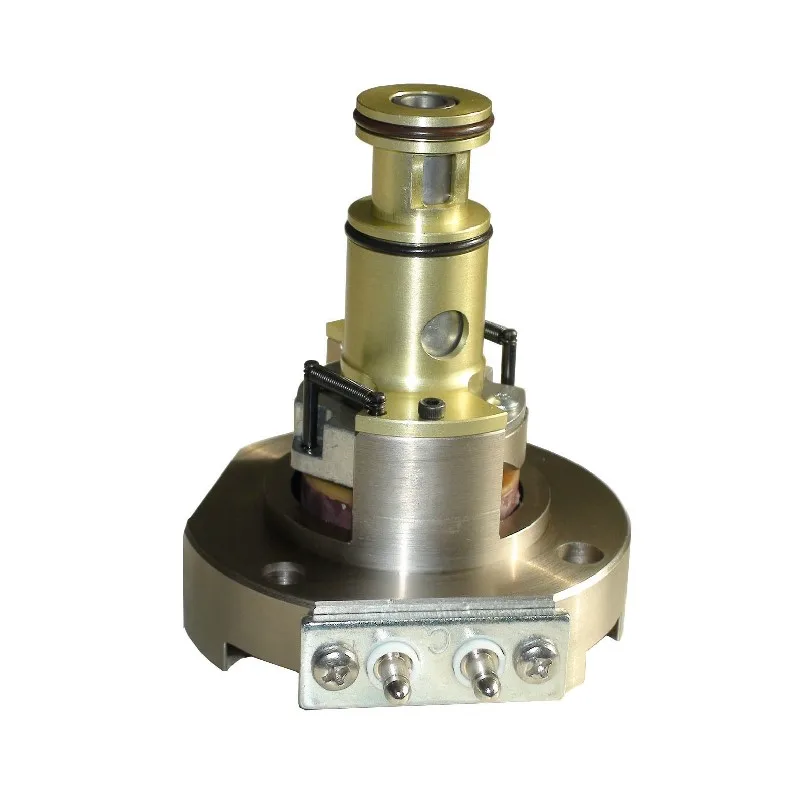

What is an electronic governor?
The electronic governor converts the change of diesel engine speed into the change of electric quantity, and controls the actuator after sampling and amplifying. This governor can adjust the fuel supply before the speed of diesel engine changes obviously, and obtain high adjusting precision, and realize parallel operation without difference.
Why is it impossible for the operator to adjust the fuel supply sensitively and in time?
Because the resistance moment of the working machine will change frequently with the change of the working condition, it is impossible for the operator to adjust the fuel supply sensitively and in time, so that the output torque of the diesel engine can be adapted to the external resistance. In this way, the speed of the diesel engine will ...
What is a single program governor?
A single program governor works only at a certain speed (usually a calibrated speed). Suitable for diesel engine with constant speed, such as driving generator, air compressor, centrifugal pump and so on.
How does a whole course governor work?
The whole-course governor works in the range of diesel engine speed. After the operator chooses any speed according to the need of the operation, the governor can make the diesel engine work steadily at the speed automatically.
What is a pressure governor?
The pressure governor generally uses the flying block as an inductive element to push the piston to operate the hydraulic server. This governor has small induction elements and strong versatility. A few series of dimensions can be used to meet the requirements of tens to ten thousand horsepower diesel engines.
What is a governor on a lawn mower?
Akin to the cruise control system in your car, the governor is a critical component of a lawn mower. There are three types of governors: mechanical, pneumatic and electronic.
What happens when a Tecumseh engine over revs?
If the engine over-revs, the governor will cut back the throttle. Conversely, if the engine is under a heavy load, the governor will increase the throttle to compensate. To adjust the governor on a Tecumseh engine, you'll need only some basic hand tools. Advertisement.
How to prevent a small engine from firing?
Be sure to disconnect the spark plug whenever you work on a small engine to prevent the engine from firing accidentally while you work. Remove the spark plug wire from the tip of the spark plug and secure it away from the spark plug . Inspect the spring between the governor and the throttle lever. If it appears to be stretched or worn, replace it ...
