How do you adjust Hunter SRS sprinkler heads?
- The adjustable left edge of the spray pattern is marked with a raised dot on top of the nozzle's arc adjusting ring.
- Hold both sides of the nozzle at a point below the top adjusting ring.
- Turn the top adjusting ring counterclockwise to increase the arc or clockwise to decrease the arc.
How do I adjust Hunter PGJ sprinkler heads?
- Insert the plastic key end of the Hunter wrench into the lifting socket of the sprinkler and turn 90°. Pull the riser up to gain access to the nozzle socket.
- Using the hex key of the Hunter wrench, turn the radius adjustment screw counterclockwise to be sure it is not blocking the nozzle socket opening. ...
- Slip the desired nozzle into the nozzle socket. ...
How do you adjust Hunter irrigation heads?
- The adjustable left edge of the spray pattern is marked with a raised dot on top of the nozzle’s arc adjusting ring.
- Hold both sides of the nozzle at a point below the top adjusting ring.
- Turn the top adjusting ring counterclockwise to increase the arc or clockwise to decrease the arc.

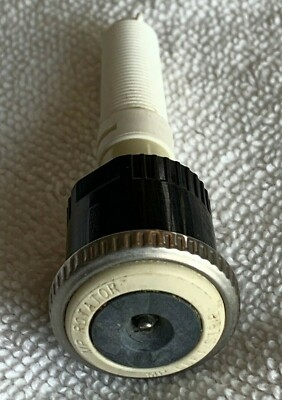

How to adjust Hunter rotator sprinkler heads?
Adjusting the arc and radius of a rotor is an easy task. Most residential rotors are adjusted the same way. There are two adjustments that can be made on rotors, arc and radius. Arc: The degrees of coverage of a sprinkler from one side of pattern to the other. A 90-degree arc would be a quarter-circle sprinkler. In other words, the arc is how far to the left and to the right
How to adjust Hunter irrigation sprinkler heads?
To adjust the arc, follow these steps:
- Insert the hunter key in the adjustment socket. ...
- Once you have inserted the key, turn it clockwise and complete one whole circle while turning it. ...
- After turning the key a full circle four times, the key will not allow you to rotate it any further. ...
How do you adjust a Hunter SRS sprinkler?
The radius, or distance the water sprays on Hunter Nozzles can be adjusted by turning the center screw on top of the nozzle. This will increase or decrease the radius. All nozzles come from the factory in the fully open position (fully counterclockwise position).
How do you adjust a Hunter pop up spray head?
Insert the plastic key end of the Hunter wrench into the adjustment socket . While holding the nozzle turret at the right stop, turn the wrench clockwise. Each full 360° turn of the wrench will increase the arc 90°. Adjust to any arc between 40° and 360°.
How do you adjust Hunter Pro Adjustable arc nozzles?
The adjustable left edge of the spray pattern is marked with a raised dot on top of the nozzle's arc adjusting ring.Hold both sides of the nozzle at a point below the top adjusting ring.Turn the top adjusting ring counterclockwise to increase the arc or clockwise to decrease the arc.
How do you adjust the radius on a sprinkler head?
To adjust the throw radius simply insert a fine-tip flat-head screwdriver into the metal screw (located at the center of the head). Rotate clockwise to decrease the radius, and counter-clockwise to increase the radius.
How do you fix a Hunter sprinkler head that won't rotate?
How to Do ItDisassemble the sprinkler head. ... Take off the filter at the bottom of the head. ... Rinse the filter in a bucket filled with clean water to wash out debris.If this doesn't work you'll need to have the sprinkler head replaced. ... If it does work, make sure the head is properly adjusted when you re-install it.
How do you adjust a Hunter rotor?
0:342:28How to Adjust a Hunter Rotor - Quick Tip - YouTubeYouTubeStart of suggested clipEnd of suggested clipSimply install the allen wrench. Into. The raised arrow. And clockwise spins the screw down in frontMoreSimply install the allen wrench. Into. The raised arrow. And clockwise spins the screw down in front of the nozzle to deflect the spray.
How do you use an adjustable spray nozzle?
0:061:17Adjustable Hose Nozzle Video Instructions OnHow To Use NozzleYouTubeStart of suggested clipEnd of suggested clipBefore turning on your water make sure to twist the nozzle all the way to the left to the offMoreBefore turning on your water make sure to twist the nozzle all the way to the left to the off position. As. You start to twist you'll notice the spray pattern starts out as a fine mist.
How do I adjust Hunter PGP?
0:443:35How To Adjust A Hunter PGP Rotor Head - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf the rotor tool is a little bit too hard to turn what we'll do is stick the regular screwdriver inMoreIf the rotor tool is a little bit too hard to turn what we'll do is stick the regular screwdriver in we'll go minus. And we'll check it again. Now we've got the head dry adjusted to a 90 degrees.
What is the arc of a sprinkler?
In other words, the arc is how far to the left and to the right the sprinkler will be adjusted to rotate. Radius: The distance of throw from the sprinkler head to the furthest point of water application.
What is a 90 degree arc on a sprinkler?
Arc: The degrees of coverage of a sprinkler from one side of pattern to the other. A 90-degree arc would be a quarter-circle sprinkler. In other words, the arc is how far to the left and to the right the sprinkler will be ...
Step 1
Ensure that the nozzle is fully screwed down onto the pop up or shrub body assembly.
Step 2
To decrease the radius, hold the top of the nozzle edge using your hand. Next, turn the screw in the clockwise direction using a small flathead screwdriver. If you need to reduce the radius more than 25%, install a smaller radius nozzle for this location.
