how do taco zone valves work

by Freeda Schultz Published 3 years ago Updated 3 years ago

Taco makes a range of heating and cooling products, including a Taco zone valve. The zone valve works with hot water or steam-based baseboard heating systems. When a signal is sent from the zone's thermostat to the valve a wax piece inside the valve heats and expands.

Full Answer

How to wire a taco zone valve?

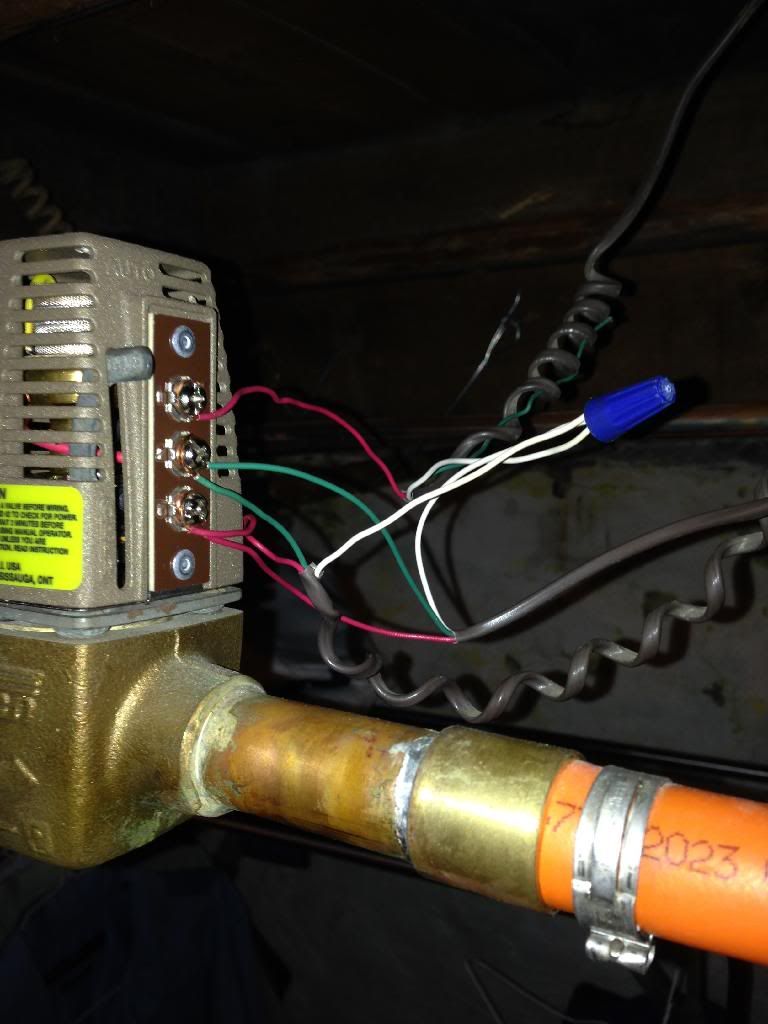

Wiring the Zone Valve:

  • Black wire goes to terminal 1
  • Red wire goes to terminal 2
  • White wire goes to terminal 3

What are Taco zone valves used for?

Taco Zone Sentry® zone valves provide on-off, normally open or normally closed control in closed hydronic systems. (See Geo-Sentry for open system application) The valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboad, fan coils, radiators,

How to wire Taco and Honeywell zone valves together?

Things You'll Need

  • Multi-stranded 18-gauge thermostat wire
  • Two thermostats
  • Pointed pliers
  • Screwdrivers
  • Zone dampers
  • Zone control box

How do you free a stuck Taco zone control valve?

Troubleshooting Hot Water Zone Valves

  • Troubleshooting Tips. If there is no power to the powerhead, it will be the service-person’s responsibility to find the trouble, as the problem is not in the zone valve.
  • Zone Valves. Zone valve systems use a thermostat and zone valve for each zone, and one central circulator. ...
  • Troubleshooting These Valves. 1.Check for 24 V at TR terminals. ...
  • Valve Repair. ...

How does a Taco flow valve work?

Taco Flo-Chek prevents “gravity” circulation in forced hot water heating systems during periods when the boiler is hot, but the space heating zone is not wanted. This makes it possible to use the heating boiler to maintain domestic hot water year-round. Flo-Chek open automatically when the circulator starts running.

How do I know if my taco zone valve is working?

0:132:09You see the reading zero.MoreYou see the reading zero.

How does a zone valve work?

0:010:54Completely opens an end switch tells the circulator pump to turn on and water begins to circulateMoreCompletely opens an end switch tells the circulator pump to turn on and water begins to circulate from the boiler to that space. When the space reaches the selected temperature the zone valve closes.

How do you fix a taco zone valve?

1:173:26So you're gonna give that a twist. And then just wiggle it slightly. And it should pop right off. ItMoreSo you're gonna give that a twist. And then just wiggle it slightly. And it should pop right off. It could be stuck a bit from a little corrosion like I've got here.

Can you manually open a zone valve?

0:271:20But you can manually. Move this leaver across and lock it fully open like that and it would allowMoreBut you can manually. Move this leaver across and lock it fully open like that and it would allow flow for it.

Why do zone valves fail?

The zone valve opens and closes according to the temperature in the room as determined by the thermostat and your settings. Sometimes the zone valve will fail to operate properly. This can be caused by a malfunctioning part on the valve itself or by a faulty thermostat or a faulty connection between the two.

Do zone valves go on supply or return?

In most installations, the zone valves are in the returns, where the water is cooler. The cooler temperatures are easier on the valves. It has been the practice of some to place them in the supply using a manifold just above the boiler; this is often in conjunction with the “pumping away” concept.

What position should a zone valve be in?

The zone valve needs to be positioned after the boiler and circulator of the central heating system. They can be located either on the hot side (before the hot water goes into the zone) or on the cold side (after the water goes throughout the building).

How do you wire a taco zone valve?

2:268:44This is a step-down transformer which steps down from 110 the 24 volts okay and how you wire this isMoreThis is a step-down transformer which steps down from 110 the 24 volts okay and how you wire this is pretty simple let me show you my diagram. Here.

Why is one zone of my heat not working?

Bleed the Radiators Sometimes, a heating zone will not work properly because water cannot move through the baseboard radiators. This happens when an air bubble blocks the pipes. To help draw out air, locate the bleeder valves on all the radiators in the affected heating zone.

How do you purge air from a boiler with a zone valve?

1:0016:25I have one on the first floor. And one on the second floor now this is called an air purge stationMoreI have one on the first floor. And one on the second floor now this is called an air purge station it's essentially just a valve similar to the valves outside your house that you hook a hose up to.

How do you test a zone valve with a multimeter?

2:164:58This this is just the multimeter probe these wires are not sitting on the cardboard. We should beMoreThis this is just the multimeter probe these wires are not sitting on the cardboard. We should be fine all right we're gonna go ahead and turn this transformer on power the 24 volt hot in.

How to tell if taco valve is working?

Wait a few minutes then go back to the Taco valve. Place your hand on the top of the Taco valve unit. If it is warm or hot to the touch the valve is functioning. If it is cold or room temperature the valve is not functioning. The heat indicates the wax piece inside if heating up and thus expanding to push the water flow valve open.

What is taco zone valve?

Taco makes a range of heating and cooling products, including a Taco zone valve. The zone valve works with hot water or steam-based baseboard heating systems. When a signal is sent from the zone's thermostat to the valve a wax piece inside the valve heats and expands.

How to adjust room temperature?

Go to the zone's thermostat, usually a wall mounted control that allows adjustment of the room temperature. Slide the thermostat lever or turn the control knob up to a higher temperature beyond what the "current temperature" indicator displays.

What is zone heating?

A zone is a section of building; for example, apartment buildings may classify each "zone" as one apartment with each having its own zone valve. Advertisement.

How to stop flow through valves?

Turn the valve’s indicator counterclockwise until you notice an increase in temperature out of the valve. Once you reach this point turn the indicator approximately one full turn clockwise to stop flow through the valve with all the zones open.

Can you use a current robbing thermostat with a taco zone valve?

Can I use a current robbing thermostat with a Taco zone valve and what does current robbing mean? Yes, but because the internal switch opens and closes the circuit when the valve is operating, a resistor will have to be installed across terminals #1 & #2 of the zone valve power head to maintain a continuous circuit.

Is the Taco thermostat 568-20 the same as the original?

Taco still offers a thermostat #568-20. It may not look like your original, but it functions the same. Many people mistakenly think the 571 zone valve is a 3-wire zone valve because it has 3 terminals. All the Taco 500 series zone valves are 2-wire, 3-terminal zone valves.
