How to Read the Capsule Size Chart
- Capsule Weight - The weight of the capsule when empty in milligrams
- Volume Capacity - The volume of the inside of the capsule in millilitres
- Weight Capacity by Formulation - The weight capacity of the capsule (dependant on bulk density of formulation) in...
- Overall Closed Length - The length of the capsule when it is fully closed and...
How do I determine what size capsule I should purchase?
Use the empty capsule size charts below to determine what size capsule you should purchase for your desired supplement dosage. Tol. Capsule Volume measures the available filling capacity of the capsule, in milliliters (ml). Capsule Weight is the weight of the empty capsule, measured in milligrams (mg).
What is the measure of the completely filled capsule?
This is the measure of the length of the completely filled capsule with the total contents. The cap is one half of the capsule that is used to enclose the main body (other half) that is filled with the drug. The body is the main hall of the capsule that is completely filled with the drug. All the measurements are given in inches. Tol.
Why are there different sizes of capsules?
The reason that size 00 and size 0 are the most commonly used capsules in manufacturing is that they have adequate volume for a lot of mixes as well as being easy for humans to swallow. Certain capsules such as Pullulan are only available in certain sizes.

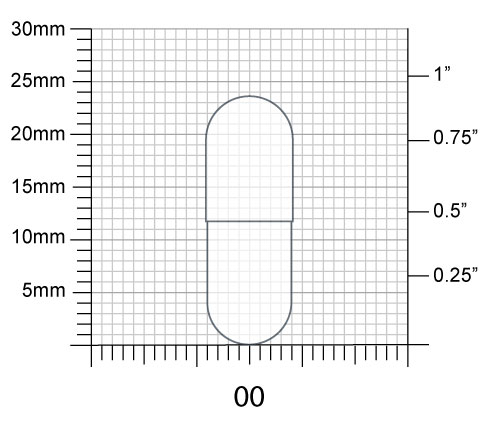

What is the size of a 00 capsule?
#00 capsules sometimes referred to as "double zero" are the most commonly used capsules for supplements and medicines. The volume of a size 00 is 0.9ml The overall length of the capsule is 23.4mm The external diameter of the cap is 8.56mm
What are the sizes of capsules?
They are numbered: 000, 00, 0, 1, 2, 3, 4 and 5. These sizes are the same for all types of Gelatin, HPMC and Pullulan. The majority of capsule filling machinery are manufactured to be compatible with these standard sizes.
How is selecting the capsule size done?
Capsules are categorized by sizes ranging from 5 (smallest) to 000 (largest.) The numeric designation used for capsule sizes is inversely correlated to the size of the capsule. These sizes are standardized regardless of the capsule material (gelatin or vegetable derived). The larger the number, the smaller the capsule.
What size is size 4 capsules?
Size 4: For a light-density substance, the capacity for this size is 95 mg. It increases to 145 mg for a medium density and 210 mg for a heavy density.
How many mg is a size 3 capsule?
Find out which capsule size suits your needs!Empty Capsule SizeCapsule Size0003Empty Capsule Weight Capacity by Formulation Density (mg)Formulation Density0.6 g/ml82216233 more rows
What are 4 types of capsules?
Selecting a capsule typeHard gelatin capsules. ... HPMC capsules. ... Fish gelatin capsules. ... Starch capsules. ... Pullulan capsules. ... Polyvinl acetate (PVA) capsules. ... Liquid-filled hard capsules (LFHC). ... Soft gelatin capsules (SGC).
What size capsules hold 600mg?
In terms of size, 00 should be sufficient to hold 600mg, but without a scale, figuring out how much is 600mg can be hard. Below is a 00 capsule (and the matchbox is jumbo size in case the scale confuses you!), so fill up the small half, and that should be about right.
What is the largest capsule size?
A “000” (triple zero) capsule is the largest size available. In cases where capsule sizes are indicated with "0" names, 000s are the largest, while 0s are smaller.
Which capsule size is used for human?
Capsule size 00 is the largest capsule used for human oral preparations and size 5 is the smallest. The word 'capsule' is derived from the latin capsula, meaning a small box. It is a solid oral dosage form in which the active ingredients and diluents are contained in a two-piece hard shell, usually made of gelatin.
How many types of capsules are there?
There are two main types of capsules: hard shelled and soft gel.
How do you calculate capsule fill weight?
The capsule fill weight of individual filled capsule was calculated by subtracting the average weight of empty shells from the actual weight of filled capsules.
How do you hand fill capsules?
Put the top half of the capsule over the bottom and press down. Once you've got the bottom of the capsule filled, gently replace the top of the capsule. Hold the bottom of the capsule gently in one hand, then use the other to press the top of the capsule down. Store the capsules in a cool, dark place.
How much does a size 0 capsule hold?
how much does a size 0 capsule hold? about 500mg, because of the great average dose size, it is one of the most common capsule sizes used in the pharmaceutical and beauty industry. the volume of the capsule is 0.68ml and capsule size 0 is 21.3mm locked length.
What is the largest capsule size?
Size 000 is the largest capsule size for human use, on average this holds about 1000mg, but that all depends on powder density. Because of this, it is best to check the powder you wish to fill mesh size and density. please check the capsule size chart below for more details
How much powder is in a 00 capsule?
They are the most common sizes used by all because a size 0 holds about 500mg or 0.5 grams of powder while a size 00 holds about 735 mg or 0.735 grams.
How many mg is a 00 capsule?
00 capsule capacity holds about 750mg, because of the size and great fill weight it is one of the most common capsule sizes used in the supplement industry, the volume of the capsule is 0.93ml and capsule size 00 is 23.6mm big locked.
How many mg is a size 2?
Size 2 holds about 300mg. and again is a great size to use if you have trouble swallowing capsules,
What is capsule packaging?
A capsule is a tiny cylindrical easy to swallow packaging. You can use it to package drugs, supplements or vitamins. It is a perfect alternative to tablets. Depending on what you’re processing, you can fill the following: Powder.
What is the cap of a drug?
The cap is one half of the capsule that is used to enclose the main body (other half) that is filled with the drug.
What is the best substitute for gel capsules?
Gelatin capsules. Vegetarian capsules are made from plants and vegetative products. Veg capsules are a better substitute for the gel capsules. Veg capsules.
What is a high production capsule machine?
High production, hence suitable for bulk filling of different capsule sizes. The machine parts are standardized and can be easily acquired for replacement. It is capable of opening the capsules in pairs to ensure all are timely opened. It is fused to assist in cutting down any electrical short circuit.
What are the advantages of soft gel capsules?
The distinct advantages of soft gel capsules include: Rapid effect – the drugs in the soft gels are highly absorbed from the mixture, thereby inducing a constant and a quicker effect in the body systems. Effective admission for poorly soluble drugs.
What is the shape of a soft gel?
Essentially, they hold liquids or fluids. Apart from that, they also exist in various shapes such as oval, spherical and oblong. In soft gel encapsulation, the active ingredient is mixed appropriately with the correct proportion of the solvent in the capsule.
Can you use encapsulation for powdered drugs?
This encapsulation is most suitable for the powdered drugs or pellets. However, it is only used if the drug will be highly soluble in the stomach and the body. Usually, the capsules come as two closed entities before filling. It is the capsule filling machine that separates the capsules.
What is the largest capsule size?
For example, a # 5 capsule is smaller than a #1 capsule. A “000” (triple zero) capsule is the largest size available.
Can you select the size of a capsule?
In some cases capsule sizes can be selected on the simple basis of the actual physical size of the capsule. This could be a factor to consider when choosing a capsule for a pet or a child who may have limitations as to the diameter or length of the capsule they can ingest.
Can you take pullulan capsules in all sizes?
The type of capsule you want- certain capsules such as pullulan, enteric, or herbal oil capsules are not available in all sizes. Determining the type of capsule you need first may narrow down your selection of sizes.
What is the body of a capsule?
The Body is the longer end of the empty capsule that is placed inside the capsule filling machine holes and filled with the powder.
What is capsule volume?
Capsule Volume measures the available filling capacity of the capsule, in milliliters (ml).
What is the overall closed length of a capsule?
Overall Closed Length measures how long each sized capsule is when it has been completely closed shut with the powder inside . The Cap is the shorter part of the capsules that is placed over the body when it has already been filled. The Body is the longer end of the empty capsule that is placed inside the capsule filling machine holes ...
What is weight capacity?
Weight Capacity measures how much of your desired powder you can fit inside each empty capsule.This depends largely on the density (measured by grams per milliliter) of the powder, which vary widely.
What to consider when choosing a capsule size?
As you think about your supplement, these are some of the most critical factors that will affect capsule size: Total mixture density for combination supplements. The preferred dosage per capsule. The desired appearance of the supplement.
How much filling can a capsule handle?
Most popular capsule sizes with range of weight capacities depending on material density. Size 00: With a light ingredient volume, the capsule can handle 430 mg of filling. It can handle 665 mg with a medium volume and 950 mg with a heavy volume. Size 0: This capsule size can handle up to 305 mg of filling for a light density, ...
How many capsules does it take to hold a certain amount of an active ingredient?
One of the most common questions that customers ask is how many capsules it takes to hold a certain amount of an active ingredient or a filling mixture. There is no simple answer to this question. It is not always a determination of volume alone. The weight of the filling material depends on the density, which varies greatly among different substances. For example, liquids, powders and granules will have different densities because of their differing properties. Your manufacturer will need to inform you how much volume can fit per capsule based on your intended formula and ingredients.
How many mg of a capsule is in a 0?
Size 0: This capsule size can handle up to 305 mg of filling for a light density, 475 mg for a medium density and 680 mg for a heavy density.
How many mg is a saline capsule?
It can hold 350 mg for a medium density and 500 mg for a heavy density. Size 2: With light-density ingredients, this capsule size holds 165 mg. It can hold 260 mg for a medium density and 370 mg for a heavy density. Size 3: With a light density of filling, this capsule holds 135 mg. It holds 210 mg for a medium density and 300 mg ...
What is the lock length of a capsule?
This is where the diameter and total length are critical to consider. In the charts from the capsule size section, locked length is the length measurement that you need to consider. That is the length of the finished capsule. The listed diameter measurement is the larger cap part, which is the most important in making size determinations for your market.
Why do you need a smaller capsule?
For example, you may decide that you want a smaller capsule because it goes better with your brand. If the density or volume of the supplement exceeds the desired capsule capacity, you may decide to divide it into multiple capsules.
