How do I insert a georeferenced image in AutoCAD?
- Click Insert tab References panel Attach. Find.
- In the Select Image File dialog box, select a file name from the list or enter the name of the image file in the File Name box. Click Open.

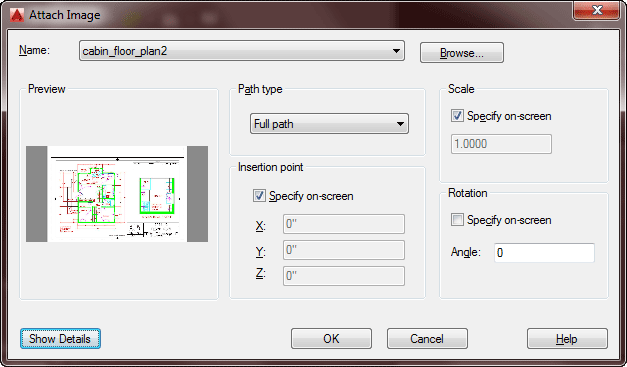

- In the Image dialog box, use one of the following methods to specify insertion point, scale, or rotation:
- Click OK.
- Navigate to your download and unzip the folder.
- Rename the file and the associated . jgw. ...
- Enter the command MAPIINSERT and navigate to your image.
- Select the image and click Open. You will see a window that details the reference insertion points.
- Click OK.
How do I insert a reference image in AutoCAD?
Help Click Insert tab References panel Attach. Find. In the Select Image File dialog box, select a file name from the list or enter the name of the image file in the File Name box. Click Open. In the Image dialog box, use one of the following methods to specify insertion point, scale, or rotation: Click OK.
How to insert GeoTIFF in AutoCAD?
Insert tab – Image button Browse to the GeoTIFF location and click “open”. The Image Correlation screen will appear next which allows the user to confirm coordinates and units. Picking the correct units is critical to getting the image into the correct location. Subsequently, question is, how do you insert a picture into AutoCAD? Help
Why is AutoCAD Map 3D not correctly georeferencing images?
This information makes the images “georeferenced.” AutoCAD cannot use this georeferencing information, so it cannot properly position the imagery, but AutoCAD Map 3D toolset can. In this exercise, you insert a digital raster graphic (DRG) of Redding, California, into a drawing of the same city.
What is georeferencing in AutoCAD?
Aerial and satellite photographs often contain information about their location and scale. This information makes the images “georeferenced.” AutoCAD cannot use this georeferencing information, so it cannot properly position the imagery, but AutoCAD Map 3D toolset can.
How do I import a Geotiff into AutoCAD?
In AutoCAD Civil 3D you can bring in a geotiff by simply typing the command 'MAPIINSERT' then navigate to your required Geotiff and follow the pop up boxes that occur. Note that the units will be in meters.
How do I import a Geolocation into AutoCAD?
To set the geographic location in the drawing, on the Insert ribbon, in the Location panel, expand the Set Location tool. If you already have a file that contains GIS data, you can choose the From File tool and then open a KML or KMZ file.
How do I create a georeference in AutoCAD?
Create a drawing and assign a coordinate system.Click New Drawing.Select the map2d. dwt template and click Open.Assign a coordinate system. ... In the Coordinate System - Assign dialog box, enter CA-I in the Search field and press Enter.Click the CA-I entry in the Code column and click Assign.
How do you georeference in AutoCAD 2013?
3:177:22AutoCAD Tutorial; Insert, georeference google earth imageYouTubeStart of suggested clipEnd of suggested clipAnd eastern as you can see it shows when you insert. So say you put the point over here. It showsMoreAnd eastern as you can see it shows when you insert. So say you put the point over here. It shows your northing and your easting right here simply paste that into the name.
How do I georeference Google Earth images in AutoCAD?
0:0010:39Adding a Google Earth Image to AutoCAD (and Georeferencing)YouTubeStart of suggested clipEnd of suggested clipSo what you can do is you can go to tools. And go to options. And from here show lat/long justMoreSo what you can do is you can go to tools. And go to options. And from here show lat/long just change this to UTM Universal transverse Mercator. And the units of measurement.
How do I add a Geolocation?
To add geolocation functionality to a managed form, the following tasks must be completed....Add geolocationCreate a new section and provide an appropriate label, for example Map. ... Set the name of the section to section_map or a name that ends with section_map, for example contoso_section_map.More items...•
How do I copy an image from Google Maps to AutoCAD?
Here are the steps:Step 1: Open Google Earth and create a placemark, path or polygon, or simply load an existing KML/KMZ file. ... Step 2: Right-click on the polygon, and select “Copy” ... Step 3: Open your AutoCAD drawing, right-click and select “Clipboard” → Paste, or simply press Ctrl-V.
Why do we georeference an image?
Georeferencing is crucial to make aerial and satellite imagery, usually raster images, useful for mapping as it explains how other data, such as the above GPS points, relate to the imagery. Very essential information may be contained in data or images that were produced at a different point of time.
How do I change geographic location in AutoCAD?
To Set Geographic Location from a MapClick Insert tab Location panel Set Location drop-down From Map. ... If the Geolocation - Online Map Data task dialog box displays, click Yes.In the Geographic Location dialog box, in the Address box, type the name of a landmark or road near the reference location and click .More items...•
Issue
You have linework drawn in an AutoCAD or AutoCAD LT drawing. You wish to georeference this linework so that you can create georeferenced DWFs, or have the ability to look up the coordinates of points in the drawing and see how they correspond to real-world locations.
Solution
1. Look up the Latitude-Longitude coordinates of a known point in your drawing using a program such as Google Earth. Alternatively, bring in some data that is already in the desired coordinate system.
