How do I remove a reconcile layer in AutoCAD?
You would like to know how to turn off the unreconciled layers notification in AutoCAD. Solution: For the active drawing, change the system variable LAYERNOTIFY to 0 (zero) or click the Settings button in the upper-right corner of the layers palette and …
How to turn off unreconciled layers notification in AutoCAD?
If necessary, open the Layer Properties Manager by clicking Home tab Layers panel Layer Properties. In the tree view on the left, select the Unreconciled Layers group. Note: All layers that have been added to the drawing or its xrefs since the last user-specified action (for example, reloading an xref), are listed.
How do I remove a layer from the unreconciled layer filter?
Jun 29, 2020 · Similarly, you may ask, how do you remove unreconciled layers in AutoCAD? To Remove Layers From the Unreconciled Layers Filter. Click Home tab Layers panel Layer Properties Find. In the Layer Properties Manager, Filters area, click the Unreconciled New Layers node in the Filters panel. In the layer list, right-click a layer, and click Reconcile Layer.
How to remove xref layer in AutoCAD?
Simply so, how do you remove unreconciled layers in AutoCAD? To Remove Layers From the Unreconciled Layers Filter. Click Home tab Layers panel Layer Properties Find. In the Layer Properties Manager, Filters area, click the Unreconciled New Layers node in the Filters panel. In the layer list, right-click a layer, and click Reconcile Layer.
How do you remove unreconciled layers in AutoCAD?
To Remove Layers From the Unreconciled Layers FilterClick Home tab Layers panel Layer Properties Find.In the Layer Properties Manager, Filters area, click the Unreconciled New Layers node in the Filters panel.In the layer list, right-click a layer, and click Reconcile Layer.Mar 30, 2020
What does it mean to have unreconciled layers in AutoCAD?
AutoCAD. Unreconciled layers are new layers that have been added to the drawing and have not yet been acknowledged by the user and manually marked as reconciled.Oct 3, 2019
How do I delete unused layers in AutoCAD 2021?
2:545:29How to Delete Unused Layers in Autocad even if Layer cannot be ...YouTubeStart of suggested clipEnd of suggested clipSo let's use the plain merge command. And press Enter let's select the object on layer to merge. SoMoreSo let's use the plain merge command. And press Enter let's select the object on layer to merge. So I'm gonna select this one because this equipment layer is the layer that that I want to get rid of.
How do I turn off unreconciled layers?
Solution: For the active drawing, change the system variable LAYERNOTIFY to 0 (zero) or click the Settings button in the upper-right corner of the layers palette and uncheck "Evaluate New Layers Added to Drawings." To turn off the notification for all drawings, change the system variable LAYEREVALCTL to 0 (zero).Apr 6, 2022
What does Unreconcile mean?
adjective. 1. not reconciled or brought into harmony, incompatible. 2. not reconciled or mollified.
How do I delete a frozen layer in Autocad?
The laydel command can delete any layers (frozen, off, or locked) using the name option. You just need to select the layers to delete.May 16, 2016
How do I delete a layer in Autocad 2020?
If necessary, open the Layer Properties Manager by clicking Home tab Layers panel Layer Properties. Right-click the layer that you want to delete, and click Delete Layer. Alternatively, you can select the layer that you want to delete and click .May 14, 2019
How do I delete a Defpoint layer in Autocad?
Enter LAYDEL on the command line. Click Name or enter N. Select the Layer and click OK to delete it.Oct 15, 2017
What are Unreconciled Layers?
Unreconciled layers are layers that have been added to the current drawing (or a drawing being referenced) that have not been verified by the user. AutoCAD automatically creates a layer list with all the existing layers contained in a drawing.
What are Reconciled Layers?
Reconciled layers are those layers in the current drawing that have been verified by the user. These layers were previously categorized as "unreconciled". A user can select any unreconciled layers in the current drawing (or any referenced drawings) and choose to "reconcile" them.
How does this Notification System Work?
Users can choose to include this notification system in their drawing environment as a means to monitor and evaluate new layers before they are added to a drawing.
How to Disable the Layer Notification System

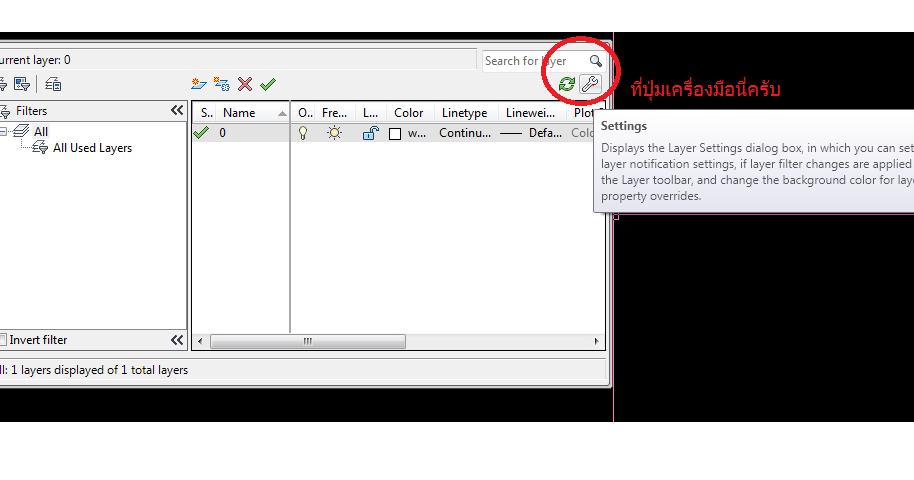

Open the Layer Properties Manager (type Layer in the command line) the Left-Click on the gear (top right) which will open the Layer Settings dialog box (as shown in the image below).
