Do roof trusses need a central support?
Though few roof truss designs lack central support, these designs, such as attic, fink and fan, appear commonly in pitched-roof homes and other domestic buildings, like sheds and garages. Truss dimensions affect the need for central support. Truss designs like attic exhibit relative uniformity in the lengths of the legs of the truss triangle.
How far can roof trusses span without support?
Correspondingly, how far can trusses span without support? Trusses can easily span 10-15 metres or more without the need for internal supports. What is the strongest roof truss design?
Why are roof trusses more popular than rafters?
Roof trusses have become more popular than rafters in recent years for a few reasons. Perhaps the biggest reason trusses are more common is that they are over 30% cheaper than rafters.
What types of roof trusses are available?
Plus, there are countless truss designs to create the roof framing for almost any roof style. From gable roofing, to hip roof sections, there is a truss that will meet your needs. Again, there are a ton of trusses available to complete your building project. We’ve compiled a list of some of the most commonly used roof trusses for home construction.
Does a truss need a center support?
Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.
How far can a roof span without support?
A 2×6 spaced 16 inches apart can span a maximum distance of 13 feet 5 inches when used as a rafter, 10 feet 9 inches when used as a joist, and 6 feet 11 inches when used as a deck beam to support joists with a 6-foot span.
Do roof trusses need load-bearing walls?
Since most exterior walls are load-bearing, traditional roof trusses don't typically need additional interior load-bearing walls. The exterior walls bear the weight of the trusses, which are designed to stretch across the length of a building without the need for internal support.
Do roof trusses need bracing?
They're typically required on a web that is in compression. The brace is intended to keep the truss web from buckling. To explain why they're sometimes necessary, imagine pushing down on a yardstick that extends vertically to the floor from the palm of your hand.
How far can trusses span without support?
A roof truss can span up to 80' without support, however in any home that distance would be impractical and incredibly costly. Trusses are designed to span spaces without interior supports, and spans of up to 40' are the most common in today's homes.
How far can a truss overhang?
Overhang is the portion of the truss that extends beyond the outside bearing of the structure, creating an eave for the building. Overhang length can vary from as small as 6” to as great as 36” in certain applications.
How do you support roof trusses?
Extra support for the trusses can be made by placing a 2-by-4-inch piece of lumber from each truss on one side to the truss on the other side, high enough to provide head room but low enough to provide support for the trusses. In this situation, the walls of a finished attic space or room would go with the roof line.
How much weight can roof trusses support?
If the bottom chord of a roof truss functions as a floor joist, such as in an attic room, it carries a live load that also varies by use, but a typical live floor load for a residential space is about 40 pounds per square foot.
What walls are load bearing with trusses?
Identifying load-bearing walls in the attic In modern homes, trusses generally bring the roof load to the exterior walls, making all interior walls partition walls (but not always). Older homes and some newer homes don't have trusses; they have framed-in-place roof rafters.
How do you hold trusses in place?
8:5322:49How to install Roof Trusses - YouTubeYouTubeStart of suggested clipEnd of suggested clipAnd to secure these i'll be using some structural one and a half inch long screws. And if you'reMoreAnd to secure these i'll be using some structural one and a half inch long screws. And if you're looking to use just nails you can use some 8d nails in place of these structural screws.

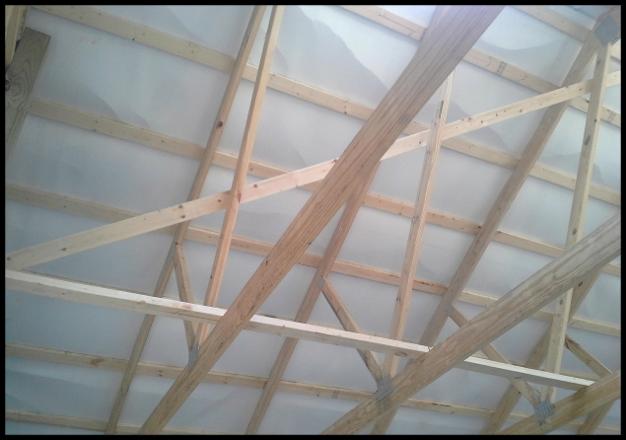

Why do you brace trusses?
Bracing can be used temporarily for safety whilst erecting the trusses, for stability on a permanent basis (to keep the trusses in place) or to combat wind where bracing can transmit wind forces to suitable load bearing walls.
What are the two types of bracing needed on a trussed roof?
There are two types of bracing. Temporary bracing is used during erection to hold the trusses until permanent bracing, sheathing and ceilings are in place. Permanent bracing makes the truss component and interal part of the roof and building structure.
What is a truss in construction?
A truss is made up of a web of triangles joined together to enable the even distribution of weight and the handling of changing tension and compression without bending or shearing.
What is the strongest truss?
There is no "strongest" truss, but rather, one that is most appropriate for a specific application. There are four basic types of truss design: dropped chord, raised chord, parallel chord and scissors. Dropped chord uses a beam on two load-bearing walls and can restrict interior space.
Do roof trusses have load bearing walls?
Hereof, are roof trusses self supporting? Trusses, unless a special girder truss (which accepts the loads of attached trusses), have no interior load bearing walls. That is the beauty of trusses!
Do you need central support for a roof truss?
Determining whether you need central support for a roof truss ultimately comes down to why you need roof trusses. Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support. Click to see full answer.
Why use a truss on a roof?
There are numerous benefits to using roof trusses. First, they use smaller-sized lumber than the alternative roof framing – rafters. That makes trusses cheaper. Secondly, they are manufactured offsite. That saves you time and money because manufacturers can mass-produce trusses cheaply. They are also incredibly strong and can span huge distances.
What are the benefits of a truss?
Remember, the primary benefit of a truss, besides being exceptionally strong, is the ability to bridge a space without needing additional supports. You may still encounter homes or spaces that utilize interior spaces for trusses. If that is the case, then the trusses used were likely undersized.
How does pitch affect truss span?
The pitch of a roof can drastically alter the length a truss can span, as well as the type of truss. Types of lumber used – such as 2x6s instead of 2x4s, can also alter truss span along with snow loads.
What is a truss span chart?
A truss span chart assumes you are spanning an entire space. Note that the overhang of a truss is not used to calculate a truss span. The span of a truss is only the length of the bottom chord. Any overhang by the top chord beyond the bottom is not considered part of a truss’ span.
How to make a truss stronger?
One of the easiest ways to make a truss stronger is to use 2×6 lumber instead of 2×4. Manufacturers can mix and match 2×4 and 2×6 pieces to create incrementally longer trusses of varying strength. Industrial trusses may use larger lumber, but in residential construction, you will only see 2×4 and 2×6 lumber.
What is the pitch of a scissor truss?
Many scissor trusses have top chords with a pitch of 6/12. The lower the pitch of the bottom chord, the further it can span.
What is a span table for a truss?
A wood roof truss span table will assist you in determining what type of truss you’ll need for your desired span and at what pitch. No matter your desired pitch and span, there is a truss that will fit your needs. A span table will have a column of roof pitches for each truss type.
How far can a roof truss span without support?
A roof truss can span around 80 meters without support. If you want to span it more, you will need to support it. An Eighty-meter span is more than enough for a typical house. It will support the rooftop pretty well—types of truss, snow load, and other factors influence the spanning.
What are the standard roof truss sizes?
The standard roof truss sizes are 32 meters. In most US buildings, you will find the roof trusses are below 40 meters.
What is the standard spacing for roof trusses?
The standard spacing is 24 inches for roof trusses on centers. But it can be 12 or 16 as well. These three are considered standard, but the engineer takes 24 inches as the standard spacing for the roof truss.
What are the factors that affect the roof truss span?
Typically the four factors affect the roof truss span. The size of lumber, the Slope of the roof, snow loads, and the truss type are the four factors that ultimately affect the roof truss span.
How to calculate maximum roof truss span?
DIYer can’t calculate the maximum roof truss span without prior experience or knowledge about it. But there are some simple ways that you can follow to calculate the rafter span or find out the maximum roof truss span.
Do roof trusses need support in the middle?
Roof trusses don’t need any support in the middle or the center. If your house has 2×4 or 2×6 lumber size, you don’t need any kind of central support. It can bear a load of snow up to 55 pounds per square foot.
How are conventional roof and truss roof supported?
Different ways support the conventional roof and the truss roof supported. A conventional roof is a typical rooftop with a lower slope than the truss roof.
Why are roof trusses so popular?
Roof trusses have overtaken rafters as the most popular way to create a roof frame. And there’s good reason why trusses have become more popular - they’re cheaper, more convenient, and extremely versatile.
What are the advantages of truss roofs?
Another big advantage of truss systems is that they distribute the weight of the roof onto the exterior walls of the house, not the interior walls. With few to no interior load-bearing walls, home developers can easily create the wildly popular open-concept living spaces.
What is fink truss?
Fink trusses are the most common truss for residential projects. Fink trusses are the most common truss seen in residential roof construction. The webbing in fink trusses has a ‘W’ shape, giving them a great load-carrying capacity.
What is scissor truss?
Scissor trusses make it possible to create vaulted ceilings. The bottom chords of scissor trusses are sloped, creating the dramatic ceiling in the room below. Scissor trusses combine the speed and convenience of using pre-engineered wood trusses, while still getting the aesthetic benefit of high ceilings.
How long does an attic truss span?
Common uses: Residential home construction projects that require an attic or additional loft living space. Span: Up to 25 meters. One downside to many trusses is that the webbing can often limit attic space.
What is a truss roof?
Essentially, roof trusses create a roof’s frame. They determine the shape of the roof and ceiling, while providing support for the roof. Trusses are pre-engineered in a factory using lightweight materials, like 2x4s, and are shipped to the construction site. Trusses consist of three main parts:
What is a king post truss?
King post trusses are the simplest roofing truss. Common uses: Home additions, garage construction, short-span projects. King post trusses are the most basic type of truss. It uses the fewest truss members - two top chords, one bottom chord, a central vertical post called the king post, and two webbing chords.
Can broken trusses be repaired?
the broken truss is called a truss web. There is no need for a engineer to repair it. Simply clamp another like size piece of lumber along side the broken web going full length with the old truss web. Then screw the new piece or drill and bolt it into the old broken piece.
How do you repair a damaged wood truss?
Remove the damaged connector plate, and replace it even if it is only missing a few teeth. Refill the holes in the wood truss with wood adhesive and apply a wood scab to patch it. Let the repaired wood truss set for 24 hours in dry conditions to secure the repair.
Which is better rafters or trusses?
Once in place, rafters use up more wood, so they weigh more, but trusses are stronger because they are more efficient and have the capacity to produce maximum strength using fewer materials in the end.
How much does it cost to replace roof trusses?
For a 2,000 square foot home, roof truss installation typically costs between $7,200 and $12,000. You’ll spend anywhere from $1.50 to $4.50 per square foot for materials alone, or between $35 and $150, though extremely long and complex types can reach $400 each.
How much should roof repair cost?
In Queensland, roof repairs cost around $52.50/hr. Meanwhile, residents of New South Wales can expect to shoulder higher prices to get their roofs fixed; the average cost of roof repair in the state sits at approximately $55/hr.
What are the 3 types of trusses?
King Post truss. A king post truss is typically used for short spans. …
Is it OK to cut a roof truss?
Home owners should avoid cutting or modifying their roof trusses. These trusses are usually engineered by a structural engineering company to carry a specific roof load. When a truss becomes damaged, cut or modified there is a chance of a structural overload or that they will not perform properly.
