You need to use dielectric unions to connect an electric water heater to a system of copper pipes if the heater came with preinstalled galvanized nipples. Separate a 3/4-inch dielectric union into its component halves by unscrewing the central nut.
Is a dielectric union necessary on every water heater?
You need to use dielectric unions to connect an electric water heater to a system of copper pipes if the heater came with preinstalled galvanized nipples. Separate a 3/4-inch dielectric union into its component halves by unscrewing the central nut.
When to use dielectric fittings?
- Humiston, John M., Underground-Conduit Insulation, US Patent US751985A [PDF] (name also appears as Homsron) Excerpt: The present invention relates to means for insulating metallic underground conduits with a view to ...
- Proudfit, Alexander C. "Coupling for electrical conduits." U.S. ...
- Downes, Louis W. ...
- Boyd, Albert M. ...
What dielectric materials are good thermal conductors?
- Dielectrics are used in capacitors for storing energy.
- Ceramic dielectric is used in the Oscillator Dielectric Resonator.
- The high permittivity dielectric materials are used to improve the performance of a semiconductor device.
- Mineral oils are used as a dielectric liquid in electrical transformers, and they assist in the cooling process.
How to troubleshoot the water heater electric thermostats?
- Move to the thermostat terminals and check if it is supplied with power. ...
- Disable the lower thermostat by rotating its dial to the least setting. ...
- Place the prongs of the multimeter on the terminal 1 and blue wire of the heating element. ...
- If the tool reads 240V that means there is power on the setup. ...
- Move to the lower thermostat on the heater. ...
What is the purpose of a dielectric union on a water heater?
Dielectric unions are used to join pipes made from different metals to prevent accelerated corrosion in the piping system. This fitting is utilized to transition between steel and copper piping with a maximum operating pressure of 250 psi and 180-degrees Fahrenheit.
Do I need dielectric nipples on water heater?
Dielectric nipples are found not only in water piping systems but also in gas and steam systems. Due to the fact that protection against corrosion is one of the main features of this pipe fitting, it is good to mention how dielectric nipples prevent it. All tap water is more or less basic or acidic.
Do I have to use dielectric union?
In most jurisdictions plumbing codes require the use of a dielectric fitting when joining steel piping to copper or other metals; some plumbing jurisdictions permit use of a 6-inch brass nipple in this location as an alternative to diaelectric fittings.
How do you prevent galvanic corrosion on a water heater?
To protect heating elements from galvanic corrosion, have galvanized unions with plastic nipples installed at the top of the water tank. Anode rods. Anode rods prevent corrosion in your water heater by sacrificing their metal in place of the heater's metal.Apr 6, 2022
Why do you need a dielectric union?
Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metal. We offer dielectric unions in a range of configurations, sizes, and materials.
Do I need a dielectric union for brass to galvanized?
This is called galvanic corrosion. To prevent this from happening, dielectric unions are used to connect the dissimilar metal pipes. Brass is widely used for fittings for copper pipe and is mainly used where poor water quality is present and galvanized materials have high chances of getting corroded.
Do you need a dielectric union between stainless and copper?
When connecting copper to carbon steel or galvanized steel, flanges or dielectric unions should be used to electrically insulate each material. When connecting copper to stainless steel, a brass or bronze fitting between the two metals provides sufficient electrical separation in most environments.
Do dielectric unions fail?
When I started, it was code to install dielectric unions everywhere in houses where copper connects to steel. every single union fails miserably by either leaking, clogging up completely, rusting to pieces with no water contact outside pipe or depositing rust in water.May 15, 2015
Are SharkBite fittings dielectric?
The standard SharkBite fittings (i.e. Coupling, Elbow, Tee) cannot be used as a dielectric union. However, SharkBite Stainless Steel Braided Flexible Coupling Hoses can be used as a dielectric union.
What causes hot water heater to corrode?
There are different types of corrosion, but when we're talking about a residential water heater, it's the corrosion that occurs because of the mix of oxygen and water in contact with metal. A water heater is designed to resist corrosion through a number of methods.Jul 24, 2017
Why is my hot water heater rusting?
One of the biggest issues with a rusting water heater is caused by the deterioration of the anode rod. The rod, made from magnesium or aluminum, fits inside the water tank. Over time, as the rod deteriorates, hot water will begin to corrode the inside lining, resulting in an inefficient and rusting water heater.
What causes electrolysis in a water heater?
Electrolysis happens when there are two pieces of metal connected inside of water, the process makes the anode rod corrode in place of the exposed steel in your water heater. During this process the more noble (less reactive) metal will corrode over the less (more reactive) noble metal.
What is dielectric union?
A dielectric union is a plumbing fitting that is meant to join two dissimilar metal pipes so they don’t experience a galvanic reaction and begin to rust. This is especially true for copper and galvanized steel piping which is usually the case when a copper supply water piping line meets the galvanized steel pipe hookups of a hot water tank.
Why are dielectric unions common failure points in water heaters?

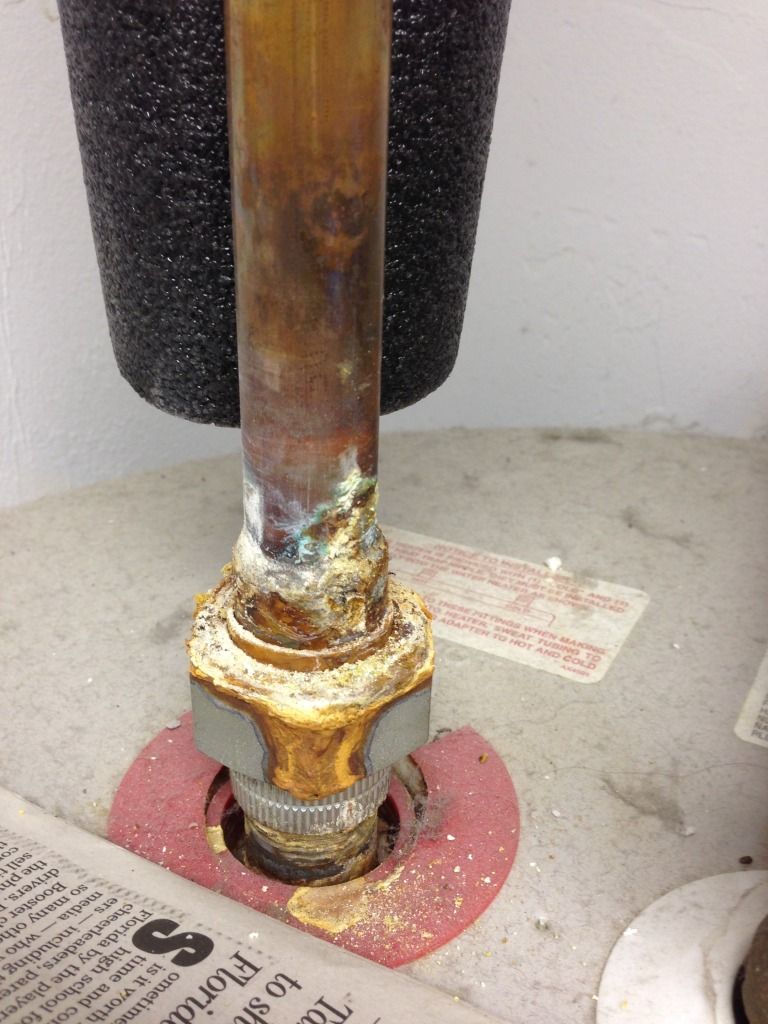

Why Dielectric Unions Are Common Failure Points in Water Heaters. One of the most common places to find rust and corrosion in any home is right above a water tank where the dielectric unions should be installed. A dielectric union is a plumbing fitting that is meant to join two dissimilar metal pipes so they don’t experience a galvanic reaction ...
Can you use a union with a short sleeve?
Often the issue is that these fittings are not perfectly installed and some small contact is made. Additionally, if you use a union with a short sleeve, then that can be an issue as well. It is good to be able to visibly see the sleeve above the union nut at the end of the installation.
How to separate a 3/4 inch dielectric union?
1. Separate a 3/4-inch dielectric union into its component halves by unscrewing the central nut. One half is made of galvanized steel and has female threads; the other half is brass or copper and has a slip joint. Between the halves is a plastic or rubber washer.
Why do plumbers join copper pipes?
In order to prevent this , plumbers join copper pipes to galvanized steel ones with dielectric unions, which are fittings with nonmetallic washers that keep the pipes separated.
What is a union fitting?
A union is a type of compression fitting and it will leak if the pipes aren't straight with respect to one another. You can't stop this leaking by wrapping plumbing tape around the threads of the central union nut. Chris Deziel has a bachelor's degree in physics and a master's degree in humanities.
How to identify cold water inlet on a hot water heater?
The cold-water inlet is usually identified by a blue sticker on the top of the heater; the hot outlet by a red sticker. Screw on the galvanized half of the dielectric union and tighten it, using a wrench.
What degree does Chris Deziel have?
Chris Deziel has a bachelor's degree in physics and a master's degree in humanities. Besides having an abiding interest in popular science, Deziel has been active in the building and home design trades since 1975. As a landscape builder, he helped establish two gardening companies. Related Articles.
Where are dielectric nipples located?
Location: Cave Creek, Arizona . nipples. Dielectric nipples have a plastic liner that is supposed to provide the break between the parts of the tank and the pipe in contact WITH the water. WATER is the electrolyte which powers electrolysis, not the mere fact that two materials are contacting each other.
What is the dielectric of Cave Creek?
Cave Creek, Arizona. dielectric. The dielectric is brass, but the length of the brass component is also important because elecltrolysis takes place through the water, not the metal so the further the steel and copper are separated the better.
What is a jumper wire?
Jumper wires are required to ground plumbing across dielectric fittings. At ELECTRICAL GROUND SYSTEM INSPECTION we discuss the need for a jumper wire around interruptions in the metal piping system, such as where a diaelect4ric fitting is installed or where a water meter interrupts continuity.
Why use dielectric unions?
Dielectric Unions are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. ...
What is the purpose of a ground jumper?
The purpose of the ground jumper is to ground the building plumbing, not to use the building plumbing as a grounding system. That is to say, we're making the plumbing safe, we're not using it to provide a ground for the electrical system.
Why do we ground water piping?
We ground building water piping for electrical safety for the occupants, not to provide an additional electrical ground path. The reason people ground in-building plumbing is not to provide an additional grounding conductor in a building but to ground the plumbing.
Why is a copper.jumper ok?
A copper.jumper is ok because the electric potential through the water is equally matched by the potential from the copper wire to the steel pipe. So, no current will flow. Just like two batteries placed side by side.
Does jumper wire cause corrosion?
The jumper wire across a dielectric fitting does not cause corrosion in copper to steel piping connections provided it is properly made using approved connectors (typically brass or bronze clamps).
Does teflon tape slow corrosion?
Teflon tape or pipe dope may slow the rate of galvanic corrosion. Another reason we may not always see rapid galvanic corrosion at copper to steel pipe connections is the use of teflon tape (or less-so, pipe dope or sealant compound) that provides a thin non-metallic contact surface between the two dissimilar metals.
