Can you bypass a thermal fuse in a dryer?
While bypassing the thermal fuse is easy, it is not something that should be done to operate the appliance beyond troubleshooting if you do not have access to a multimeter or ohmmeter. Operating a dryer with a bypassed thermal fuse is both unnecessary and unsafe, so a bypass should only be done long enough to troubleshoot a potential problem.
How do I troubleshoot a dryer that won't turn on?
If you don't, there is still a way to troubleshoot your dryer. Checking the thermal fuse is the fastest way to determine if it is why the dryer will not generate warm air. The best way to test a thermal fuse is by testing it with a ohmmeter or digital multimeter. For an ohmmeter, set it to "Rx1."
When to replace a thermal fuse on a Maytag dryer?
Replace the Fuse if Indicated. If the dryer starts to run warm once the fuse is bypassed, the fuse was the problem and needs to be replaced immediately. If it still does not operate correctly, the issue is likely a faulty heating element. Replace the thermal fuse immediately if the dryer operates normally with the thermal fuse bypassed.
Where is the thermal fuse on a whirlpool dryer?
In most cases, the thermal fuse will be located behind the rear dryer panel or bottom kick panel. Depending on the model, kick panels can be removed by releasing the two metal clips holding it in place or by using a flathead screwdriver to pop the panel off.
How to test if dryer is not heating?
Why does my dryer not produce heat?
What happens if the ohmmeter needle does not move?
How to bypass a thermal fuse?
Where is the thermal fuse located on a dryer?
Can you bypass a dryer fuse?
Can you operate a dryer without a thermal fuse?
See more
Will a bad thermostat cause dryer not to start?
The dryer thermal fuse is a different type of thermostat that is usually on the blower assembly inside the dryer. This is a fuse that if tripped (in other words, the circuit is broken), the dryer will not start. It's a safety feature designed to prevent the dryer from overheating to a dangerous level.
How do I reset my dryer thermostat?
Many dryers are equipped with a reset button on the control panel. If the motor won't run, let the dryer cool for about ten minutes. Then push the reset button. If there are no problems with the motor, switches, or electrical system, this should restart the dryer.
Can you jump a thermal fuse on a dryer?
You can bypass a thermal fuse on your dryer; however, it is something that I don't advise. You'll only be putting your dryer at a high risk of devastating damages like fire outbreaks, which could further affect your entire home. If you have a blown thermal fuse, replace it as soon as possible!

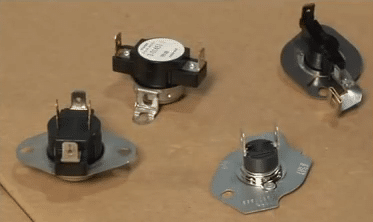

How do I know if my dryer thermostat is bad?
1:002:53Dryer Not Drying? Cycling Thermostat Testing, Troubleshooting - YouTubeYouTubeStart of suggested clipEnd of suggested clipTest the part by touching the probes to the outer terminals. Only if the meter reading shows zeroMoreTest the part by touching the probes to the outer terminals. Only if the meter reading shows zero ohms of resistance. The thermostat has continuity.
What causes dryer thermostat failure?
Blown Thermal Fuse A frayed wire can cause a thermostat to keep going bad. A dryer will blow a thermal fuse if it's close to overheating. Each time the thermal fuse blows it can interfere with a thermostat's function and cause it to go bad, too.
What causes your dryer not to heat up?
Common reasons for an electric or gas dryer not heating are a tripped circuit breaker, clogged vent, and no gas flow. Other potential reasons include a faulty thermal fuse and broken heating element.
What happens if you bypass a fuse?
It's highly recommended to avoid bypassing a fuse, especially if you're dealing with a blown fuse. Using a wire to bypass a fuse can provoke electrical and fire hazards, making it your safest and best option to replace the fuse.
What happens when thermal fuse blown on dryer?
When it blows, the dryer stops generating heat. It's necessary to replace it before the dryer will run again. The thermal fuse is different from the thermal cutoff. The thermal fuse stops the dryer from operating, tumble and heat included.
How do I know if my dryer thermal fuse is blown?
1:042:10Dryer Not Heating? Thermal Fuse Testing, Repair - YouTubeYouTubeStart of suggested clipEnd of suggested clipIf the needle does not move or the digital display does not change significantly. There is noMoreIf the needle does not move or the digital display does not change significantly. There is no continuity. Which means the fuse has blown out and will need to be replaced.
Will a dryer run with a bad thermistor?
The sensitivity of thermistors also carries some drawbacks. Thermistors can be damaged or destroyed if temperatures fluctuate outside of the acceptable range. A broken thermistor may prevent a dryer from operating at all.
What happens when a thermistor goes bad in a dryer?
When a thermistor is failing, it'll display incorrect temperatures, or you'll see impossible temperature fluctuations. For example, you may initially get a reading of 210 degrees only to see the temperature drop to 189 degrees and jump back up again.
How much does a thermostat cost for a dryer?
Dryer. Replacing a dryer thermostat runs about $80 to $200. Expect to pay about $20 for the thermostat and about one to two hours of labor to install it. No heat in your dryer may be caused by other issues, like a bad timer, fuse, temperature switch, or heating coil.
How to test if dryer is not heating?
Checking the thermal fuse is the fastest way to determine if it is why the dryer will not generate warm air. The best way to test a thermal fuse is by testing it with a ohmmeter or digital multimeter. For an ohmmeter, set it to "Rx1.". This will immediately gauge whether the thermal fuse is allowing the passage of electricity to ...
Why does my dryer not produce heat?
The thermal fuse is a safety feature against overheating, and will often blow if lint buildup in the trap or the dryer hose prevents proper air flow.
What happens if the ohmmeter needle does not move?
If the needle does not move, the fuse is bad and needs to be replaced.
How to bypass a thermal fuse?
In order to bypass the thermal fuse, use electrical tape to tape the two ends together. The thermal fuse will then be bypassed. Turn the dryer on to a heat cycle for no more than 90 seconds.
Where is the thermal fuse located on a dryer?
In most cases, the thermal fuse will be located behind the rear dryer panel or bottom kick panel. Depending on the model, kick panels can be removed by releasing the two metal clips holding it in place or by using a flathead screwdriver to pop the panel off.
Can you bypass a dryer fuse?
Bypassing a Dryer Thermal Fuse. If you do not have access to a multimeter or ohmmeter, you can momentarily bypass the thermal fuse. While bypassing the thermal fuse is easy, it is not something that should be done to operate the appliance beyond troubleshooting if you do not have access to a multimeter or ohmmeter.
Can you operate a dryer without a thermal fuse?
If the problems persist after replacing the fuse or the heating element, you may require a professional technician to repair the dryer. Never operate a dryer without a working thermal fuse in place. Advertisement. references.
