How deep should electrical conduit be buried?
The National Electric Code (NEC) sets the required burial depth of electric wire in rigid, non-metallic conduit, such as PVC, at 18-inches. Cable in any conduit, including PVC, that is buried at this depth is not in danger of being severed or disturbed by normal digging.
How to run a wire through a flexible conduit?
– Push the rod and string through the conduit until the string emerges from the opposite end. – Tie electrical wires onto the string. – Pull the rod back through the conduit, bringing along the wires. This method works best for shorter pieces of conduit.
Can I Bury flexible conduit?
The best thing is to do it right to the code in your area is to get the licensed electrician do the job. you can direct bury underground feeder cable, but it has to be buried at the depth specified in the NEC depending on its location, and it has to be protected where it comes out of the ground.
What is the minimum burial depth for PVC conduit?
The raceways shall be covered by a minimum of 2 inches of concrete extending down to rock. In this manner, how deep should electrical conduit be buried? The National Electric Code (NEC) sets the required burial depth of electric wire in rigid, non-metallic conduit, such as PVC, at 18-inches.
Can flexible metal conduit be used underground?
Good news – yes! Thanks to their flexibility and mechanical resistance flexible conduits can be installed underground to protect utilities against damage, tampering and weathering.. Flexible conduits come in extremely useful and offer a host of safety features, including corrosion, flame and water resistance.
How deep does flexible conduit need to be buried?
'' Liquid-tight flexible nonmetallic conduit suitable for use outdoors is marked ''Outdoor. '' According to Table 300.5 column 3 you would need 18" of cover. If you have a 120volt circuit that is GFCI protected you can reduce the cover to 12".
Can I bury flexible PVC conduit?
The flexible conduit fittings are not as watertight as fittings for rigid PVC conduit. Flexible PVC is also a lighter gauge than rigid wall conduit. For these reasons, flexible PVC should be used above ground and not buried.
Can metallic conduit be buried?
Electrical Cable Depth Options -deep trench, use galvanized rigid metal electrical conduit with individual conductors inside. For a 12-in. -deep trench, you can direct-bury GFCI-protected underground feeder cable with a short length of PVC conduit at the house.
Is flexible metal conduit code?
You may use flexible metal conduit in any length as long as you follow the Code rules for support (Sec. 350-18) and grounding (Sec. 250-18). Section 250-18 limits flexible metal conduit to 6 ft only for grounding.
Where is flexible metal conduit permitted to be used?
exposed and concealed locationsFMC shall be permitted to be used in exposed and concealed locations.
Can flex conduit be used outside?

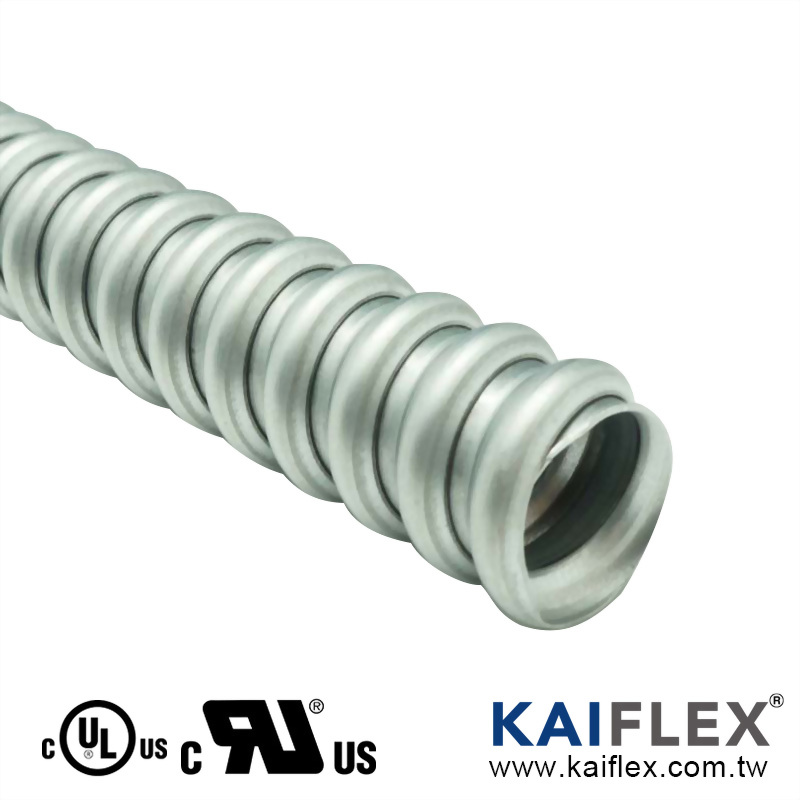

Flexible Metal Conduit is a helically injury, flexible tubing usually made from aluminum. Because it can not be used outside or in other wet areas, Flexible Metal Conduit is rather restricted in its usefulness, yet there are a couple of applications where it is the clear selection.
What is liquid tight flexible metal conduit used for?
Liquid tight flexible metal conduits or LFMCs are used to cover cables which need both flexibility and protection from moisture. This conduit has a waterproof jacket which means that it can be used in a variety of applications, including those that involve exposure to hazardous areas.
What conduit do I use for underground electrical?
PVC conduitWe typically prefer using PVC conduit when running power to a remote location underground. That gives you a lot more protection over direct burial cable in the long run.
How do you install metal conduit underground?
0:0011:37Electrical Service Conduit Installation - Underground Power ... - YouTubeYouTubeStart of suggested clipEnd of suggested clipYou're going to need some glue to glue together the electrical conduit any pvc glue will be fine.MoreYou're going to need some glue to glue together the electrical conduit any pvc glue will be fine. And you want to make sure you schedule 40 in this case per my code but i don't know what your codes.
Can aluminum rigid conduit be buried?
The NEC allows the use of rigid aluminum conduit in concrete or direct buried “where provided with approved supplementary corrosion protection.” This means that additional corrosion protection meeting the requirements of the AHJ is required (see “Supplementary Corrosion Protection” below).
Can EMT conduit be buried underground?
Electrical Metallic Tubing (EMT): a lightweight, bendable material that is typically used for conduits within walls. Its lightweight nature means it can be damaged easily and isn't a preferred option for underground work given the harsh elements.
What is the diameter of conduit?
However, it is crucial to note that the conduit you should choose to use must have a diameter not exceeding an inch.
Can you bury flexible conduit?
Can I bury flexible conduit? Not all types of conduit can be buried in the soil. EMT (Electrical Metallic Tubing) and flexible “Raintite” are not considered suitable for burial. Aluminum Rigid will corrode away in certain soils, such as clay, or in moist areas.
What is the diameter of liquid tight conduit?
However, it is crucial to note that the conduit you should choose to use must have a diameter not exceeding an inch. Click to see full answer.
Is flexible PVC pipe rated for underground use?
Even though it's more difficult to install, it's much stronger than flexible PVC pipe, which isn't rated for underground use at all. Flexible PVC is easy to crush or puncture, and bugs like termites can chew through it.
Can you use flexible conduit underground?
Keeping this in consideration, can I use flexible conduit underground? You can use a liquidtight flexible nonmetallic conduit for areas that are wet, damp , and where fire is most likely to develop. At the same time, a liquidtight flexible nonmetallic conduit can be buried underground, as corrosion is not an issue.
How deep should I bury GFCI wire?
For a 12-in.-deep trench, you can direct-bury GFCI-protected underground feeder cable with a short length of PVC conduit at the house. At 18 inches, you can use THWN-2 conductors inside a continuous length of PVC conduit, which protects the wire all the way through the trench to the house.
How far below ground do you need to dig to bury cable?
There's one restriction: It needs a conduit where the cable is exposed on the outside of the house and to 18 inches below the ground. Burying the cable 24 inches requires more digging, so this method only makes sense if you have easy-to-dig soil or are renting a trench digger.
How deep should I use UF-B cable?
At 12-in.-deep, use direct-bury UF-B (underground feeder) cable, provided it meets three criteria:#N#It has GFCI protection before it enters the ground;#N#Is limited to 120 volts (enough for your fountain );#N#Is protected by no more than a 20-amp fuse or breaker.
Why do you need flexible conduit?
Advanced. Flexible conduits play a major role when it comes to the efficient and safe wiring of an electrical system. Although the regular rigid conduits are still more popular than their flexible counterparts, you need flexible conduits every now and then, especially when you are routing wires around twists and turns.
What is liquid tight conduit?
Liquidtight metallic tubing (LMT) is a type of flexible conduit that has the capacity to keep its inside from being penetrable by water. This makes liquid-tight metallic tubing ideal for situations where you have to protect conductors from being exposed to the harsh elements. You can even use this tubing when you have to install conductors in ...
Why is LMT used for wire?
The reason for the LMT being an efficient house for any kind of wire is that the aluminum strip that is coiled into a tube is supplemented with a flexible PVC covering that keeps everything out, making the tubing highly impenetrable.
What is flexible metallic tubing?
Flexible metallic tubing is perfect for when you have to place wires in high places like plenum ceilings and air-handling areas. As such, flexible metallic tubing is perfect for when you are working with light fixtures and anything that would require stepping up on a ladder.
Is liquid tight conduit fire resistant?
The safest among all the flexible electrical conduits invented, the liquid-tight flexible nonmetallic conduit is both flame-resistant and water-resistant. You can use a liquid-tight flexible nonmetallic conduit for areas that are wet, damp, and where a fire is most likely to develop.
