Tying this second breaker box into the house circuitry is as simple as adding another breaker to the main panel. As long as the new circuit is wired to carry enough amps to drive all of the circuits that will be installed into it, this is a great way to add new flexibility to an old circuit panel.
How much does it cost to install a breaker box?
There's no real difference in the cost of installing an electrical breaker box inside or outside of your home, with both costing between $800 and $4,000 depending on the amperage and the number of circuits. Most modern boxes are installed outside the building, at the point where the electrical supply enters, for ease of access in an emergency.
How do you install a larger breaker in breaker box?
- Measure the room or rooms where you’ll be installing the circuit, and draw a detailed, accurate floor plan. ...
- On the floor plan, mark the position of every receptacle, switch, fixture and major appliance you plan to add to the circuit.
- Draw lines representing the electrical cable for the circuit. ...

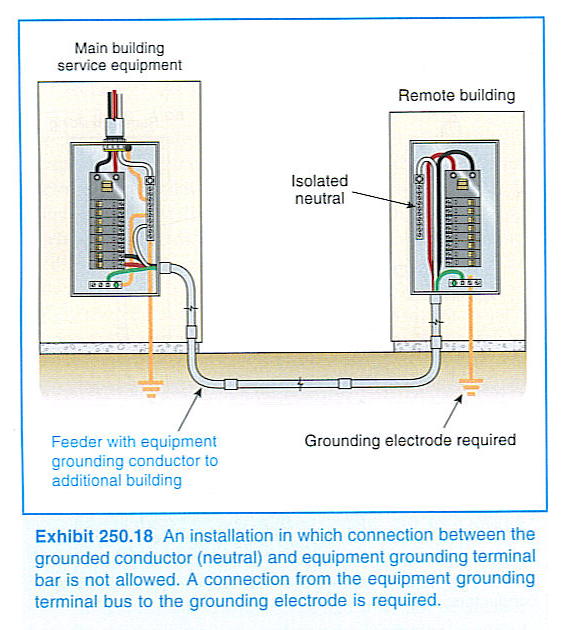

How to install a second circuit breaker box from the main?
How to Install a Second Circuit Breaker Box From the Main
- Choose a subpanel with more circuit breaker slots than you need in the short run that has a separate ground wire bus (as opposed to a panel that ...
- Remove a knockout cover on the side of the subpanel that will be closest to the main service panel. ...
- Turn off the power at the service panel through the main breakers.
- Remove a knockout cover on the side of the main panel that faces the subpanel. Connect the electrical conduit to the main panel through this knockout.
- Mount the subpanel on the wall, making sure it is tight against the wall. Depending on the type of wall, you may need to drill pilot holes first.
- Attach the 6-gauge green (ground) and white (neutral) cables in the subpanel. The ground bus has green terminals while the neutral bus has silver terminals.
- Attach the red and black cables to the hot bus bar terminals near the breaker slots. Each cable has its own terminal.
- Connect any new circuits to the subpanel, attaching the hot wire to a circuit breaker and the other wires to their respective buses.
- Clear knockout plates in the subpanel cover corresponding to the breakers you just installed. Install the panel cover.
- Connect the ground and neutral wires to their buses in the main panel. ...
- Turn off all breakers before restoring power to avoid possible power surges that can damage electrical components.
How do you upgrade a breaker box?
- If the panel looks old and you can no longer make out the labels, it’s likely that your panel is outdated and needs to be upgraded.
- If any of your electrical wires overheat or melt, this is a bad sign.
- If you can hear any audible noises from the panel, get an inspection right away.
How much does it cost to have a second breaker box installed?
How Much Does It Cost to Install a Subpanel Per Amperage? The average cost of installing a subpanel is between $400 and $1,750, depending on the amperage and number of circuits installed. Typically subpanels have 4 to 20 or more circuits and between 100 and 150 amps.
Can a house have two electrical boxes?
If you are in the US, then the answer is yes. The main electrical drop has to be sized for both panels and each panel should have its own utility meter. All NEC codes must be conformed to. You need to consult your local government to see about local codes as well.
Can you add an additional electrical panel?
If your home's electrical service panel (breaker box) is full and you need more room to add new circuits, installing a subpanel might be the way to go. Subpanels certainly can add convenience and plenty of room for installing new circuits, but your current system must have enough capacity to support a subpanel.
How do I add a second breaker?
Connect the ground and neutral wires to their buses in the main panel. Connect the red and black wires to the double-pole breaker and snap it into place on the hot bus bars. You will need two vertically adjacent slots for the double-pole breaker. Reinstall the service panel cover.
How much does it cost to add a second electrical panel?
The average cost to replace an electrical panel is $850 to $1,100 for 100 amps, or $1,200 to $1,600 is a new service panel is needed. To upgrade to 200 amps, expect to spend $1,300 to $2,500, or $2,000 to $4,000 to upgrade to 400 amps. A low-amp subpanel costs $500 to $1,000.
Can a house have 2 main breakers?
A main service panel can have up to six main breakers, per National Electrical Code [230.72(A)]. Almost all modern panels have a single main breaker, which is called a “service disconnect” in the electrical code, but more are allowed.
Can I run a 100 amp sub panel off 200 amp main?
Can you add a 100 amp breaker to your main panel? Yes you have 12 slots the double pole breaker will only take 2 slots.
When should I add a subpanel?
An electrician might add a sub panel to take the load off of the main circuit breaker panel. This can prevent overloading the electrical system and tripping circuit breakers or melting fuses. Sub panels are also used to separate the electrical needs of specific areas.
How do I increase the capacity of my electrical panel?
As household electrical needs increase, families often run out of these and/or the electrical panel can run out of places to put new ones. If you need more 15- or 20-amp breakers, a simple solution is to install a tandem breaker.
How much does it cost to add a subpanel?
$400 to $1,750Subpanel Installation Cost The cost to install a subpanel is $400 to $1,750. The price of your subpanel depends on the amperage and the number of circuits. Models have four to 20 or more circuits, and the amperage ranges from 100 to 150 amps.
Can you run a sub panel off a sub panel?
Answer: Yes. The main electrical service panel is where branch circuits originate.
What is a sub panel breaker box?
All homes have a main service panel. A subpanel is a smaller service panel that distributes power to a specific area of the home or other buildings on the property. It is essentially a satellite circuit breaker panel that has its own breakers.
How to increase the number of circuits in a fuse box?
Install tandem breakers to increase the number of circuits in your fuse box. Add tandem breakers to expand the available circuits in your fuse box (more accurately called a breaker box). But be careful. Only certain breaker slots will accept them.
Can you add more circuits to a fuse box?
When you want to add more circuits to your fuse box (breaker box), keep in mind that not all slots in a panel will accept tandem breakers (or a split breaker), and each panel will accept only a certain number. To find out where the tandem slots are located and how many you can install, first see if the information is on the label inside ...
Step 1
Mount the subpanel either adjacent to the main breaker box or in a remote location near where the new circuits will be installed. Take the cover off of the new box by removing the screws that hold it on. Using screws and a cordless electric screwdriver, attach the subpanel box to the wall about four or five feet above the floor.
Step 2
Strip about one foot of the outer insulation from 8/3 wire, using wire strippers. You will want to use heavy wire for this box so that it can carry the extra amps needed for multiple circuits. Slide the wire into the subpanel through the opening at the top of the box.
Step 3
Push the ends of the white and naked wires into the holes at the top of the neutral bus. Use a screwdriver to tighten the screws to hold the wires. The ends of the black wires go into the holes on the main breaker or the lugs if there is no main breaker in this box. Screw the wires securely in place.
Step 4
Run the wire from the subpanel back to the main breaker panel. Turn off the main breaker. Use wire cutters to trim the wire so that it is about a foot longer than what is needed. With the wire strippers, remove the outer and inner insulation in the same way as for the subpanel. Use a screwdriver and remove the cover from the main breaker panel.
Step 5
Slide the wire into the main breaker box through a port on the side of the box. Using a 50-amp 240-volt breaker, insert the black wires into the breaker and secure them by tightening the screws. Attach the breaker to the power bus along side the rest of the breakers in the panel.
Step 6
Replace the covers on both boxes and install the screws to hold them to the boxes. Turn on the main breaker to restore power to the system. Do not turn on the breaker to the subpanel until you have completed installing the circuits that it will control.
