Should I use a single or double pole circuit breaker?
Should I use a single or double pole circuit breaker? Assuming this is a single phase system, you use a single pole breaker for a 120 volt circuit and a double pole breaker for a 240 volt circuit. You are only attaching the hot leads to the breakers not the neutral wires. If you do not know this, it is probably advisable to hire an electrician.
Can you replace double pole with two single poles?
You can. But. Some contactors are wired up to control the on off of crank case heaters. So you have to watch that you don't wire them up wrong. Actually. More of a chance of something going wrong with a 2 pole contactor. Then a single pole contactor.But you can use a 2 pole in place of a single pole.
What is difference between single pole and double pole switch?
Electrical Wiring Difference Between Single-Pole & Double-Pole Switches
- A 240-Volt Circuit Needs a Double-Pole Switch. Two hot wires with a voltage of 240 volts between them feed electricity to residential panels in North America, and most circuits in ...
- The Difference Between Single-Pole and Double-Pole Switches. When you wire a switch to a 120-volt circuit, it functions to interrupt a single hot wire. ...
- Single-Pole vs. ...
Can a single pole breaker go bad?
Nothing to do with Ohm's law. Breakers go bad, whether they are a Single pole or double pole. Just because you have two poles on a breaker, one pole can go bad, while the other still works fine. Even more fun, when you have a 400amp breaker blow, causing the other phase to blow out that side. Nice fourth of July action.
Can you use a double pole breaker as two single pole breakers?
Can I replace a double pole breaker with two single pole breakers? Two pole breakers to one pole breaker. You'll have to return to the double-pole breaker if you decide to use the red wire again. Two single-pole breakers can't be used for a multiwire circuit.
Can I use one side of a 30 amp double pole breaker?
Answer: Yes, because the breaker draws 30 amps from each leg ... 1 leg per each busbar. You might be better using two individual 30 amp breakers since a double breaker has a connection bar and both sides will trip if either leg trips. Question: Can I use 10 gauge wire on a 20 amp breaker.
Can you use a double pole breaker for 110?
Also, make sure your breaker suits your electrical system. Using a double pole breaker for 110 Volt circuits is not recommended, for example.
What is the difference between single and double pole circuit breaker?
The main difference between a single vs double pole breaker is their power capacity. Single-pole breakers are typically used for low-power appliances, as they can provide 15 to 20 Ampereges and 120 Volts. Double-pole breakers protect heavy machines, as they can provide 20 to 60 Ampereges and 240Volts.Apr 3, 2022
Are both sides of double breaker 30 amp or each of them 15 amp?
Answer: Yes, because the breaker draws 30 amps from each leg ... 1 leg per each busbar. You might be better using two individual 30 amp breakers since a double breaker has a connection bar and both sides will trip if either leg trips.
What is the difference between a single pole and a double pole 30 amp breaker?
Distinctly, the difference between single-pole and double-pole breakers is how each is wired. Single-poles are wired with only one “hot” and one neutral wire. On the other hand, a double-pole breaker requires two “hot” wires that correspondingly share one neutral wire.Mar 1, 2022
Does it matter which wire goes where on a double pole breaker?
Connect the red wire to the lug on one of the breaker terminals – it doesn't matter which one – and the black wire to the other terminal. The breaker usually hooks or snaps into the chosen slot. Remember, you need two adjacent slots for a double-pole breaker.
What is a double pole 20 amp breaker used for?
Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.Jun 8, 2021
Can you use a 220 breaker for 110?
"Yes" is the answer. It has an internal common trip and will respond to overcurrent with a single circuit terminated on it.
Do I need a single pole or double pole socket?
The difference is simply the amount of poles being switched. Are single pole sockets safe? Single pole sockets are perfectly legal and are safe for many appliances, but it is safer to use double pole sockets. Therefore is always better to use double pole sockets in all situations.Feb 10, 2020
What is the difference between double pole and single pole?
A pole refers to the number of separate circuits a switch can control, a single pole switch can operate one circuit whereas a double pole switch can control two circuits.Mar 9, 2021
Can I use a 3 pole breaker for a 2 pole circuit?
The 3-pole P-frame breaker has a marking on the cover that states "single phase any 2 poles". Therefore on a 120/240Vac system, it is ok to use any 2 poles of a 3 pole P-frame breaker.

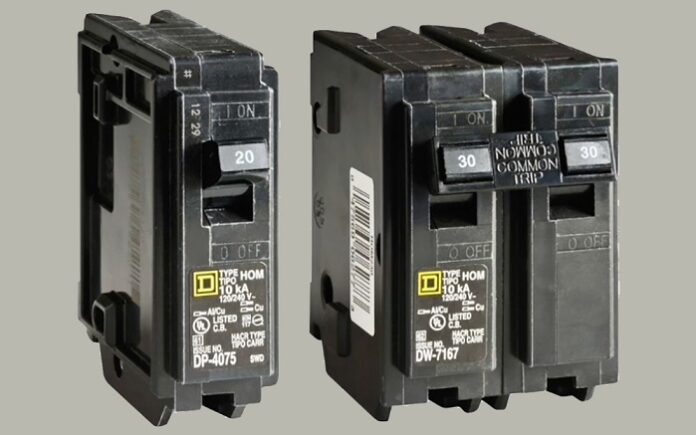

Double Pole Vs Single Pole Breaker
The main difference between a single vs double pole breaker is their power capacity.
What Is a Single Pole Breaker?
Generally, a single pole circuit breaker is a type of breaker that has a size that fits in one slot of your panel.
What Is a Double Pole Breaker?
Double pole circuit breakers are breakers that occupy two single pole breakers slots. It has a bridge switch and consists of two hot buses and one neutral wire as the third wire for its wiring system.
What Is Load Center?
The load center is where you’ll install your circuit breakers and control your circuit’s primary connection. Current load center ratings typically range from 40 to 600 amps for residential applications. It makes use of plug-in circuit breakers that can be used as single pole or double pole breakers.
Conclusion
You don’t need to know what is the better one between single pole vs double pole breaker since they are both essential in any electrical system. Furthermore, a 2 pole vs 1 pole breaker is only an issue when you need to install a circuit that needs to supply 240-volts.
What is a 20 amp circuit?
The "20 amp laundry room" circuit may serve nothing else besides receptacles in the laundry area. The red wire would come in handy for lights and/or receptacles just outside the laundry area. Even though it shares the neutral with the laundry circuit, it can be a legitimate separate 120 volt circuit. Upvote.
Can you use a red wire on a single pole?
Yes, that would be fine. . Note that if you decide to use the red wire again you'll have to return to the double-pole breaker. You cannot use two single-pole breakers for a multiwire branch circuit. Capping off the red is OK for single pole use.
How many amps does a double pole breaker use?
Double-pole breakers, on the other hand, are typically rated for 20 to 60 amps and supply 240-volt power to large appliances, like electric dryers and ranges.
Why does a breaker trip at the same time?
This causes the other half of the breaker to trip at the same time because the two halves are tied together by the single breaker bar or toggle.
How many volts does a breaker box carry?
Inside your breaker box or main service panel are energized metal plates, called "hot" bus bars. Each pole, or connection point, on the bars, carries 120 volts of electricity. When single-pole breakers are installed, they snap into one pole to receive 120 volts.
What is a circuit breaker?
Circuit breakers are the safety switches that protect all of the electrical circuits in your house. There are two types of standard breakers: single-pole and double-pole. Single-pole breakers are rated for 120 volts and 15 or 20 amps. They control standard lighting and outlet circuits as well as some appliance circuits in the house.
Can you use tandem breakers in a panel?
Tandem breakers must be installed properly to be legal and safe; they are approved for certain slots in certain panels. First, the panel must be designed to accept tandem breakers, and second, the toggles must be installed in the appropriate slots. On many panels, only some of the slots are suitable for tandem breakers.
Can a double pole breaker supply 120 volts?
Unlike a double-pole breaker, which serves a single 240-volt circuit, a tandem serves two 120-volt circuits; it cannot be used to supply 240 volts to a single circuit. A different type of doubled-up breaker is a "quad breaker," which serves two 240-volt circuits but is the same width as a standard double-pole breaker.
What is double pole breaker?
Double-pole breakers have two hot wires that are connected by a single neutral wire. That means if there’s a short circuit on either of the poles’ hot wires, both trip. These breakers can be used to serve two separate 120-volt circuits or they can serve a single 240-volt circuit, such as your central AC’s circuit.
How many wires are in a single pole breaker?
How they’re wired: Single-pole breakers are wired with one hot wire and one neutral wire. When there is an overload in a single-pole breaker’s circuit, only that particular breaker trips.
What is double pole breaker?
Continue Reading. A double pole breaker is a circuit breaker that allows two poles in your circuit breaker panel to feed one circuit as in a 240VAC air conditioner or electric stove. A single pole load would send all the load on one half of this circuit breaker. Entirely possible, but If the existing equipment remains on ...
What is the purpose of a two pole breaker?
If the breaker should trip it will simply also trip the unused leg. The purpose of the two pole breaker is to insure that if a fault occurs it trips both.
Why do you need a double pole MCB?
The reason you need a double pole MCB is that the power you are using isn’t really single phase, is is double phase.
What happens if one breaker is turned off?
If one breaker is turned off for maintenance (ie the circuit appliance turns off) it is a severe safety issue for the maintainer. If there is a change in the CB panel, and electrician may move the position of some breakers…. this can cause just one phase to the appliance, and it will not work, and is a safety issue.
How do circuit breakers work?
There are several ways that circuit breakers work. Basically if too much current is detected, the circuit will open (usually a spring mechanism). In the case of a single pole breaker, the current will be turned off to that circuit .
What happens if a 12/3 wire is tripped?
If only one breaker tripped then there is the very real chance that the neutral white wire can have significant power on it and can lead to a dangerous shock.
What is a single pole MCB?
Single Pole MCB is used to break ‘single phase’ and Double pole is used to break ‘phase and neutral’. In other words, single pole controls 1 live wire and it trips the respective line when the fault current exceeds the pickup setting and double pole can control 2 live wires/ one live & one neutral.
What is a single pole breaker?
Circuit breakers come in several styles, including the standard single-pole breakers that serve 120-volt household circuits and double- pole breakers that take up two slots in a breaker box and serve 240-volt appliances.
How many wires does a tandem circuit breaker use?
This limits the ability to use a single three-wire cable to feed both circuits, as is sometimes done for kitchen countertop circuits and in other applications.
What is a slimline breaker?
Slimline breakers are narrow-bodied breakers that can be slotted side-by-side in a single slot in the breaker box. The effect is the same—two circuits in a single breaker slot—but tandem breakers have a single body with two internal breaker mechanisms, while slimline breakers are simply extra-narrow breakers that can be fit side-by-side in one slot.
What is a tandem breaker?
A special kind of circuit breaker is the tandem breaker, which is designed to allow two 120-volt circuits to be fit into a single slot in the circuit breaker box. They are normally installed in situations where the breaker box is already full with no available slots for additional circuit breakers.
How to identify a tandem breaker?
Identifying a Tandem Breaker. A tandem circuit breaker has a single plastic body, sized the same as a normal 120-volt circuit breaker. But it also has two breaker levers on the face, which operate separate circuits.
Can you use a tandem breaker in a circuit breaker panel?
Tandem circuit breakers are not always allowed in circuit breaker panels. Check first with your local electrical inspector to determine if using tandem breakers is acceptable, and if so, how many are allowed. In most cases, when an existing panel has run out of usable space, a limited number of tandem breakers are allowed.
Can you use tandem breakers in new construction?
In new construction, however, tandem breakers may not be allowed at all.
